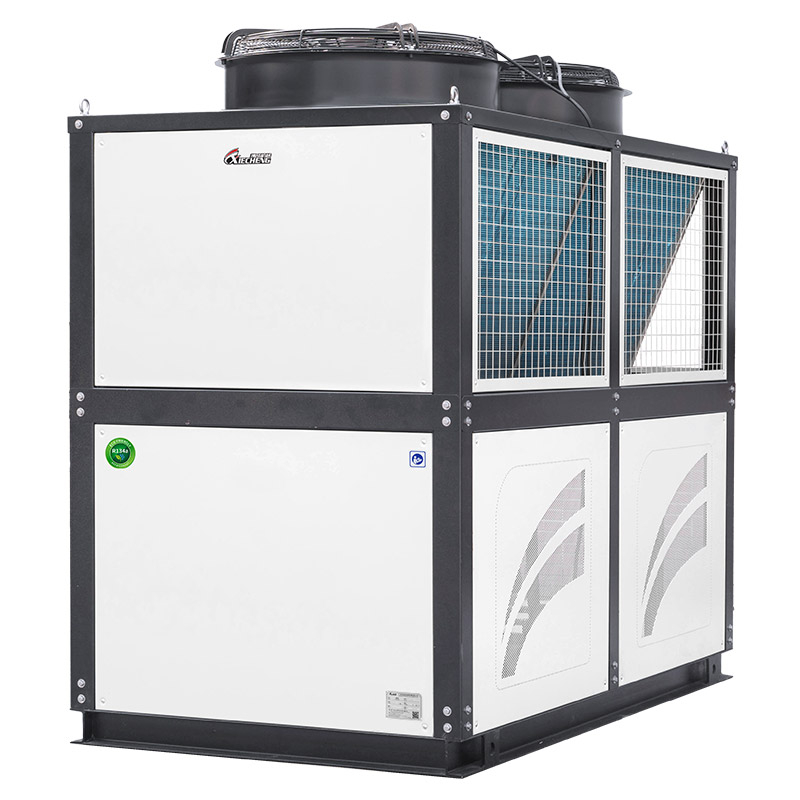

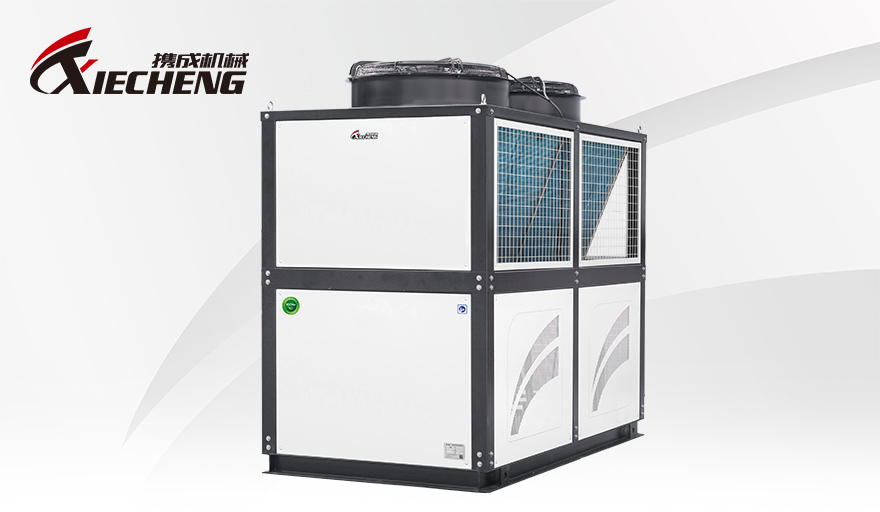

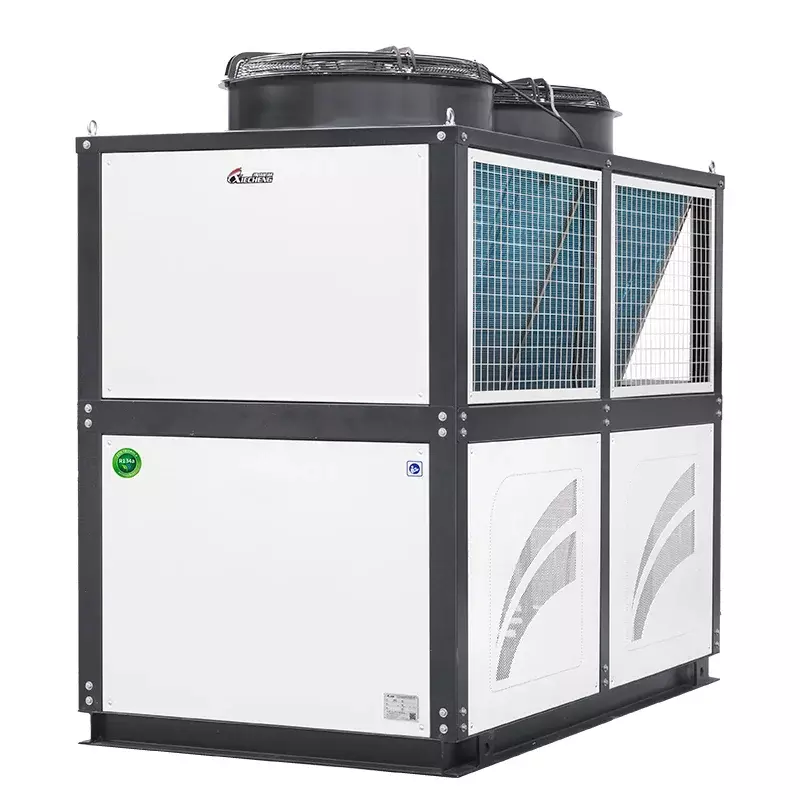

The scroll-type air-cooled heat pump unit adopts a high-efficiency fully enclosed scroll compressor, a high-efficiency shell-and-tube heat exchanger, and a coil heat exchanger, using R22, R134a, or R407c refrigerants. The energy efficiency rating can reach Level 2, with hot water outlet temperatures up to 75°C. The cooling capacity ranges from 25kw to 118.8kw, and the heating capacity ranges from 25kW to 127.2kW. It is widely used in various small and medium-sized commercial and industrial sites that require hot water for industrial production.

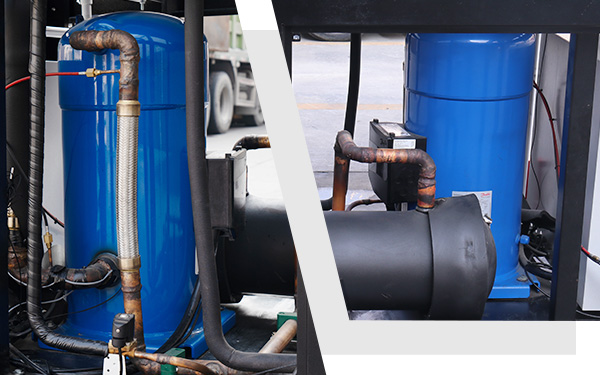

1. The scroll-type air-cooled heat pump unit uses a world-renowned fully enclosed scroll compressor, ensuring stable operation, low noise, and durability;;

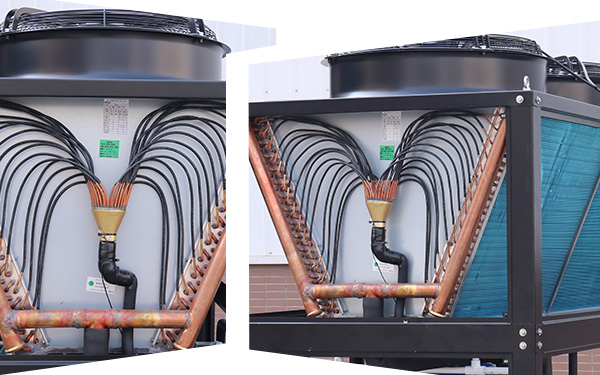

2. It employs independently developed high-efficiency evaporators and finned condensers, achieving a whole machine energy efficiency rating of Level 2;

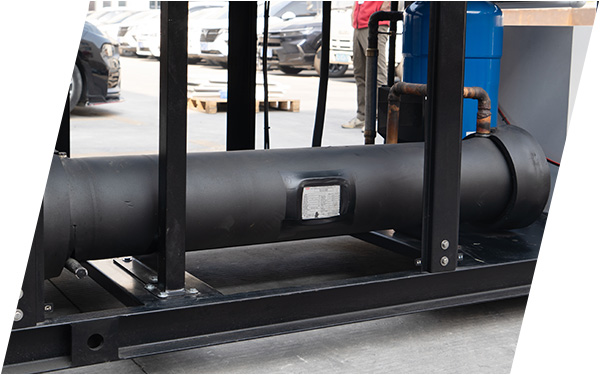

3. The inner-threaded shell-and-tube evaporator offers highly efficient heat transfer;
4. The flow device uses a well-known brand thermal expansion valve;

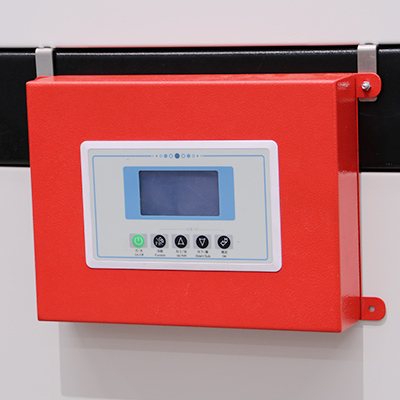

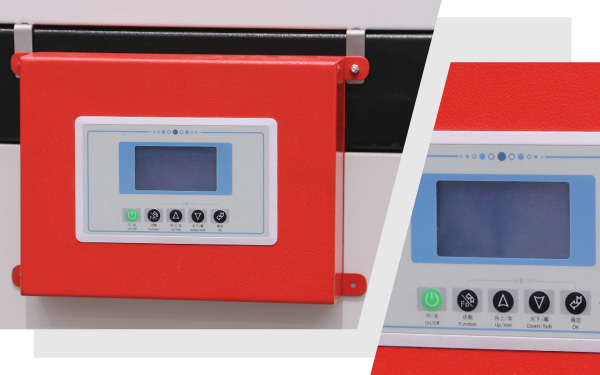

5. The scroll-type air-cooled heat pump unit can be controlled via microcomputer or PLC control, with optional network capabilities for remote monitoring and after-sales service;
6. It uses an external rotor for smooth operation, low noise, and high efficiency.
|
Model | 20HP | 25HP | 30HP | 40HP | 50HP | 60HP | 80HP | 100HP | |
Air Cooling Capacity(KW) | 77 | 92.8 | 114.7 | 154 | 185.2 | 230.4 | 308 | 371.4 | |
Compressor | Input Power(KW) | 15 | 19 | 22 | 30 | 37 | 45 | 60 | 75 |
Rated Power(HP) | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |
Power | 3PH(380V/220V/415V/440V/480V/575V)50/60HZ | ||||||||
Evaporator | Finned copper tube +low noise outer rotor fan | ||||||||
Refrigerant | Type | R22/R134a | |||||||
Quantity (KG) | 12 | 15 | 18 | 24 | 30 | 36 | 48 | 60 | |
Condenser | Type | Shell condenser | |||||||
Pie Diameter | 2″ | 2″ | 2.5″ | 2.5″ | 3″ | 3″ | 4″ | 4″ | |
Safety Protection | High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc. | ||||||||
Dimensions (L*W*H) | 2250*1200 *2150 | 3060*1350 *2100 | 3300*1500 *2300 | 3900*1500 *2300 | 2600*2300 *1980 | 4620*2200 *2200 | |||
Operating weight | 750 | 850 | 1000 | 1200 | 1250 | 1500 | 2000 | 2500 | |
