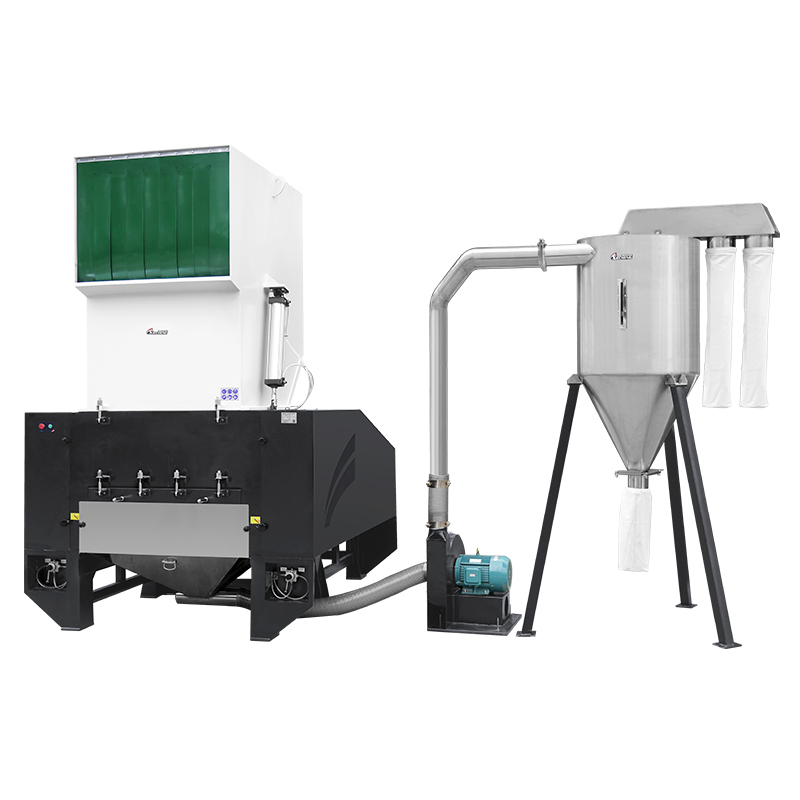

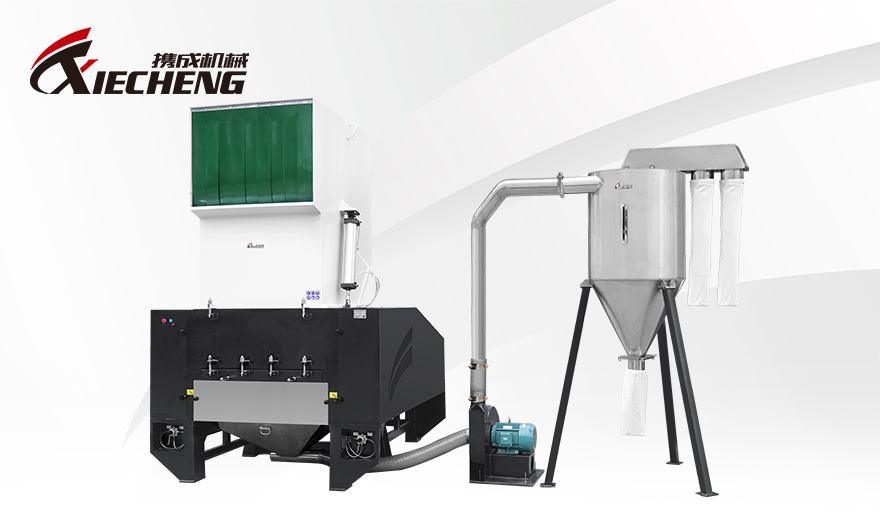

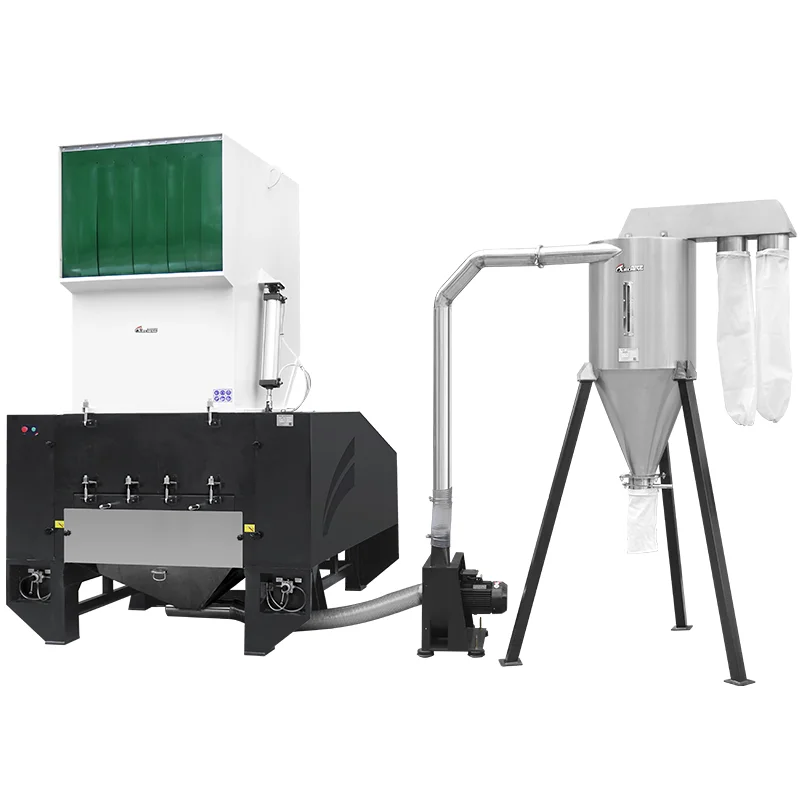

GRANULATING AUTO COLLECTING SYSTEM
· Able to work with all granulators;
· Fully automatic material transfer, no laborer required;
· Simple to disassemble and clean.
|
Structure Diagram
|
Product Details
Pure Raw Materials
The contact part of the raw material is a rubber hose(or option stainless steel pipe )material ,to keep raw material pure.
Dust-Collecting Devices
Dust-collecting devices adopted, absorbing dust.preventing air pollution.
|
Specifications
型号Model | XC-HS3HP | XC-HS4HP | XC-HS5HP | XC-HS7.5HP | XC-HS10HP |
Motor Power | 2.2KW/3HP | 3K/4HP | 4KW/5HP | 5.5KW/7.5HP | 7.5KW/10HP |
Loading Piping Diameter (mm) | Φ89 | Φ102 | Φ102 | Φ127 | Φ127 |
Lift (m) | 3 | 4 | 5 | 5 | 5 |
Hopper Capacity (KG) | 100 | 100 | 100 | 200 | 200 |
Suitable Crusher Model (HP)
| 5-20 | 30-40 | 50 | 75 | 100 |
Height of Collecting Tank (mm)
| H1 | 970 | 970 | 970 | 1075 | 1075 |
H2 | 2850 | 2850 | 2850 | 2950 | 2950 |
