Auto Powder Sifting Device

Product number:	Please select 3HP 4HP 5HP 7.5HP 10HP
Availability:

Quantity:


Inquire

product description

自动筛粉装置

AUTO POWDER SOFTING DEVICE

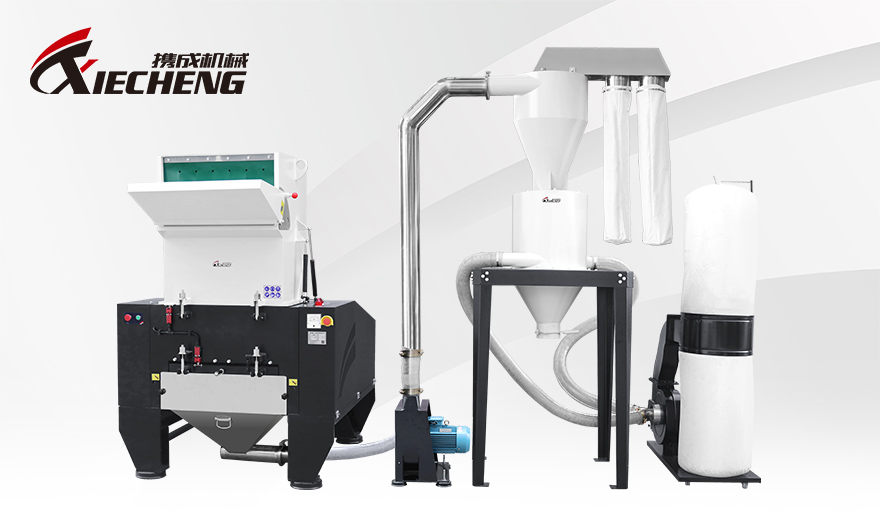

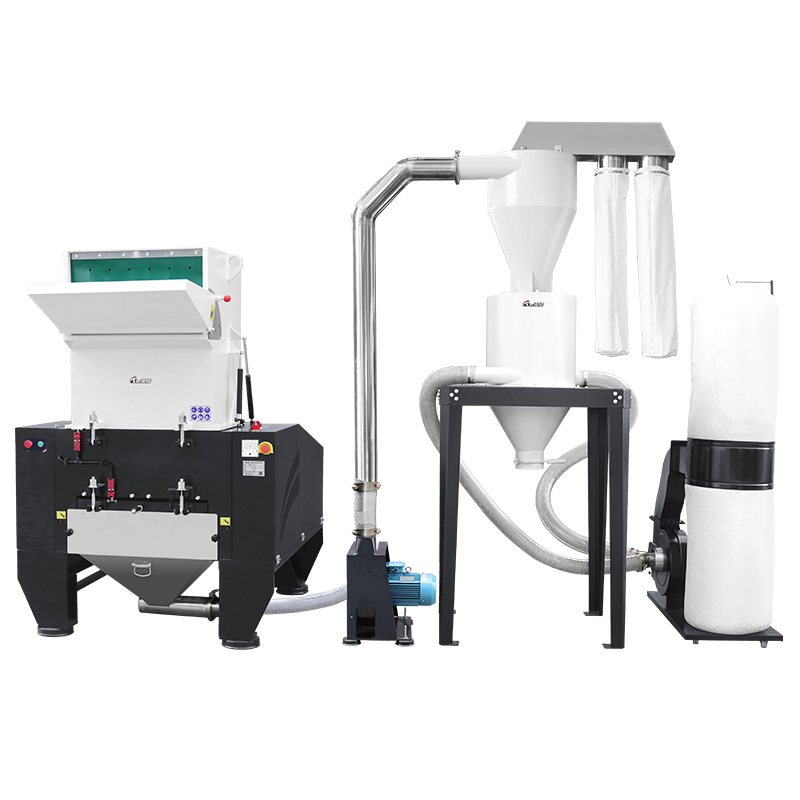

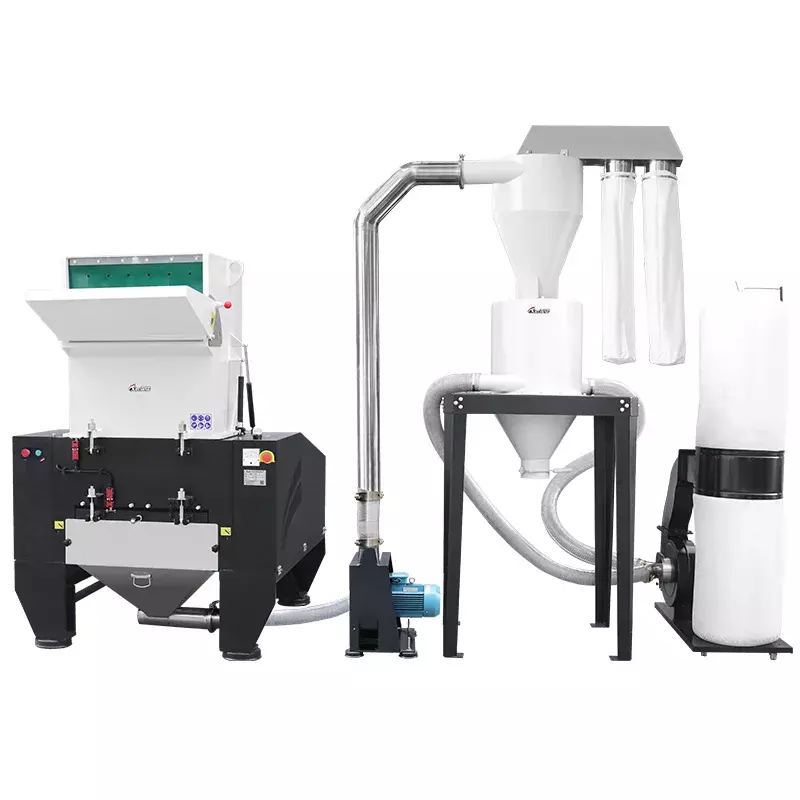

This device Equipped with Xiecheng powerful granulator. During granulating process some small powder would occur, the sifter device is to separate the powder from the recycled granules and to keep them compatible with new materials, hence enhancing the quality of products and reducing production costs. Suitable for all models.

|

Product Details

Loading Blower

Automatic conveying--with vacuum suction principle, the granulated material will be automatically convey to a separator;

Cyclone

Automatic separation of powder--separating powder produced during the granulating from the granules by a separator;

Dust Collecting Bag & Blower

Protection and dust removing function--the powder sifter device could take away the dust on blades and inside grinding chamber, by the negative pressure suction created by sifter blower, hence reducing the workload of manual cleaning of the grinding chamber and labor. Suitable for all kinds of granulators.

|

Structure Diagram

结构简图

|

Specifications

型号	3HP	4HP	5HP	7.5HP	10HP
Collective Blower （HP/KW)	3HP/2.2KW	4HP/3KW	5HP/4KW	7.5HP/5.5KW	10HP/7.5KW
Collective Blower Pipe Diameter（mm）	89	102	102	127	127
Dust Separated Blower（HP/KW)	3HP/2.2KW
Dust Separated Blower Pipe Diameter（mm）	89
Models（HP）	5-20HP	30-40HP	50HP	75HP	100HP
