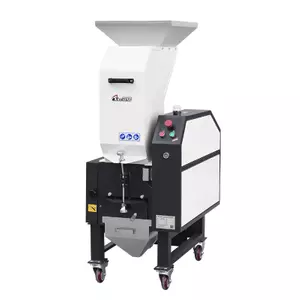

Screenless Low Speed Granulator

model:
Availability:
Quantity:
Product Description

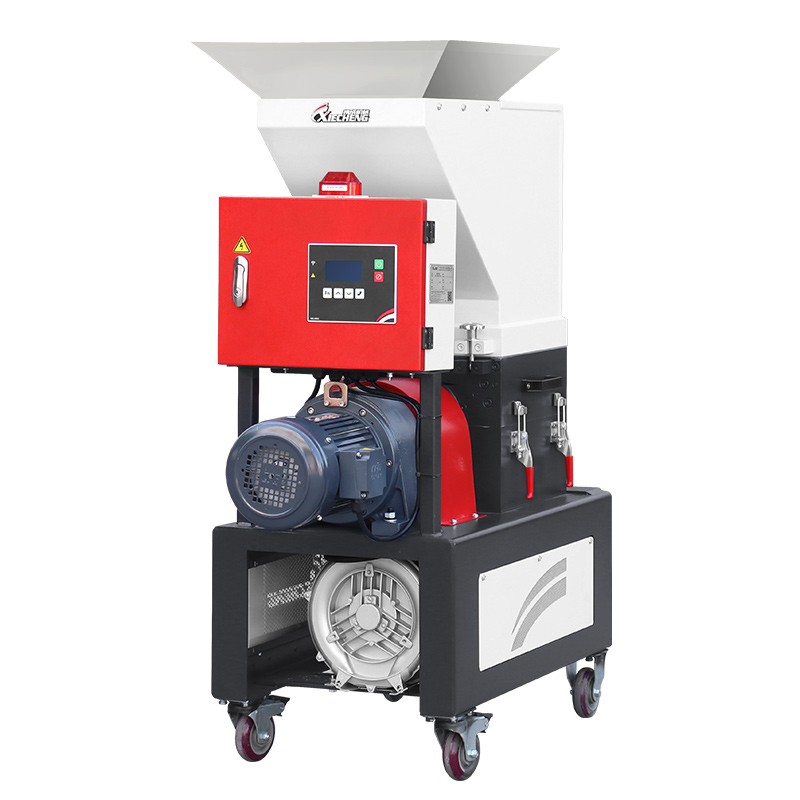

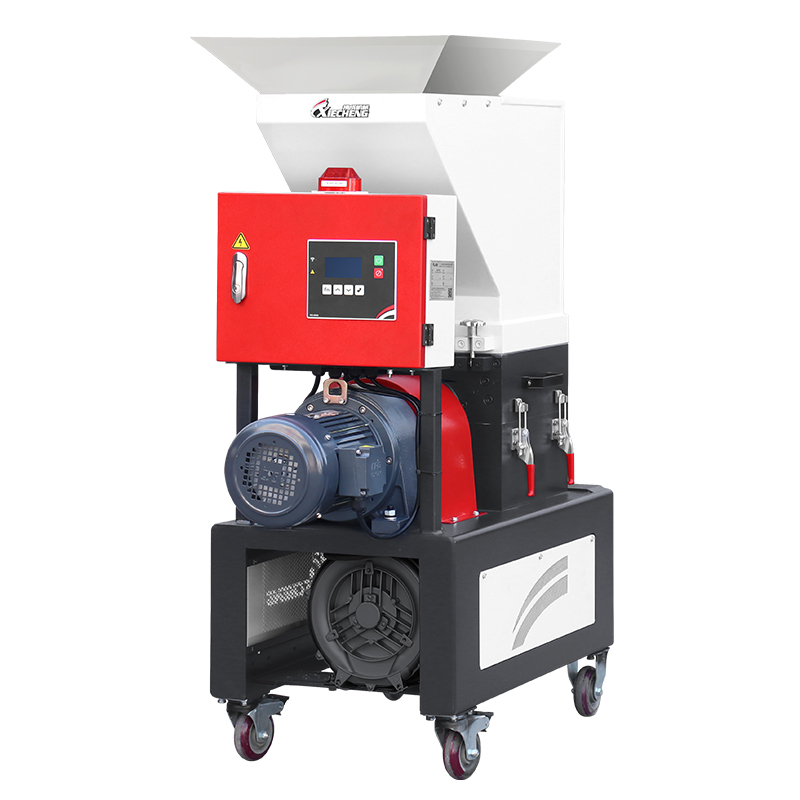

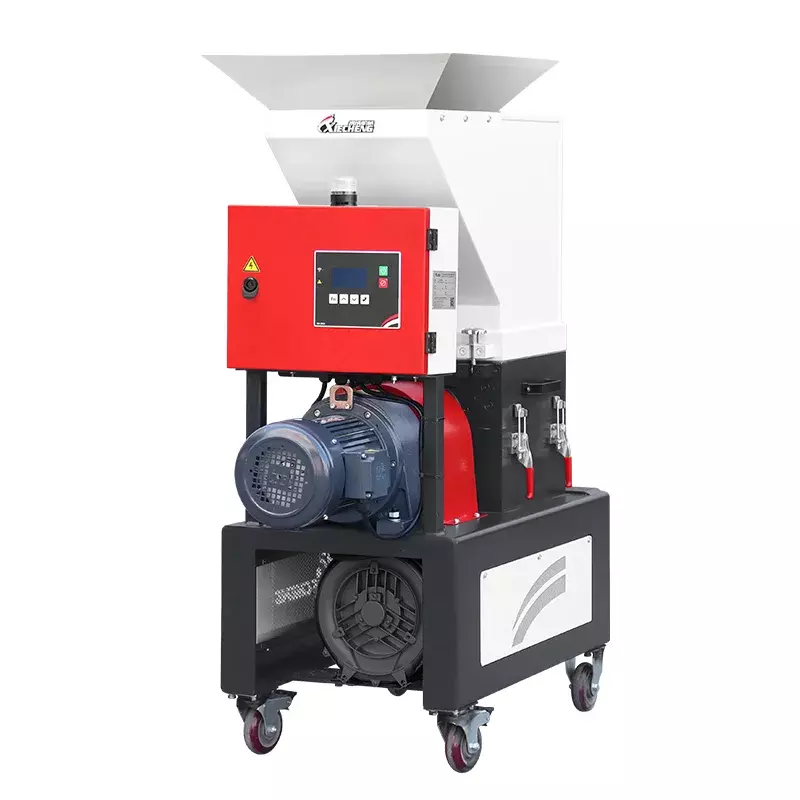

screenless low speed granulator


SCREENLESS LOW SPEED GRANULATOR

The new generation of low speed granulator is designed to regrind the runners from injection molding machines and recycle directly back into IMM. No screen mesh is needed. It’s a combination of stability, low noise and low powder.



Advantages of Low Speed Online Plastic Crusher:

1. With the teeth cutters and hook cutters design, running with low rotary speed, screenless, no leftovers, evenly output and least dust produced;

2. Capable of auto reverse running and cleaning when material stuck occurs, all-round protection of the motor;

3. With timing function to turn on or off, saving energy;

4. Controlled by microcomputer, easy operation and maintenance;

5. Double layered soundproof designed feeding hopper, low noise occurs;

6. Fast disassembly and assembly design for processing chamber, easy to clean and maintain;

7. With multiple protections as phase sequence protection, overload protection, limit protection, etc;

8. Configuration is optional on active or passive collecting.


automatic reverse function diagram


Low Speed Online Plastic Crusher Introduction Video:

Youtube: https://youtu.be/_3b5jVjX_qQ


产品细节

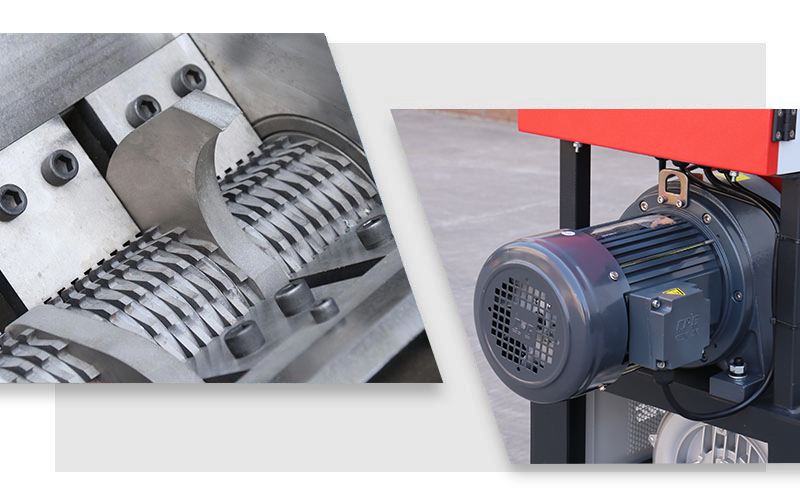

cutters of low speed plastic crusher




New Design Cutters

With the teeth cutters and hook cutters design, running with low rotary speed, screenless, no leftovers, evenly output and least dust produced.


automatic recerse function of low speed plastic crusher





Automatic Reverse Function

Capable of auto reverse running and cleaning when material stuck occurs, all-round protection of the motor.

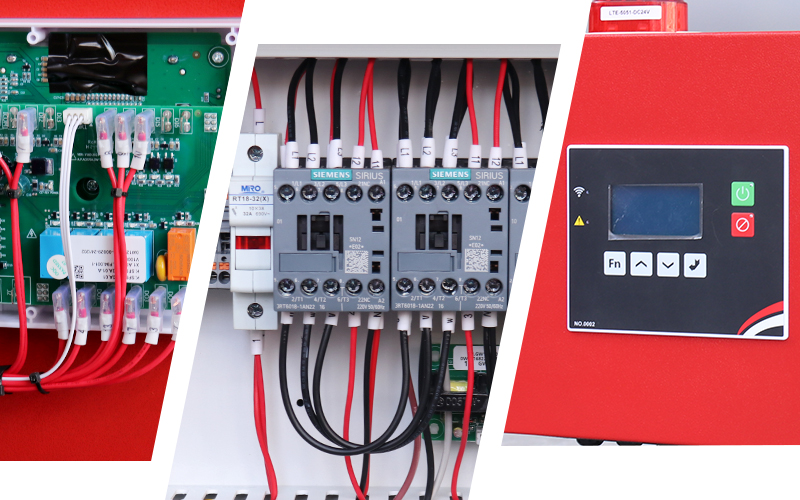

controller of low speed granulator




Controller

Controlled by microcomputer, easy operation and maintenance;

With timing function to turn on or off, saving energy.

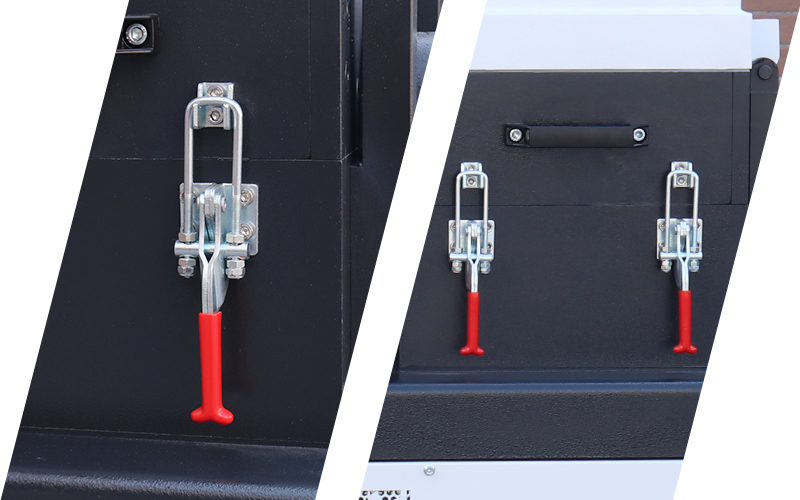

detachable design for low speed granulator





Detachable Design

Fast disassembly and assembly design for processing chamber, easy to clean and maintain.


hopper of low speed plastic crusher





Feeding Hopper

Double layered soundproof designed feeding hopper, low noise occurs.


结构件图

new & old materials mixing recycling system diagram

NEW & OLD MATERIALS MIXING RECYCLING SYSTEM DIAGRAM


技术参数

Parameters of Low Speed Online Plastic Crusher:

Model

XC-GO1HP

XC-GO2HP

XC-GO3HP

XC-GO1HPRC

XC-GO2HPRC

XC-GO3HPRC

Feeding Hopper Size (mm)

505*360

505*470

505*580

505*360

505*470

505*580

Grinding  Chamber (mm)

310*200

310*310

310*420

310*200

310*310

310*420

Grinding Capacity (kg)

10-15

20-25

22-27

10-15

20-25

22-27

Power

KW

1.1

1.5

2.2

1.1

1.5

2.2

Stationary cutter (piece)

4

6

8

4

6

8

Teeth Cutter (piece)

2

3

4

2

3

4

Hook Cutter (piece)

1

2

3

1

2

3

Dimensions (LxWxH)

945*570*1315

1055*570*1315

1200*570*1315

945*570*1315

1055*570*1315

1200*570*1315

Spindle Speed (R/min)

25

25

25

25

25

25

Conveying Blower (KW)

0.37KW

0.37KW

0.37KW

Note

should be used with auto loader and proportional valve

equipped with recycled system
