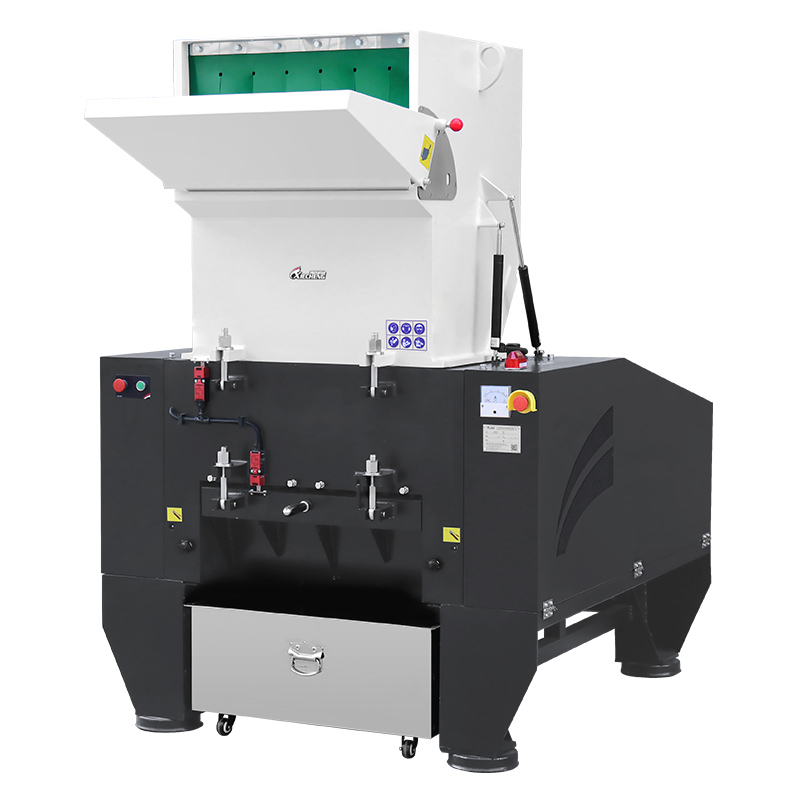

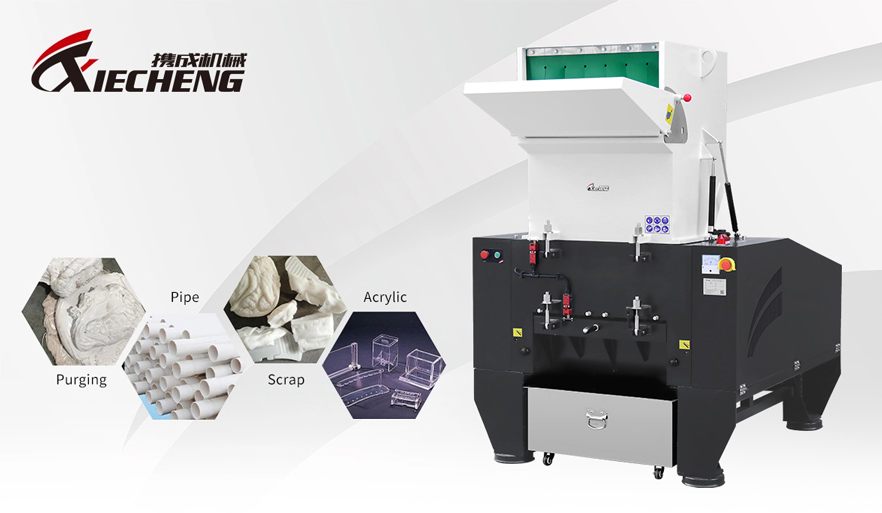

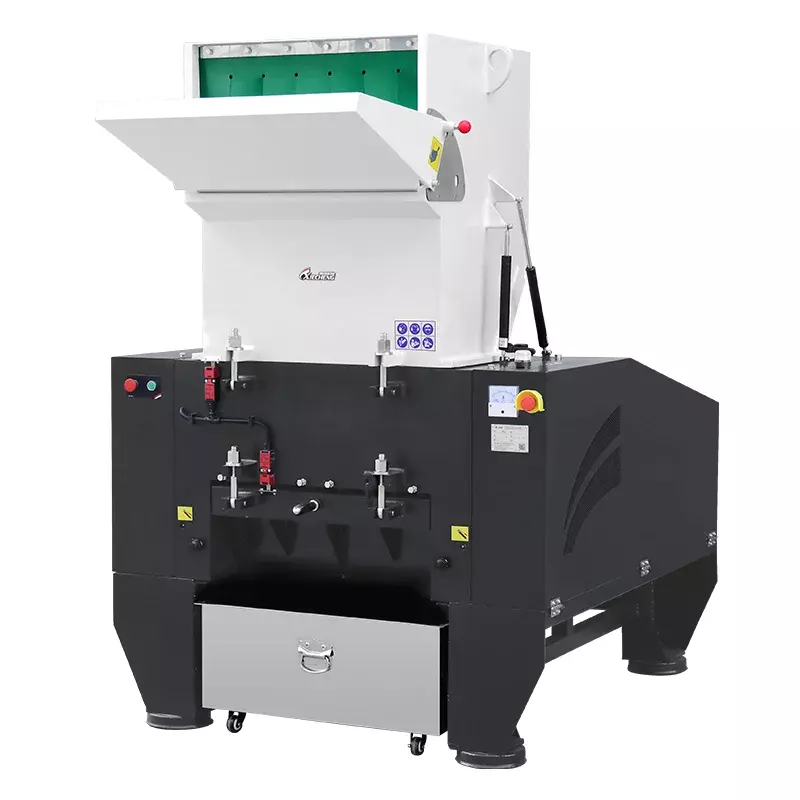

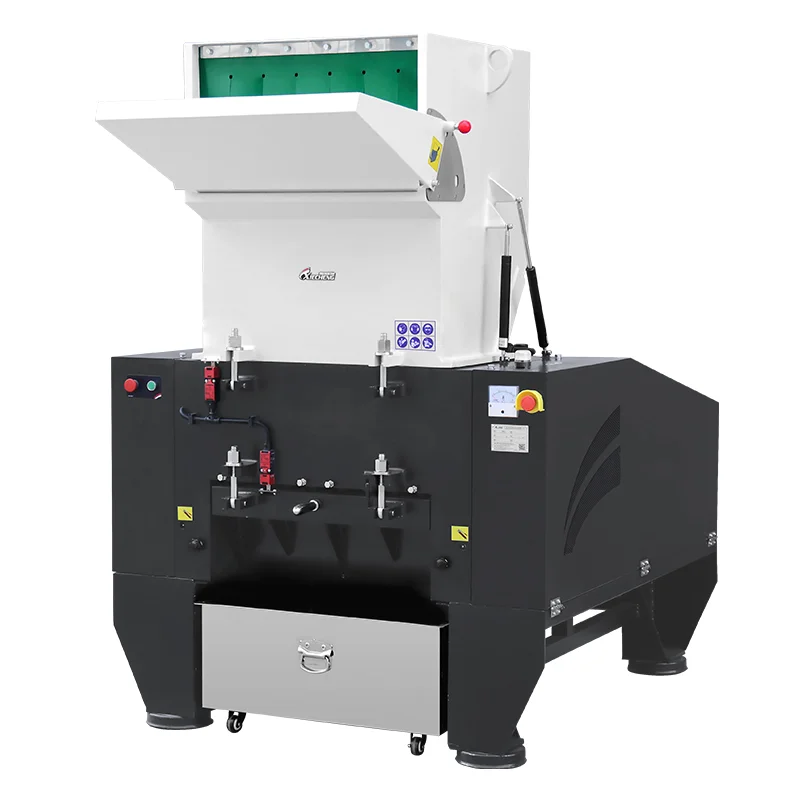

The GY series claw-type plastic crusher from XIECHENG is an efficient and reliable plastic crushing machine. It features a front blade design and optimized cutting angles, allowing it to efficiently process large plastic lumps or materials with high hardness. This equipment can quickly crush various plastic products into small particles, facilitating subsequent recycling, reuse, or disposal. The claw-type plastic crusher possesses excellent crushing capabilities and reliable performance, making it widely used in rubber and plastic molding factories, plastic recycling and processing industries, and plastic product manufacturing enterprises. It plays a significant role in the disposal of plastic waste and the promotion of resource recycling.
|
1. Versatility: It is suitable for granulating and recycling various types of plastic materials, including various plastic products, large plastic lumps, and rubber lumps.
2. High efficiency: It demonstrates significant crushing effectiveness on materials with high hardness, enabling efficient processing of such materials.
3. Customizability: Customized machine models specifically designed for glass fiber materials can be provided according to customer requirements, greatly enhancing the machine's lifespan.
4. Reliability: The blade frame is made from a single-cut steel plate, resulting in higher strength and stability.
|
|
The Xiecheng claw-type plastic crusher is widely used in the crushing and recycling of various plastic materials, including lumps, sprues, pipes, preforms, trays, plastic drums, strapping, shoe lasts, and various plastic products. It particularly excels in crushing large plastic lumps, rubber lumps, and materials with high hardness, delivering significant crushing results.
Furthermore, we can also provide customized plastic crusher models for glass fiber materials, specifically suitable for crushing PA66/PA6+20%-50%GF materials. This not only improves the lifespan of the machine but also effectively handles glass fiber-reinforced materials.
Lumps | Sprues | Pipes |
Preforms | Trays | Plastic drums |
Strapping | Plastic cups | Shoe lasts |
|
Model | XC-GY10HP | XC-GY15HP | XC-GY20HP | XC-GY30HP | XC-GY50HP | XC-GY75HP | XC-GY100HP | |
XC-GY10HP-SP | XC-GY15HP-SP | XC-GY20HP-SP | XC-GY30HP-SP | XC-GY50HP-SP | XC-GY75HP-SP | XC-GY100HP-SP | ||
Grinding Chamber(mm) | 360x260 | 420x280 | 480x330 | 660x350 | 720x500 | 955x820 | 1050x820 | |
Grinding Capacity (KG/H) | 200-400 | 300-500 | 350-550 | 500-800 | 800-1200 | 850-1300 | 1000-1500 | |
Stationary Cutter | 2 | 2 | 2 | 4 | 4 | 4 | 4 | |
Rotary Cutter | 18 | 21 | 24 | 27 | 27 | 30 | 33 | |
Mesh Size (mm) | 10 | 10 | 10 | 12 | 12 | 12 | 12 | |
Power | KW | 7.5 | 11 | 15 | 22 | 37 | 55 | 75 |
HP | 10 | 15 | 20 | 30 | 50 | 75 | 100 | |
Dimensions (LxWxHxH1 mm) | 1000x830x 1270x960 | 1200x995x 1540x1215 | 1300x1075x 1725x1350 | 1500x1330x 1880x1480 | 2000x1535x 2470x1914 | 2420x2050x 3300x2460 | 2420x2065x3300x2460 | |
Approx. Net Weight (KG) | 540 | 835 | 1100 | 1810 | 2750 | 5400 | 6250 | |
Dimension for SP (mm) | 1250x880x 1500x1190 | 1420×1020× 1760×1440 | 1500×1140× 1920×1540 | 1750×1400× 2140×1735 | 2150×1570× 2770×2200 | 2630x1985x 3560x2720 | 2630x2080x 3560x2720 | |
Collective Blower (KW) | 2.2 | 2.2 | 2.2 | 3 | 4 | 5.5 | 7.5 | |
Approx. N.W for SP (KG) | 860 | 1180 | 1400 | 2280 | 3630 | 5900 | 6500 |
|
1. The main spindle blade holder is made of 45# steel and undergoes quenching and tempering treatment.
2. 2.The blade material is CR12MOV, with a hardness of 57-59 degrees.
3. The blades are installed using internal hexagon socket screws, which prevents the screws from wearing out due to prolonged use.

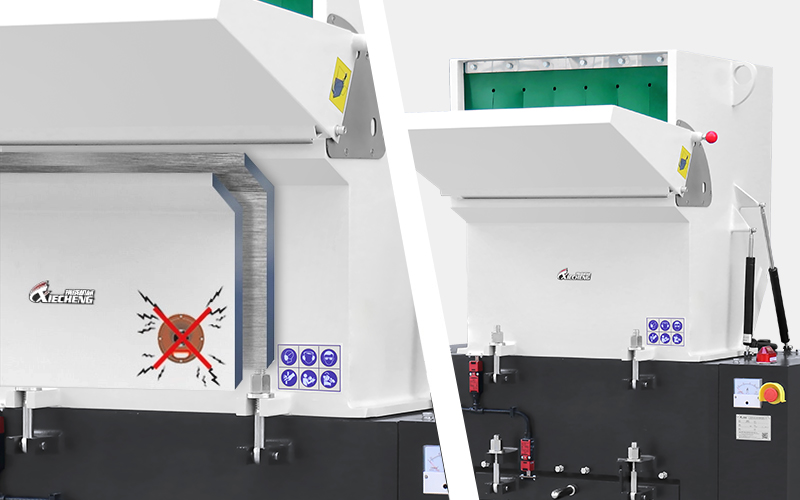

The feeding hopper features a double-layer soundproof design on all four sides. The inner layer is made of stainless steel, and it is filled with soundproofing material in the middle. This design provides excellent noise reduction and ensures a quiet operation.
For machines with a power rating of 30HP or higher, a cooling system is included as a standard feature in the machine enclosure. This system allows the timely release of heat generated during the crushing process due to friction, thereby enhancing the machine's efficiency and lifespan.

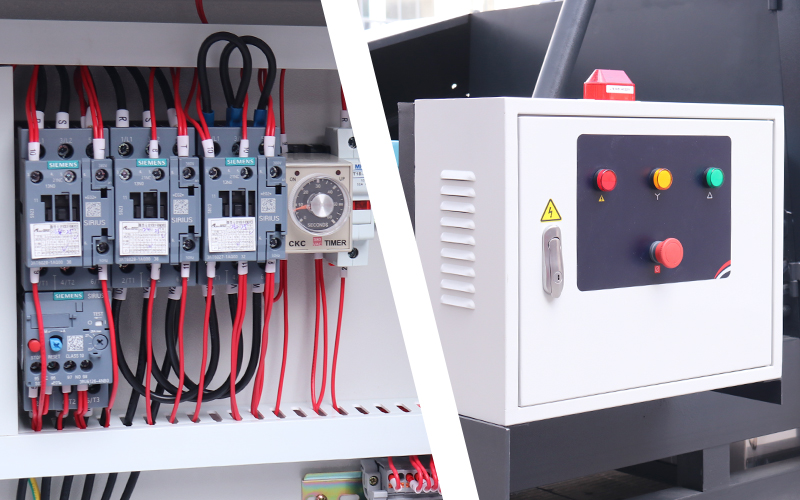

The equipment is equipped with globally renowned Siemens electrical components, ensuring the stability of its performance and providing a high level of safety and reliability.
|

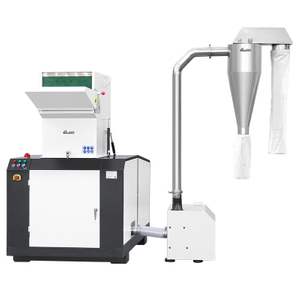

The standard Claw type plastic crusher offers the option to configure an automatic recycling and screening system. This system automatically recovers crushed materials, reducing the reliance on manual operations and thereby improving production efficiency. For models with a power rating of 75HP and above, the feeding hopper and screen frame are equipped with a cylinder system, which is now a standard configuration. For other models, you have the option to choose whether to add this cylinder system.
Granulating Auto Collecting System
Auto Powder Sifting Device
Cylinder System
|
Lumps
Sprues
Pipes
Preforms
Trays
Strapping
