Round Type Cooling Tower

Availability:
Quantity:
Inquire

Product Description

圆塔

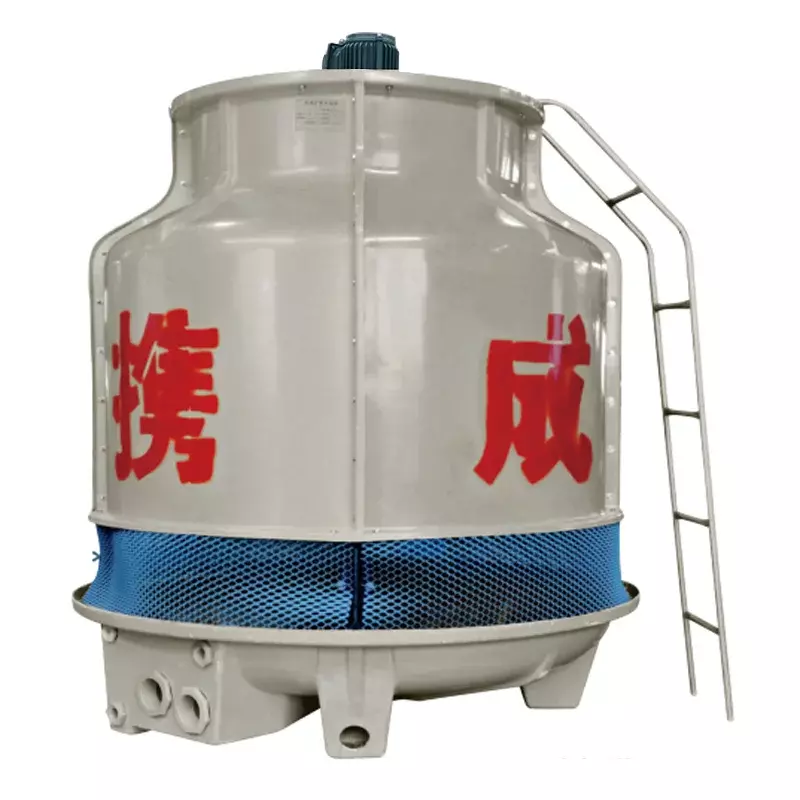

Round Type Cooling Tower


|

Specifications：


Model ST 10 15 20 25 30 40 50 60 80
Flow rate m³/h 7.2 11.7 14.4 18.5 23.4 31.2 39.2 46.8 62.6
Air Volume m³/h 4300 6430 8250 10730 12870 17160 21580 25740 34450
Motor kw 0.18 0.18 0.37 0.55 0.55 0.75 1.5 1.5 1.5
Sound Volume dBA 47 48 50 52 54 56.5 57.5 57 59
Approx. Net weight kg 50 54 67 98 116 116 190 250 280
Operating weight kg 195 290 300 500 530 545 975 1250 1280
Basin Diameter mm 1060 1060 1200 1430 1620 1610 1810 2100 2100
Tower Height mm 1660 1760 1760 1950 2050 2075 2180 2200 2285
Model ST 100 125 150 175 200 225 250 300 350 400
Flow rate m³/h 78.1 97.5 117 136.8 156.2 175.5 195.1 234 273.2 312.1
Air Volume m³/h 53660 53660 64350 75350 85930 96525 107320 128700 128700 171660
Motor kw 2.2 2.2 2.2 4 4 5.5 5.5 7.5 7.5 11
Sound Volume dBA 60 60 59 60 60 54 67 56 56 59
Approx. Net weight kg 540 540 580 760 880 1050 1080 1760 1760 2840
Operating weight kg 1640 1640 1780 1860 1980 2770 2800 3930 3930 5740
Basin Diameter mm 2700 2700 3000 3300 3300 4120 4100 4730 4630 5600
Tower Height mm 2370 2370 2670 2780 2780 3850 3850 3680 3680 3840
