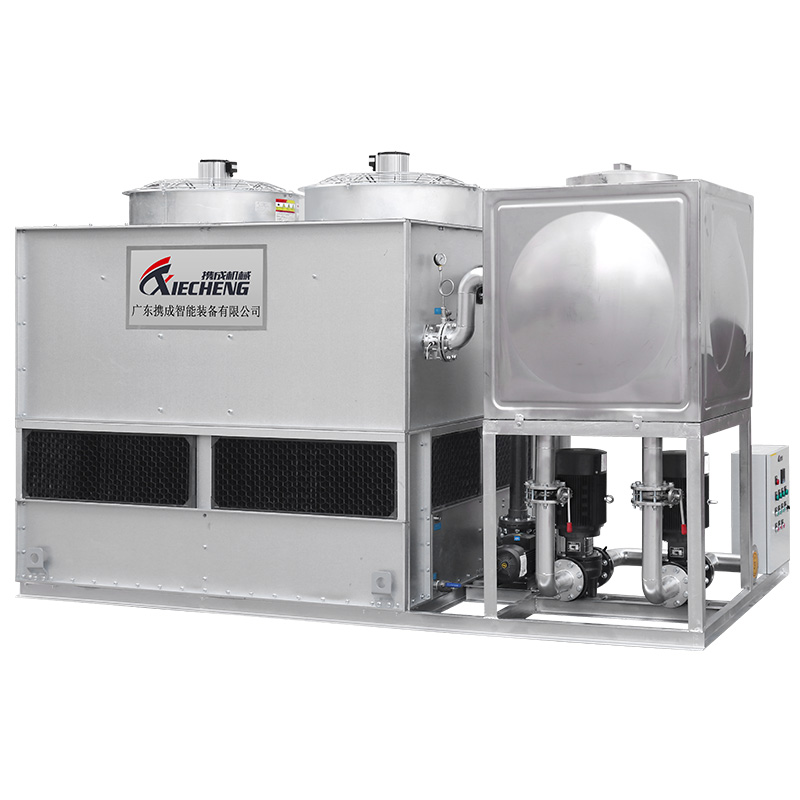

Working Principle

The workingfluid (pure water orotherliquid) circulatesinside the coil of the closed coolingtower and isindirectly cooled with the radiating water. The heat of the working fluid is dispersed into the water flowing through the coil through the coil. At the same time, the air outside the unit enters from the airinlet at the bottom, crosses the flow direction ofthe water, and flows in the opposite direction through the coil. Asmall part ofthewater evaporates and absorbs the heat. The hot and humid airis dischargedinto the atmosphere by the ventilator at the top of the cooling tower. The remaining water falls into the bottom water pan, is recirculated by the water pump to the water distribution system, passes through the pre-coolingfiller, and is poured back onto the coil.

|

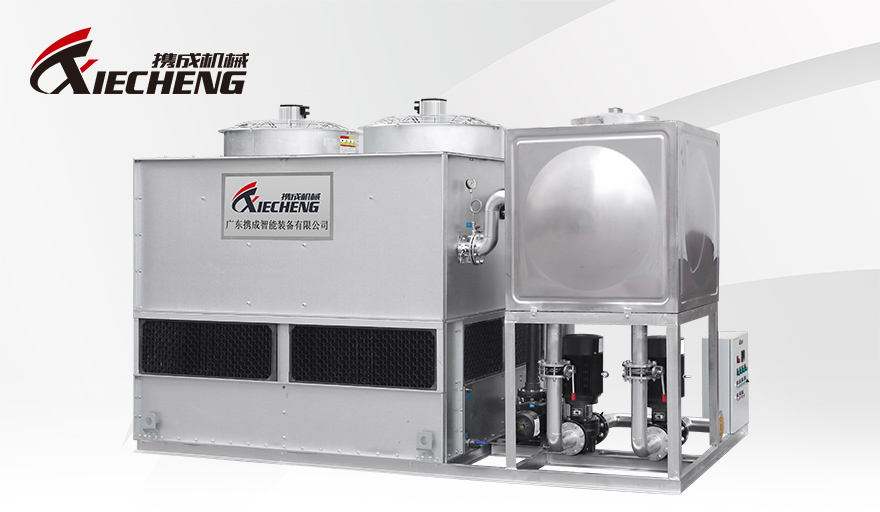

FEATURE:

1. The cooling medium has a closed cycle and no impurities enter,ensuring the purity of the medium;

2. The cooling tower uses magnesium-aluminum-zinc plate materialas the base steel of the tower body, and there are coil coolers witha variety of materials to choose from;

3. The spray water completely wets the outer wall of the condenser,avoiding the formation of scale in dry spots and maximizing systemefficiency;

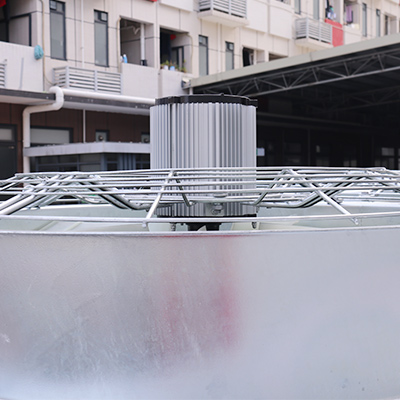

4. Special three-proof fan for outdoor environment, the motor adoptsa protection grade oflP55, an insulation grade of F, and axial flowfan with aluminum alloy blades;

5. Small size, can be moved and placed as needed, and has lowmaintenance costs.

|

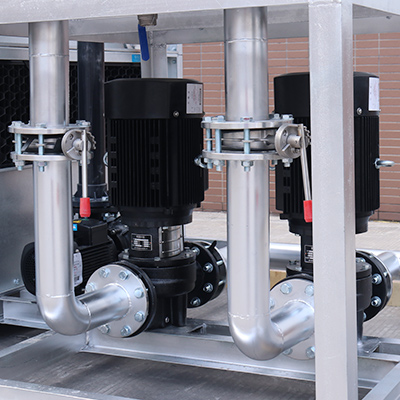

Product Details

The cooling medium has a closed cycle and no impurities enter, ensuring the purity of the medium;

Special three-proof fan for outdoor environment, the motor adopts  a protection grade of IP55, an insulation grade of F, and axial flow fan with aluminum alloy blades;

|

Specifications：

Model	Cooling Capacity	Cooling Water Volume	Exhaust Fan			Spray  Pump			Pipe size			Dimensions			Weight
	kcal/h	m³/h	Fan Diameter (mm)	Air Volume(m³/h)	Motor Power (kw)	Spray volume(m³/h)	Distance	Power(kw)	Inlet/outlet diameter(DN)	Sewage Discharge (DN)	Refilling Water    (DN)	L     (mm)	W     (mm)	H     (mm)	Operating Weight (KG)
XC-ST10B	50000	10	700	10*10³	0.75	11	10	0.55	50	25	25	1600	880	1950	400
XC-ST15B	75000	15	700	20*10³	0.75*2	16	7.5	0.75	65	25	25	2300	1020	2150	520
XC-ST20B	100000	20	700	20*10³	0.75*2	20	7	0.75	65	25	25	2300	1020	2150	550
XC-ST30B	150000	30	750	39*10³	1.1*2	22.3	10	1.1	65	32	25	2800	1170	2320	580
XC-ST40B	200000	40	800	40*10³	1.5*2	55	4.5	1.5	80	32	25	2800	1170	2420	900
XC-ST50B	250000	50	800	40*10³	1.5*2	70	4	1.5	80	32	25	2800	1170	2600	1050
XC-ST60B	300000	60	900	62*10³	2.2*2	65	5	1.5	80	32	25	2800	1170	2600	1150
XC-ST70B	350000	70	900	62*10³	2.2*2	80	4	2.2	100	32	25	2800	1600	2800	1400
XC-ST80B	400000	80	900	62*10³	2.2*2	90	5	2.2	100	32	25	2800	1600	2800	1450
XC-ST100B	500000	100	1000	80*10³	3*2	110	5	2.2	125	40	25	3400	1800	2960	1800
XC-ST125B	625000	125	1000	80*10³	3*2	120	5	3	125	40	25	3400	1800	3200	2250
XC-ST150B	750000	150	1300	110*10³	4*2	150	5	3	125	40	25	3400	1800	3450	2700
XC-ST175B	875000	175	1300	130*10³	4*2	170	5	4	125*2	40	25	4000	2000	3750	3150
XC-ST200B	1000000	200	1600	180*10³	5.5*2	200	6	5.5	150*2	40	25	4200	2200	3850	3600
XC-ST250B	1250000	250	1800	220*10³	5.5*2	250	6	7.5	150*2	50	32	4800	2200	4250	4300
XC-ST300B	1500000	300	1800	270*10³	11*2	270	6	7.5	150*2	50	32	5200	2500	4450	5150
XC-ST400B	2000000	400	2000	310*10³	11*2	155*2	5	4*2	150*2	50	32	6000	2800	4750	8900
XC-ST500B	2500000	500	2000	370*10³	15*2	185*2	5	5.5*2	125*4	50	32	6500	3000	5000	11500
