Why Optical Injection Molding Demands a Dedicated Optical Mold Temperature Controller

In today’s high-precision manufacturing world, optical injection molding leads the way in innovation. From smartphone camera lenses and medical endoscopes to automotive LiDAR sensors and VR headset optics — every detail demands absolute perfection. A dedicated high-precision optical mold temperature controller ensures unmatched clarity, precision, and stability — enabling manufacturers to produce flawless optical components that define the future of technology.

1: The Ultimate Requirements and Challenges of Optical Injection Molding

What Is Optical Injection Molding?

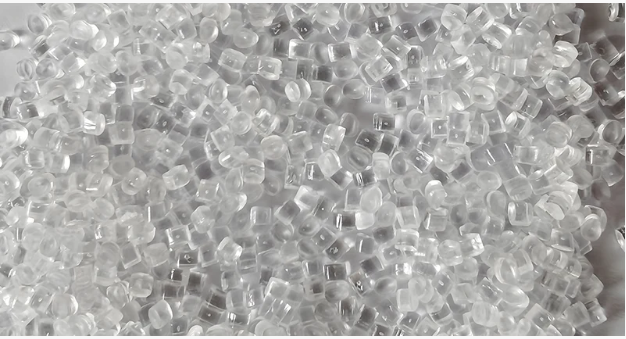

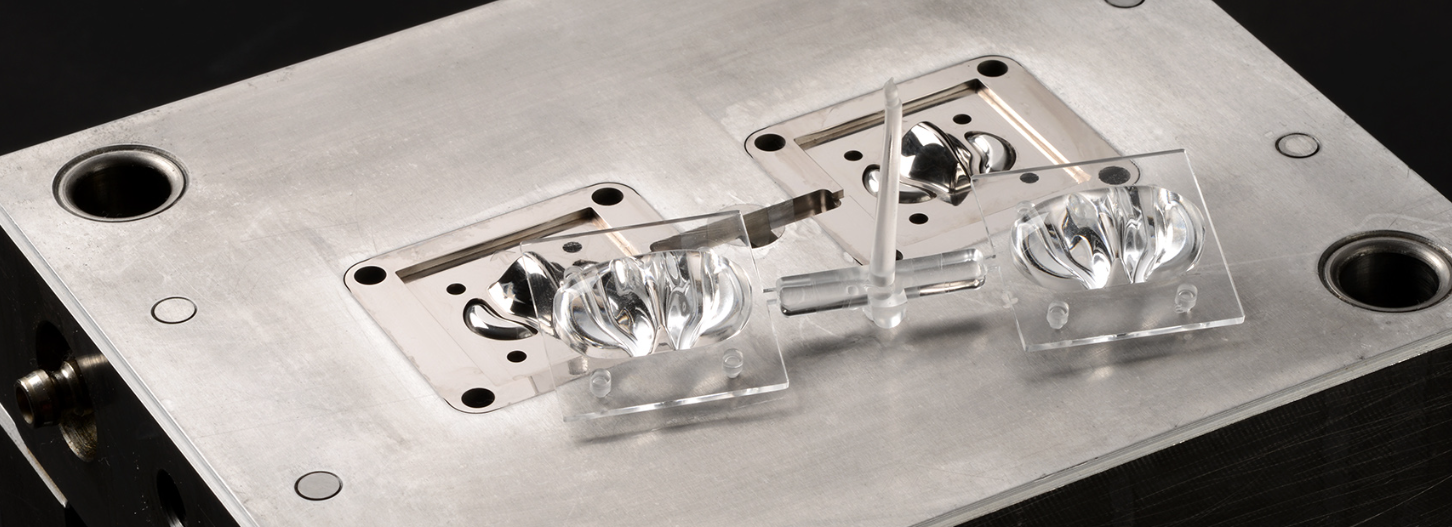

Optical injection molding is a high-precision plastic molding process. Using specialized optical injection molding machines and ultra-precise molds, optical-grade plastics such as PMMA, PC, and COC are melted and injected into the mold cavity under high pressure. After cooling and solidification, this process enables the mass production of optical components with exceptional accuracy and efficiency.

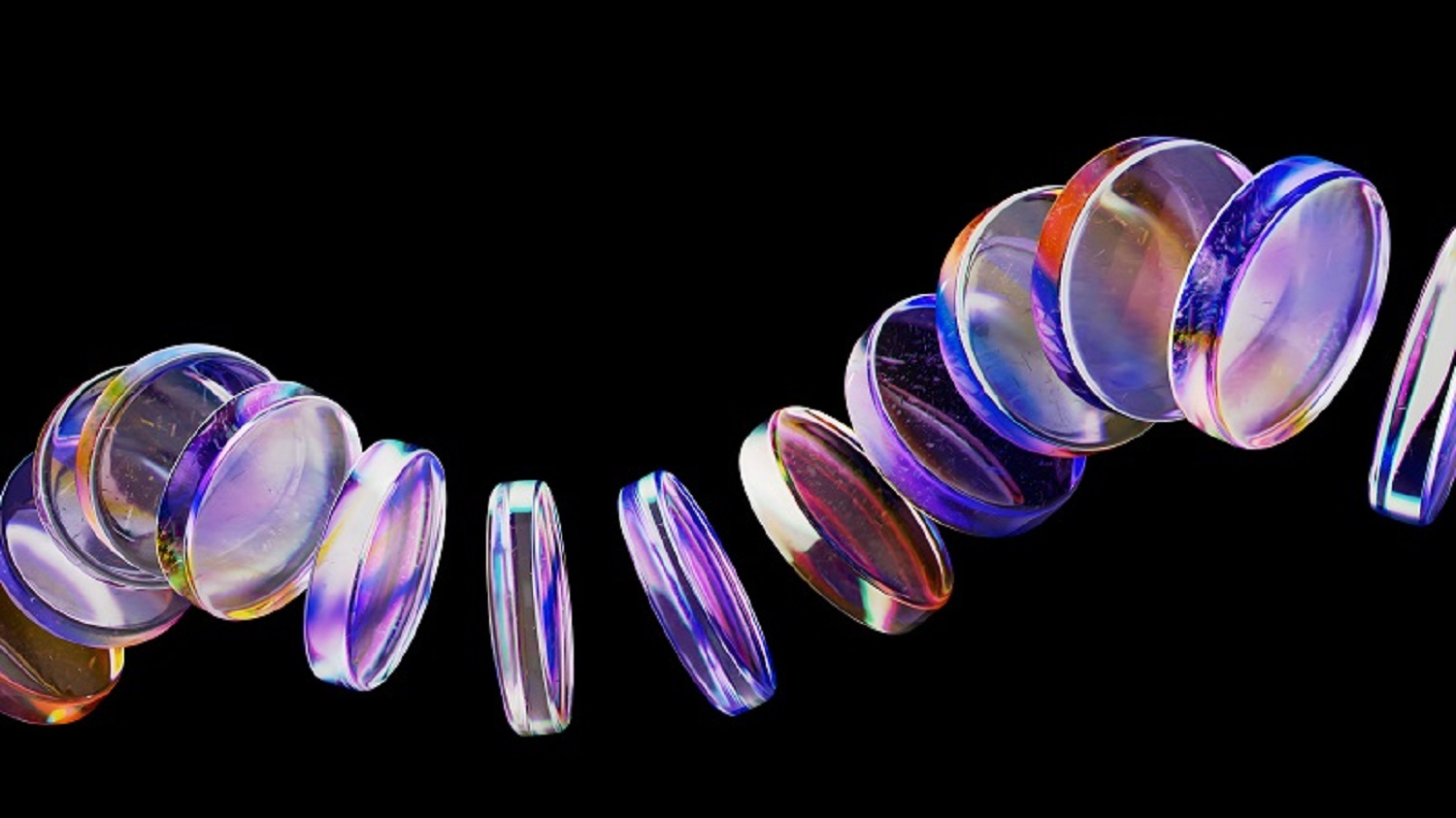

Unlike conventional injection molding, the goal here is not to produce structural parts, but to create components with specific optical functions—such as lenses, light guides, and optical panels. These parts demand extreme precision, flawless appearance, and perfect internal quality.

Core Challenges Faced in Optical Injection Molding

· Extremely High Dimensional Accuracy: Even micron-level deviations can compromise optical performance.

· Flawless Surface Quality: Nanometer-scale defects can cause unwanted light scattering.

· Minimized Internal Stress: Residual stress can lead to birefringence, reducing image clarity.

· Consistent Batch Quality: Every single component must meet the same stringent performance standards

2: The Critical Role of Temperature Control

How Temperature Affects Optical Injection Molding

Temperature is the soul of optical injection molding—its uniformity and stability directly determine the quality of the final product. The temperature control requirements in optical injection molding are reflected in three dimensions, with the latter two being especially critical:

Proper Temperature Range:

Mold Temperature: Typically high; for common optical-grade PC (polycarbonate) and PMMA (acrylic), mold temperatures usually range between 80°C and 120°C.

Exact values strictly follow the material supplier’s recommendations.

Barrel Temperature: Also material-dependent; optical-grade PC may require precise control within 280°C to 320°C.

Ultimate Temperature Precision (Core Requirement)：

This marks the defining boundary between standard mold temperature controllers and optical-grade systems. Optical injection molding demands that mold temperature fluctuations be strictly controlled within ±0.1°C to ±0.5°C—with ultra-precision optical components requiring stability as tight as ±0.1°C.

Any deviation beyond this range directly leads to variations in product dimensions and optical performance, making temperature precision the true cornerstone of optical molding quality.

Exceptional Temperature Uniformity (Lifeline):

This is the most critical and challenging requirement. It refers to the temperature difference between any two points on the mold surface or between the mold cavity and core.

Poor temperature uniformity can directly cause warping, internal stress (leading to birefringence), and other fatal defects.

3: The Irreplaceable Role of High performance Optical type Mold Temperature Controller

High performance Optical type Mold Temperature Controller: Designed for Precision Optical Injection Molding

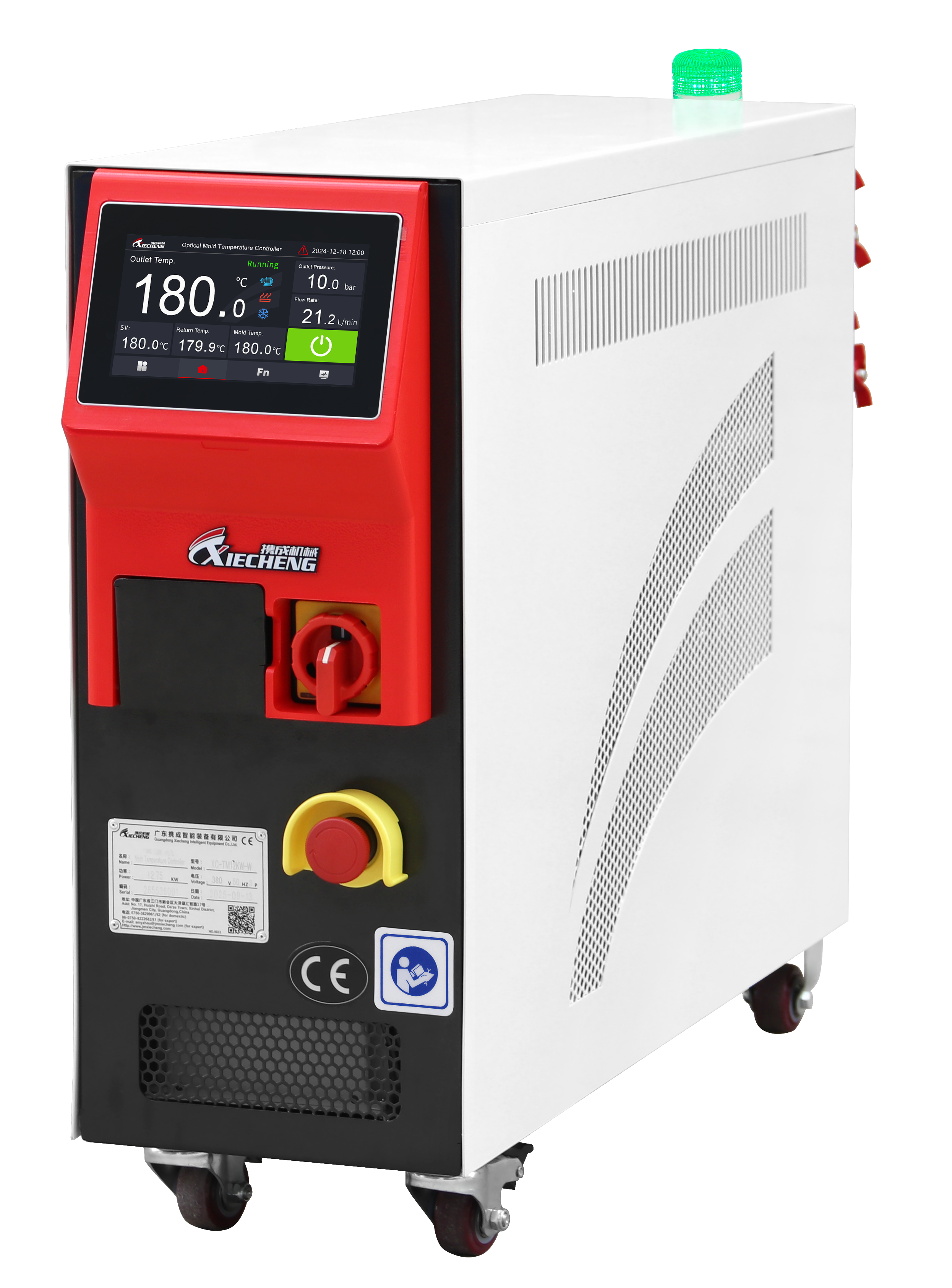

XIECHENG brand high performance Optical type Mold Temperature Controllers are specifically engineered for high-precision optical injection molding. By delivering exceptional temperature accuracy and stability—maintaining control within ±0.2°C—they ensure that optical plastic components achieve flawless surfaces, precise dimensions, and stable optical performance. This level of temperature control is key to producing high-end optical components with near-zero defects.

So, where is this extreme temperature control technology applied?

How Do High performance Optical type Mold Temperature Controllers Achieve Accurate Temperature Control?

1.High-Precision Temperature Sensors:

 Equipped with advanced sensors and a self-optimizing control system for rapid response.

2.Multi-Functional Control System:

 Monitors core data such as temperature, flow, and pressure in real time, keeping track of the mold temperature controller’s operating status.

3.External Temperature Detection Support:

 Uses the mold itself as the temperature measurement point for real-time monitoring of mold temperature.

4.Variable-Frequency Energy-Saving Pump:

Automatically adjusts speed according to the set flow rate, reducing energy consumption.

To explore the detailed technical specifications and customized features of high-precision mold temperature controllers, feel free to contact our engineering team. We will provide solutions precisely tailored to your needs.
