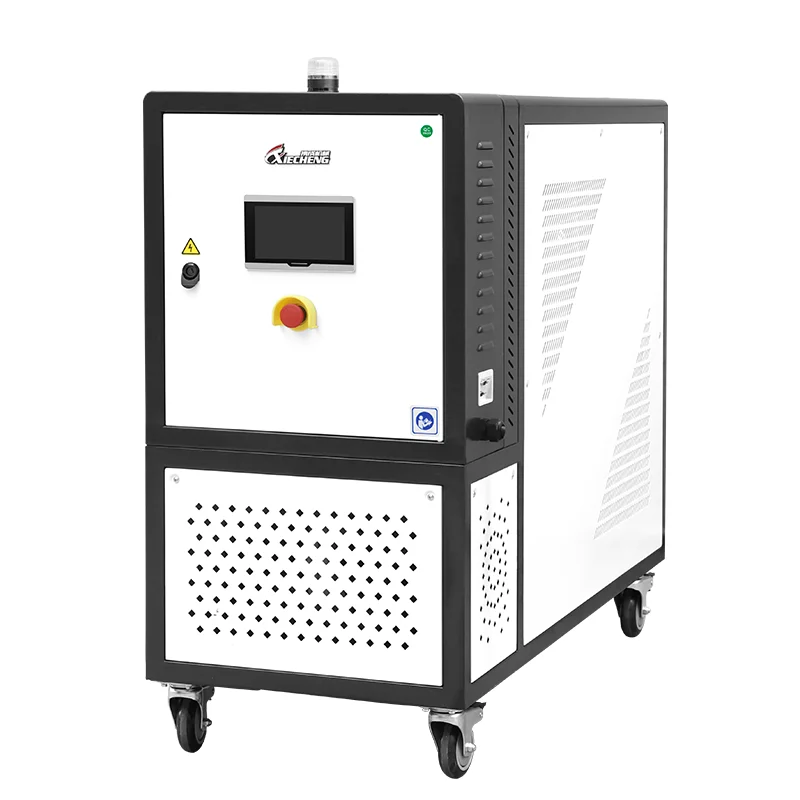

Die Casting Water Mold Temperature Controller


Die Casting Water Mold Temperature Controller


The Die-casting Water Mold Temperature Controller, also known as a water type special temperature control units for die casting, is a dedicated device used in the die-casting process to regulate mold temperatures. Its purpose is to maintain a constant temperature within the mold to ensure the quality and consistency of the final product. It can reach a maximum operating temperature of 200 degrees Celsius while maintaining stable operating temperatures. With a well-designed dual-circuit water output system, it can independently control the temperatures of the moving mold and the fixed mold, ensuring the optimal conditions for die-casting product formation. It is widely used in the die-casting processes of alloys such as aluminum and zinc.

|

 Product Features

• All series adopts magnetic drive pump to prevent water leakage;

• Adopt 10-inch super large touch screen human-computer interaction, real-time temperature curve query, paperless massive date export;

• With SUS304 stainless steel seamless pipe, can ensure corrosin-resistant, no oil leakage and durable;

• Protection functions including pump over-temperature protection, power-on exhaust, power-off automatic cooling, low water pressure alarm etc.

• With maintenance and replacement reminders for wearing parts and consumables;

• Power output is adjustable;

• With RS485 communication function, can realize network communication and centralized monitoring.

|

 Product Video

|

 Industry Applications

Die-casting mold temperature machines are widely employed in the die-casting industry and casting production in various sectors, including automotive, electronics, machinery, construction, electrical, aerospace, and more. In the automotive industry, they play a significant role in the casting production of components such as automobile engines, transmissions, chassis, and body parts. In the electronics industry, they are used to manufacture products such as TV casings, air conditioner housings, computer enclosures, and more. In the machinery industry, they are extensively used in the production of various machine tool components, hydraulic elements, and other products. In the construction industry, these machines are instrumental in the production of items like doors, windows, pipes, and steel components.

Automotive Industry Construction Industry Electronics Industry
Automotive Industry Construction Industry Electronics Industry
Machinery Industry Aerospace Industry Electrical Industry
Machinery Industry Aerospace Industry Electrical Industry

|

 Specifications

Model

Unit

XC-DCW18KW2S-200

XC-DCW24KW2S-200

Temperature Control Range

200℃

Temperature Control Accuracy

P.I.D ±0.1℃

Power


AC 3φ/380v/50Hz

Heat Transfer Medium


Heat Transfer Water

Cooling Method


Indirect Cooling

Heating Capacity

KW

18x2

24x2

Pump Power

KW

1.5x2

2.2x2

Max. Pump Flow

(L/min)

90x2

90x2

Max. Pump Pressure

(kg/cm2)

2.5x2

3x2

Booster Pump Head

m

180x2

180x2

Alert Function

Phase Loss/Water Shortage/Over-Heat/Overload

Cooling Water Pipe

Inch

1/1x2

Inlet Outlet Diameter

Inch

1"x2

Dimension(L*W*H)

mm

1350x600x1300

1350x600x1300

Approx. Net Weight

KG

260

260
