product description

two in one mold temperature controller

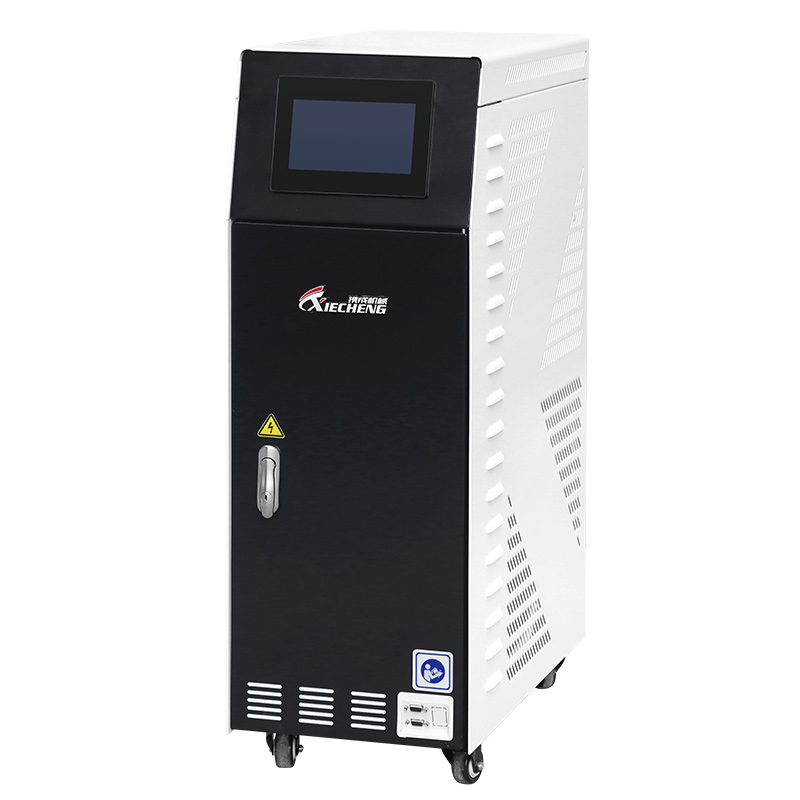

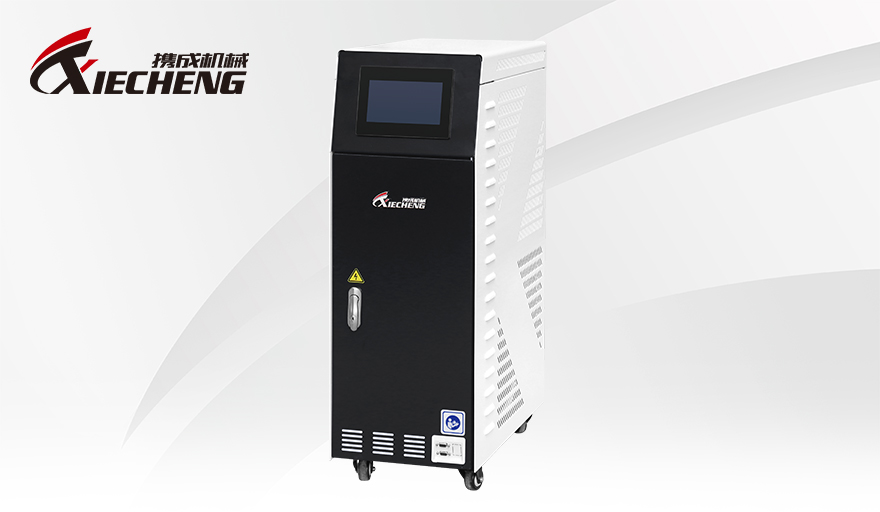

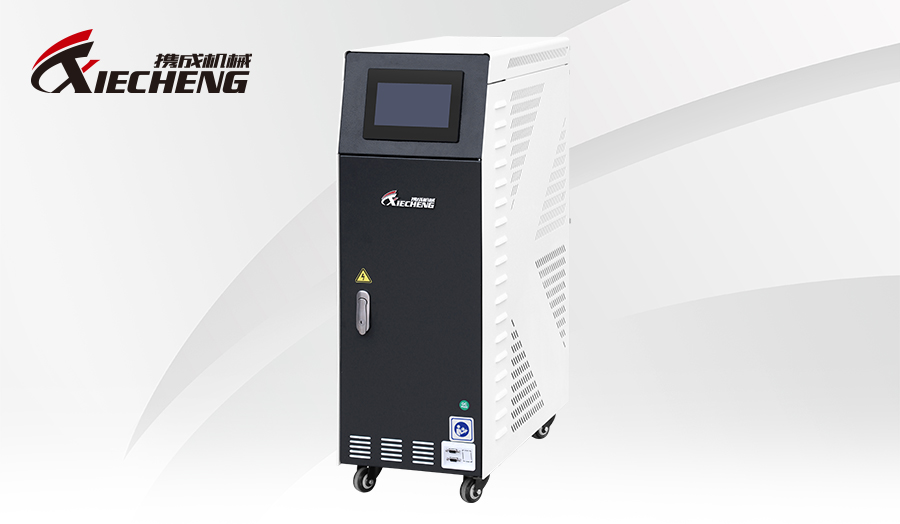

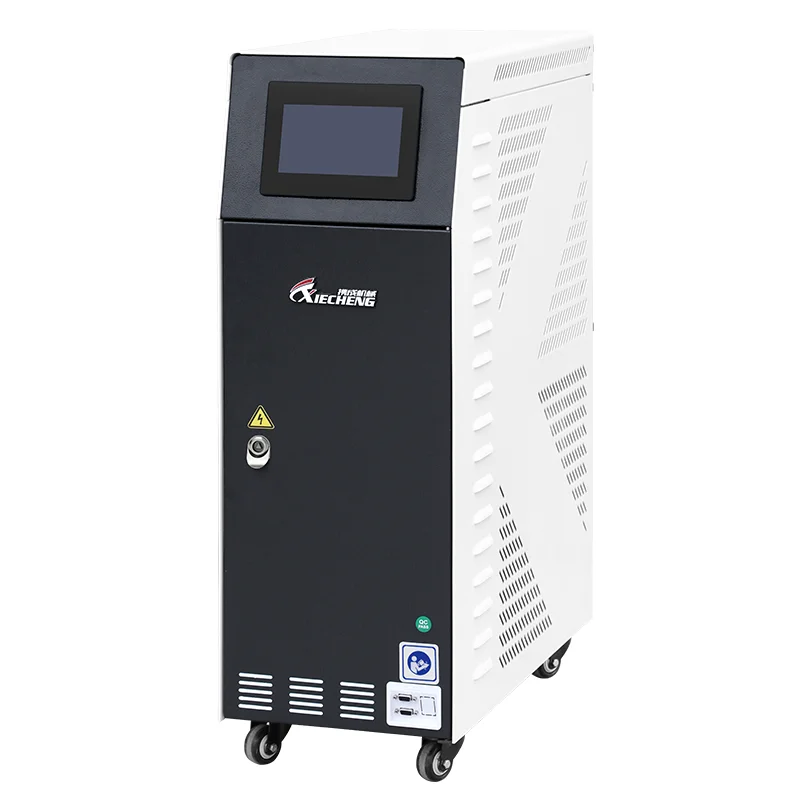

Two in One Mold Temperature Controller


Feature:

  • 1. Newly designed, small footprint and multi-functional;

  • 2. Individual controlling two temperatures--suitable for case with different temperature required for mold parts, or just two machines;

  • 3. Adopt 10-inch super large touch screen human-computer interaction, controlling the two different temperatures at the same time, easy to operate, accuracy within ±0.1°C;

  • 4. Well-constructed interior pipelines with concise and well-knit designation for energy saving;

  • 5. SUS304 stainless steel seamless heating barrel, water storage barrel and main pipelines can ensure corrosion-resistant, no leakage and long working lifetime;

  • 6. Timing function for 24 hours and weekly setting to realize automatic running;

  • 7. Default with communication function for remote automation management;;

  • 8. According for actual demand could tailor make 3 in 1 or 4 in 1 models as well;

  • 9. Controlled by SSR solid-state relay (applicable to water-electricity separation mold temperature controller);

  • 10. Adopt non-contact heater, the use of electric heating tube is not affected by water quality (applicable to water-electricity separation mold temperature controller).


Product Details

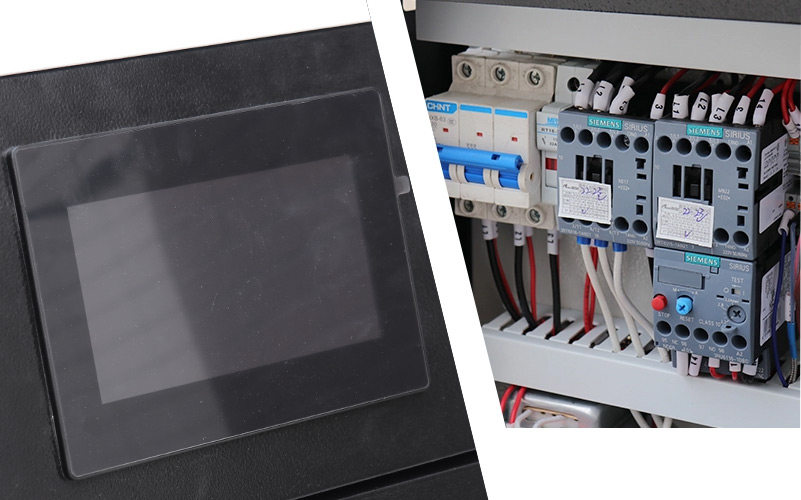

Adopt 10-inch super large touch screen human-computer interaction, controlling the two different temperatures at the same time, easy to operate, accuracy within ±0.1°C;

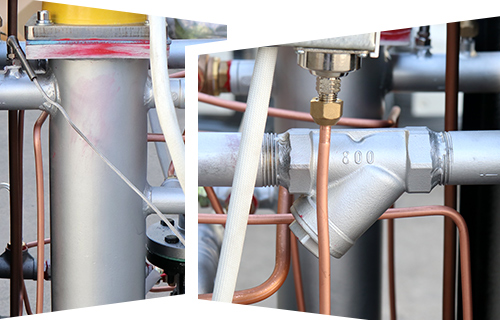

焊接口特殊设计

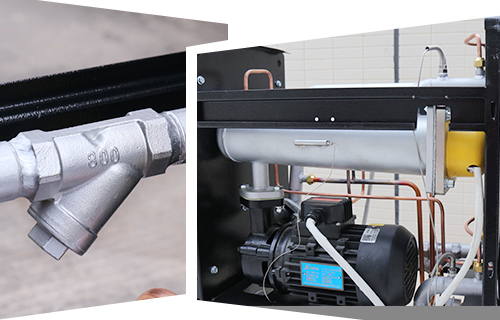

Well-constructed interior pipelines with concise and well-knit designation for energy saving;

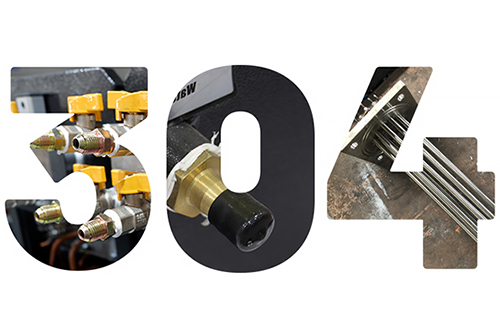

SUS304 stainless steel seamless heating barrel, water storage barrel and main pipelines can ensure corrosion-resistant, no leakage and long working lifetime;


技术参数

Model
Transfer Medium
Maximum Temperature Pump (kw) Pump Flow (L/min) Loading Distance (m) Heating Power (Kw) Inter/Outlet Diameter
Dimensions (mm) Approx.Net Weight (kg)
XC-TM6KW2S-W Water 100℃ 0.37×2 42 28 6×2 3/8″×4 595*310*920 98
XC-TM9KW2S-W 0.75×2 56 38 9×2 3/8″×8 595*310*920 112
XC-TM12KW2S-W 0.75×2 56 38 12×2 3/8″×8 595*310*920 125
XC-TM18KW2S-W 1.5×2 200 30 9×4 1″×2 945*450*1200 150
XC-TM24KW2S-W 1`.5×2 200 30 12*4 1″×2 945*450*1200 180
XC-TM36KW2S-W 2.2×2 315 30 12*6 1.5″×2 1100*550*1350 190
XC-TM6KW2S-0 Heat-transfer oil 200°C 0.37×2 42 22 6×2 3/8″×4 595*310*920 98
XC-TM9KW2S-0 0.75×2 56 28 9×2 3/8″×8 595*310*920 112
XC-TM12KW2S-0 0.75×2 56 28 12×2 3/8″×8 595*310*920 125
XC-TM18KW2S-0 1.5×2 150 30 9×4 1″×2 945*450*1200 150
XC-TM24KW2S-0 1`.5×2 150 30 12*4 1″×2 945*450*1200 180
XC-TM36KW2S-0 2.2×2 233 30 12*6 1.5″×2 1100*550*1350 190
