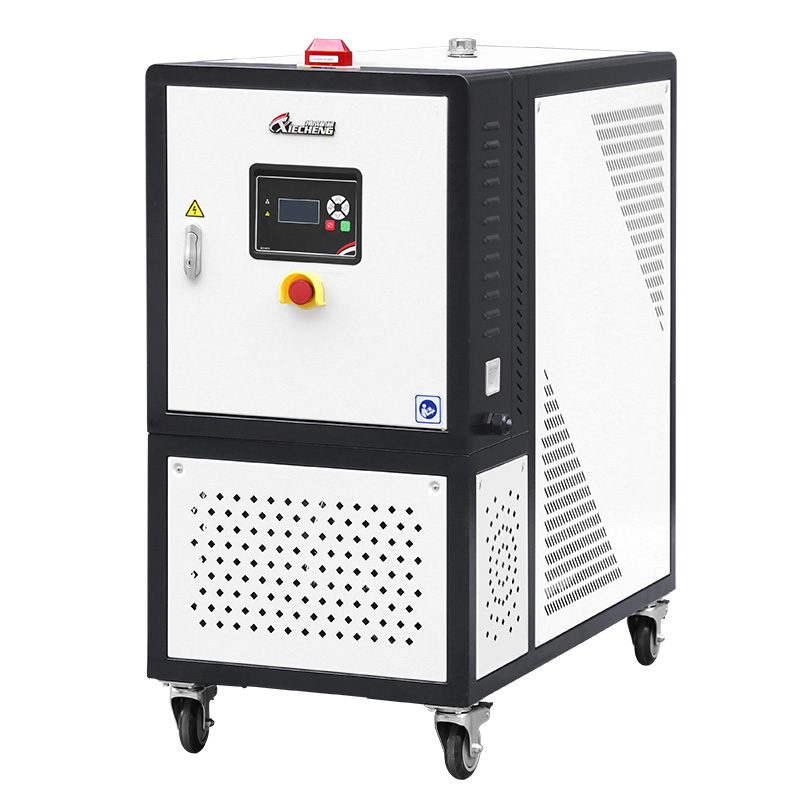

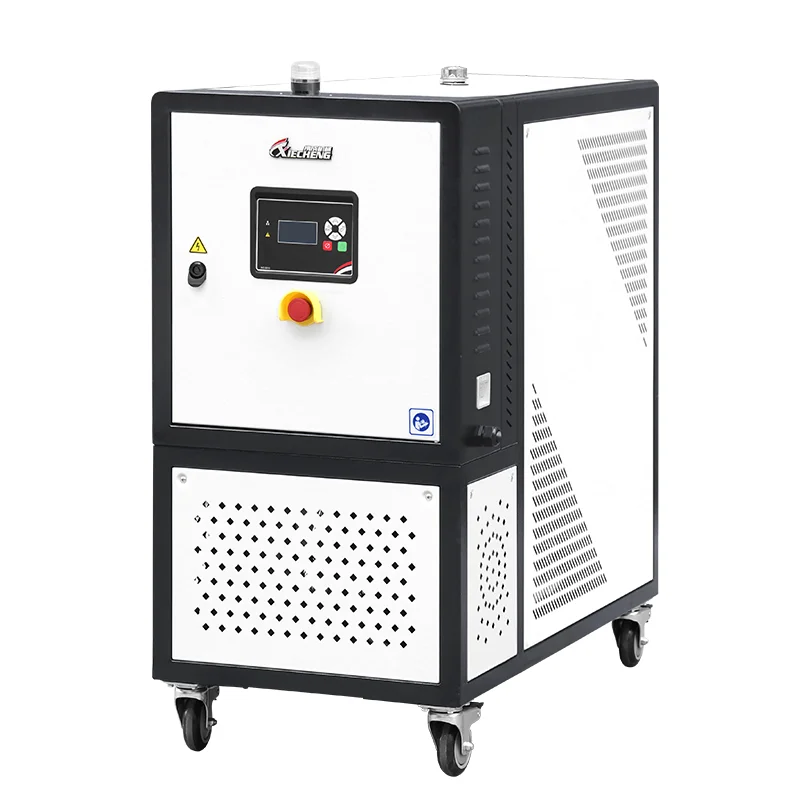

FEATURE:
1. Heating temperature range: High-temp oil type from 45 to 300 Celsius; Die-casting typefrom 45 to 320 Celsius;

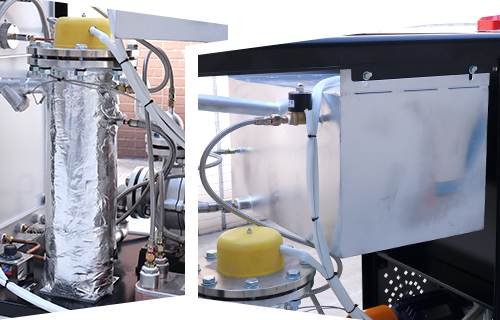

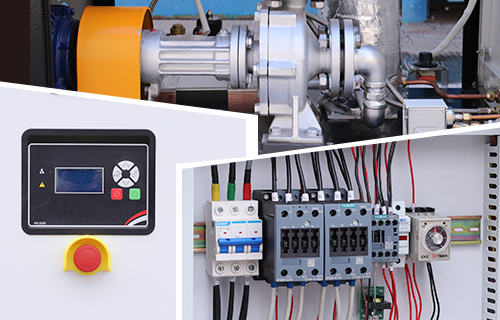

2. Quality branded high temperature coupling pumps and electromagnetic pumps areequipped to high-temp oil type and die-casting type models to ensure no oil leakage;
3. With sufficient safety protection and failure instruction system and multiple functions asstarting-up auto exhausting, oil reverse pumping and heating power switching, etc;
4. Optional for RS485 communication function to realize automatic running.
| Model | XC-TM18KW-300 | XC-TM24KW-300 | XC-TM36KW-300 | XC-TM48KW-300 | XC-TM60KW-300 | ||
| Temperature Control Range (°C) | 300°C | ||||||
| Temperature Control Accuracy (°C) | P.I.D±0.1°C | ||||||
| Power Supply | AC3Φ380V/50HZ | ||||||
| Heat Transfer Medium | Heat Transfer Oil | ||||||
| Cooling Method | Indirect cooling | ||||||
Heating Capacity (KW) | 9x2 | 12x2 | 12x3 | 12x4 | 12x5 | ||
| Pump Power (KW) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 5.5 | |
| Maximum Pump Flow (L/min) | 50 | 83 | 83 | 165 | 300 | 330 | |
| Maximum Pump Pressure (KG/cm²) | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | |
Oil Tank Capacity (Liter) | 50 | 50 | 50 | 50 | 50 | 50 | |
| Alert Function | Phase loss/water shortage/over temperature/overload | ||||||
| Cooling Water Pipe (mm) | 12 | 12 | 12 | 12 | 12 | 12 | |
| Circulating Oil Piping (inch) | (1x1) | (1x1) | (1x1) | (1.5x1.5) | (2x2) | (2x2) | |
| Dimensions (mm) | 1325x560x1110 | 1325x560x1110 | 1325x560x1110 | 1325x560x1110 | 1325x560x1650 | 1325x560x1650 | |
| Approx.Net Weight (KG) | 205 | 210 | 215 | 220 | 225 | 240 | |

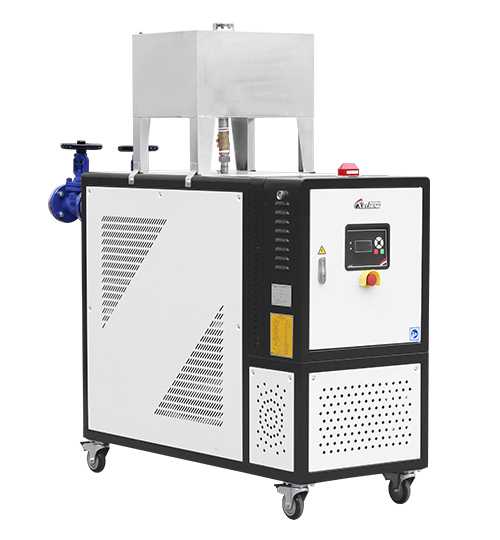

| model | XC-TM24KW-320 | XC-TM24KW-320 | XC-TM36KW-320 | XC-TM36KW-320 | XC-TM36KW-320 | XC-TM36KW-320 | |
| Temperature Control Range (°C) | 320°C | ||||||
| Temperature Control Accuracy (°C) | P.I.D±0.1°C | ||||||
| Power Supply | AC3Φ380V/50HZ | ||||||
| Heat Transfer Medium | Heat Transfer Oil | ||||||
| Cooling Method | Indirect cooling | ||||||
Heating Capacity (KW) | 24x2 | 36x2 | 48x3 | 24 | 36 | 48 | |
| Pump Power (KW) | 1.1x2 | 2.2x2 | 3x2 | 1.1 | 2.2 | 3 | |
| Maximum Pump Flow (L/min) | 60x2 | 90x2 | 140x2 | 60 | 60 | 140 | |
| Maximum Pump Pressure (KG/cm²) | 2.5x2 | 3x2 | 3x2 | 2.5 | 2.5 | 3 | |
| Booster Pump Head(m) | 40x2 | 70x2 | 70x2 | 40 | 40 | 70 | |
| Oil Tank Capacity (Liter) | 60 | 60 | 60 | 50 | 50 | 50 | |
| Alert Function | Phase loss/water shortage/over temperature/overload | ||||||
| Cooling Water Pipe (inch) | 3/4 | 1/2 | |||||
| Inlet Outlet Diameter(inch) | 3/4x2 | 1"x2 | 3/4x2 | 1"x2 | |||
| Dimensions (mm) | 1350x600x1300 | 1350x600x1300 | 1350x600x1300 | 1020x510x880 | 1020x510x880 | 1020x510x880 | |
| Approx.Net Weight (KG) | 280 | 280 | 280 | 210 | 210 | 210 | |
