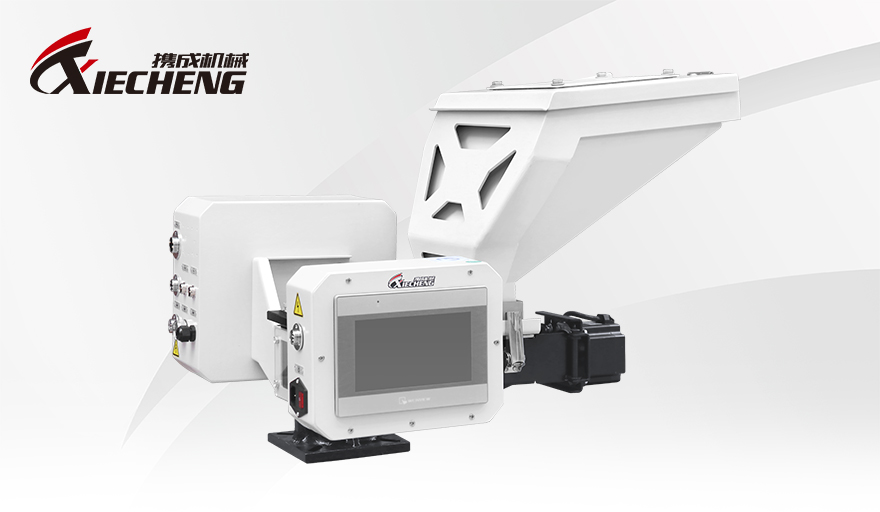

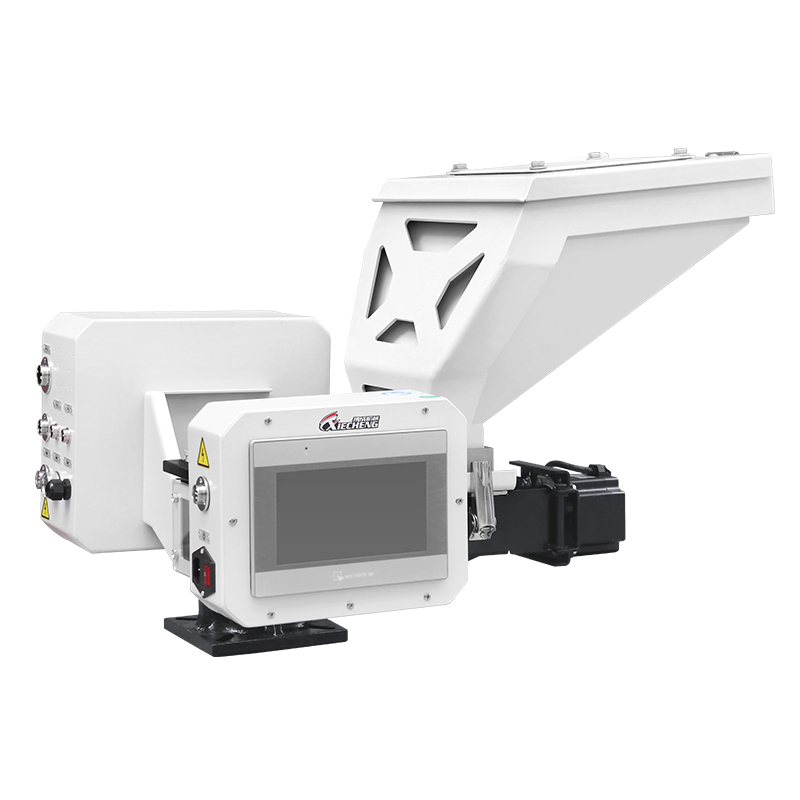

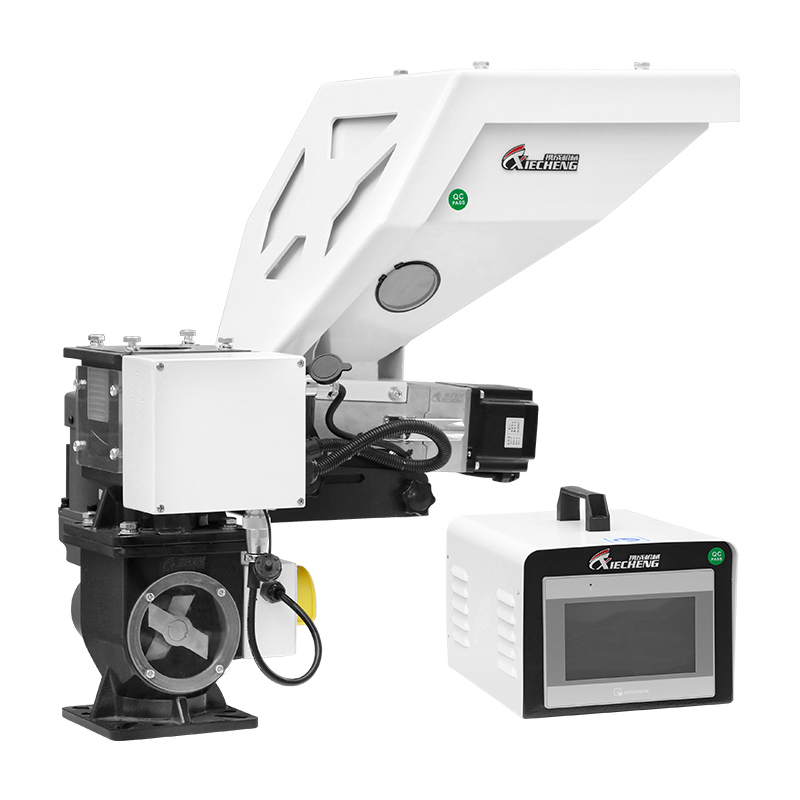

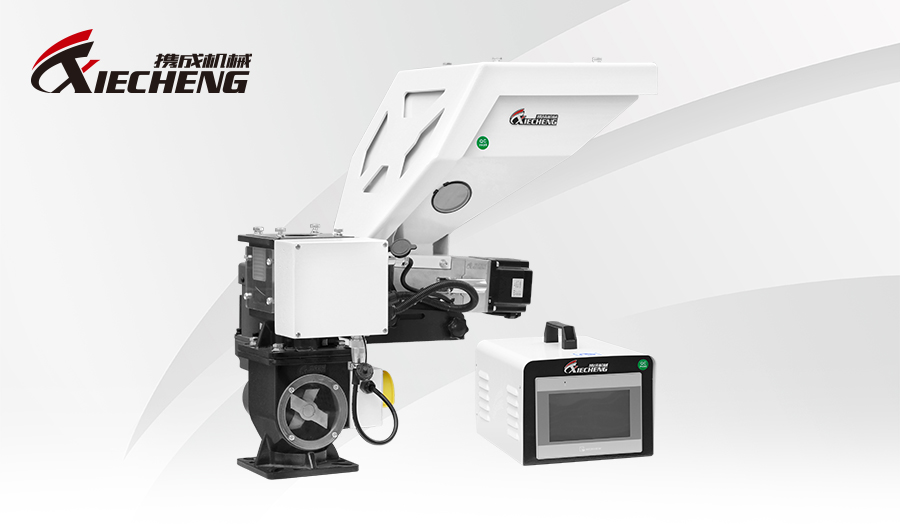

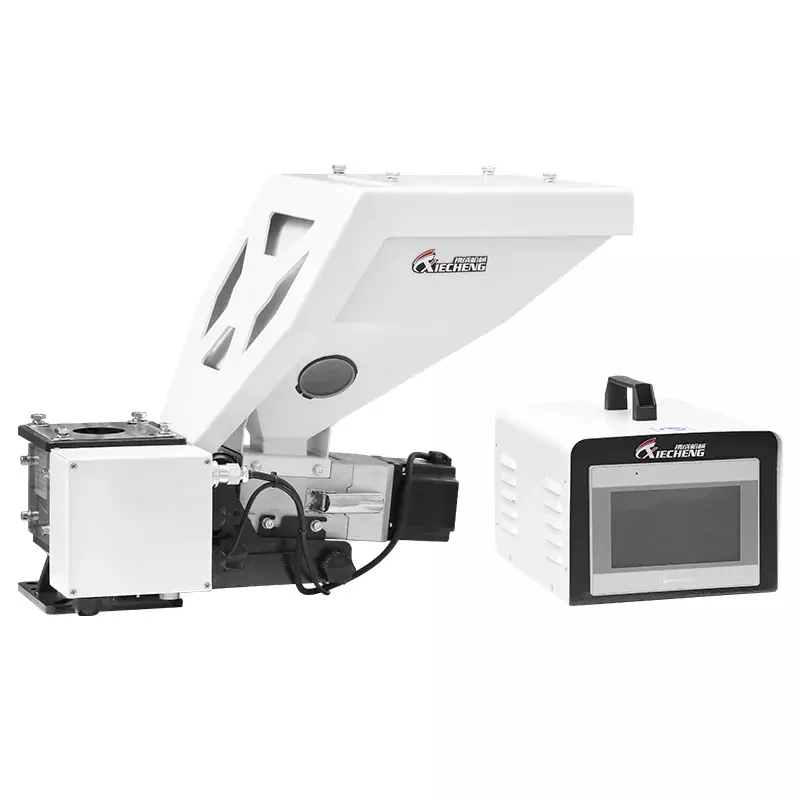

Gravimetric Doser
| FEATURE：
1、Adopt stainless steel screw, reliable and durable;

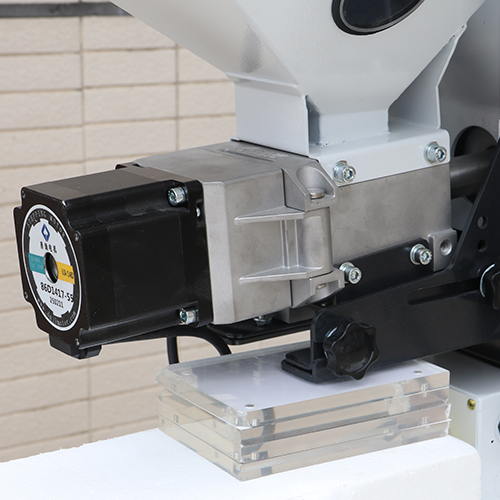

2、Using servo motor control with accurate and stable feeding, and speedy response;
3、Modular assembly structure, easy to disassemble and assemble, easy to clean and swap parts;
4、With forced cleaning function to facilitate the replacement of master batch;
5、Lively recording the current running mode, which is not affected by power outage and will resume running once power restored;
6、With functions to transmit data for communication, and export data for checking production running condition;
7、Loss-in-weight weighing technology is adopted to control the mixing process, which can meet extremely high production accuracy requirements.
|
Specifications：
| Model | Single color unit | Double color unit | Three color unit |
| XGD-12 | XGD-16 | XGD-**/**D2 | XGD-**/**/**D3 |
| Motor（HP/kw） | 0.3 | 0.3*2 | 0.3*3 |
| Motor Speed（r.p.m) | 1.8-300 |
| Mixing Power（W) | 60~90 |
| Screw 0uter Diameter（mm) | 12 / 16 / 20 / 25 |
| Output（kg/hr) | 0.05-20 | 0.5-64 | ** | ** |
| Material Storage Barrel（L) | 13 | 13 | 13 |
| Main Material Hopper | Optional |
| Mixer |
| Approx.Net Weight（KG) | 25 | 45 | 75 |
| Dimensions | Small base | Small bass mixing | Large base mixing | Small base | Small bass mixing | Large base | Large base mixing | Small base | Small bass mixing | Large bass mixing | Large base mixing |
| H(mm) | 430 | 530 | 600 | 430 | 530 | 550 | 600 | 430 | 530 | 550 | 600 |
| W(mm) | 560 | 1010 | 1010 | 1090 | 1090 | 1010 | 1010 | 1090 | 1090 |
| D(mm) | 300 | 300 | 560 |
Small Base Size (mm)
(W1×W2×W3×W4×ØA×M×H1×R1×R2) | 150×120×95×100×52×M8×180×R6×R17 |
| Small Base Maxing Size(mm) | 150×120×95×100×52×M8×280×R6×R17 |
Large base size (mm)
(W1×W2×W3×W4×ØA×M×H1×R1×R2) | 230×180×130×**×90×**×300×110×R8.5×** |
| Large Base Mixing Size(mm) | 230×180×130×**×90×**×350×110×R8.5×** |
