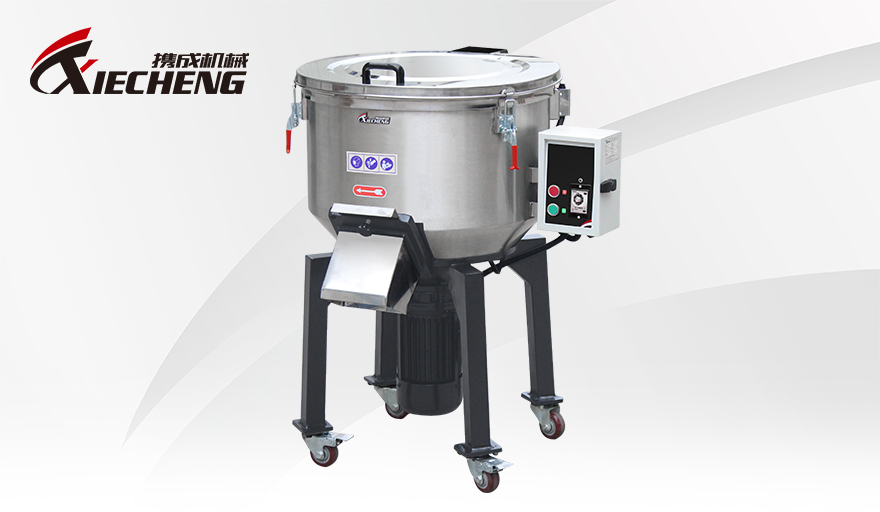

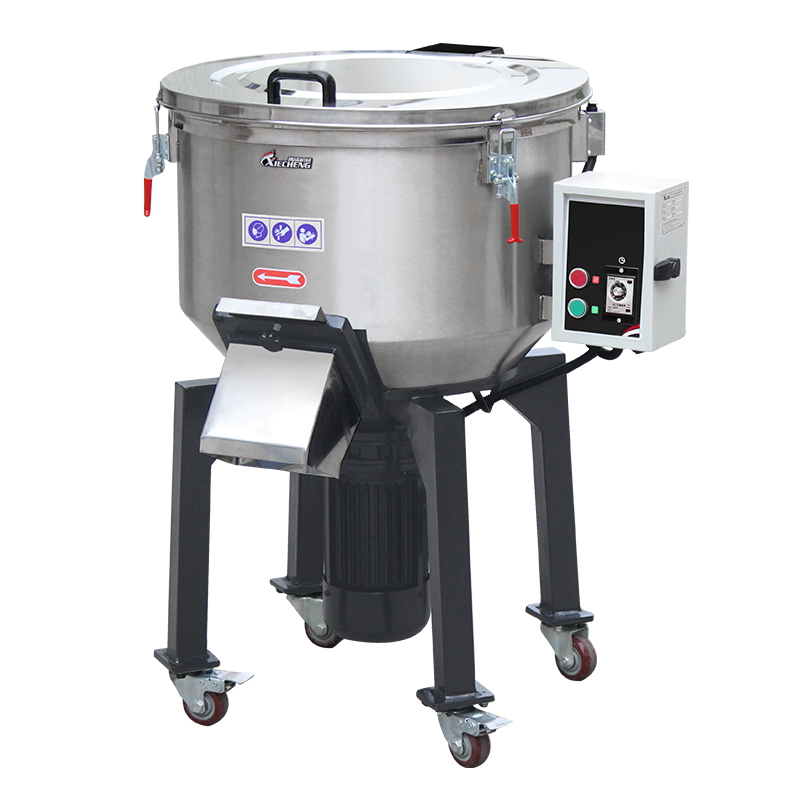

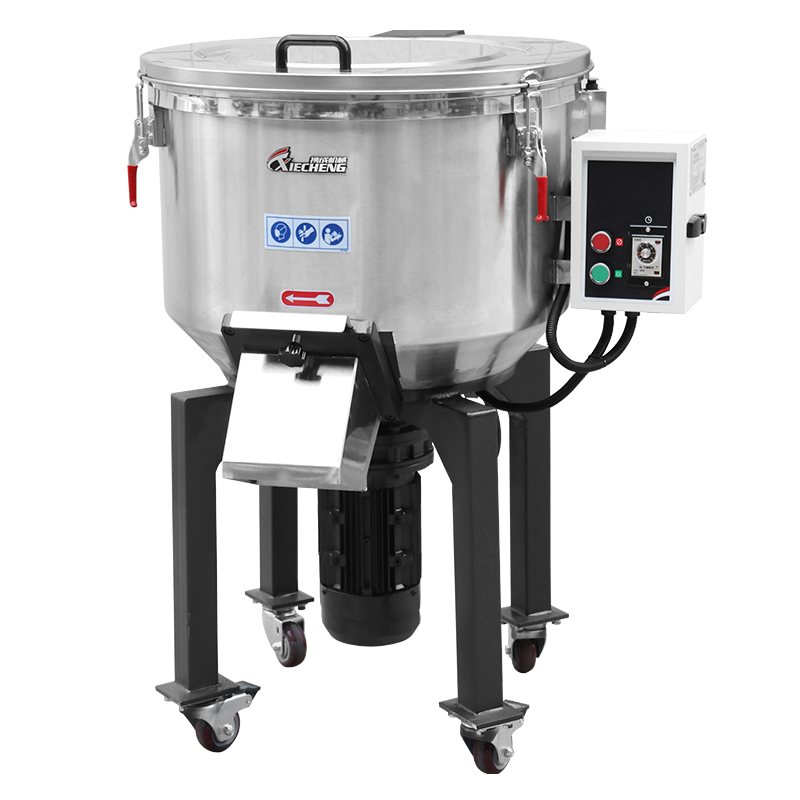

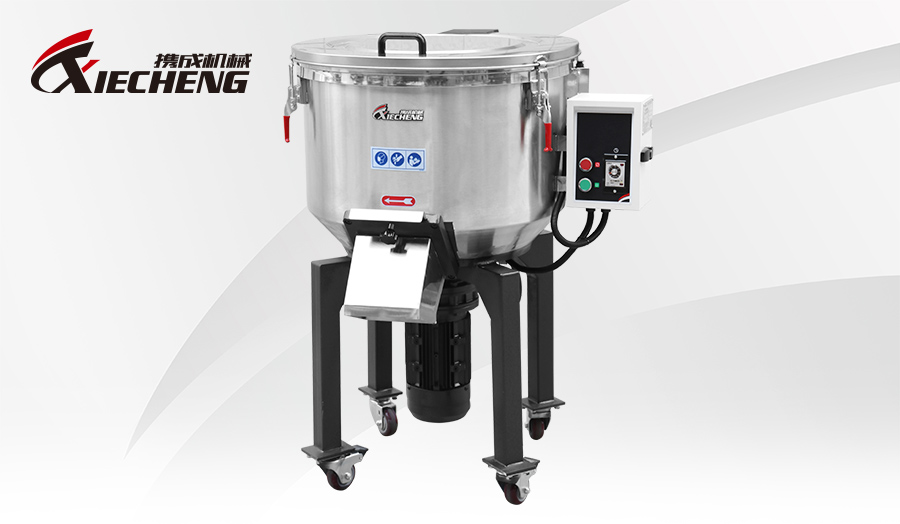

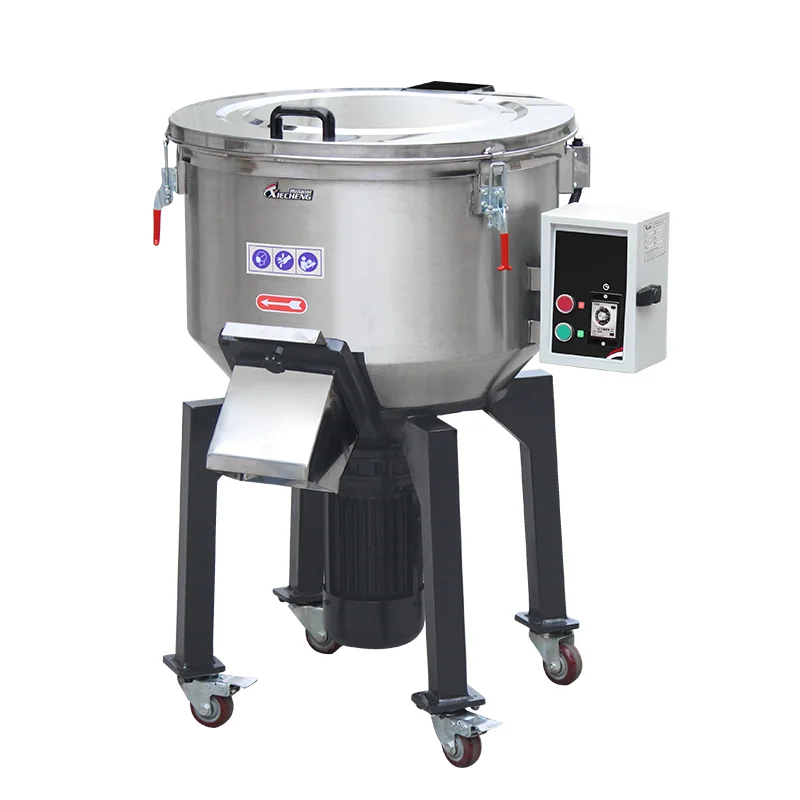

VERTICAL COLOR MIXER
Mixing Series
FEATURE:
1. Vertical structure with castor wheels;
2. Vertical reducer motor adopted ensures low noiseand long operation hours;
3. Fast complete mixing, low energy consumption andhigh productivity;
4. Pail cover and bottom parts and compress formedprecisely matched and durable;
5. Mixing time able to set within 0~30 minutes;
|
Product Details

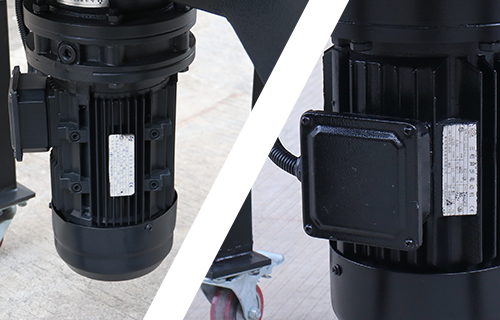

Motor
Vertical reducer motor adopted ensures low noise and long operation hours.

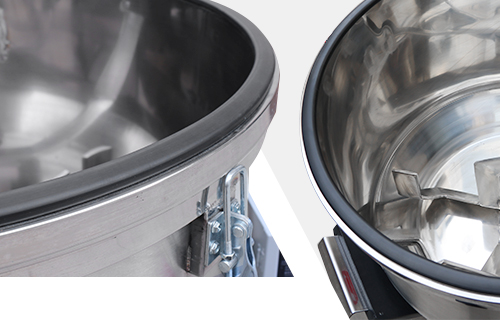

Barrel Seal Design
The sealing ring is press-fitted on the edge of the barrel wall, it is not easy to fall, the sealing performance is better, and the dust is not easy to be exposed.

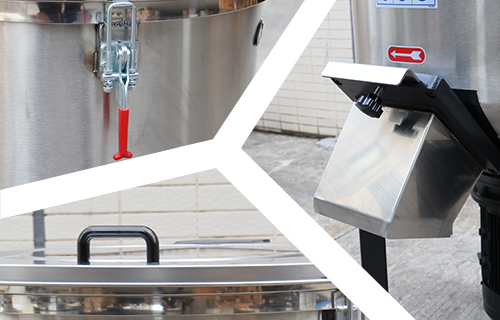

Humanized Design
Humanized design, convenient to operate
and clean up.

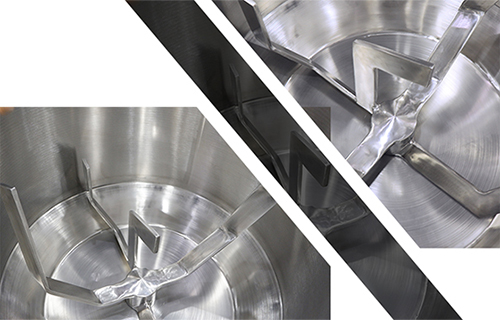

Paddle
Stainless steel paddle with scientific struc-ture, able to mix raw material completely;
min-imize load, save time and electricity;
Made ofpremium stainless steel,high strength andeasy to clean.
|
Structure Diagram
|
Specifications
| Model | Power | Capacity (KG) | Voltage | Dimensions (mm) | Rotating Speed (R/min) | Net Weight (kg) |
| KW | HP |
| XC-HL50KG | 1.5 | 2 | 50 | 380 3Φ | 845*840*1060*450 | 85 | 125 |
| XC-HL100KG | 3 | 4 | 100 | 380 3Φ | 980*975*1275*540 | 85 | 180 |
| XC-HL150KG | 4 | 5.5 | 150 | 380 3Φ | 1125*1105*1420*665 | 85 | 270 |
| XC-HL200KG | 7.5 | 10 | 200 | 380 3Φ | 1250*1170*1430*665 | 85 | 313 |
| XC-HL300KG | 7.5 | 10 | 300 | 380 3Φ | 1250*1170*1630*665 | 85 | 323 |
