Gravimetric Blender

Product number:	Please select XGB-50 XGB-100 XGB-200 XGB-400 XGB-600 XGB-800 XGB-1200 XGB-2000 XGB-2500 XGB-3000
Availability:

Quantity:



Inquire

product description

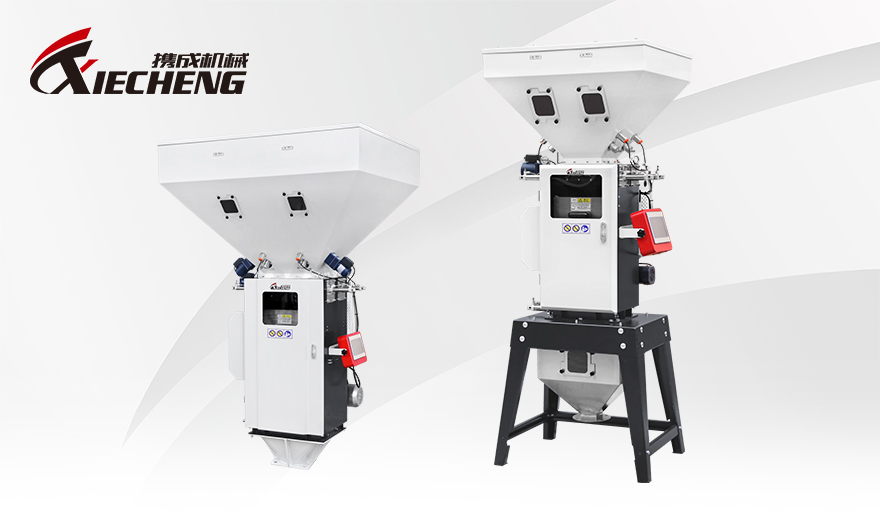

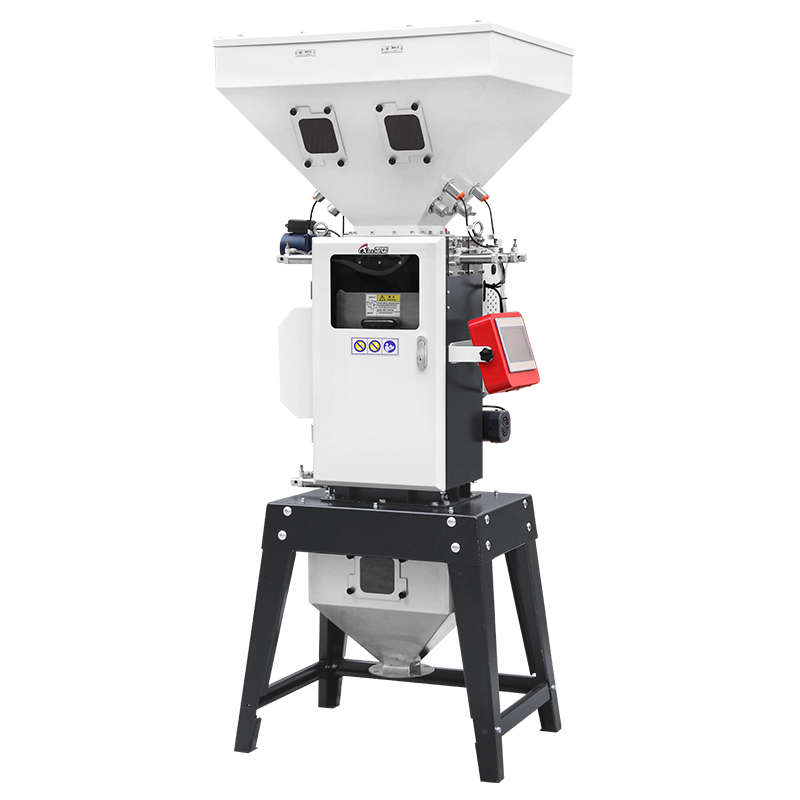

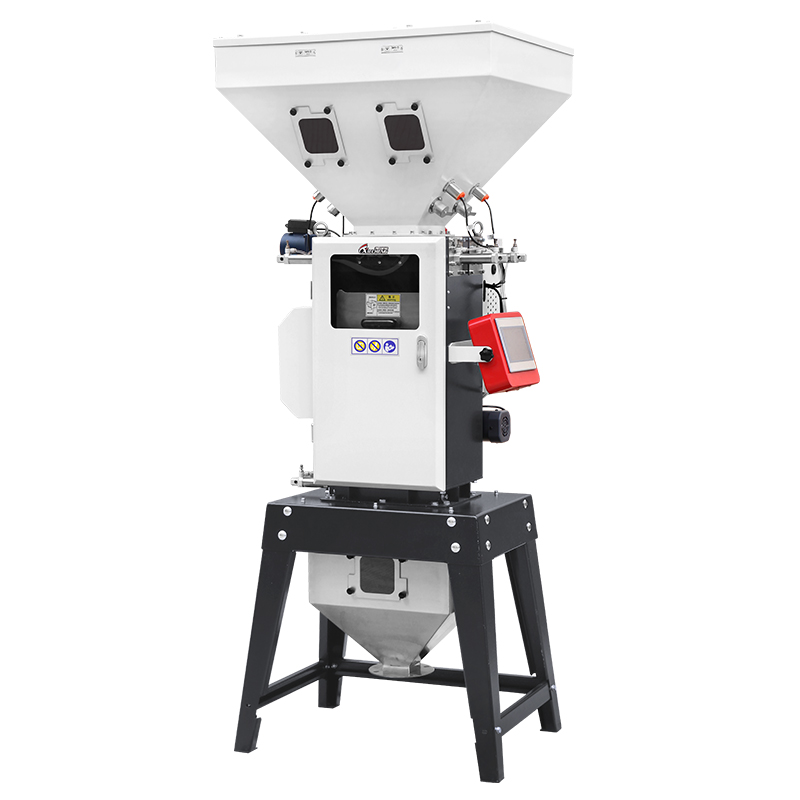

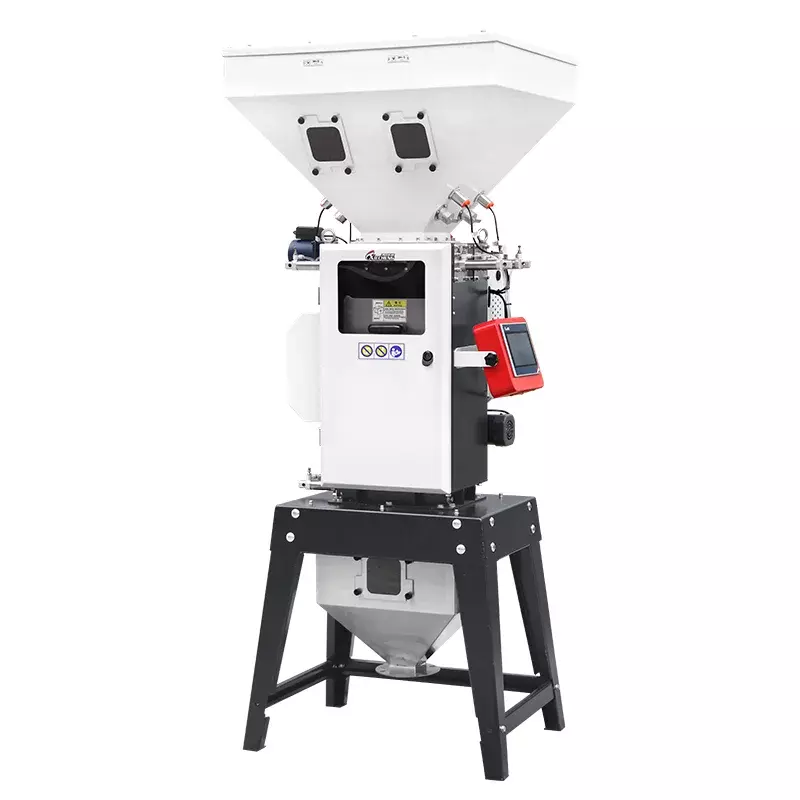

Gravimetric Blender

GRAVIMETRIC BLENDER

The Gravimetric Blenders of Xiecheng are used in injection, extrusion and blowing production with more than one materials by different proportional mixture.

Advantages of Gravimetric Blender:

1. Suitable for processing up to four components simultaneously;

2. Adopting advanced control algorithm,autonomous optimization,automatic calibration and shaking prevent function,ensure the best accruracy;

2.Color chart shown,touch screen operation,three languages on-line switching;

3. Up to 100recipes can be stored for later use;

4. Multilevel password protection and historical alarm record;

5. Can be directly mounted on the machine or optional feet frame installed in machine side.

Gravimetric Blender Introduction Vedio:

Youtube: https://youtu.be/4FeAiFZcXj4

产品细节

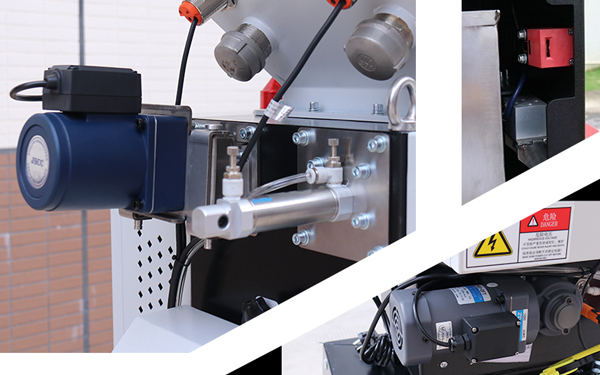

Advanced Control Algorithm

Adopting advanced control algorithm, autonomous optimization,

automatic calibration and shaking prevent function,ensure the best accuracy.

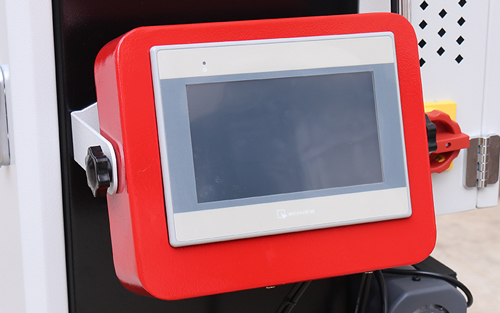

High Quality Core Component

PLC controller,reliable performance ,convenient maintenance;

USB2.0 interface for saving recipe data to flash disk, Facilitate the quality management;

Up to 100recipes can be stored for later use.

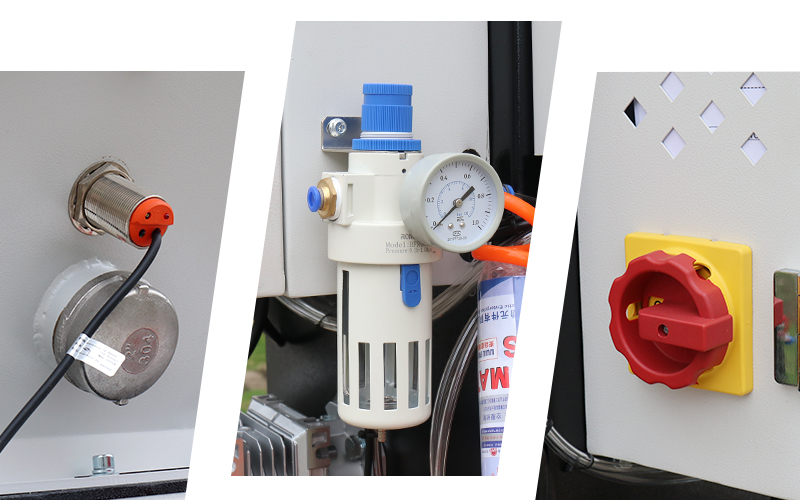

Alarm System

Multilevel password protection and historical alarm record;

With sound and light alarm,facilitate operator quickly and accurately reach fault machine area.

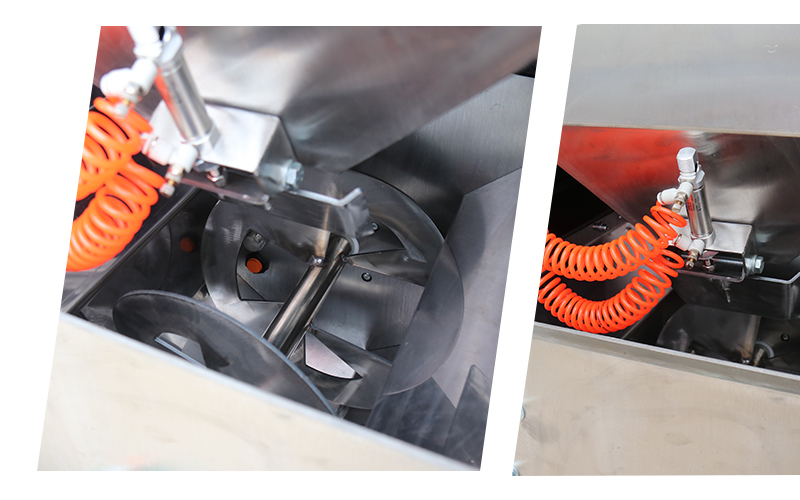

Stainless Steel Material

All raw material contact parts are made by stainless steel,prevent the materials being polluted.

removable structure design of gravimetric blender

Removable Structure Design

All parts accessible for easy cleaning.

working principle of gravimetric blender

Advantages of Gravimetric Blender:

Machine starts working and dosing valve opens to release material by setting values.If controller detects the discharging quantity reached setting value, dosing valve closes up.If discharging quantity stays within allowed error range, machine will discharge next material. When all the material dosing completes, scale valve opens to release materials into the mixing tank. Mixer motor starts to mix. Mixing time can be settled by controller. Mixture will be discharged to the storage tank and ready for injection.

技术参数

Parameters of Gravimetric Blender:

Model	XGB-50	XGB-100	XGB-200	XGB-400	XGB-600
Qty of Group Number	4	4	4	4	4
Mixing capacity(kg/hr)	50	100	200	400	600
Batch weight (kg)	1.5	3	4	6	8
Main material mixing range (%)	5~100	5~100	5~100	5~100	5~100
Additive mixing range (%)	0.5~10
Main hopper volume (L)	20x2	30x2	40x2	45	70
Additive hopper volume (L)	10x2	15x2	20x2	15	18
Mixing tank volume (L)	25	50	50	80	80
power supply (V/Hz)	200~240V/50~60HZ/1P			220~460V/50~60HZ/3P
Total power (kw)	0.12	0.12	0.25	0.55	0.55
Compressed air (kgf/cm2)	4~6
Max. noise level (dB)	<75	<75	<75	<75	<75
Machine installation (H0xWxD)(mm)	1010x600x620	1350x650x560	1400x700x650	1588x760x660	1738x850x700
Stand Frame installation (HxWxD)(mm)	1565×600×620	1820×650×560	1870×700×650	2115×760×660	2265×850×700
Base (mm) (H2xW2xD2 )	170(120～140)80*6	150(100～120)89*6	150(100～120)89*6	180(105～140)100*7	180(105～140)100*7
Stand (mm) (H1xW1xD1)	560710560	600725555	660725555	730705535	730705535
Net weight (kg) (machine installation)	90	90	130	140	180
Net weight (kg) (floor installation)	110	110	155	165	230

Model	XGB-800	XGB-1200	XGB-2000	XGB-2500	XGB-3000
Qty of Group Number	4	4	4	4	4
Mixing capacity (kg/hr)	800	1200	2000	2500	3000
Batch weight (kg)	12	15	20	25	30
Main material mixing range (%)	5~100	5~100	5~100	5~100	5~100
Additive mixing range (%)	0.5~10
Main hopper volume (L)	100	130	160	180	230
Additive hopper volume (L)	25	30	40	50	70
Mixing tank volume (L)	110	110	150	150	150
power supply (V/Hz)	220~460V/50~60HZ/3P
Total power (kw)	0.75	0.75	1.5	1.5	2.2
Compressed air (kgf/cm2)	4~6
Max. noise level (dB)	<75	<75	<75	<75	<75
Machine installation (H0xWxD)(mm)	1870x900x900	1970x1000x900	-------	-------	-------
Stand Frame installation (HxWxD)(mm)	2375×900×900	2475×1000×900	-------	-------	-------
Base (mm) (H2xW2xD2 )	200(110～140)100*7	200(110～140)100*7	-------	-------	-------
Stand (mm) (H1xW1xD1)	760900650	760900650	-------	-------	-------
Net weight (kg) (machine installation)	200	250	280	290	380
Net weight (kg) (floor installation)	250	340	370	380	500
