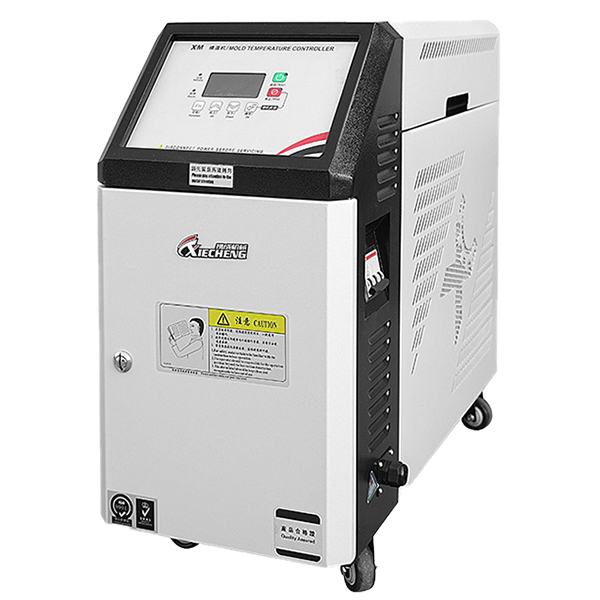

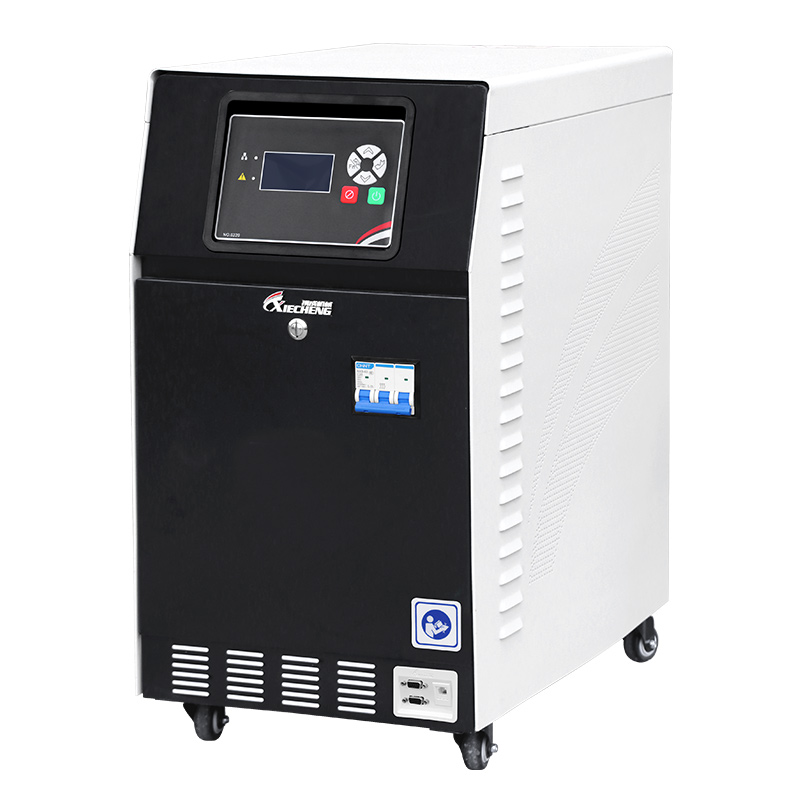

Mold Temperature Controller Series
Feature:
Adopted with high efficiency water pump. lt can keep accurate temperature level and is adaptable for production with precise molding.
Main pipes are made of 304 stainless steel seamless tubes;
Temperature control range within 180℃ (Optional for magnetic pump).
Adopts indirect cooling method, which makes temperature controller more preciseand realizes fast heat exchange.
Adopts magnetic pump with stable performance and no leakage.
Water manifolds and Teflon hose are optional.
|
1. Advanced microcomputer LCD con-troller, easy to operate with accuracy +0.1 Celsius and long continuity and high efficiency;
2. SlEMENS electrical parts ensures stable running and liability of the machine.
One end of the heating barrel is a baffl eplane, and the other end is arc welding, which can effectively relieve the impact of water pressure and better prevent water leakage at the welding port.

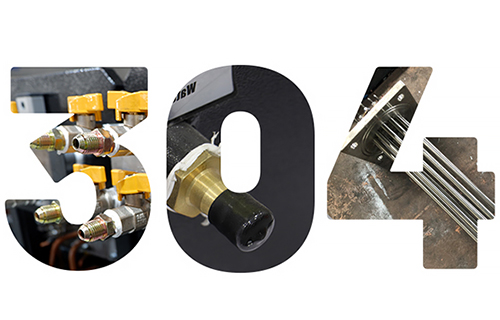

1. Heating wire & Main pipeline:
304 Stainless Steel;
2. Stainless steel water tank is durableand keep from the trouble of leakage and rust.
|
| 型号 | XC-TM9KW -HTW | XC-TM12KW -HTW | XC-TM18KW -HTW | XC-TM24KW -HTW | XC-TM9KW -HTHPW | XC-TM12KW -HTHPW | XC-TM18KW -HTHPW | XC-TM24KW -HTHPW | |
| Temperature Control Range (°C) | 160°C | 180°C | |||||||
| Temperature Control Accuracy (°C) | P.I.D±0.1°C | ||||||||
| Power | AC3Φ380V/50HZ | ||||||||
| Heat Transfer Medium | Water | ||||||||
| Cooling Method | Indirect cooling | ||||||||
Heating Capacity (KW) | 9 | 12 | 18 | 24 | 9 | 12 | 18 | 24 | |
| Pump Power (KW) | 0.75 | 0.75 | 1.5 | 1.5 | 0.5 | 1.1 | 1.1 | 1.5 | |
| Max. Pump Flow (L/min) | 135 | 135 | 250 | 250 | 25 | 60 | 60 | 90 | |
| Max. Pump Pressure (KG/cm²) | 2.5 | 2.5 | 2.5 | 2.5 | 4 | 6 | 6 | 6 | |
| Alert Function | Phase loss/water shortage/over temperature/overload | ||||||||
| Cooling Water Pipe (mm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Inlet Outlet Diameter | 2x(4x3/8") | 2x(1x1") | 2x(4x3/8") | 2x(1x1") | |||||
| Dimensions (mm) | 800x415x780 | 1090x515x945 | 800x415x780 | 1090x515x945 | |||||
| Approx.Net Weight (KG) | 83 | 86 | 130 | 162 | 85 | 88 | 135 | 167 | |
