Volumetric Dosers

Product number:
product description

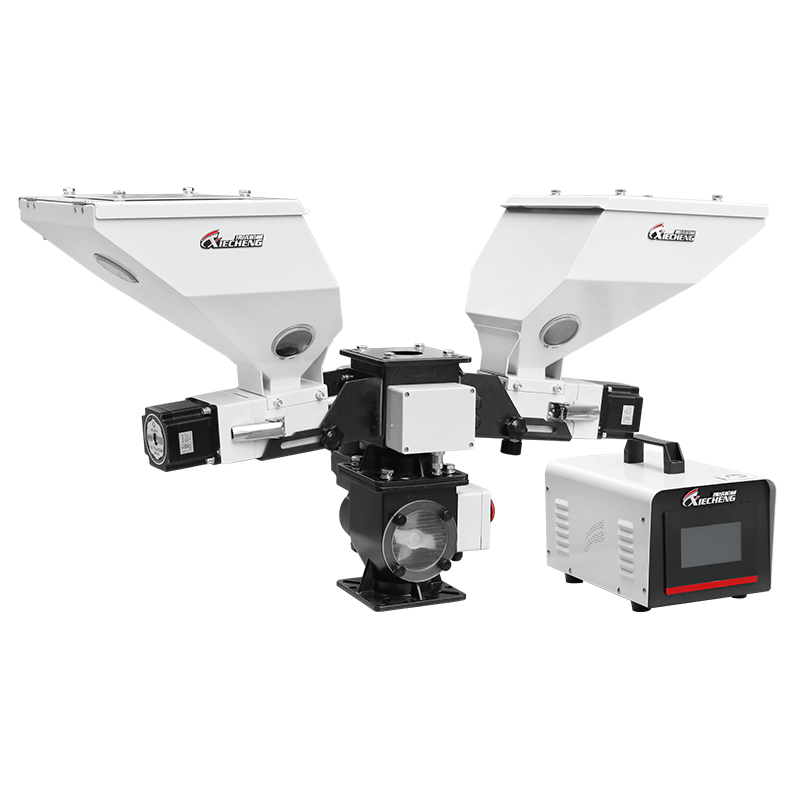

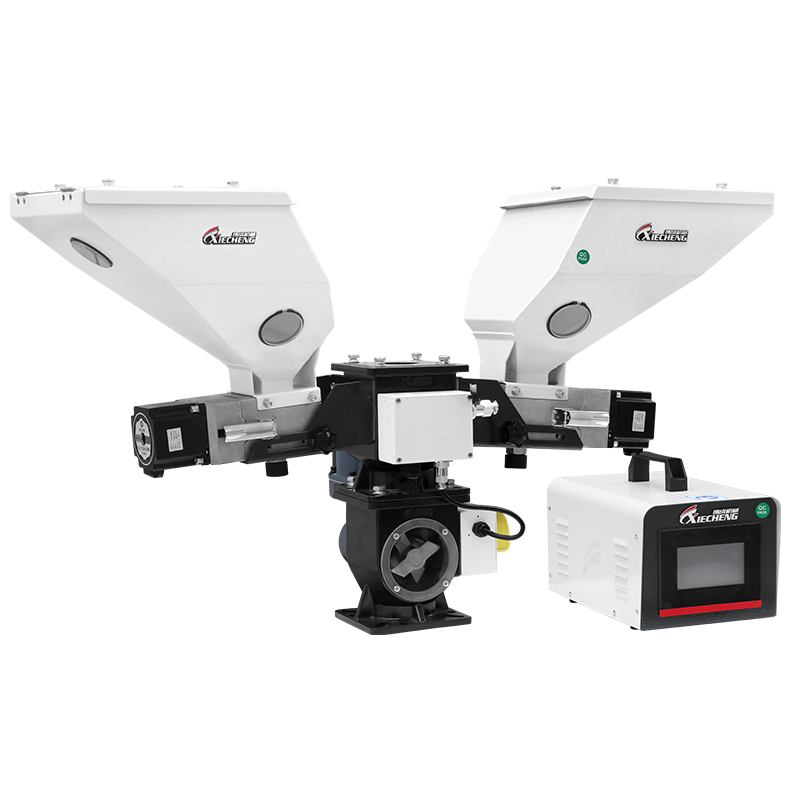

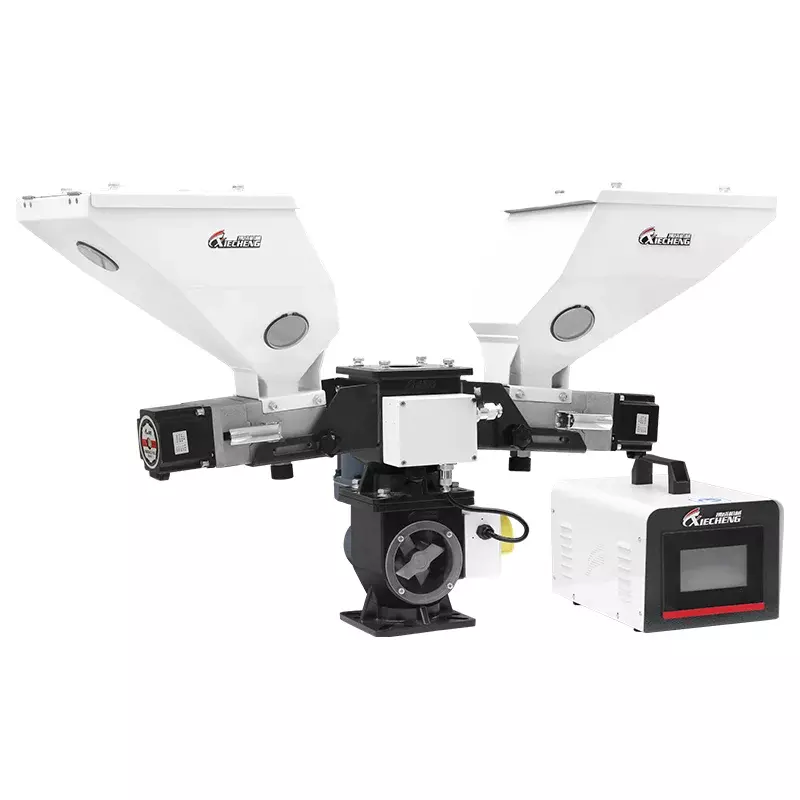

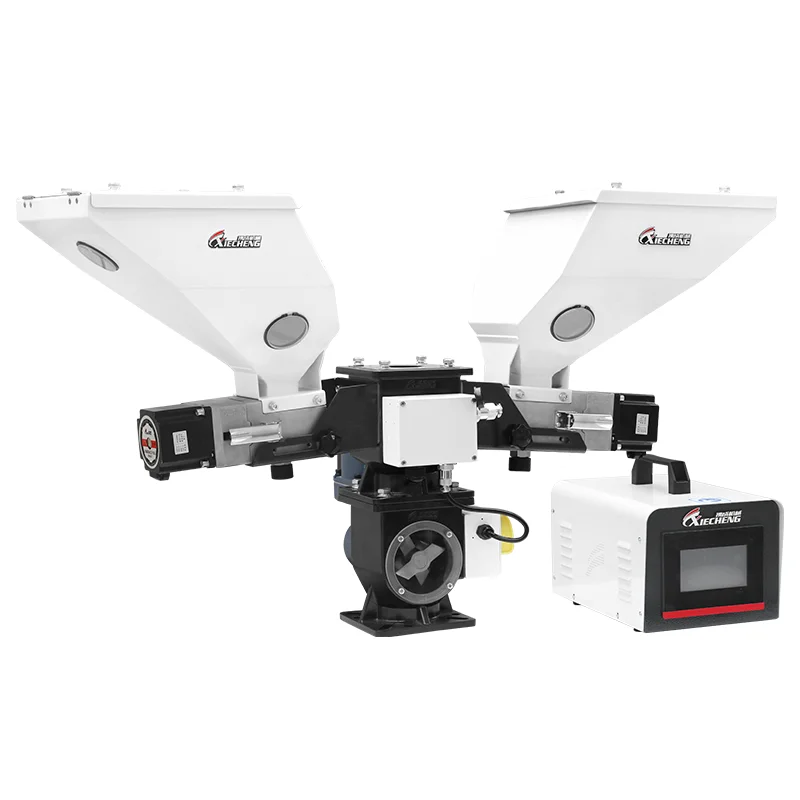

volumetric doser


XCM series volumetric dosers are adaptable to auto-proportion mixing of new materials, regrinds, masterbatch or additives, adaptable to injection, extrusion or blow molding field. A stepper motor is used in this series, according to the set mixing proportion, the microprocessor accurately controls rotation of the high precise dosing screw to squeeze out materials with an deviation of ±1%. This volumetric doser can connect with various molding machine signals in synchronicity, to ensure the stability of the products.

Advantages of Volumetric Doser:

1. It is adopted with the stepping motor that can accurate the output volume;

2. The PLC controller takes accurate calculation of color batch or addictive proportions;

3. It allows up to 50 permanent recipes that can be reused at any time;

4. The screw is made of the durable stainless steel 304;

5. The module structural design makes it even handy for installation, cleaning and parts replacement;

6. Accommodated with both injection and extrusion condition.

Volumetric Doser Introduction Video:

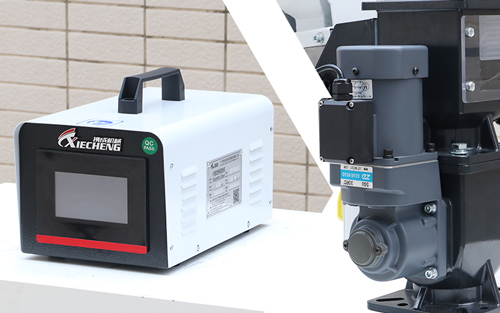

motor of volumetric doser

High Quality Component

Using the high accuracy hybrid stepping motor, measurement accuracy and output scope.

The adopted PLC panel shows reliable performance and easy maintenance.

Can store 50sets of formula, can quickly start the machine.

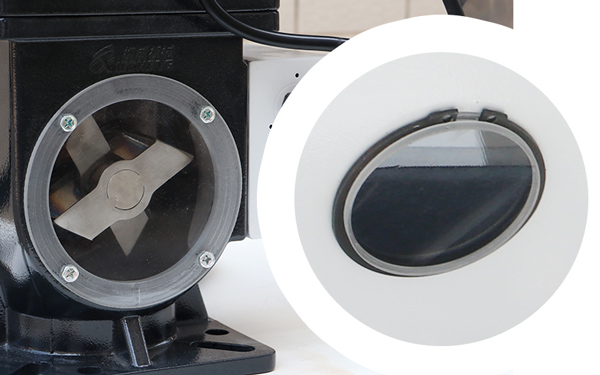

base of volumetirc doser

Humanized Design

Large opening on the side of the neckpiece, large window and improved static blending.

screw of volumetric doser

Screw of Doser

Dosing screw material is 304 stainless steel, and chrome plated for durability;

The specifications are optional 12/14/16/20/30mm.

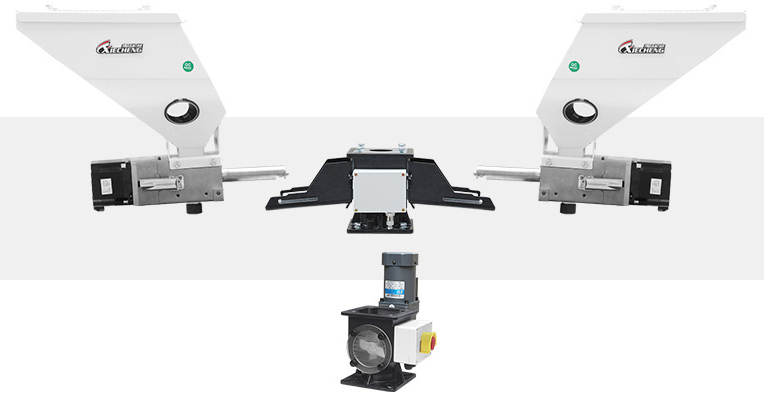

modules of volumetric doser

Detachable Modules

Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability;

The roof-shaped quick-change(the dosing section can be removed without granulate leaking form the neckpiece).

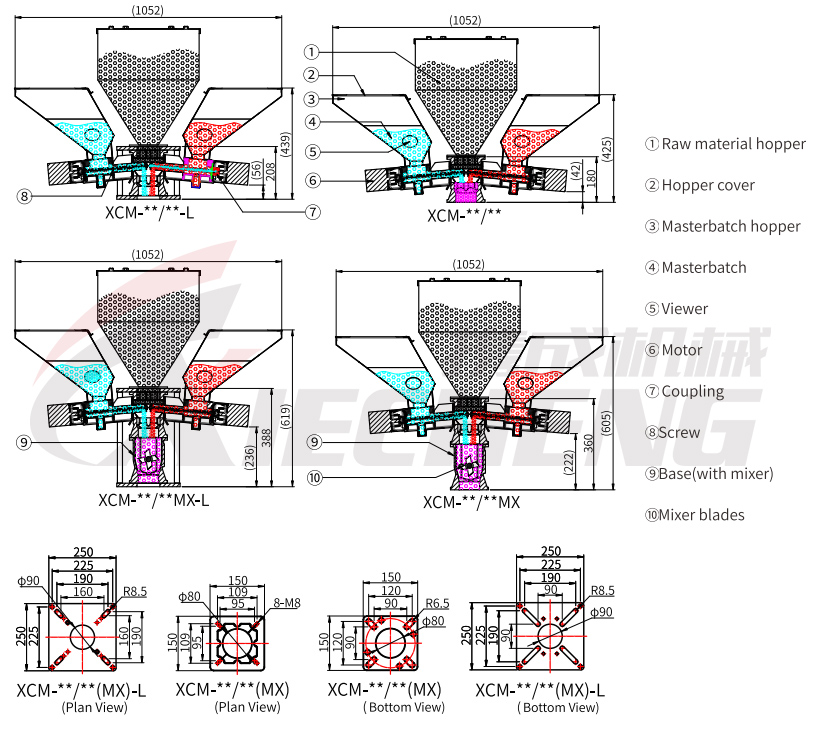

Working Principle of Volumetric Doser:



Parameters of Volumetric Doser:

Model Monochrome Machine Two-color Machine Three-color Machine
XCM-12 XCM-14 XCM-16 XCM-D2 XCM-D3
Motor Power (Kw) 0.3 0.3 0.3 0.3x2 0.3x3
Rotary Speed (r.p.m.) 1.8~300 1.8~300 1.8~300 1.8~300 1.8~300
Mixer Power (Kw) 0.09 0.09 0.09 0.09 0.09
Screw Dia. (mm) 12 14 16 ** **
Output Capacity (kg/hr) 0.05~20 0.1~40 0.5~64 * *
Sorage Capacity (L) 13 13 13 13 13
Main Raw Material Hopper (L) Optional Optional Optional Optional Optional
Mixer Power (Kw) Optional Optional Optional Optional Optional
Floor Stands Optional Optional Optional Optional Optional

H(mm) 430 430 430 430 430
W(mm) 560 560 560 1010 1010
D(mm) 300 300 300 300 560
Net Weight (kg) 25 25 25 45 75

Small base size(mm)

Small bass mixing size(mm) 150x120x95x100x52xM8x280xR6xR17
Large base size (mm) 230x180x130x**x90x**x300x110xR8.5x**
Large bass mixing size(mm) 230x180x130x**x90x**x350x110xR8.5x**
