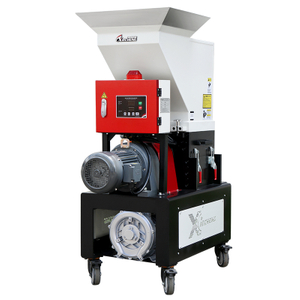

Low Speed Online Granulator

model:
Availability:
Quantity:
Product Description

low speed online granulator

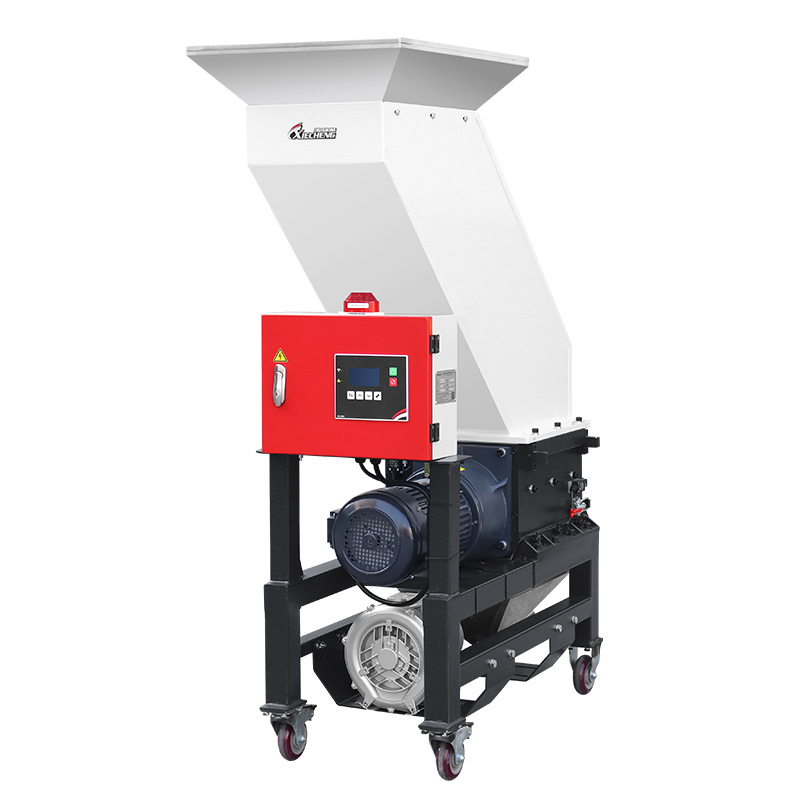

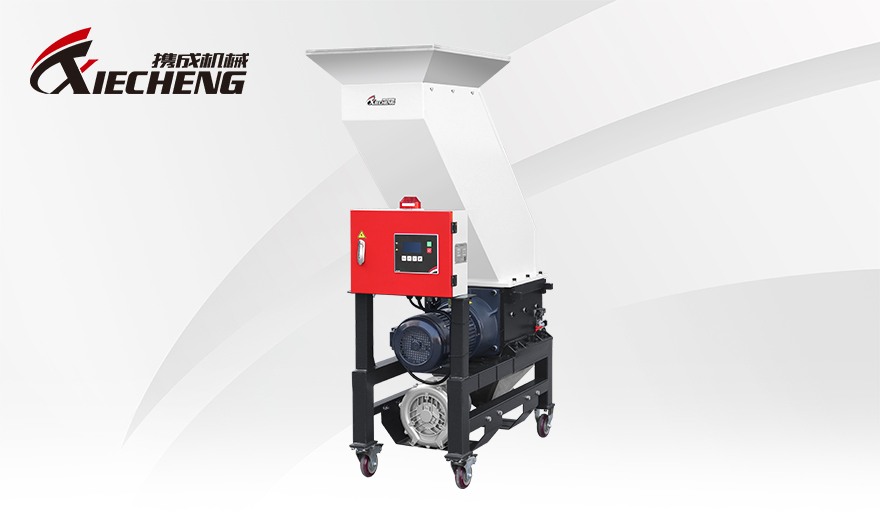

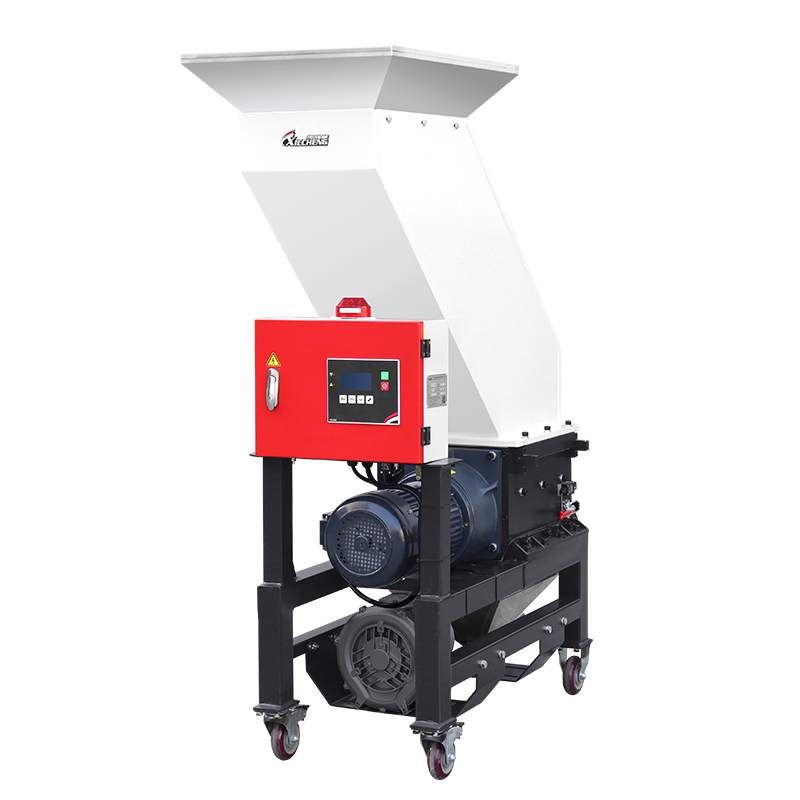

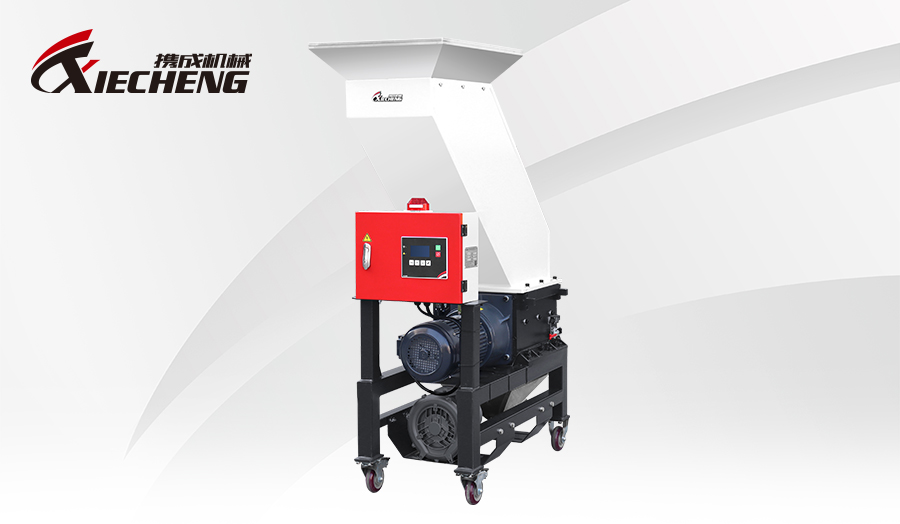

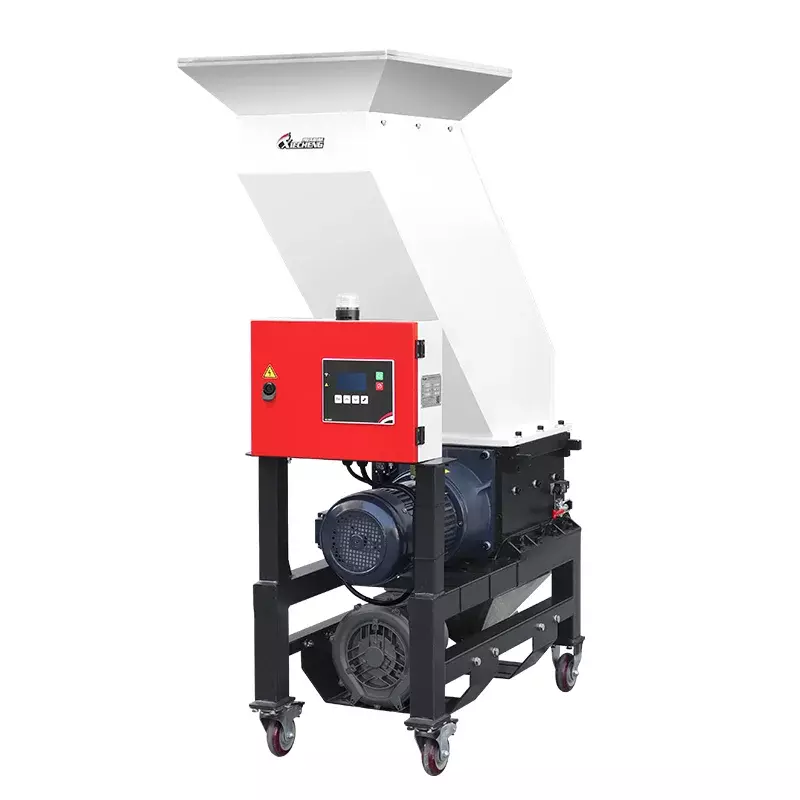

Low Speed Online Granulator


Advantages of Low Speed Online Granulator:

▪ Low speed grinding with the V shape stepped rotary cutters design, low noise, evenly output and less dust occurred;

▪ Capable of auto reverse running and clearing of jammed materials, all-round protection of the motor;

▪ Direct driven reducer ensures stable running;

▪ With timing function to turn on or off saving energy;

▪ Controlled by microcomputer, easy operation and maintenance;

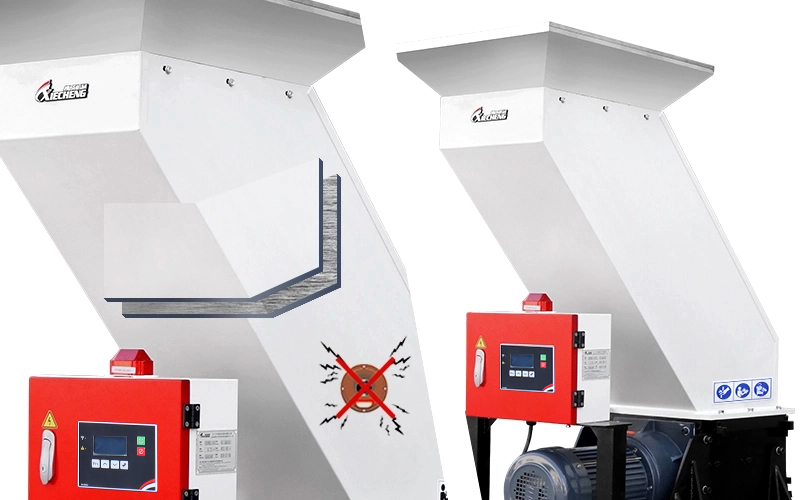

▪ Double layered soundproof designed feeding hopper,low noise;

▪ Fast disassembly and assembly design for processing chamber, easy to clean and maintain;

▪ With multiple protections as phase sequence protection, overload protection, limit protection,etc


卡料自动逆转功能


产品细节

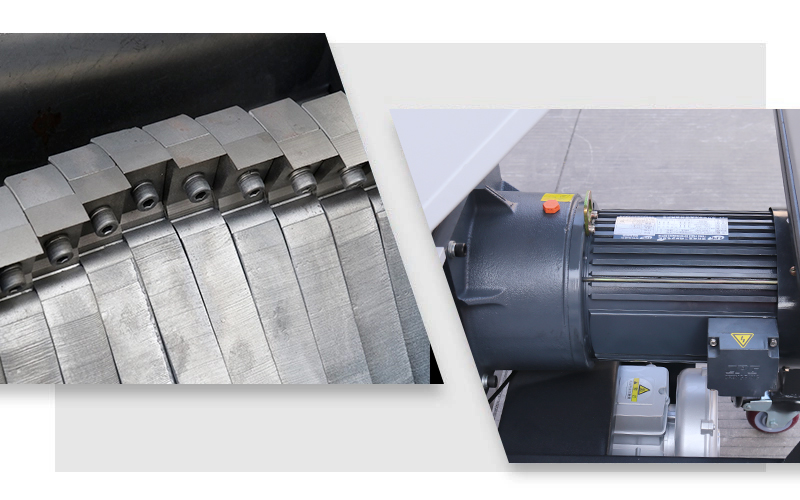

Durable Cutter

Low speed grinding with the V shape stepped rotary cutters design, low noise,evenly output and less dust occurred;






Automatic Reverse Function

Capable of auto reverse running and clearing of jammed materials, all-round protection of the motor;

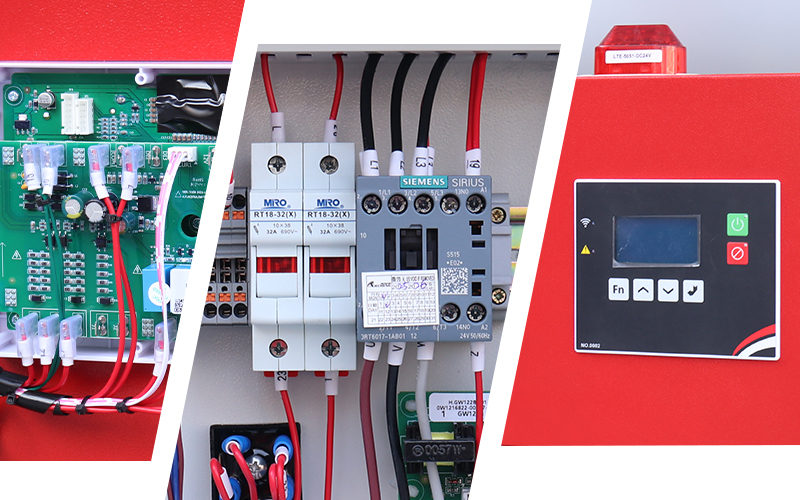

Controller

Controlled by microcomputer, easy operation and maintenance; With timing function to turn on or off, saving energy.

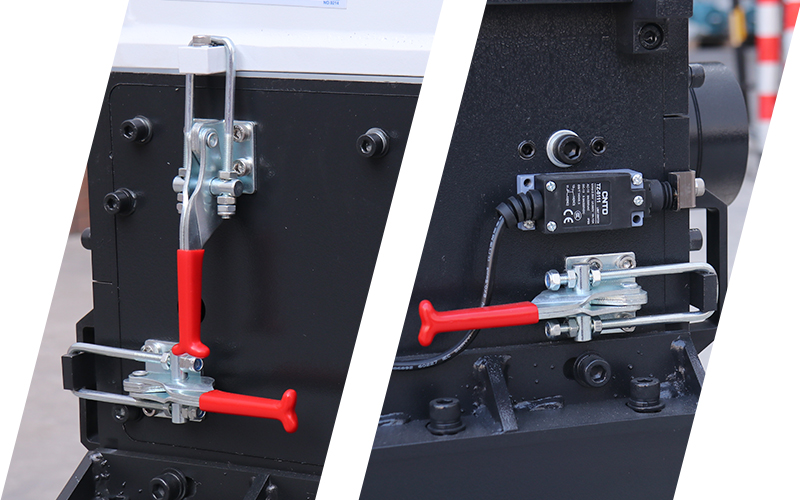

Detachable Design

Fast disassembly and assembly design for processing chamber, easy to clean and maintain.







Feeding Hopper

Double layered soundproof designed feeding hopper, low noise occurs.



结构件图

新旧料混合回收系统示意图

技术参数

型号

XC-GS2HP

XC-GS3HP

XC-GS5HP

XC-GS2HPRC

XC-GS3HPRC

XC-GS5HPRC

FeedingHopperSize(mm)

320x310

380x310

440x310

320x310

380x310

440x310

Grinding Chamber(mm) 260x310 320x310 380x310 260x310 320x310
380x310
Grinding Capacity(Kg/h) 22 27 33 22 27 33
Power KW 1.5 2.2 3.7 1.5 2.2 3.7
Stationary Cutter(Piece) 2 2 2 2 2 2
Hook Cutter(Piece)
27 33 39 27
33 39
Mesh Size(mm) 8 8 8 8
8 8
Dimensions(LxWxH) 850x500x1500 1000x500x1500 1150x500x1500 850x500x1500 1000x500x1500 1150x500x1500
SpindleSpeed(R/Min) 140 140 140 140 140 140
BlowerPowerKw(Active Collecting) / / / 0.55
0.55 0.55
Note Should be used with auto loader and proportional valve
Equippedwith recycled system
