Feature:
1. Simple appearance and compact structure, which save space and facilitate operation;
2. Uses high-pressure air to convey raw materials, resulting in extremely low noise levels;

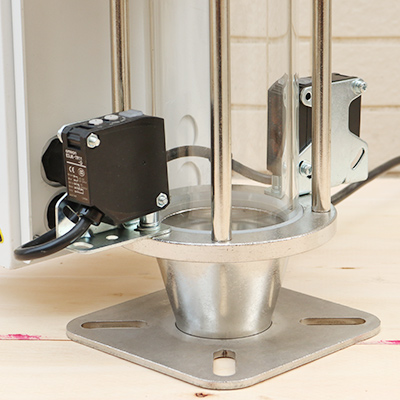

3. Equipped with a glass feed tube and photoelectric sensor, effectively detecting the conveyance of raw materials;
4. The exhaust with a filter design keeps the working area clean and free from pollution;
5. Equipped with a filter and pressure regulator combination, which filters moisture from the air and ensures stable air pressure;
6. The hopper design is easy to remove and clean.
The exhaust with a filter design keeps the working area clean and free from pollution;
Equipped with a glass feed tube and photoelectric sensor, effectively detecting the conveyance of raw materials;
|
Specifications：
| Model | Rotating Speed（L） | Max capacity(kg/hr) | Conveying distance（M） | Pipe diameter（mm） | Compressed air（kgf/cm²） | Dimensions(mm)
WxDxH |
| XC-XVL50 | 0.5 | 30~50 | 6 | 38 | 6 | 350*240*420 |
| XC-XVL300 | 3 | 50~80 | 6 | 8 | 350*240*540 |
| XC-XVL750 | 7.5 | 70~90 | 6 | 10 | 350*290*650 |
