Product Description

2025-04-11Euro Drying Loader

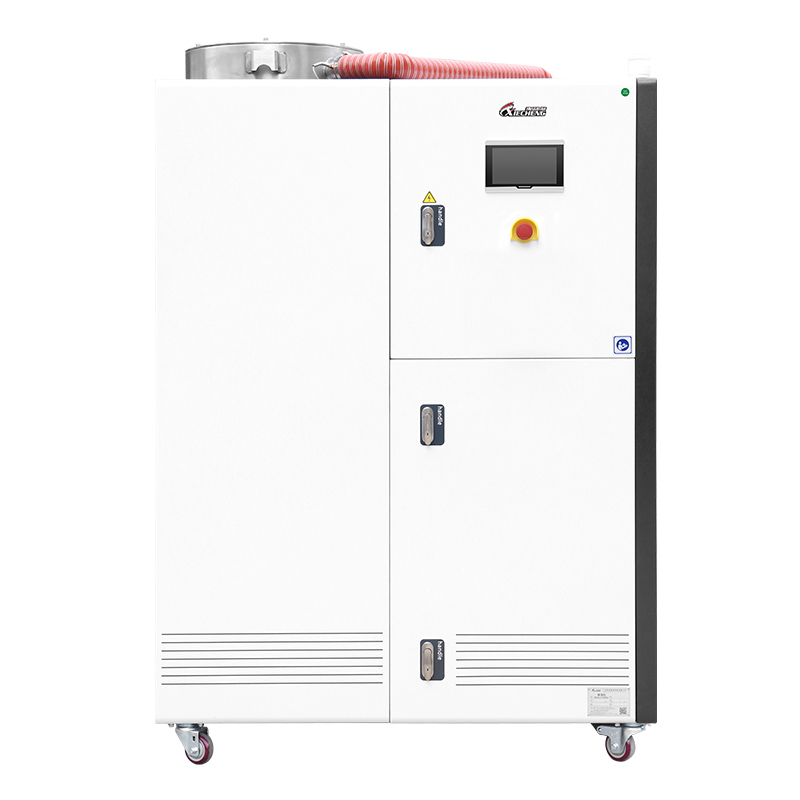

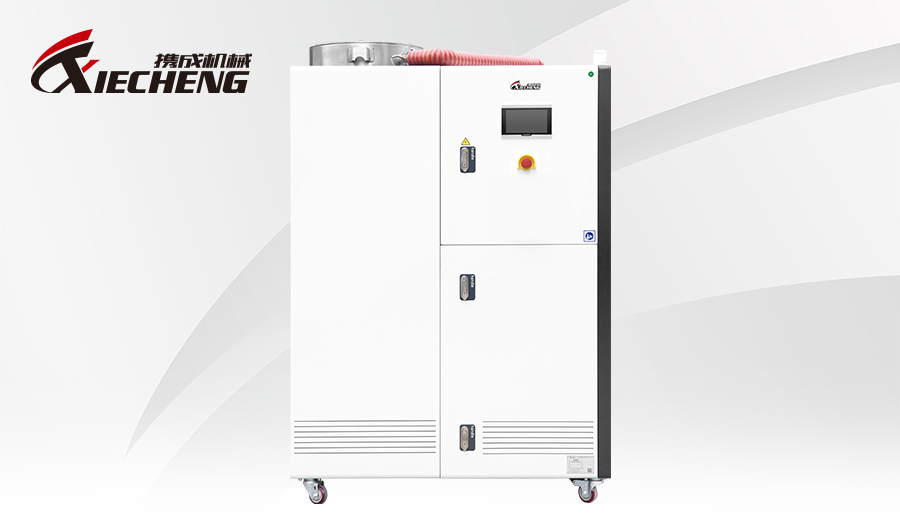

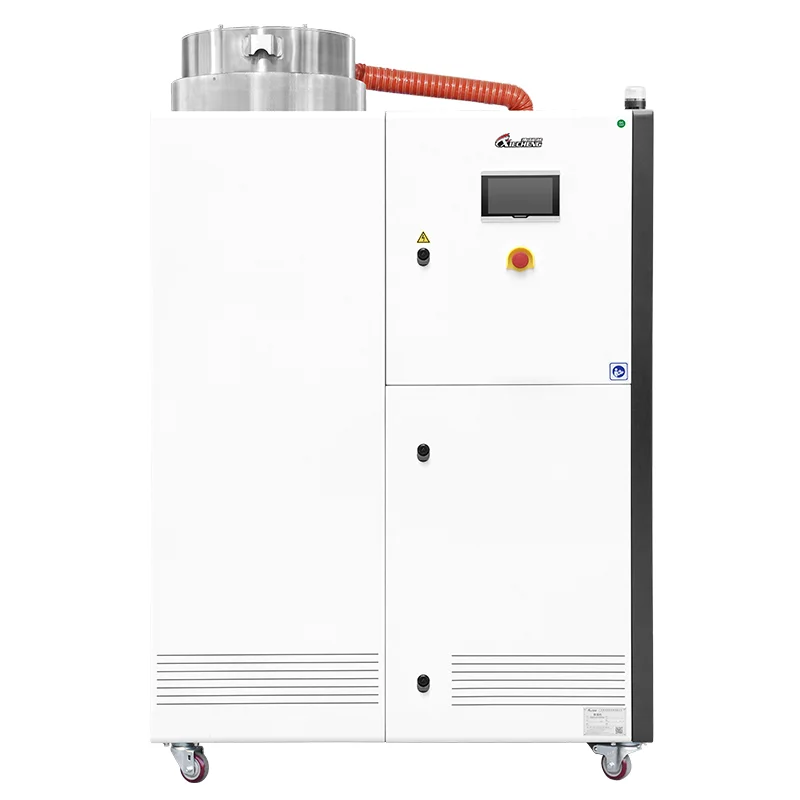

Euro Drying Loader



Euro drying loader integrates plastic drying and conveying functions. The two-stage feeding function realizes the fully automatic conveying of materials from the storage box to the drying barrel and the drying barrel to the molding machine, saving manpower and avoiding pollution. It is especially suitable for plants with limited height and large injection molding machines and vertical injection molding machines.



|

 FEATURE:

1. The XC-EDL-U series integrates two machines for automatic feeding and drying; the XC-EDL-U-HD series integrates dehumidification, drying and feeding, and adopts heatless regeneration drying;

2. It is equipped with an LCD touch screen human-machine interface operation, real-time display of working status, and temperature control accuracy of up to ±0.1°C;

3. The Euro-insulated drying barrel adopts a down-blowing air duct design and a cyclone exhaust device to prevent heat loss, ensure temperature, and improve drying efficiency;

4. All models are equipped with a closed-loop feeding system to prevent the dried raw materials from being damp again due to contact with the outside air;

5. The feeding system is equipped with a cut-off valve to ensure that there is no residual raw material in the material pipe;

6. The raw material contact parts are made of stainless steel to ensure that the raw materials are not contaminated;

7. The XC-EDL-U-HD heatless regeneration device can provide dry air with a low dew point to speed up the processing of raw materials;

8. It is equipped with a 24-hour timing function to realize automatic operation of the whole machine;

9. Equipped with communication function, it can realize automatic remote management.

Specifications:

Model XC-EDL80U XC-EDL120U XC-EDL160U XC-EDL230U XC-EDL300U XC-EDL450U XC-EDL600U XC-EDL750U XC-EDL900U
Heater Power(KW) 4 4.5 6 9 12 15 18 18 24
Blower(KW) 0.135 0.21 0.215 0.32 0.32 0.32 0.5 1.5 1.5
 Compressed air flow(m³/min) 0.25 0.32 0.4 0.5 0.6 0.7 0.8 0.9 1.1
Inlet/outlet air duct diameter 2" 2.5" 3" 4"
Conveying Blower Power(HP) 2 5
Suction Box Pipe Diameter(mm) Φ38 Φ51
Vacuum Hopper(L) 7.5L(38/38) 12L(38/38) 12L(51/51)
Sensor Hopper(L) 7.5L(38/38) 12L(38/38) 12L(38/38) 12L(51/51)
approx.net weight(kg) 135 203 223 242 318 368 463 518 578
 Dimensions(mm) H×W×D 1100*750*1100 1820*750*1100 1910*900-1320 1940*900*1320 2250*1030*1450 2350*1030*1450 2350*1150*2150 2350*1600*2200 2530*1600*2400
