Euro-photoelectric Auto Loader

Availability:
Quantity:
Product Description

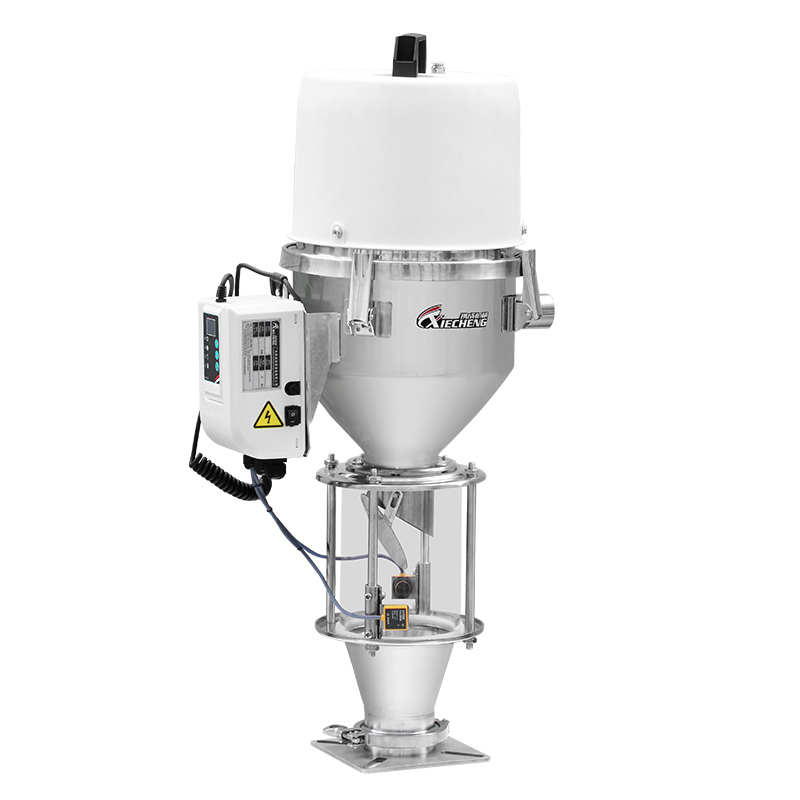

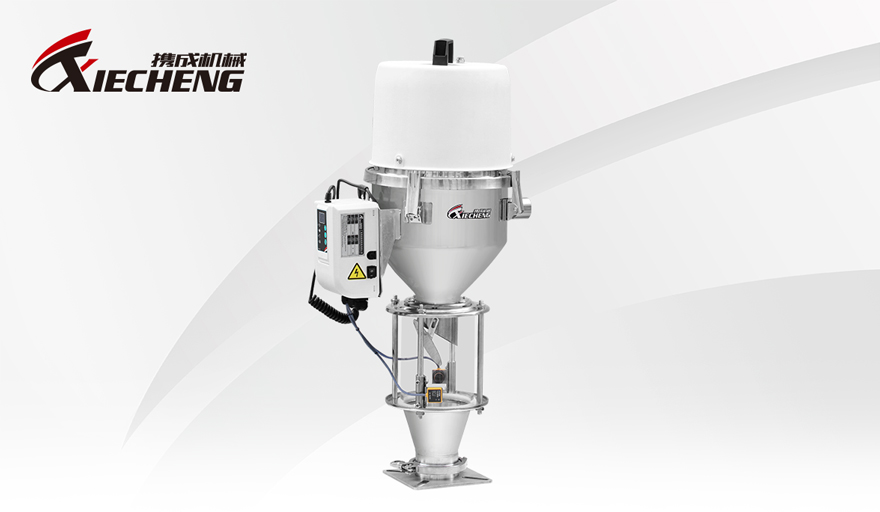

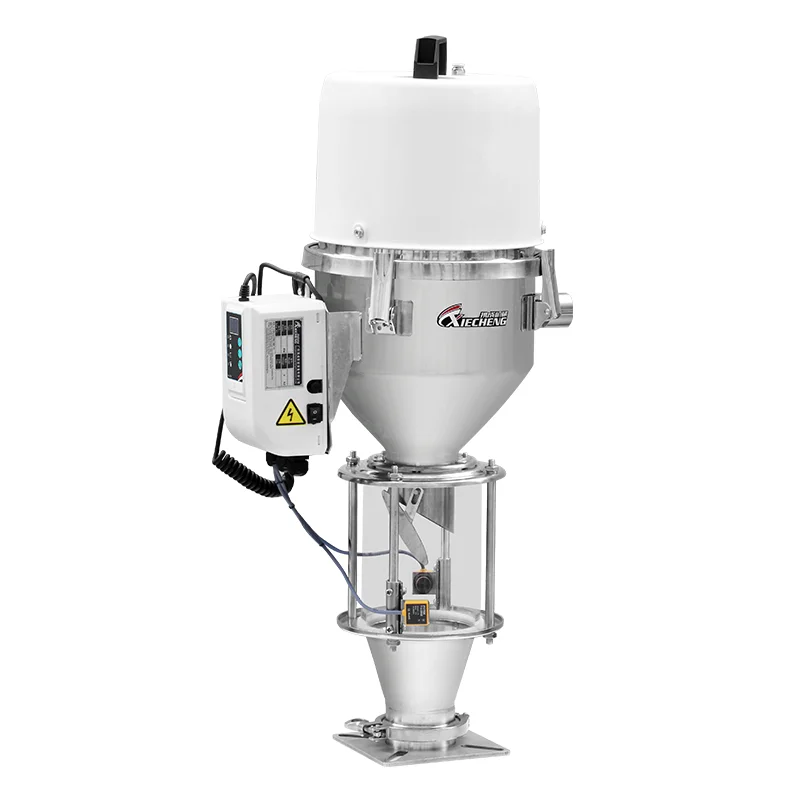

Euro- photoelectric Auto Loader

Euro-photoelectric Auto Loader


Feature:


1. Adopted carbon brush motor, high rotating speed, large air volume, small size, convenient to move and easy to install;

2. Cable remote controller, easy to operate, with auto cleaning function;

3. With soft starting-up of motor and reminder for carbon brush consumption;

4. Adopted cloth type filter with auto spray cleaning dust removal device, and alarm for filter jamming, to extend the service life of the motor;

5. All stainless steel contact parts, to ensure no pollution in material conveying;

6. Adopts glass tubes  with photoelectric sensors. Effective detection of raw material conveying.

7. The hopper is easy to disassemble and clean.

Product Details

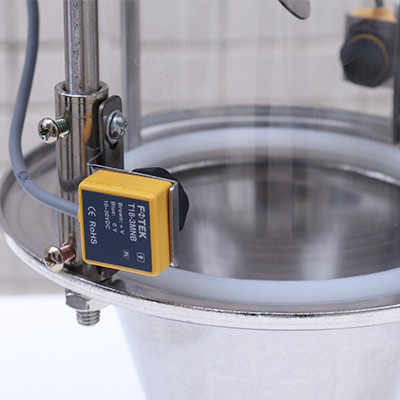

Adopts a glass material tube combined with a photoelectric sensor to effectively detect the conveyance of raw materials;

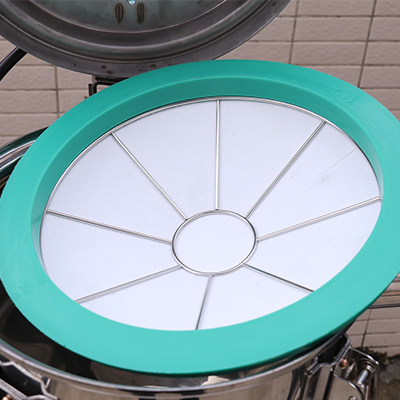

Adopted cloth type filter with auto spray cleaning dust removal device, and alarm for filter jamming, to extend the service life of the motor;


Specifications:

Model XC-VAL300G-E
Motor Type Carbon Brush
Specification 1.1kw/1.3hp   1φ
Conveying capacity(kg/hr) 300
Loading distance(m) 3.5
Static wind pressure(mm/H2O) 1300
Reservoir volume(L) 6
Conveying tube inner diameter(mm) φ38
Specification of the attached hoses φ38mm×4m 1pc
Dimensions L x W x H(cm) 400×310×780
Approx. Net weight (kg) 11.5
