Separate Hopper Loader X810G

Product number:
Availability:
Quantity:
product description

standard separate-vacuum hopper loader

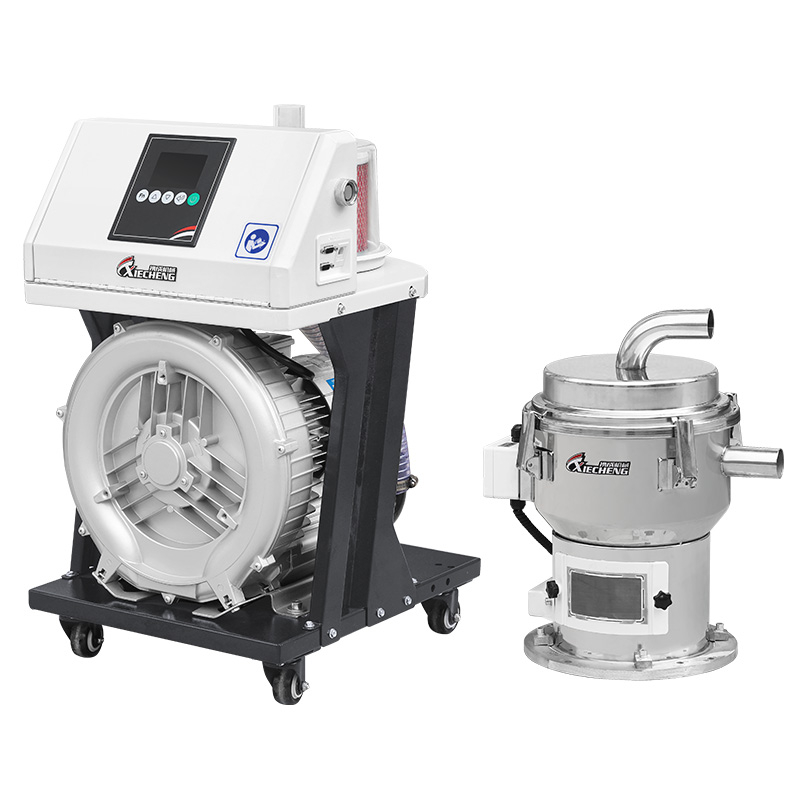

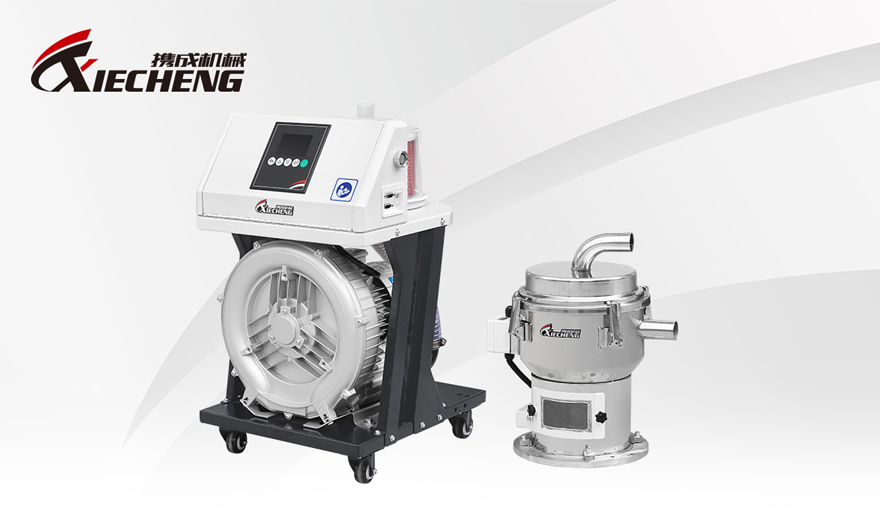

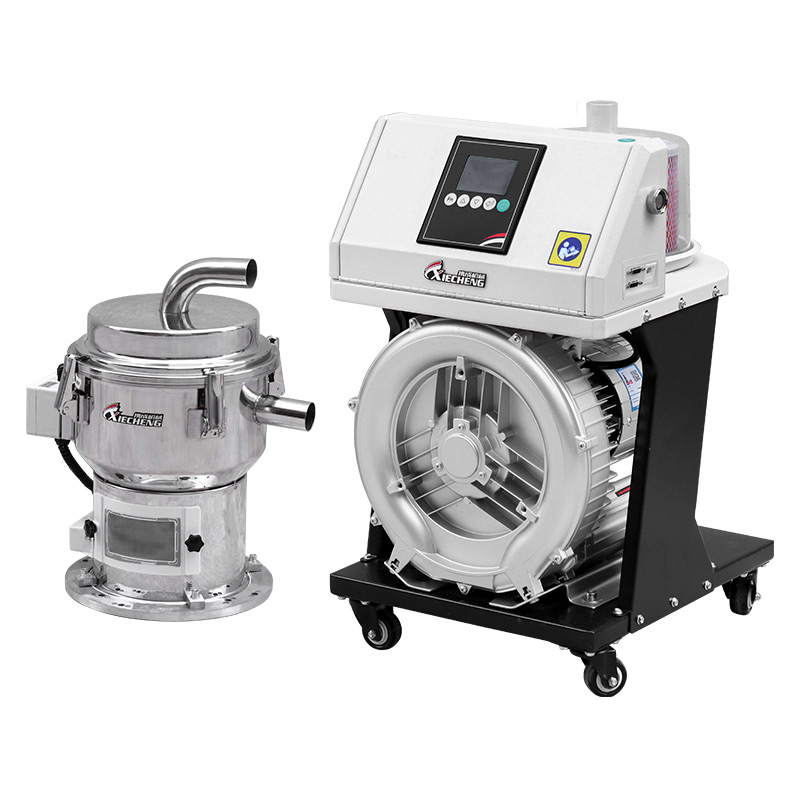

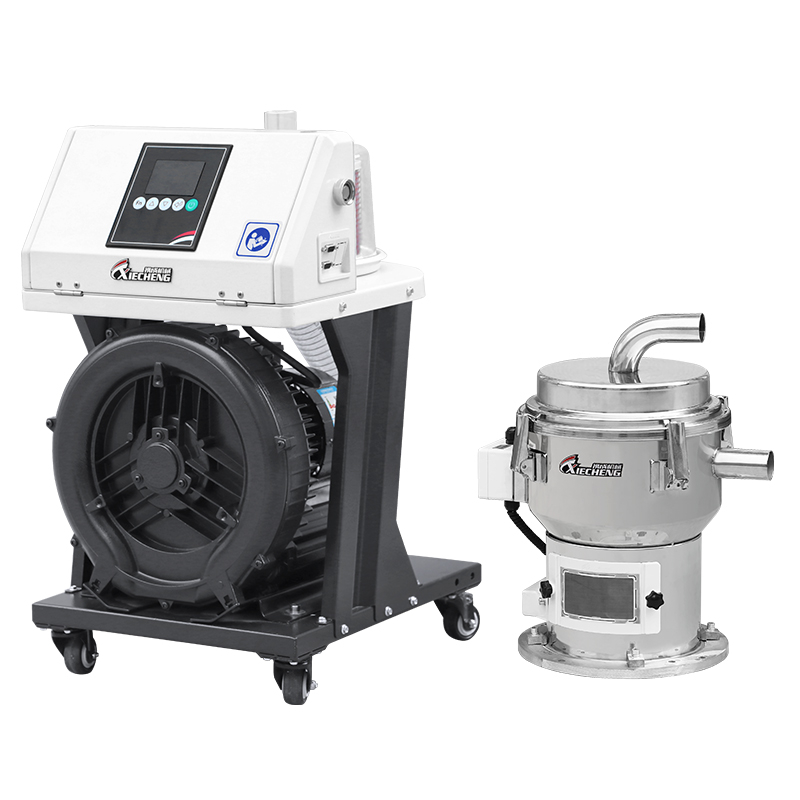

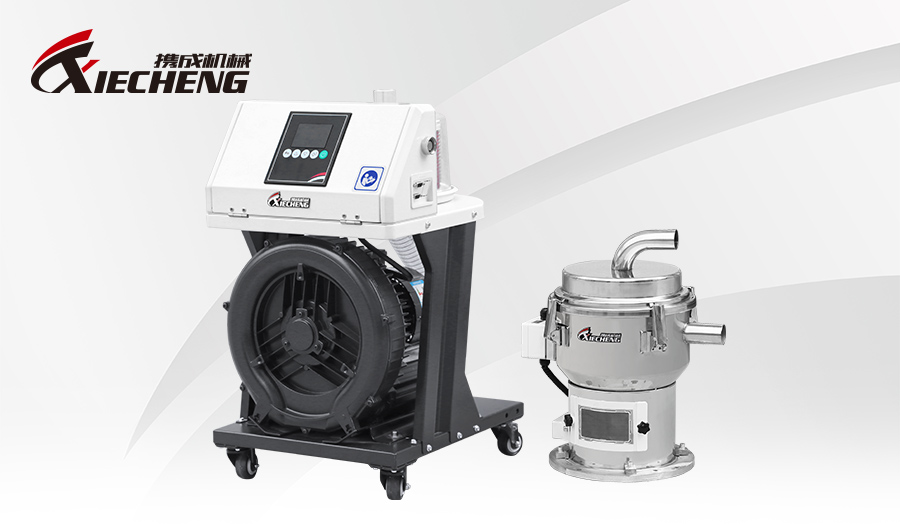

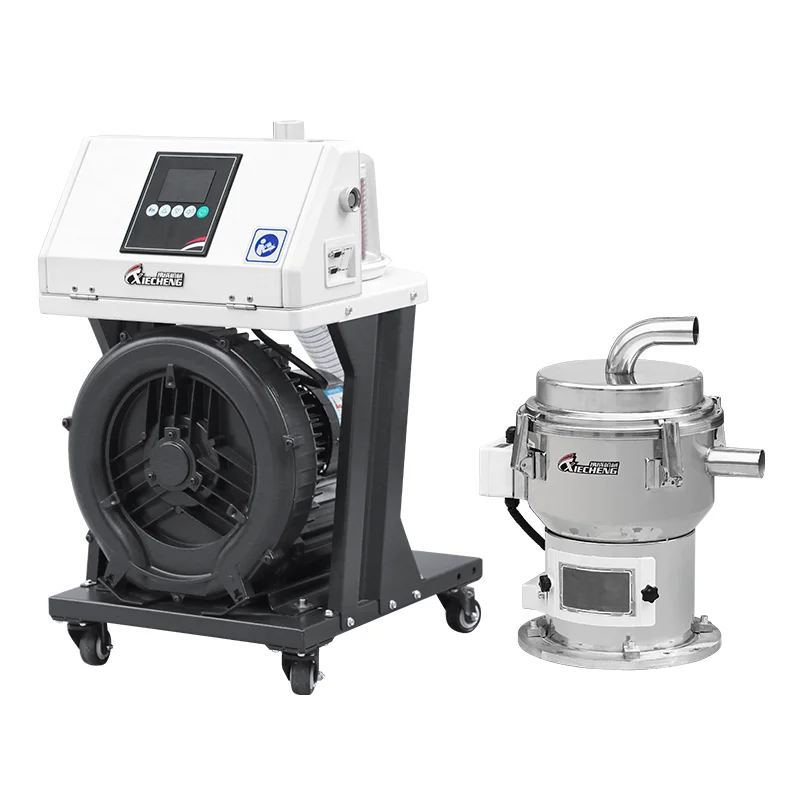

Standard Separate -vacuum hopper loader X810G



The split design of the XC-X810G split material suction machine separates the host machine from the hopper and has high flexibility. The hopper comes standard with a magnetic spring induction hopper, which can be installed in different locations as needed to facilitate the supply and transportation of plastic raw materials. . This series adopts induction high-pressure blower, which has the characteristics of strong suction, low noise and long service life. Suitable for new material transportation during plastic molding production and processing.

|

 Feature:

1. Main machine separated from the hopper , easy and safe to operate.

2. Independent filter and transparent shell are easier to observe dust accumulation in filter barrel, clean up in time and guarantees machine work properly;

3. LCD microcomputer controller with adjustable parameters is easy and convenient to operate;

4. Motor has overload automatic protection, alarm for material shortage and automatically removing dust function;

5. Equipped with Independently controlling material-cutting suction box, proportional valve and vacuum breaking valve function;

6. Optional RS485 communication function can achieve remote automatic management;

7. Model: XC-X810G, XC-X810G2 are equipped with magnetic vacuum hopper in standard version.


|

 Installation Diagram

Installation Diagram

|

 Product Details

Transparent dust cover


Transparent dust cover

1. Transparent design: easy to observe the dust accumulation in the filter barrel and clean the dust in time;

2. High temperature resistance: can be used in high temperature environments for a long time;

3. Impact resistance: strong impact resistance.




Microcomputer controller



Microcomputer controller

1. Microcomputer operation control program can adjust various parameters, easy to operate and intuitive to display.

2. Optional RS485 communication function to realize remote automatic management.

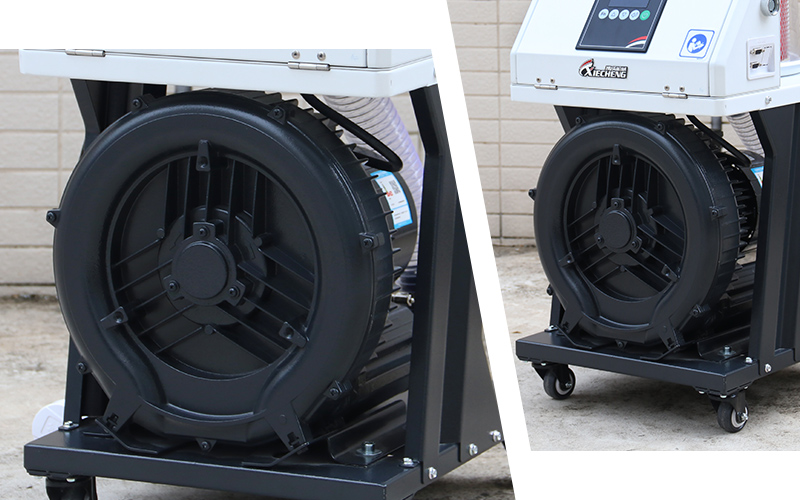

Efficient induction motor



High efficiency induction motor

1. It adopts induction high-pressure fan, which has less noise and long service life;

2. It has the function of reversing dust removal.








Magnetic spring hopper


Magnetic spring induction hopper

1. High precision: can accurately control the distribution amount and speed of materials;

2. Save energy consumption: It adopts magnetic reed switch control, no additional external drive is needed, the induction is sensitive, and energy consumption is saved.




|

 Specifications

Model

XC-X810G

XC-X810G2

Motor

Type

Induction

Induction

Specification

1.1kw/1.5hp 3φ

1.5kw/2hp 3φ

Conveying capacity(kg/hr)

450

500

Loading distance(m)

4

5

Static wind pressure(mm/H2O)

1800

2400

Reservoir volume(L)

7.5

7.5

Conveying tube inner diameter(mm)

φ38

φ38

Specification of the attached hoses

φ38mm×8m 1pc

φ38mm×10m 1pc

Dimensions(cm)

Main frame

45x38x67

45x38x67

Hopper

38x28x45

Approx. Net weight (kg)

48

48.5
