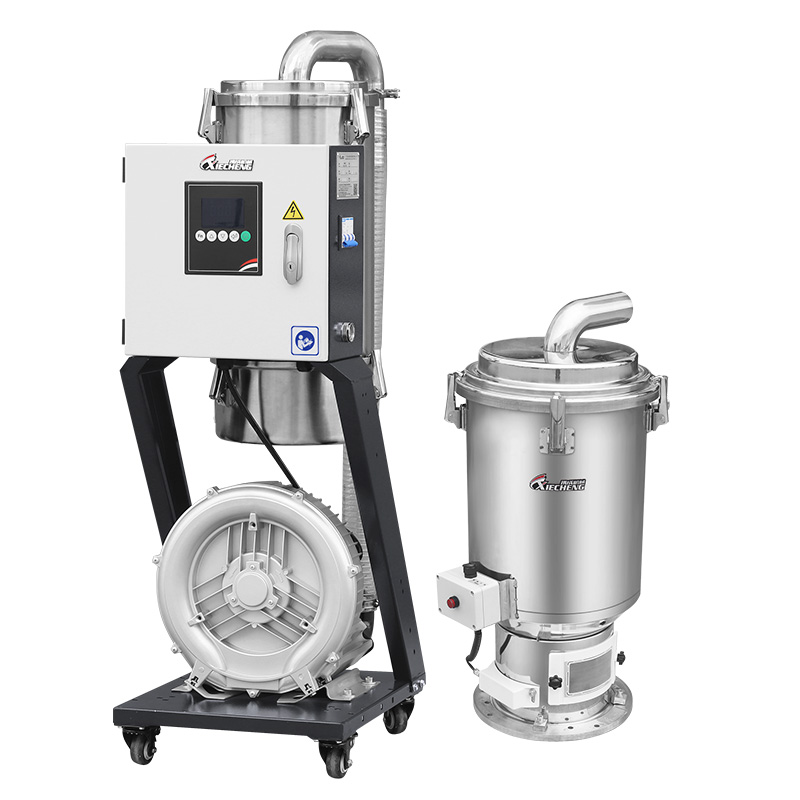

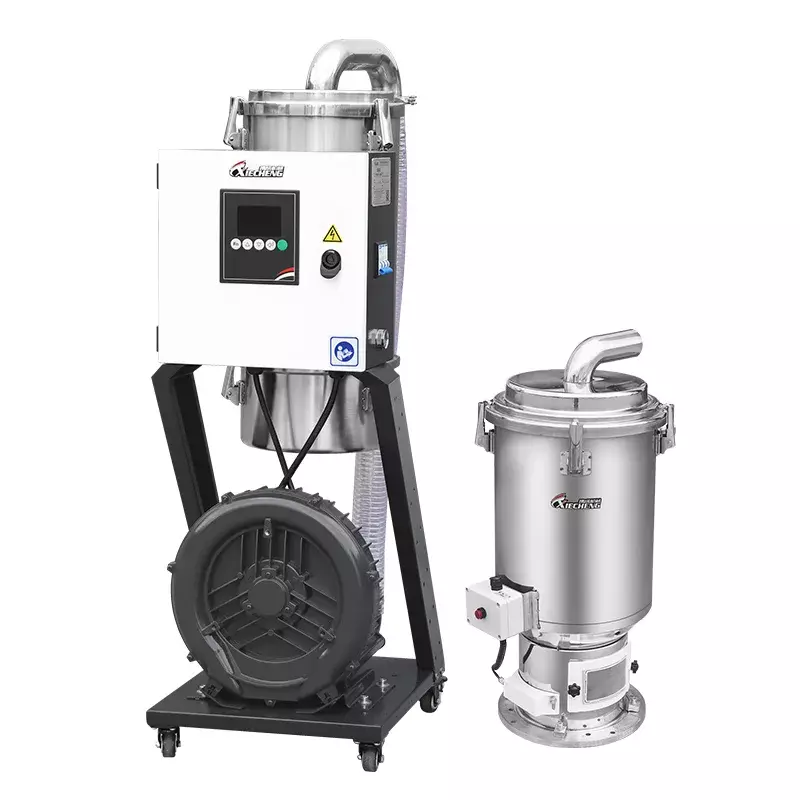

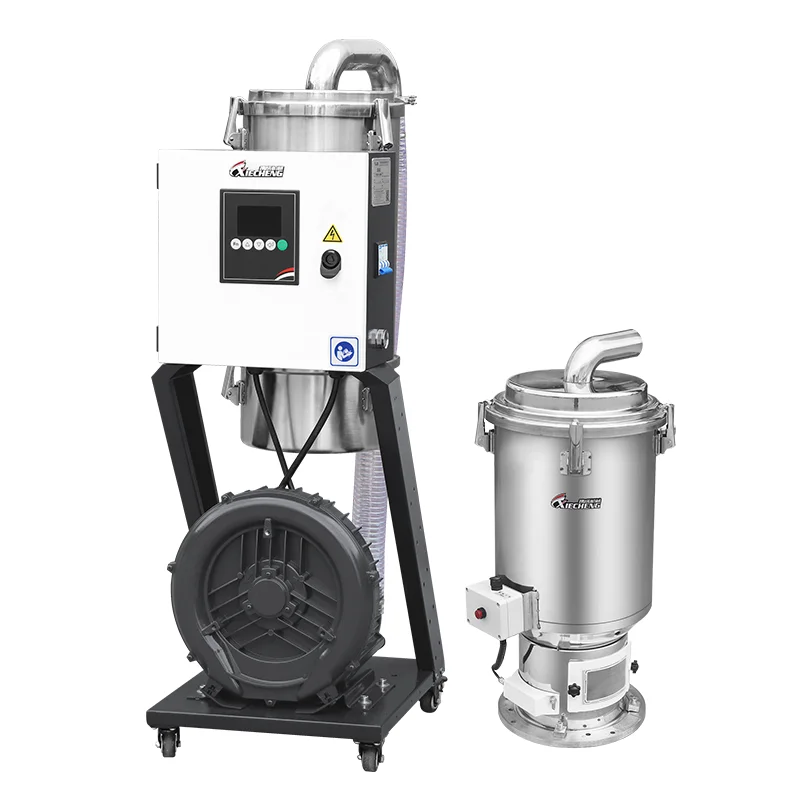

Separate-Vacuum Hopper Loader

Product number:
Availability:
Quantity:
product description

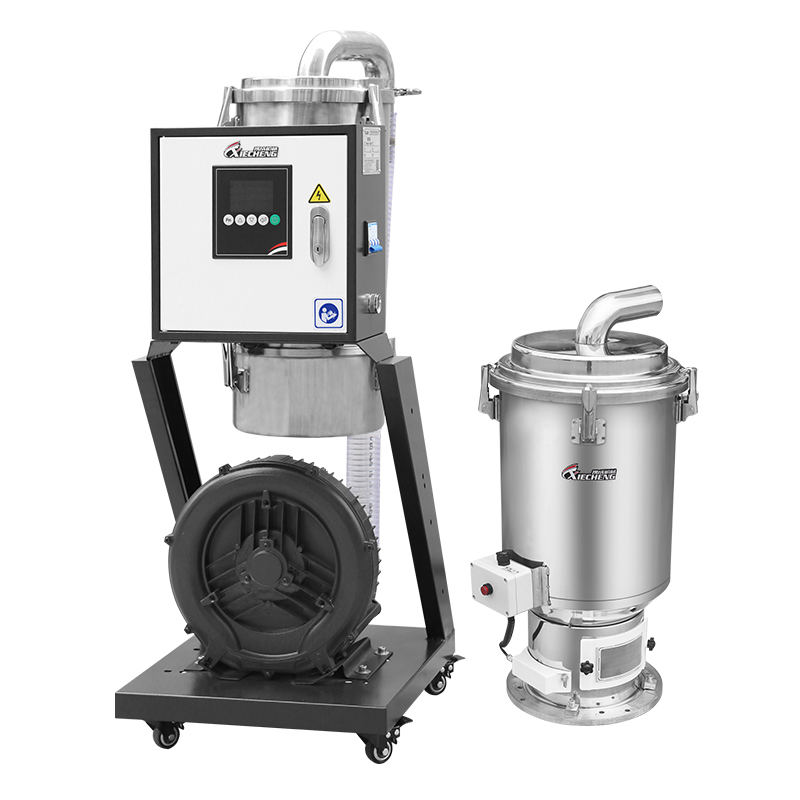

separate-vacuum hopper loader


SEPARATE-VACUUM HOPPER LOADER


Feeding & Conveying Series

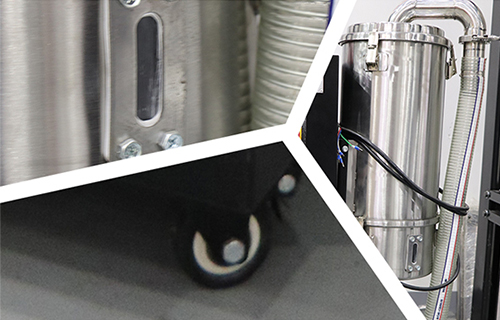

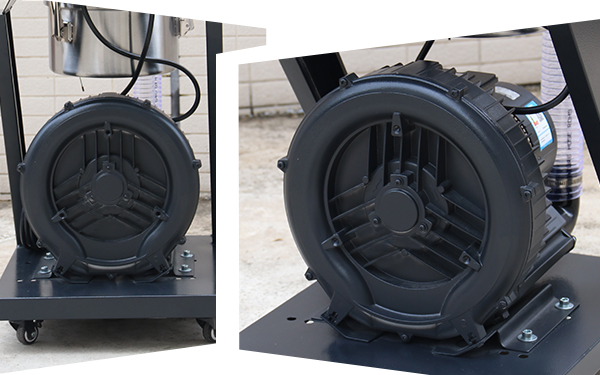

产品细节

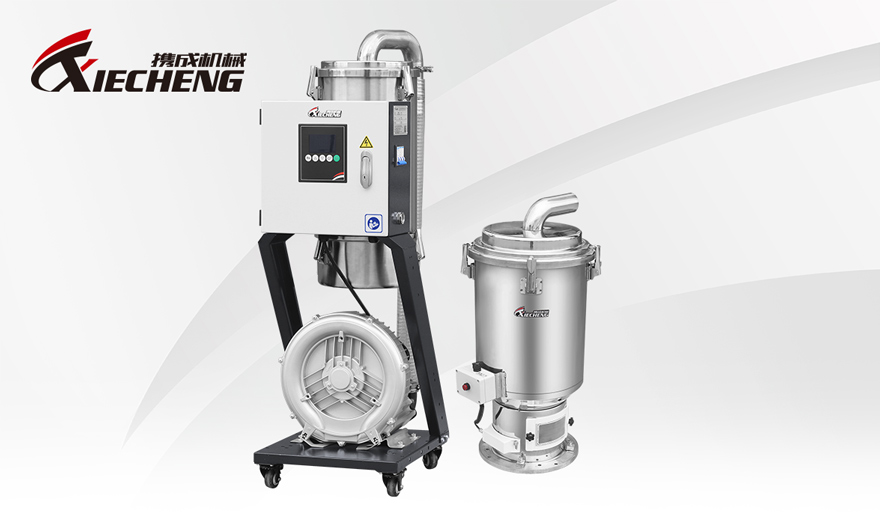

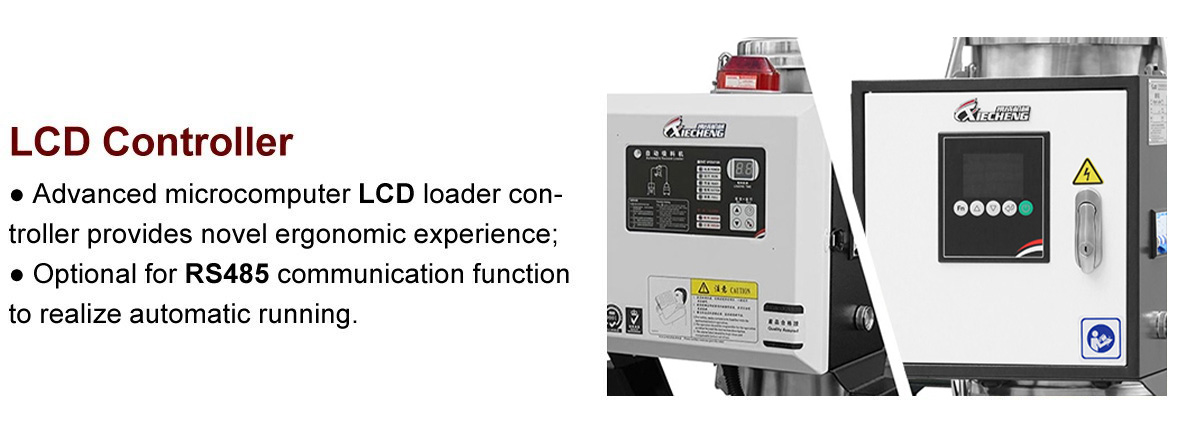

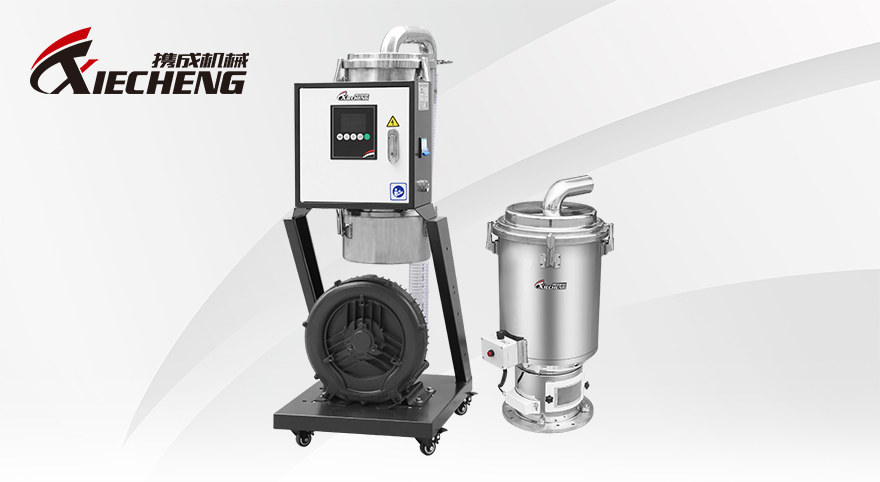

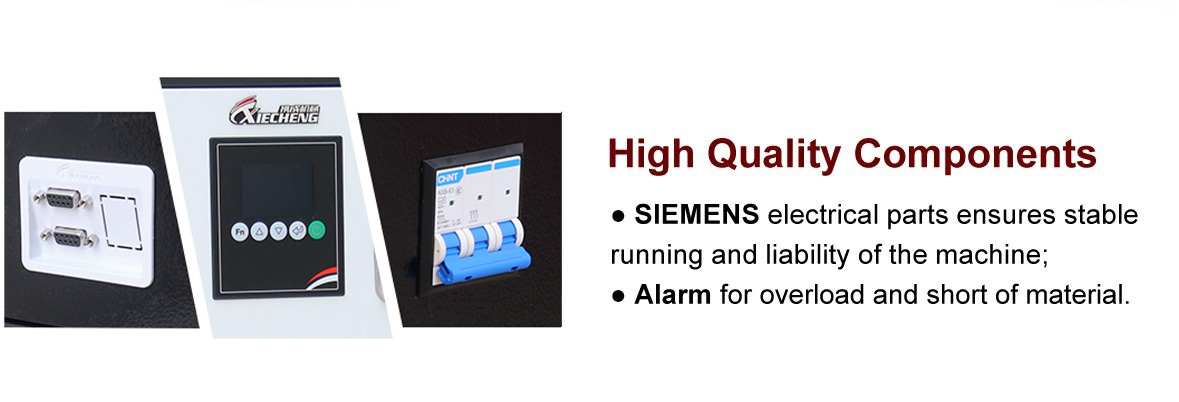

separate-vacuum hopper loader 02separate-vacuum hopper loader 03separate-vacuum hopper loader 04separate-vacuum hopper loader 05

结构件图

separate-vacuum hopper loader 06

技术参数

Model XCAL-1.5HP XCAL-2HP XCAL-3HP XCAL-5HP XCAL-7.5HP XCAL-10HP XCAL-15HP
Motor 1.5 /1.1 2/1.5 3/2.2 5/3.75 7.5/5.5 10/7.5 15/11
Conveying Capacity (kg/hr) 450 500 590 820 1000 1300 1500
Loading Distance (m) 5 5 5 5 6 6 6
Static Wind Pressure (mm/H2O) 2800 2800 2800 3200 4200 4500 4500
Storage Tank Capacity (L) 7.5 7.5 12 24 30 30 30
Conveying Tube Inner Diameter(mm) φ38 φ38 φ51 φ51 φ63 φ63 φ63
Specification of the Attached Hoses φ38mm×8m 1pc φ38mm×8m 1pc φ51mm×10m 1pc φ51mm×10m 1pc φ63mm×12m 1pc φ63mm×12m 1pc φ63mm×12m 1pc
Dimensions (cm) Host 50x42x109 69x52x144 99x85x142
hopper 38x28x45 38x28x45 43x33x58 43x33x69 43x33x83
Approx. Net Weight(kg)
56 56 68 81 137 152 168
