product description

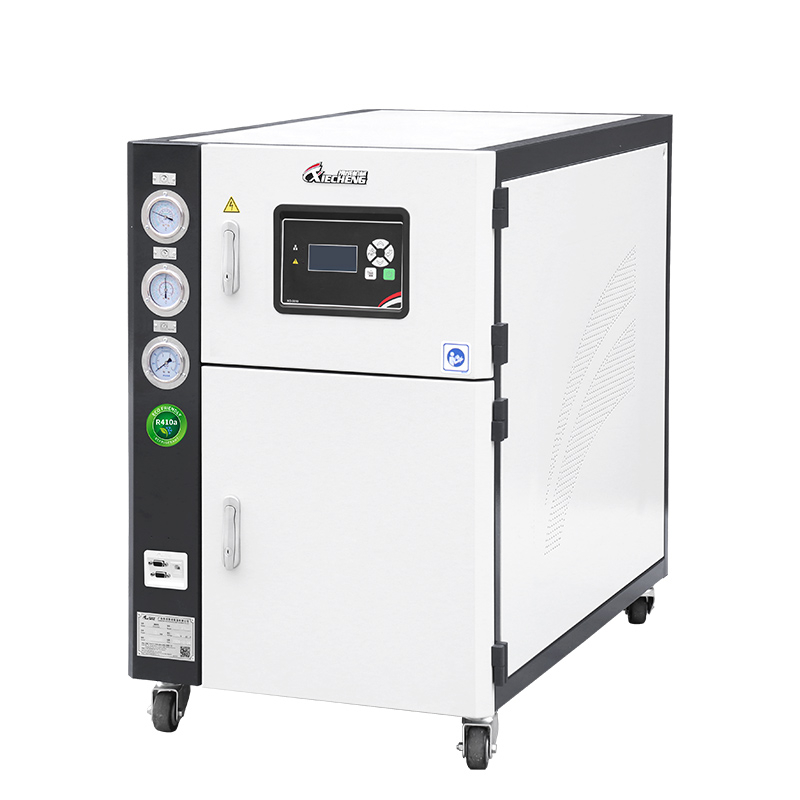

Water Cooled Chiller

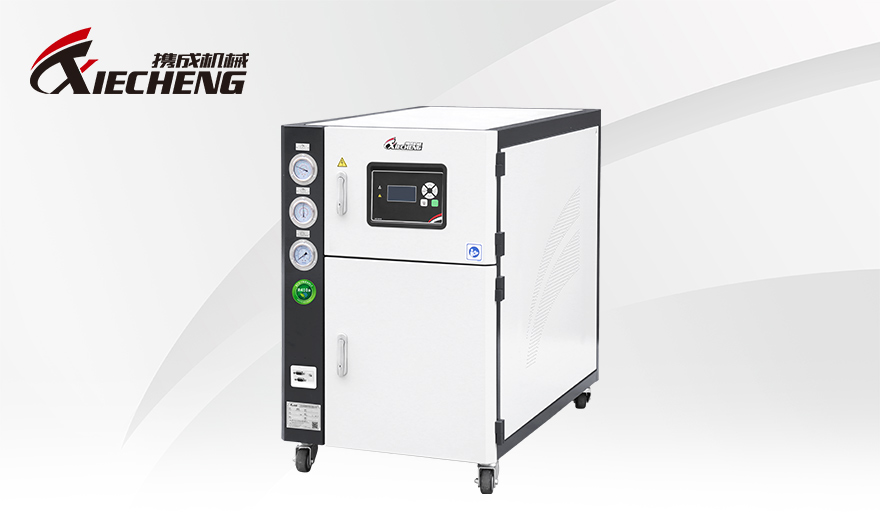

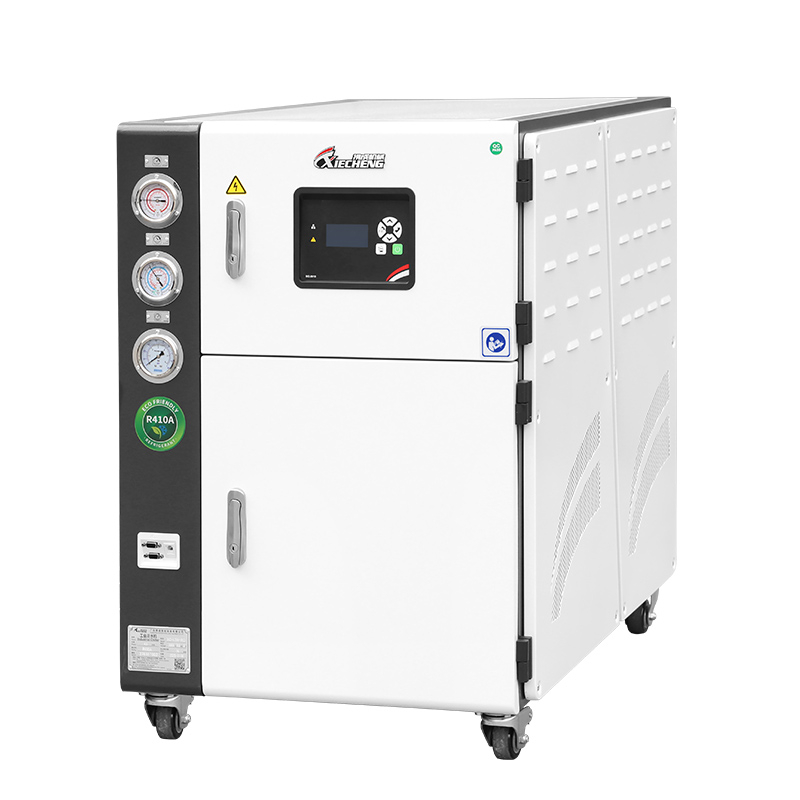

Water Cooled Chiller


Water Cooled Chiller, also known as packaged water cooled chiller or water cooling chiller, is an efficient and reliable industrial cooling equipment. It dissipates heat through the circulation of cooling water and requires connection to a cooling tower or cooling device to exhaust the generated heat. Compared to air cooled chillers, water cooled chillers typically offer higher cooling efficiency and lower noise levels. Additionally, they provide flexible capacity and specification options to meet different process requirements.

The refrigeration range of water cooled chillers is extensive, ranging from 2967 Kcal/h to 139664 Kcal/h, and they can provide chilled water with a temperature range of 3°C to 50°C. This makes them an ideal choice for optimizing production efficiency and ensuring production quality.


water cooled chiller or water cooling chiller

Working Principle

A water-cooled chiller utilizes a shell and tube evaporator to facilitate heat exchange between water and refrigerant. The refrigerant system absorbs the heat load from the water, causing the water to cool and generate chilled water. The heat absorbed by the refrigerant is then transported to the shell and tube condenser through the action of the compressor. Heat exchange occurs between the refrigerant and water, allowing the water to absorb the heat. Finally, the heat is dissipated to the external cooling tower through water pipes, which is known as water cooling.


Working Principle

Compressor Temp. sensor
Condenser  Water tank
Dry filter Pump pressure gauge
Expansion valve Pump
Evaporator  By-pass valve
Ball valve Low pressure switch
Anti-freezing switch High pressure switch
Level sensor Blower


|

 Application Scope in the Industry

Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, pharmaceuticals, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.


Injection Molding Industry

Injection Molding Industry

Extrusion Industry

Extrusion Industry

Plastic Packaging Industry

Plastic Packaging Industry

Pharmaceutical Industry

Pharmaceutical Industry

utomotive Manufacturing Industry

utomotive Manufacturing Industry

Chemical Engineering Industry

Chemical Engineering Industry

Electroplating Industry

Electroplating Industry

Electronics Industry

Electronics Industry

Printing Industry

Printing Industry

|

 Highlights of the Product

Scroll Compressor

The entire range of Xiecheng water cooled chillers utilizes scroll compressors. The compressor serves as the heart of the entire refrigerant cycle system. The scroll compressor adopts a dual-flex design, ensuring tight sealing between the scroll discs. This design allows the scroll discs to separate radially and axially, allowing debris or liquid to pass through without damaging the compressor. This results in increased compressor lifespan, enhanced reliability, better liquid tolerance, and improved tolerance for impurities.Scroll Compressor


       Characteristics of the compressor:



       Operating range


1. Dual-flex design: The compressor features a dual-flex design, ensuring flexibility and reliability in operation.
2. Wide range of product capacity: The compressor is available in a wide range of capacity options, catering to various cooling requirements.
3. High energy efficiency: The compressor is designed for high energy efficiency, optimizing the cooling process and reducing energy consumption.
4. Low noise and vibration levels: With advanced design and precision engineering, the compressor operates with reduced noise and vibration levels, providing a quieter and more comfortable environment.
5. One-touch startup: The compressor is equipped with a user-friendly one-touch startup feature, making operation and startup quick and convenient.




|

 Shell and Tube Evaporator

The water cooled chiller utilizes a shell and tube evaporator. In this system, the refrigerant evaporates inside the heat exchange tubes, while water flows on the shell side. To enhance the heat exchange efficiency, a 2mm thick baffle plate is installed on the shell side, causing the water to flow back and forth to create ice brine. Additionally, to maintain a stable operating temperature, the exterior shell of the evaporator is covered with insulation material.


For the heat exchange tubes, we employ high-efficiency seamless copper tubes. These tubes undergo a grooving process to form internal thread fins, thereby increasing the heat exchange surface area with the refrigerant. With this technology, the heat transfer area is doubled, significantly improving the heat transfer efficiency.



Shell and Tube Evaporator


|

 Shell and Tube Condenser

Water Cooled Chiller utilizes a shell and tube condenser, with the internal copper tubes employing an outer thread embossing process. This design effectively enhances the heat exchange efficiency between the refrigerant and water during the process. Compared to traditional smooth copper tubes, the outer thread embossing process increases the surface area of the copper tubes, thereby expanding the contact area for heat exchange and improving the thermal conductivity of the condenser. This optimization design allows the condenser of the water-cooled chiller to transfer heat from the refrigerant to the water more rapidly and consistently, enabling the water to carry away the heat.

Shell and Tube Condenser


|

 Product Details

Microcomputer Controller

Microcomputer Controller

The water cooled chiller features an industry-leading LCD display microcomputer controller. This controller provides simultaneous display of the chiller's outlet temperature and the set temperature for precise temperature control. The user-friendly interface allows for easy operation and adjustment. With this controller, the water temperature can be precisely controlled within a range of 3°C to 50°C, ensuring optimal cooling performance.


Drying Filter System



Drying Filter System


The water cooled chiller is equipped with Emerson filters, which effectively remove impurities from the refrigerant and absorb free moisture in fluorocarbons. This system prevents the formation of ice blockages, particularly in narrow sections of pipelines (especially the valve ports of thermal expansion valves). It ensures the purity of the refrigerant and protects the compressor from potential damage.



High and Low Pressure Protection System



High and Low Pressure Protection System


The high and low pressure protection system is designed to enhance the safety and efficiency of water pump operations. It involves the installation of high and low pressure gauges as well as a pump pressure gauge to continuously monitor the pressure of the water pump during operation.





Water Pumps



Water Pumps


For chiller models ranging from 1 to 6HP, Orank stainless steel pump heads are used. For models with 8HP or higher, Taiwan Yuanli pipeline pumps are employed. These water pumps are known for their low noise operation, leak-free performance, and maintenance-free characteristics. They ensure reliable and efficient water circulation within the chiller system.





Electrical Self-control System

Electrical Self-control System

The electrical self-control system consists of power supply and automatic control components. It utilizes Siemens electronic components to ensure stable operation of the equipment. It incorporates a comprehensive range of safety protection devices, including current overload protection, high and low-pressure protection systems, and electronic time delay. These safety features provide robust protection and are complemented by an intuitive display system that alerts users to any abnormalities.



|

 Specifications

Model

UNIT

XC-L3W

XC-L5W

XC-L6W

XC-L8W

XC-L10W

XC-L12W

Water Cooling Capacity

Kw

10.5

16

19.6

26.5

32.1

41.2

Kcal/h

9030

13760

16856

22790

27606

35432

Compressor


Input Power

Kw

2.2

3.75

4.5

6x1

3.75x2

4.5x2

Rated Power

Hp

3

5

6

8x1

5×2

6×2

Power


3PH-380V/50HZ(200V/220V/415V  50Hz/60Hz)

Evaporator

Type

Water Tank with Coil

Shell and Tube

Pie Diameter

lnch

1”

1”

1”

2”

2”

2”

Refrigerant

Type

R22

Quantity

Kg

2

2

2.5

4

5

5

Water Cooled Condenser

Type

Shell and Tube Condenser

Pie Diameter

Inch

1”

1”

1”

1.5”

1.5”

1.5”

Cooling water flow

M³/h

1.36

2.22

2.6

3.95

4.42

5.03

Water Tank Capacity

Liter

40

45

45

80

80

80

Pump

Power

Kw

0.37

0.75

0.75

1.5

1.5

1.5

hp

0.5

1

1

2

2

2

Distance

m

15

25

25

15

15

15

Fiow Rate


l/min

75

110

110

360

360

360

Safety Protection

High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.

Dimensions

(L*W*H)

mm

1080*640

*986

1080*640

*986

1080*640

*986

1270*650

*1413

1270*650

*1413

1270*650

*1413

Model

UNIT

XC-L15W

XC-L20W

XC-L25W

XC-L30W

XC-L40W

XC-L50W

Water Cooling Capacity

Kw

51.7

66.3

81.2

108

131

162.4

Kcal/h

44462

57018

69832

92880

112660

139664

Compressor

Input Power

Kw

3.75x3

7.5x2

9x2

7.5x3

7.5x4

9.4×4

Rated Power

Hp

5×3

10×2

12.5x2

10x3

10×4

12.5×4

Power


3PH-380V/50HZ(200V/220V/415V  50Hz/60Hz)

Evaporator

Type

Water Tank with Coil

Shell and Tube

Pie Diameter

lnch

2.5”

2.5”

3”

3”

4”

4”

Refrigerant

Type

R22


Quantity

Kg

7.5

11

11

12

18

18

Water Cooled Condenser

Type

Shell and Tube Condenser

Pie Diameter

Inch

2”

2”

2.5”

2.5”

3”

3”

Cooling water flow

M³/h

7.1

8.84

10.06

13.6

17.75

21.9

Water Tank Capacity

Liter

100

150

210

210

380

400

Pump

Power

Kw

1.5

1.5

3

3

4

4

hp

2

2

4

4

5.5

5.5

Distance

m

16

16

16

16

16

18

Fiow Rate

l/min

360

360

700

700

700

800

Safety Protection

High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.

Dimensions

(L*W*H)

mm

1470*750

*1413

1880*880

*1650

1880*880

*1650

2050*1000

*1730

2050*1000

*1730

2190*1150

*1840
