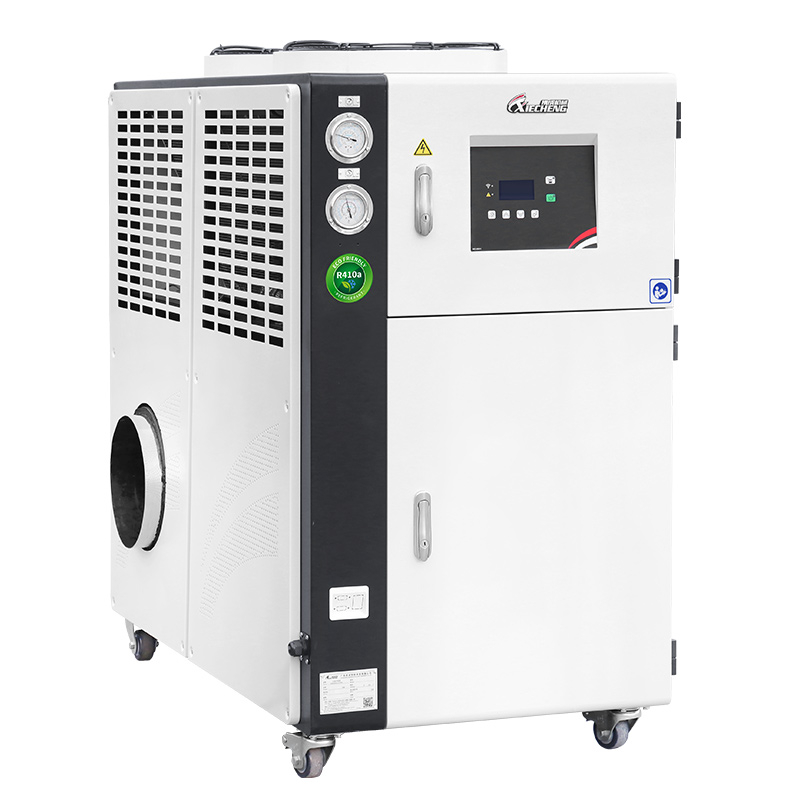

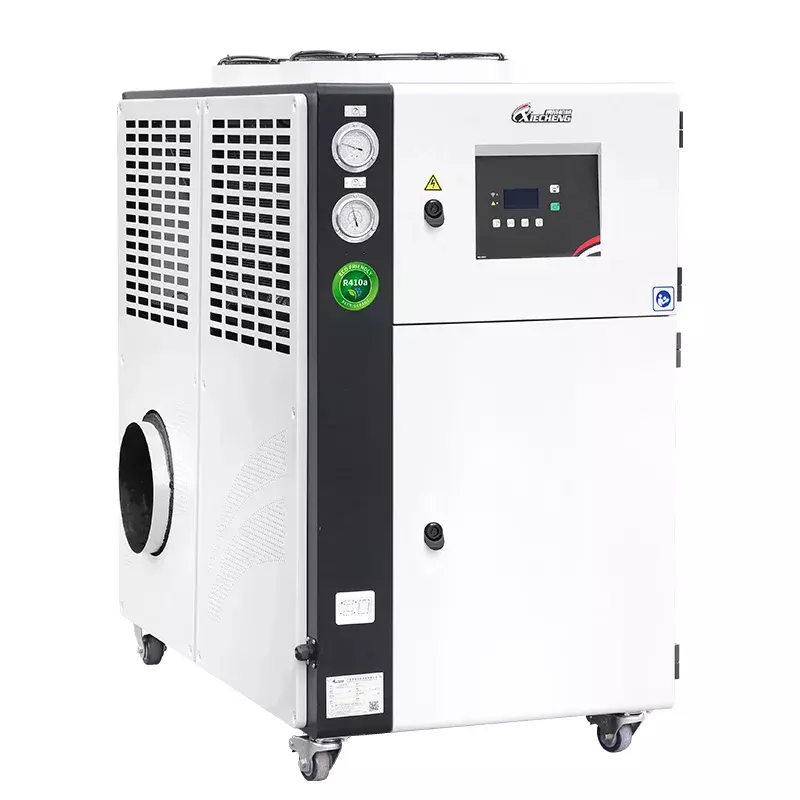

Air Cooled Air Chiller

https://www.youtube.com/embed/RmUHRR3BSV4
Product number:
Availability:
Quantity:
product description

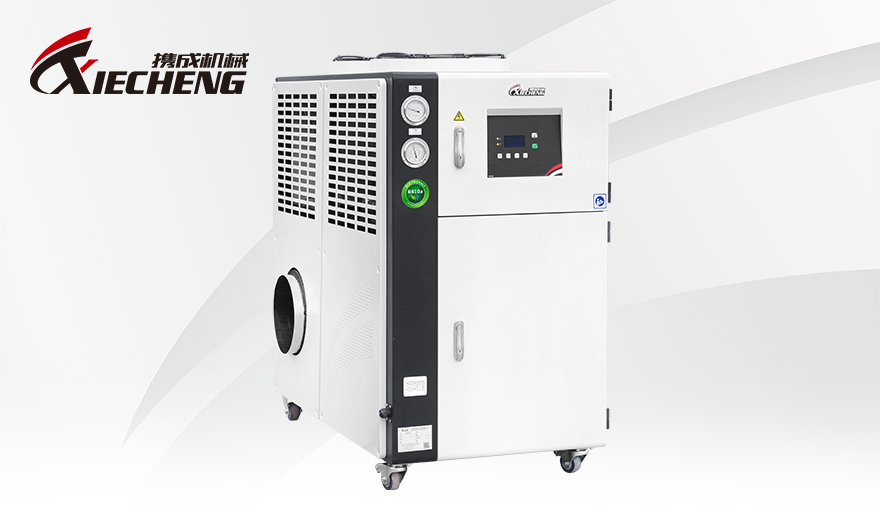

Industrial Air Cooling Chamber


Industrial Air Cooling Chamber


Industrial air cooling chamber provides low-temperature and dry air for the stable extrusion of blown film. Compared to traditional water chillers with heat exchanger systems, utilizing the direct expansion of refrigerants to cool the air can save energy. Regardless of environmental conditions, the air temperature provided by the air cooler matches the ambient temperature, which is crucial for plastic processing on blown film production lines.

Industrial Air Cooling Chamber


Blown film technology is a commonly used method in contemporary industrial plastic processing. It involves heating plastic materials, such as PE particles, to a molten state, and then using high-pressure air to blow and shape them into thin films. The films are subsequently cooled and solidified with cold air. These high-quality packaging films, applied in various industries including fresh produce, beverages, and pharmaceuticals, result from this process.


In the production process of blown film machines, precise temperature control is paramount, especially during the film forming stage. The quality of the films is significantly influenced by the cold air used for cooling during shaping. Both excessive and insufficient cooling rates can lead to issues like poor transparency, uneven thickness, and variations in tensile strength. These problems not only affect production efficiency but also impact the quality of the films.


To address the challenges arising during the cooling and shaping phases of blown film technology, XIECHENG has introduced specialized air cooling chamber for blown film machines. These coolers are designed to substantially enhance both cooling production efficiency and film quality.


Blown film technology is a commonly used method in contemporary industrial plastic processing.

Compressor
Finned Evaporator
Finned Condenser Blower Fan
Dryer Filter Defrost Solenoid Valve
Expansion Valve Refrigerant Solenoid Valve

Feature:

The specialized air cooling chamber for blown film machines is a refrigeration equipment developed and produced by manufacturers according to the production requirements of blown film technology. It can provide stable cold air ranging from 5 to 30°C, aiding in rapid cooling during the process forming stage. This helps reduce production cycles, enhance efficiency, and ensure the quality of blown film.


1. Strong refrigeration capacity, low noise, and energy-saving characteristics.

2. Full-function microcomputer control with LCD display for simple and intuitive operation.

3. Inlet designed with a filter device for easy maintenance and cleaning.

4. Equipped with automatic defrosting function to effectively reduce energy consumption.

5. LCD screen displays both cold air outlet temperature and equipment-set temperature.

6. Comprehensive safety protection features and an intuitive display system for abnormal conditions.


|

 Specifications


Model

UNIT

XC-LF5AF

XC-LF10AF

XC-LF15AF

XC-LF20AF

XC-LF25AF

XC-LF30AF

Motor

HP

5

10

15

20

25

30

Refrigerating Capacity

KW

15

31

45

61

68

92

Kcal/h

12900

26660

38700

52460

58480

79120

Temperature of Air Outket Control

8-15℃

Input Power


380V 50HZ 3PH

Conpressor Power

KW

3.7

3.7*2

3.7*3

7.5*2

9*2

7.5*3

Cooling Refrigerant


R22(Optional for R410C, R407C)

Condenser

Type

air cooled type

Air Flow

m3/hr

2100

3000

4800

4800

6000

6000

Fan Power

KW

2.2

3.75

11

11

15

15

Air Connection Pipe Diameter

inch

10''

10''

12''

12''

12''

12''

Evaporator

Type

Copper tube jacket corrugated open window aluminum foil fin radiator, outlet temperature will be lower

Dimensions(L*W*H)

L

mm

1340

1550

1850

2150

2400

2600


W

mm

630

830

1000

1000

1150

1150


H

mm

1046

1508

1600

1780

1800

1900

Safety Protection

High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.


|

 Product Details



Inlet Design




Inlet Design

The inlet is designed with a filter device, making maintenance and cleaning convenient.







High-Quality Components Throughout


High-Quality Components Throughout

This model utilizes premium components from globally renowned electronic brands. Full-function microcomputer control with LCD display allows for simple and intuitive operation. It enables precise control of the outlet temperature within the range of 5°C to 30°C. The LCD screen displays both the cold air outlet temperature and the equipment's set temperature.



Efficient Cooling Core Components



Efficient Cooling Core Components

Equipped with cutting-edge compressors from renowned brands, high-efficiency finned condensers, and evaporator assemblies, ensuring powerful refrigeration, quiet operation, and energy efficiency.





External Multi-Protection



External Multi-Protection

Equipped with comprehensive safety protection features, including current overload protection, high and low-pressure pressure protection systems, electronic time delay, and an intuitive display system for abnormal conditions.
