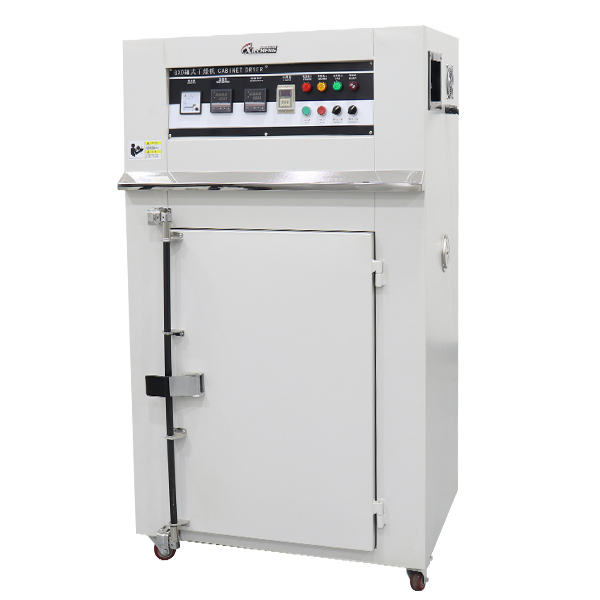

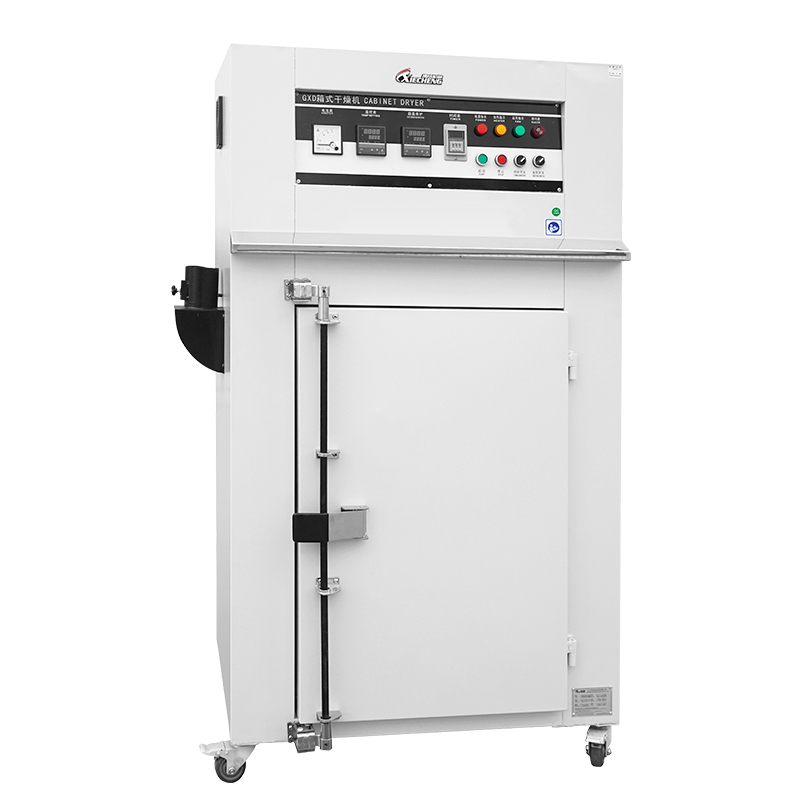

Drying Dehumidifying Series
Scope of Application:
1. To dry plastic raw materials, especially in dealing with small amount of various materialsor plastics for testing.
2. Saving time by avoiding waived refueling, clearing material.
3. Can be used in plastic molding after tempering, which can enhance toughness, eliminatetension and improve quality of the plastic products.
4. Can also be used in agricultural products (pollen, garlic, tea) or preheat or dried for electronic.electrical, electroplating, pharmaceutical, paint, printing and other products.
Model | XC-GXD5 | XC-GXD9 | XC-GXD20 | |||
External Dimensions (mm) | 820*680*1280 | 820*680*1580 | 820*1500*1750 | |||
Internal Dimensions (mm) | 500*600*660 | 500*600*900 | 500*1150*1200 | |||
Motor (kw) | 0.375 | 0.375 | 0.75 | |||
Power (kw) | 4.5 | 6 | 12 | |||

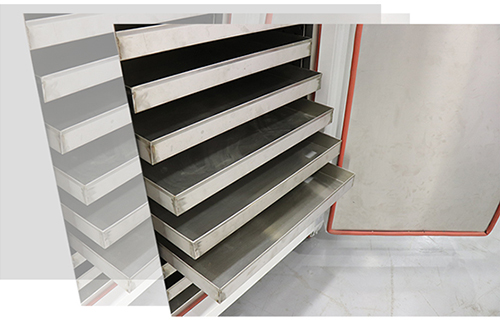

Tray Quantity | 5 | 9 | 20 | |||
Tray Size (mm) | 585*490*50 | 585*490*50 | 585*490*50 | |||
Weight (kg) | 148 | 178 | 415 | |||
Capacity (kg) | 50 | 90 | 200 | |||
Tray Material | SUS430#Stainless steel | |||||
Temperature Range | 40℃-160℃ | |||||
Temperature Distribution | ±5% |
