product description

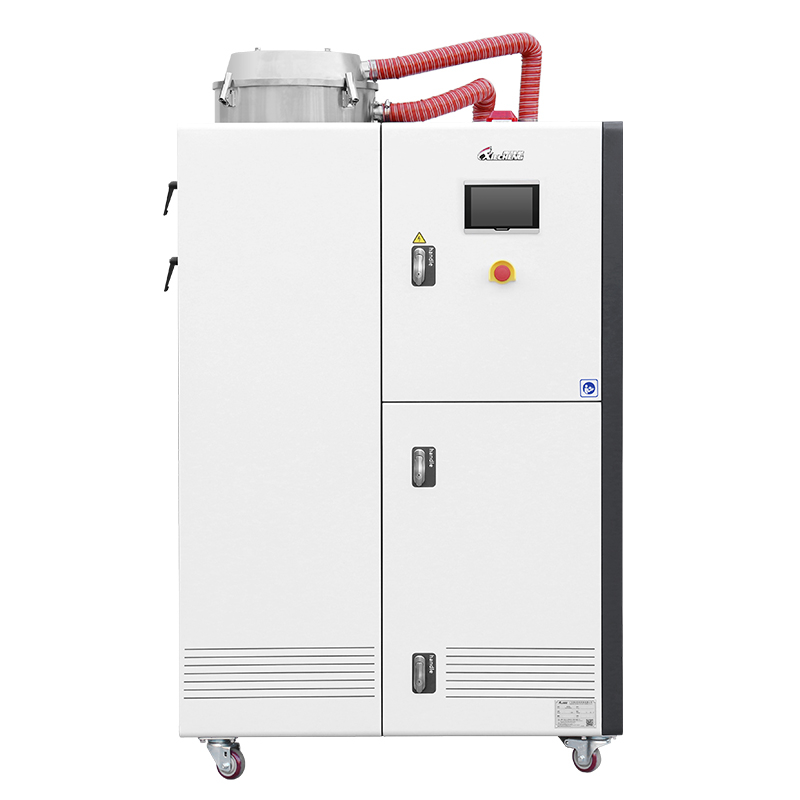

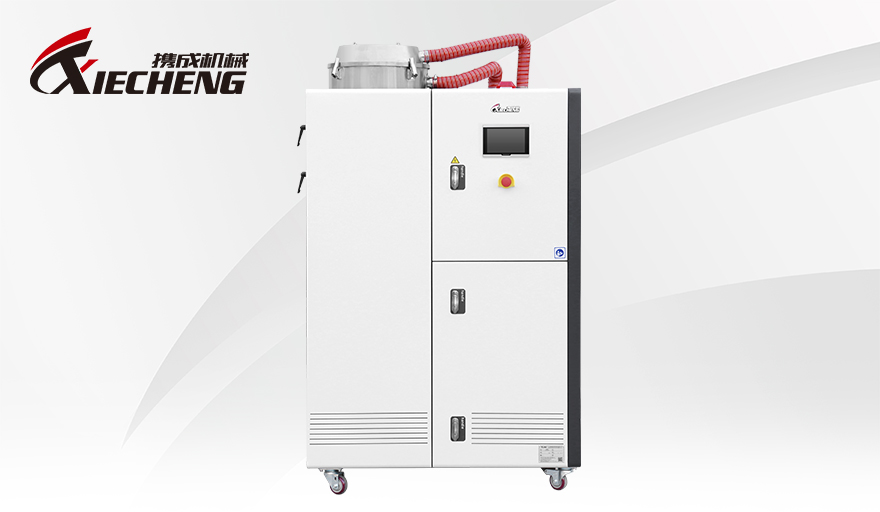

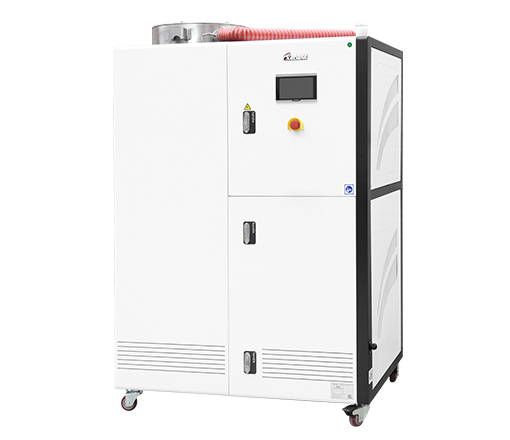

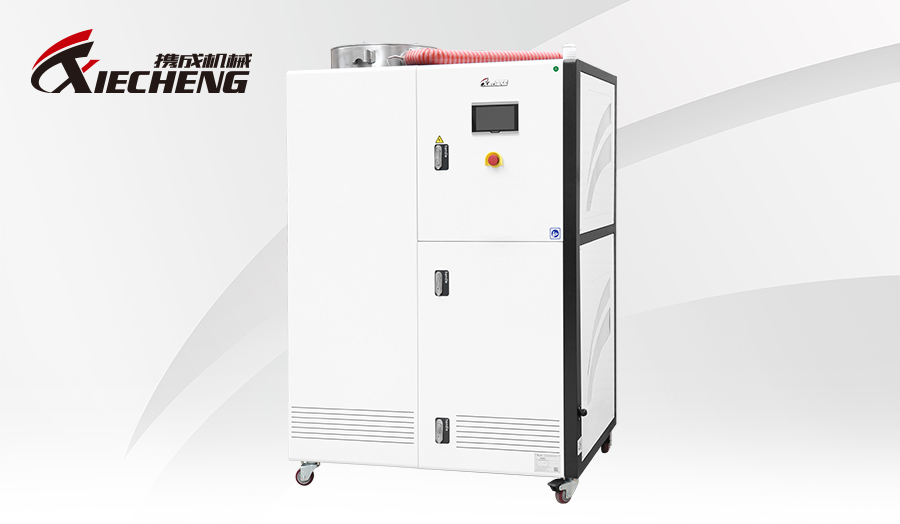

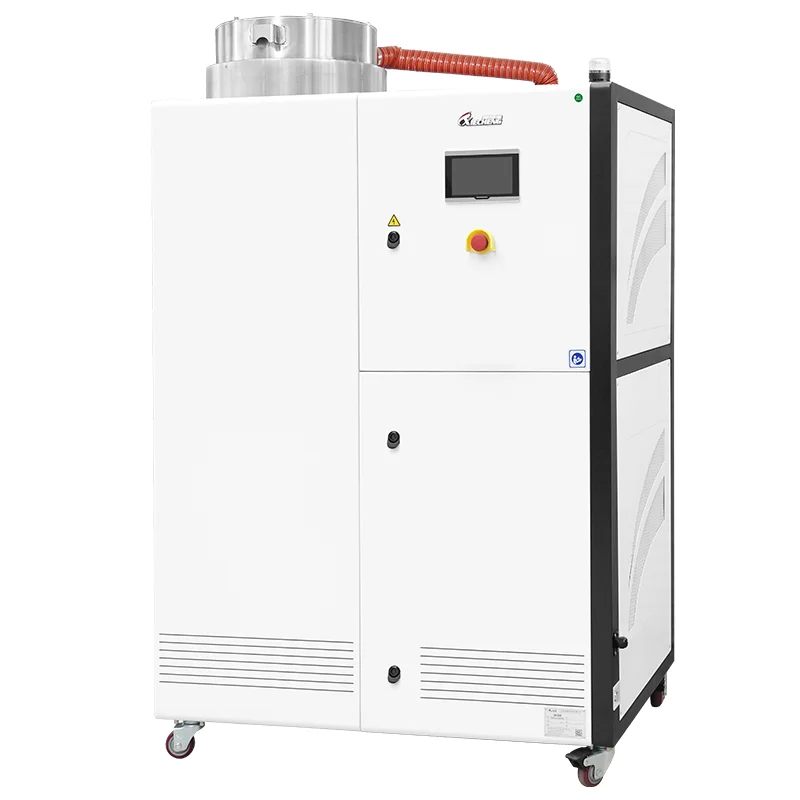

all in one compact dryer

产品细节

all in one compact dryer 02all in one compact dryer 03all in one compact dryer 04all in one compact dryer 05all in one compact dryer 06

结构件图

all in one compact dryer 07

技术参数


Model XCD-40L/30H XCD-80L/50H XCD-120L/80H XCD-160L/120H XCD-230L/150H
Drying System
Process Heater Power(kw) 3 4 6 6 7.2
Process Blower Power (kw) 0.25 0.37 0.75 0.75 1.5
Drying Hopper Capacity (L) 40 80 120 160 230
Dehumidification System
Regen Heater Power (kw) 3 30 3.5 3.5 4
Regen Blower Power (kw) 0.25 0.25 0.25 0.25 0.37
Dry Air Capacity (m³/h) 30 50 80 120 150
Conveying System
Conveying Blower Power (kw) 0.75 1.1 1.1 1.1 1.5
Dia. of Conveying Hose (inch) 1.5 1.5 1.5 1.5 2
Vacuum Hopper (L) 7.5 7.5 7.5 7.5 7.5
Sensor Hopper (L) 7.5 7.5 7.5 7.5 7.5
Dimensions
H(mm) 1700 1820 1820 1910 1940
W (mm) 1100 1100 1100 1320 1320
D(mm) 710 710 710 900 900
Weight (kg) 200 300 320 505 540


Model XCD-300L/200H XCD-450L/300H XCD-600L/400H XCD-750L/500H XCD-900L/700H XCD-1200L/700H XCD-1500L/1000H
Drying System
Process Heater Power(kw) 12 15 18 180 24 30 32
Process Blower Power (kw) 1.5 2.2 2.2 3.7 3.7 5.5 5.5
Drying Hopper Capacity (L) 300 450 600 750 900 1200 1500
Dehumidification System
Regen Heater Power (kw) 5.4 7.2 7.2 10 10 10 15
Regen Blower Power (kw) 0.37 0.75 0.75 1.5 1.5 3 3
Dry Air Capacity (m³/h) 200 300 400 500 700 700 1000
Conveying System
Conveying Blower Power (kw) 1.5 1.5 1.5 2.2 3.75 5.5 5.5
Dia. of Conveying Hose (inch) 2 2 2 2 2 2 2
Vacuum Hopper (L) 12 12 12 12 24 24 24
Sensor Hopper (L) 12 12 12 12 24 24 24
Dimensions
H(mm) 2100 2500 2500 2600 2600 3800 4100
W (mm) 1800 1800 2100 2300 2400 2300 3600
D(mm) 1200 1200 1200 1650 1650 1650 1950
Weight (kg) 565 600 640 710 850 900 1160
