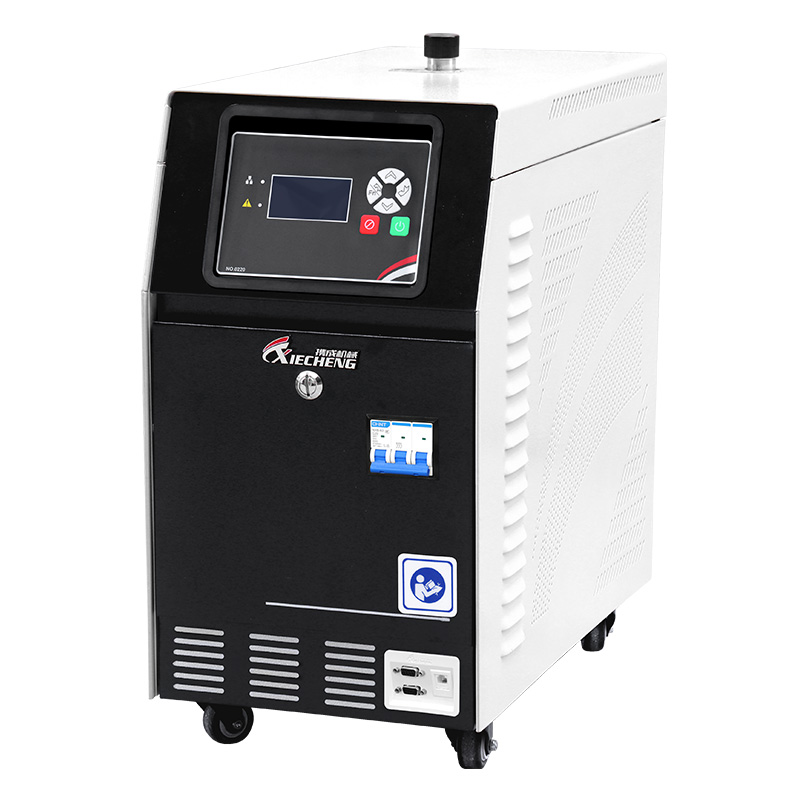

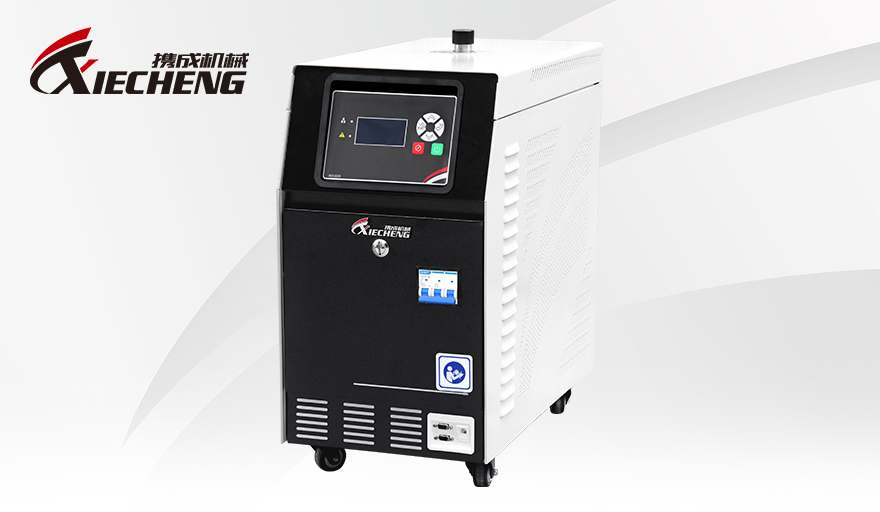

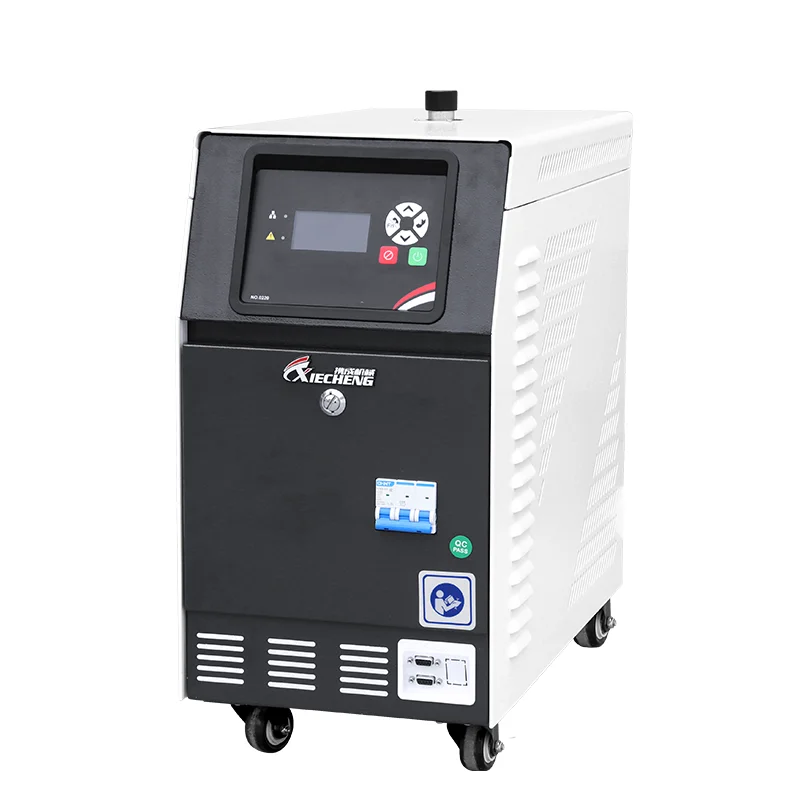

STANDARD WATER/
OIL TEMPERATURE CONTROLLER
Mold Temperature Controller Series
FEATURE:
1. There are 6 protective devices: auto-exhaust by start-up and auto-cooling byturn-off. Anti-phases, short of phases, water pump protection, overheat and shortof oil level;

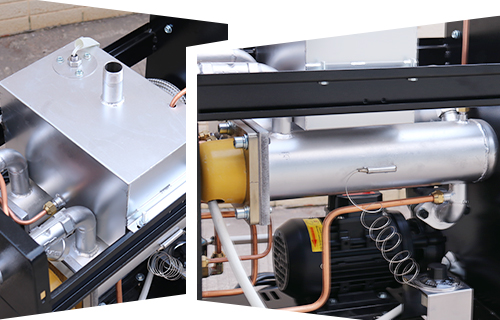

2. LCD screen shows the setting and actual temperature of machine;Stainless steel water tank is durable and keep from the trouble of leakage andrust.;with recycling oil run-way;
3. Optional for RS485 communication function to realize automatic running;moldtemperature controller (temperature control range within 100°C)
4. Oil mold temperature controller (temperature control range within 200°C)
| Model | XC-TM6KW-W | XC-TM9KW-W | XC-TM12KW-W | XC-TM18KW-W | XC-TM24KW-W | XC-TM36KW-W | |
| Transfer Medium | Water | ||||||
| Maximum Temperature | 100°C | ||||||
Pump (KW) | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | |
| Pump Flow (L/min) | 42 | 56 | 56 | 200 | 200 | 315 | |
| Loading Distance (m) | 28 | 38 | 38 | 30 | 30 | 30 | |
| Heating Power (KW) | 6 | 9 | 12 | 9*2 | 12*2 | 12*3 | |
| Inlet and Outlet Diameter | 3/8``x2 | 3/8``x4 | 3/8``x4 | 1''x1 | 1''x1 | 1.5``x1 | |
| Dimensions (mm) | 615*280*514 | 615*280*514 | 615*280*514 | 730*400*710 | 730*400*710 | 1015*510*880 | |
| Approx. Net Weight (KG) | 45.5 | 49 | 50 | 73 | 76 | 132 | |
| Model | XC-TM6KW-O | XC-TM9KW-O | XC-TM12KW-O | XC-TM18KW-O | XC-TM24KW-O | XC-TM36KW-O | |
| Transfer Medium | Heat Transfer Oil | ||||||
| Maximum Temperature | 200°C | ||||||
Pump (KW) | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | |
| Pump Flow (L/min) | 42 | 56 | 56 | 150 | 150 | 233 | |
| Loading Distance (m) | 22 | 28 | 28 | 30 | 30 | 30 | |
| Heating Power (KW) | 6 | 9 | 12 | 9*2 | 12*2 | 12*3 | |
| Inlet and Outlet Diameter | 3/8``x2 | 3/8``x4 | 3/8``x4 | 1''x1 | 1''x1 | 1.5``x1 | |
| Dimensions (mm) | 615*280*514 | 615*280*514 | 615*280*514 | 730*400*710 | 730*400*710 | 1015*510*880 | |
| Approx. Net Weight (KG) | 49 | 52.5 | 55 | 80 | 135 | 193 | |
