Flake Type Plastic Granulator

Product number:
Availability:
Quantity:
product description

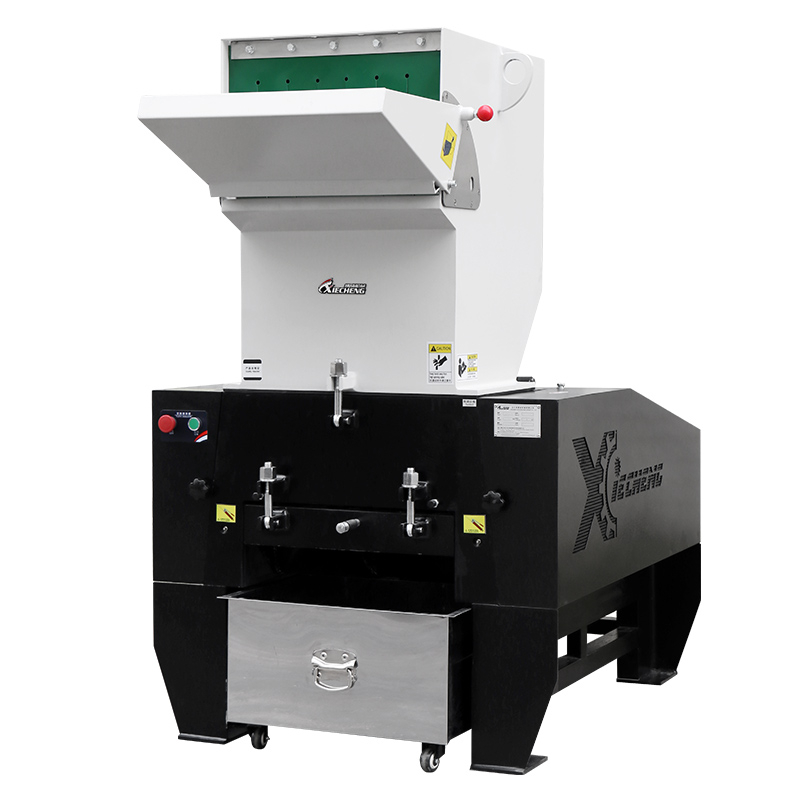

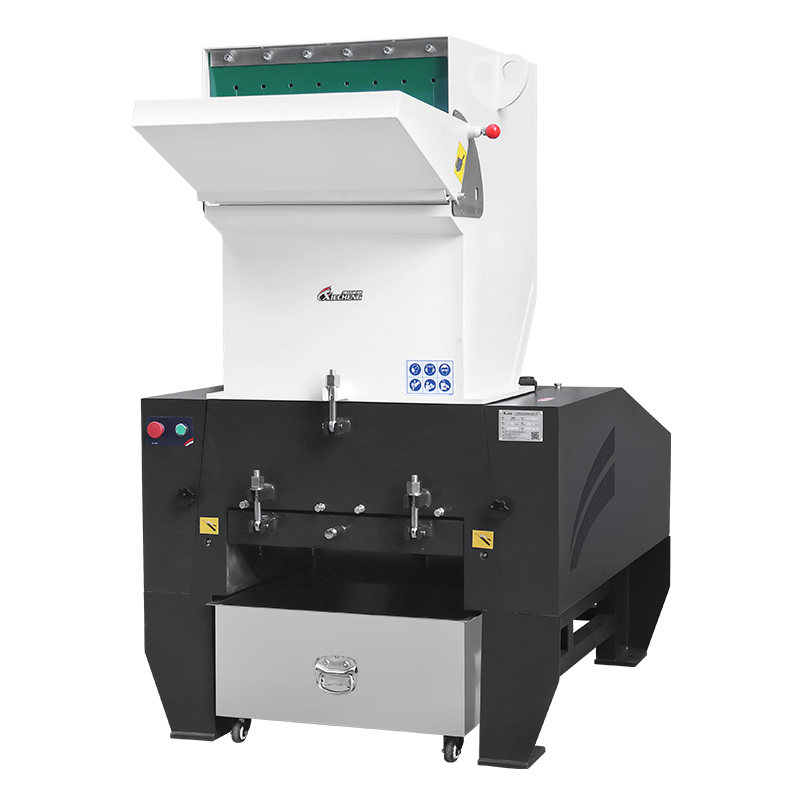

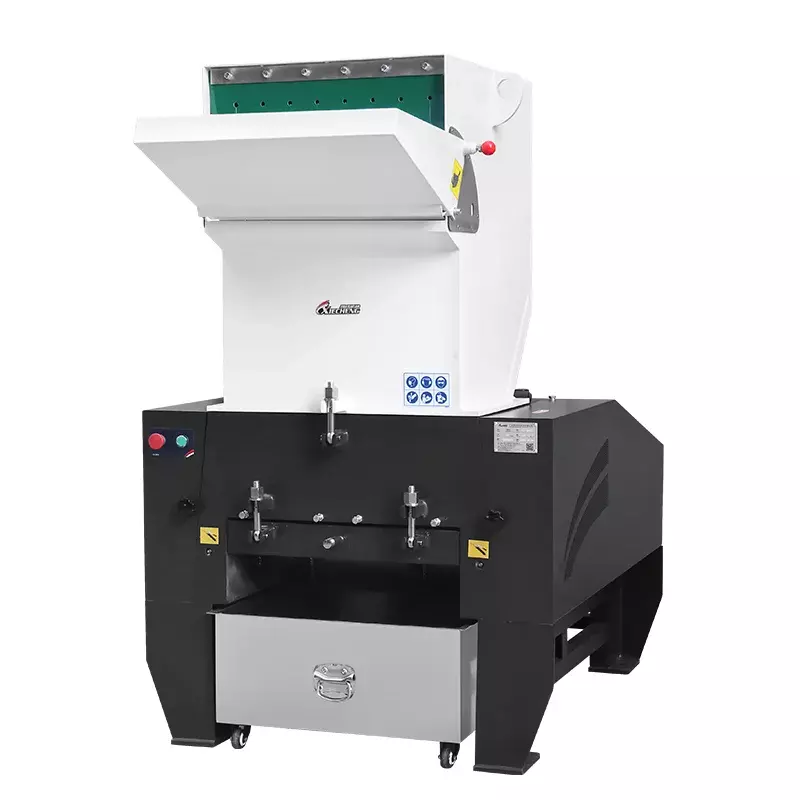

Flake Type Plastic Crusher


Flake Type Plastic Crusher


The Xiecheng GP Flake Type Plastic Crusher, also known as a universal plastic granulator, features a unique blade holder design that falls between a claw blade and a flat blade. It is suitable for shredding various plastic products, including common sheets, pipes, profiles, sheets, and packaging materials. It is also applicable for processing sprue materials. The crusher finds wide applications in plastic molding processes such as injection molding, extrusion, blow molding, as well as in plastic recycling and utilization.

The Flake Type Plastic Crusher exhibits stable and efficient crushing capabilities. It can grind waste plastic into desired particle sizes, with uniform particle shapes and minimal powder content. It provides a reliable solution for plastic recycling and reuse, helping to improve the utilization of waste plastic and meet various processing and utilization needs.


|

 Features of the GP Series

1. The blade holder falls between a claw blade and a flat blade, providing a versatile cutting solution.

2. Double-layer soundproofing design before and after the feeding area, ensuring excellent noise reduction performance.

3. The blades are made of high-strength alloy tool steel (Cr12mov).

4. Equipped with renowned Siemens electrical components, ensuring reliable performance.

5. Suitable for shredding common sheet materials and various plastic sprue materials.


|

 Video of GP Crusher



|

 Crushing Process Material

The flake-type plastic crusher is capable of shredding various plastic products, including common sheets, pipes, profiles, plates, and packaging materials. It can also handle sprue materials such as runners, edge trim, circuit boards, automotive parts, bumpers, computer keyboards, air conditioner casings, aluminum composite panels, cable sheaths, LED strips, and more. The versatility of the blade-type plastic crusher makes it suitable for a wide range of plastic materials and applications.


Plastic sheets

Plastic sheets

Plastic plates

Plastic plates

Plastic pipes

Plastic pipes

Profiles

Profiles

Lumps

Lumps

Leather

Leather

Plastic casings

Plastic casings

Automotive parts

Automotive parts

Packing materials

Packing materials

|

 Specifications of GP Series

Model

XC-GP230

XC-GP300

XC-GP400

XC-GP500

XC-GP600

XC-GP800

XC-GP960

XC-GP1100

XC-GP1200

XC-GP230-SP

XC-GP300-SP

XC-GP400-SP

XC-GP500-SP

XC-GP600-SP

XC-GP800-SP

XC-GP960-SP

XC-GP1100-SP

XC-GP1200-SP

Grinding Chamber(mm)

230x200

310x200

410x240

510x300

610x330

815x470

960x610

1100x800

1200x800

Grinding Capacity (KG/H)

100-150

150-200

200-250

300-350

350-450

450-600

800-1000

1000-1200

1000-1500

Stationary Cutter

2

2

2

2

4

4

4

4

4

Rotary Cutter

6

9

12

15

18

24

30

33

36

Mesh Size (mm)

8

8

8

10

10

10

12

12

12

Power

KW

4

5.5

7.5

11

15

22/30

37/45/56

75

75


HP

5

7.5

10

15

20

30/40

50/60/75

100

100

Dimensions (LxWxHxH1 mm)

800x660

x1120

x875

920x725

x1200

x960

980x810

x1260

x985

1200x970

x1570

x1230

1200x1070

x1670

x1300

1600x1555

x2190

x1670

2000x1725

x2720

x2050

2420x2120

x3230

x2380

2420x2220

x3230

x2380

Approx. Net Weight (KG)

277

420

500

805

940

2000

3000

6000

6500

Dimension for SP (mm)

1020x730

x1320

x1075

1250x830

x1530

x1280

1350x930

x1590

x1320

1560x1070

x1784

x1440

1560x1170

x1870

x1500

1900x1510

x2460

x1940

2150x1794

x2990

x2320

2630x2180

x3600

x2760

2630x2280

x3600

x2760

Collective Blower (KW)

2.2

2.2

2.2

2.2

2.2

3

4/5.5

7.5

7.5

Approx. N.W for SP (KG)

400

535

604

1220

1420

2380

3500

6500

6800

|

 Product Details

High-strength Blade


High-strength Blade

1. The blades are made of high-strength alloy tool steel, which offers high hardness and wear resistance. The blade edges can be repeatedly sharpened for extended use.

2. The main shaft knife holders and knife bodies are made of quenched and tempered 45# steel.

3. The blade material is CR12MOV, with a hardness of 57-59 degrees.




Soundproofing Design




Soundproofing Design

The feeding hopper is equipped with a double-layer soundproofing structure, with soundproofing materials filled in between. This design effectively reduces noise levels.

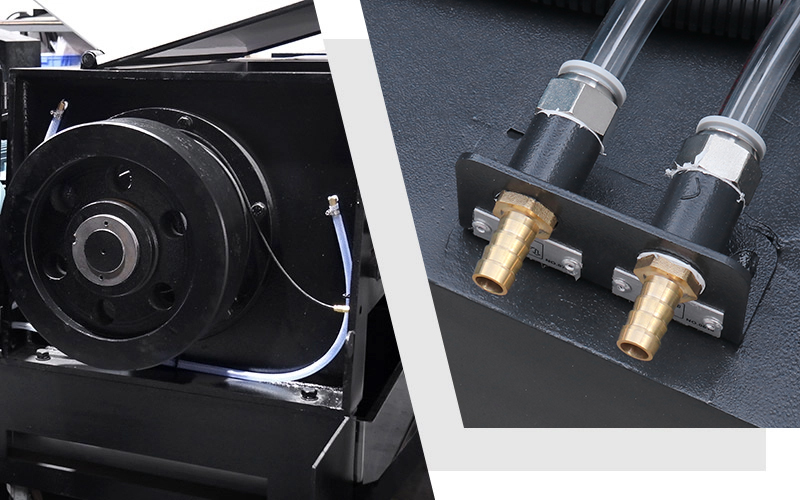

Chamber Cooling System



Chamber Cooling System

Machines with a power of 30HP or higher come standard with a cooling system for the machine casing. This system effectively reduces the temperature of the grinding chamber and bearings, preventing material fusion and extending the lifespan of the bearings.





Electrical Components



Electrical Components

Electrical components The equipment adopts electrical components from globally renowned brand Siemens, ensuring performance stability and providing a high level of safety and reliability.







|

 Optional Accessories List

The Xiecheng flake type plastic crusher also offers flexible configuration options to meet the diverse needs of different users and achieve better crushing results and material collection. For models with a power of 75HP or above, the feeding hopper and screen frame support are equipped with a cylinder system, which is included as a standard configuration. For other models, you have the option to add or exclude this cylinder system based on your requirements. Additionally, automatic recycling and automatic powder screening systems are available as optional configurations to further enhance the functionality of the crusher.


Granulating Auto Collecting System

Granulating Auto Collecting System

Auto Powder Sifting Device

Auto Powder Sifting Device

Cylinder System

Cylinder System

|

 The Crushing Effect


Plastics

Plastics

Leather

Leather

Auto Parts

Auto Parts

Sheets

Sheets
