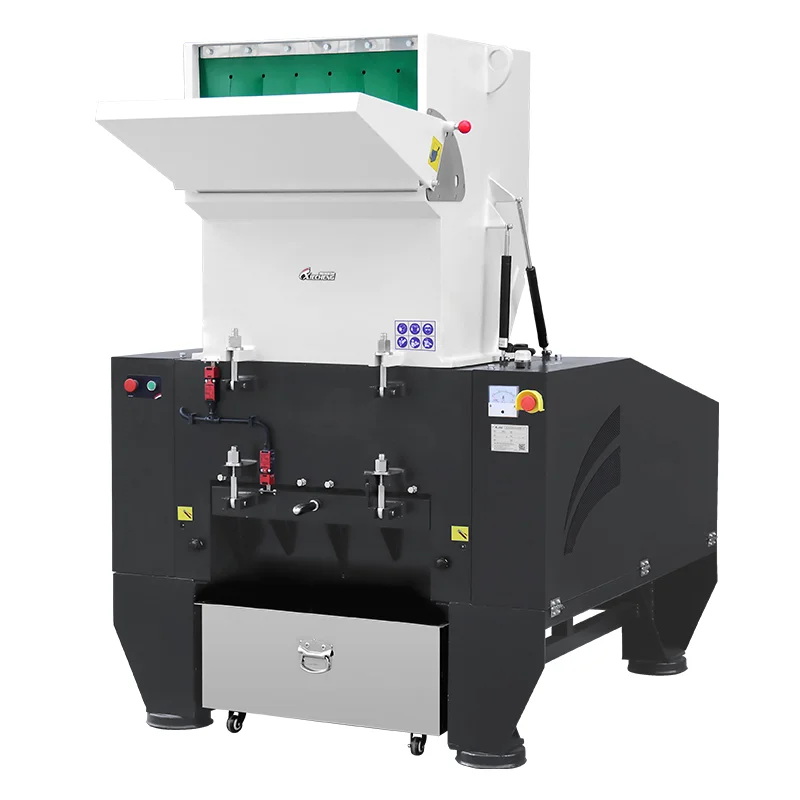

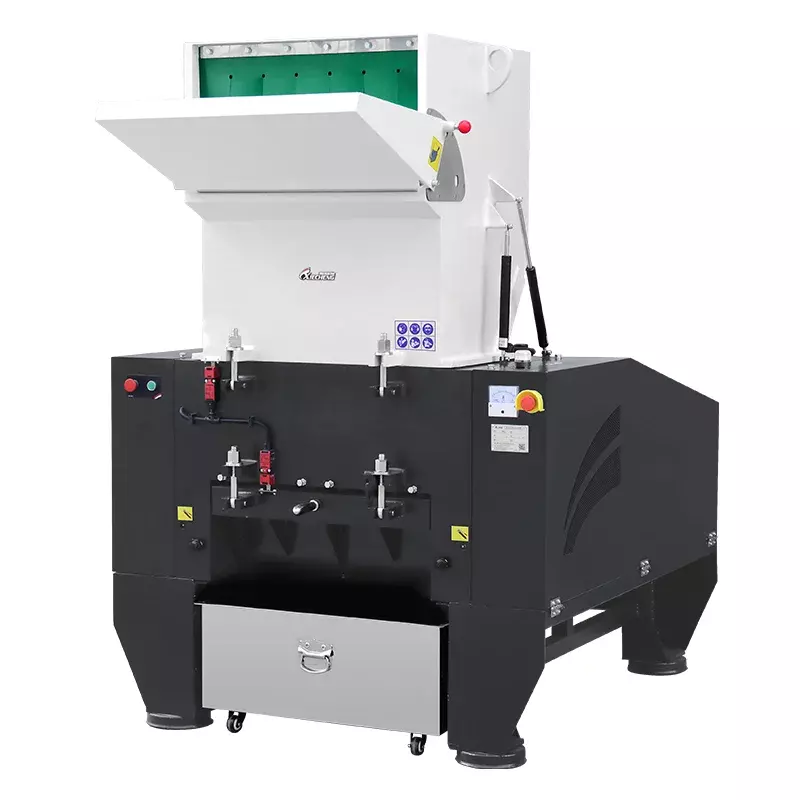

Flat Type Plastic Crusher

The XIECHENG Flat Type Plastic Crusher is a plastic crushing machine designed specifically for various blow-molded parts, sprues, corner materials, and thin products. It utilizes a flat blade design with a wide cutting surface area and cutting force, enabling efficient crushing of these plastic products into the desired particles for convenient subsequent reuse and processing. It is suitable for plastic molding processes such as injection molding, extrusion, and blow molding, as well as for waste recycling. It can handle various plastic products such as plastic bottles, plastic bags, and plastic films. With its compact design and easy operation, it is an important piece of equipment in the field of plastic recycling and regeneration.

|

 Features of GD series

1. The front blade of the machine is designed with an increased cutting angle, resulting in high efficiency, uniform particle size, and minimal powder production.

2. The machine is equipped with double-layer sound insulation on all four sides, providing excellent noise reduction.

3. The blades are made of high-strength alloy tool steel (Cr12mov).

4.  It is suitable for various blow-molded parts, sprues, and thin products.

|

 Crushing Process Material

The design and tool configuration of the GD Flat-Type Plastic Crusher make it particularly suitable for the following types of plastic products:

1. Blow-molded parts: This includes bottle preforms, plastic bottles, oil bottles, soy sauce bottles, and other blow-molded products.

2. Sprues and runners: These are plastic edge materials or cutting waste generated during the production process.

3. Thin products: Examples include plastic films, plastic bags, plastic sheets, and similar items.

The machine can also be customized for crushing PA66/PA6+20%-50%GF materials, which can significantly improve the machine's lifespan.

Plastic film	Plastic sheet	Soft rubber
Preforms	Water bottle	Oil bottle
Car mat	Plastic container	Lampshade

|

 Specifications of GD Series

Model		XC-GD10HP	XC-GD15HP	XC-GD20HP	XC-GD30HP	XC-GD50HP	XC-GD75HP	XC-GD100HP
		XC-GD10HP-SP	XC-GD15HP-SP	XC-GD20HP-SP	XC-GD30HP-SP	XC-GD50HP-SP	XC-GD75HP-SP	XC-GD100HP-SP
Grinding Chamber(mm)		360x260	420x280	480x330	660x350	720x500	910x820	1050x820
Grinding Capacity (KG/H)		170-340	255-420	300-460	420-680	680-1000	700-1200	850-1400
Stationary Cutter		2	2	2	4	4	4	4
Rotary Cutter		6	6	6	9	9	12	12
Mesh Size (mm)		10	10	10	12	12	12	12
Power	KW	7.5	11	15	22	37	55	75
	HP	10	15	20	30	50	75	100
Dimensions (LxWxHxH1 mm)		1000x830x 1270x960	1200x995x1 540x1215	1300x1075x 1725x1350	1500x1330x 1880x1480	2000x1535x 2470x1914	2420x1050x 3300x2460	2420x2065x 3320x2460
Approx. Net Weight (KG)		540	800	1023	1723	2750	5400	6250
Dimension for SP (mm)		1250x880x 1500x1190	1420x1020x 1760x1440	1500x1140x 1920x1540	1750x1400x 2140x1735	2150x1570x 2770x2200	2630x1985x 3560x2720	2630x2080x 3560x2720
Collective Blower (KW)		2.2	2.2	2.2	3	4	5.5	7.5
Approx. N.W for SP (KG)		750	1180	1400	2280	3630	5900	6500

|

 Product Details

High-strength Blades

1. The main spindle holder is made of 45# steel with quenching treatment.

2. The blade material is CR12MOV with a hardness of 57-59 degrees.

3. It is installed with internal hexagon screws that have countersunk holes, preventing screw wear due to long-term use.

Soundproofing Design

The feeding hopper is designed with double-layer sound insulation on all four sides. The inner layer is made of stainless steel, and the space in between is filled with sound insulation material, resulting in excellent noise reduction effects.

Chamber cooling system

Machines with a power of 30HP or higher come with a standard cooling system for the casing. This system allows the timely dissipation of heat generated during the crushing process due to friction, thereby improving the efficiency and lifespan of the machine.

Electrical Components

The equipment adopts electrical components from globally renowned brand Siemens, ensuring performance stability and providing a high level of safety and reliability.

|

 Optional Accessories List

The standard GD crusher offers optional configurations of an automatic recycling and automatic powder screening system. This system can automatically recycle the crushed material, reducing the need for manual operation and thereby improving production efficiency. For models with 75HP or higher, the feeding hopper and screen frame are equipped with a cylinder system, which is included as standard. For other models, you have the option to add this cylinder system based on your requirements.

Granulating Auto Collecting System

Auto Powder Sifting Device

Cylinder System

|

 The Crushing Effect

Car mat

Paper

Plastic film

Plastic sheet
