Features of V type crusher
1. Unique scissor-like blade holder structure: This design enhances the cutting efficiency of the crusher, allowing for effective shredding of plastic materials.
2. Double-layer soundproofing before and after the feeding hopper: The crusher is equipped with a soundproofing structure that effectively reduces noise levels, providing a quieter working environment.
3. Blades made of high-strength alloy tool steel (Cr12mov): The high-quality blades ensure durability, resistance to wear, and efficient shredding performance.
4. Equipped with renowned Siemens electrical components: The use of Siemens electrical components ensures reliable and high-quality performance of the crusher.
|
Crushing Process Material

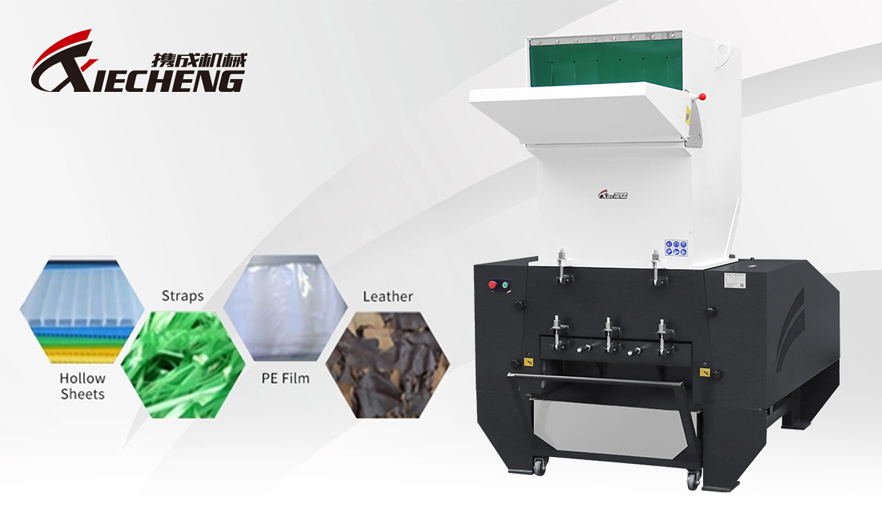

The V-type plastic crusher has a wide range of applications and can be used to crush various types of materials, including:
1. Thin film materials:
- PE films: High-density polyethylene films (HDPE), low-density polyethylene films (LDPE), etc.
- PP films: Polypropylene packaging films, polypropylene plastic bags, etc.
2. Non-woven fabrics.
3. Leather.
4. Plastic sheet materials.
5. Hollow products: PET mineral water bottles.
Please note that this list provides some common application areas, and the V-shaped plastic crusher can also be used for crushing other materials based on specific needs and requirements.。
 Leather |
PE/PP Film |
Plastic bags |
Non-woven fabric
|
PET Bottle |
Plastic sheets |
|
Specifications of GV Series
Model
| XC-GV600 | XC-GV800 | XC-GV960 | XC-GV1100 |
| XC-GV600-SP | XC-GV800-SP | XC-GV960-SP | XC-GV1100-SP |
Grinding Chamber (mm)
| 610x330
| 815x470
| 960x610
| 1100x800
|
Grinding Capacity (KG/H)
| 130-230
| 180-280
| 230-450
| 500-800
|
Stationary Cutter | 4
| 4
| 4
| 4
|
| Rotary Cutter | 6
| 6
| 6
| 6
|
| Mesh Size (mm) | 10
| 10
| 12
| 12
|
Power
| KW
| 15
| 22
| 37/55
| 75
|
HP
| 20
| 30
| 50/75
| 100
|
Dimensions (LxWxHxH1 mm)
| 1200x1070x1670x1300
| 1600x1555x2190x1670 | 2000x1725x2720x2050 | 2420x2120x3230x2380 |
Approx. Net Weight (KG)
| 1100
| 1840
| 2600
| 5500
|

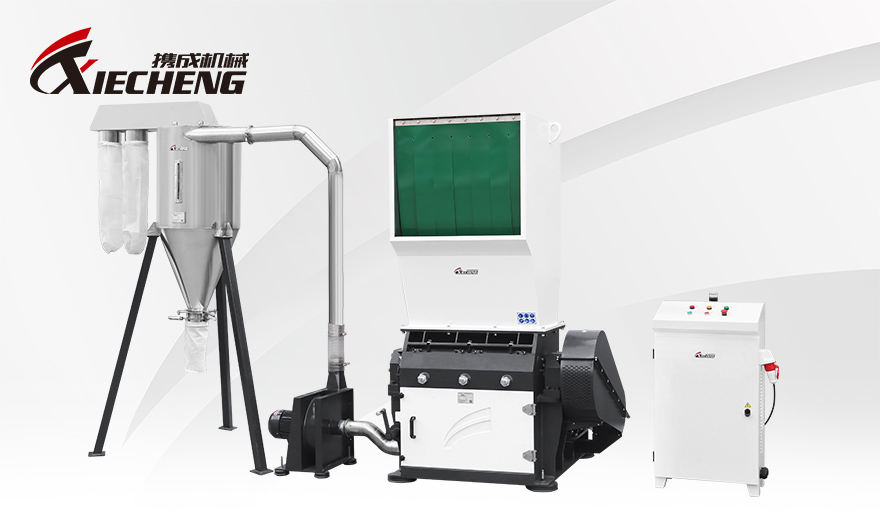

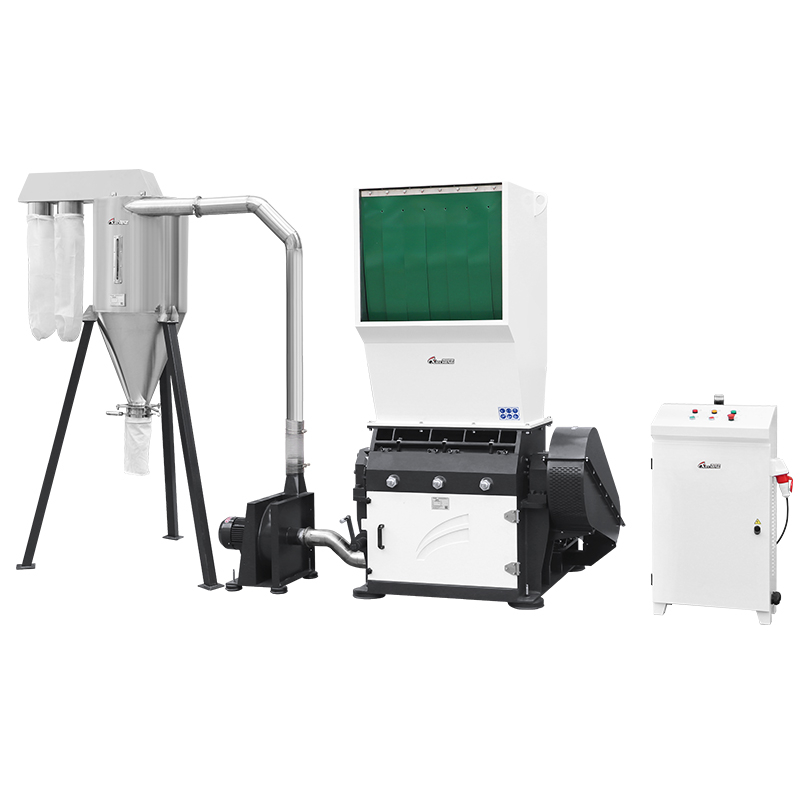

Dimension for SP (mm)
| 1560x1170x1870x1500 | 1900x1510x2460x1940 | 2150x1794x2990x2320 | 2630x2180x3600x2760 |
Collective Blower (KW)
| 2.2
| 3
| 4
| 7.5
|
Approx. N.W. for SP(KG)
| 1150
| 2250
| 3500
| 6500
|
|
Product Details

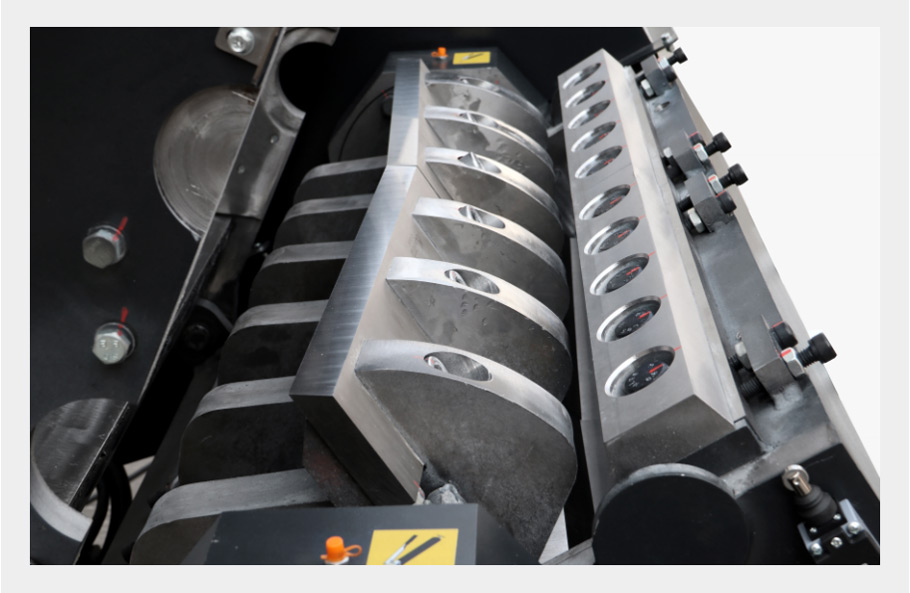

High-strength Blade
1.The blades are made of high-strength alloy tool steel, which offers high hardness and wear resistance. The blade edges can be repeatedly sharpened for extended use.
2.The main shaft knife holders and knife bodies are made of quenched and tempered 45# steel.
3.The blade material is CR12MOV, with a hardness of 57-59 degrees.
Soundproofing Design
The feeding hopper is equipped with a double-layer soundproofing structure, with soundproofing materials filled in between. This design effectively reduces noise levels.
Chamber Cooling System
Machines with a power of 30HP or higher come standard with a cooling system for the machine casing. This system effectively reduces the temperature of the grinding chamber and bearings, preventing material fusion and extending the lifespan of the bearings.
Electrical Components
The equipment adopts electrical components from globally renowned brand Siemens, ensuring performance stability and providing a high level of safety and reliability.
|
