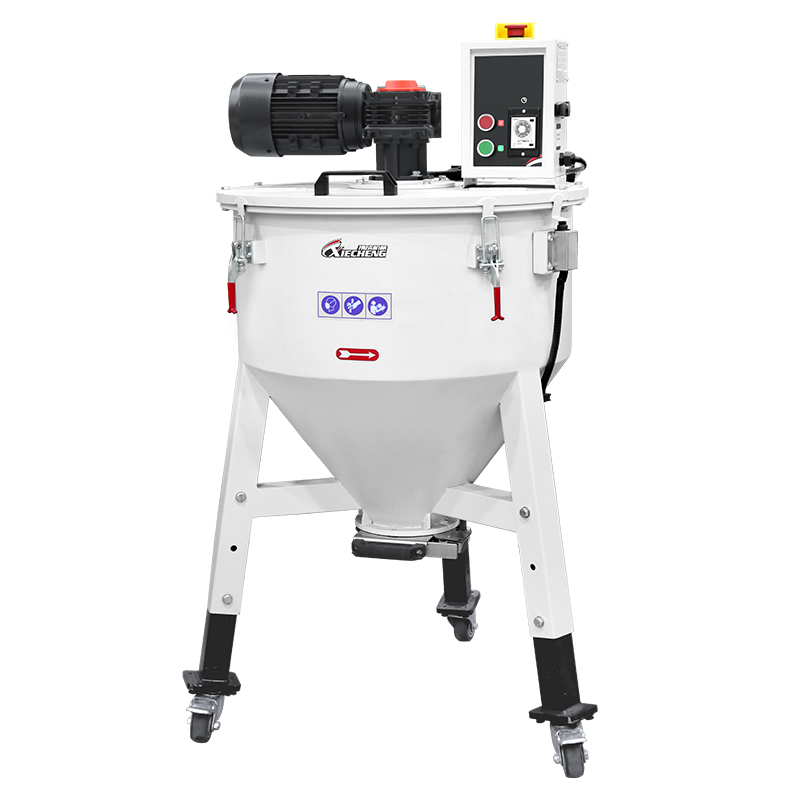

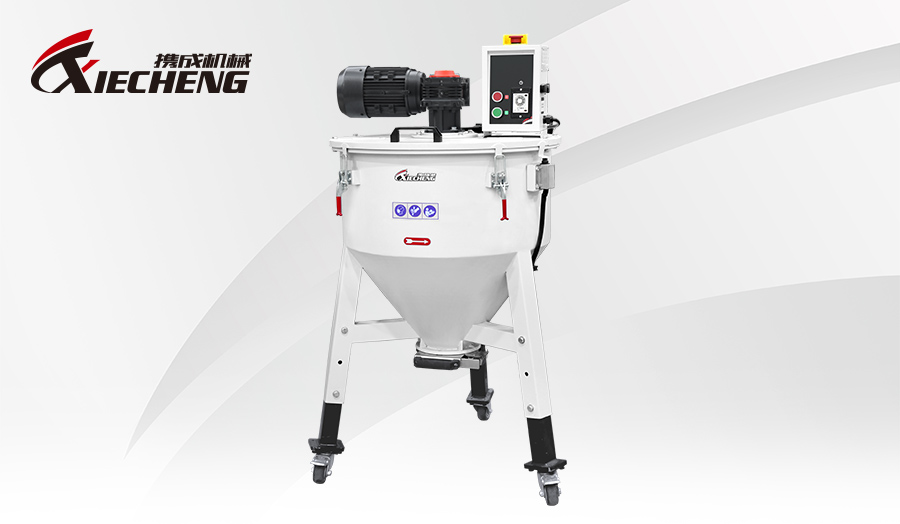

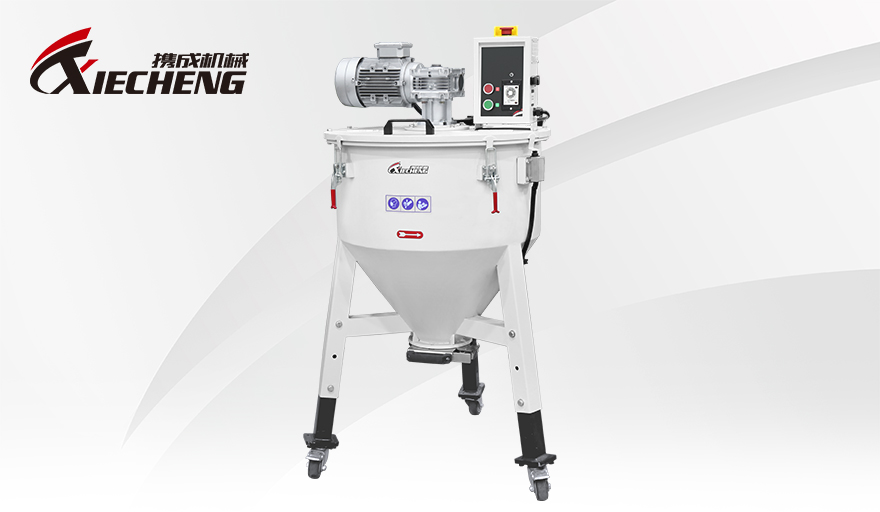

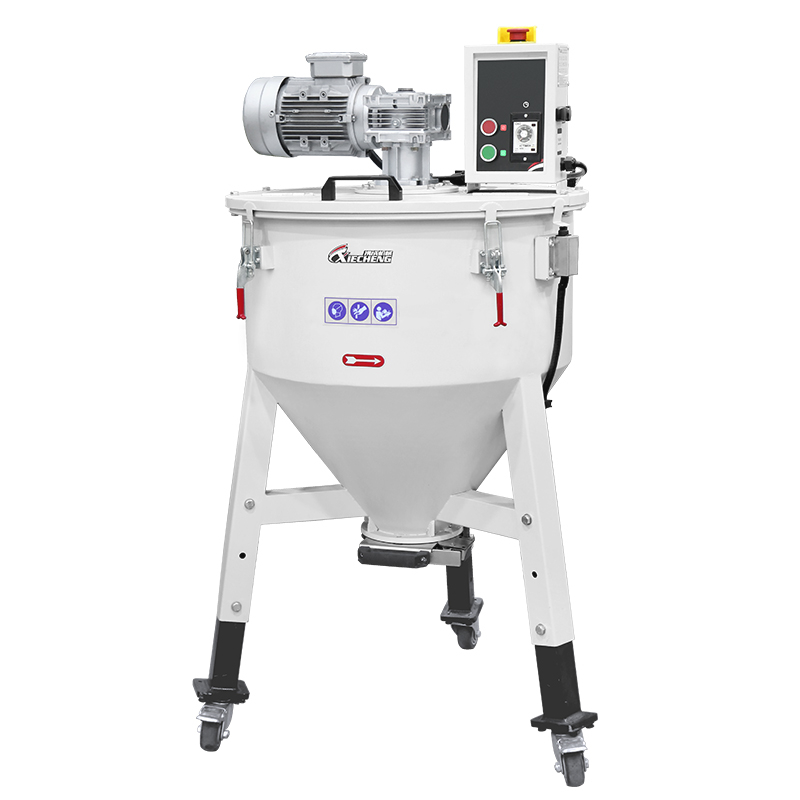

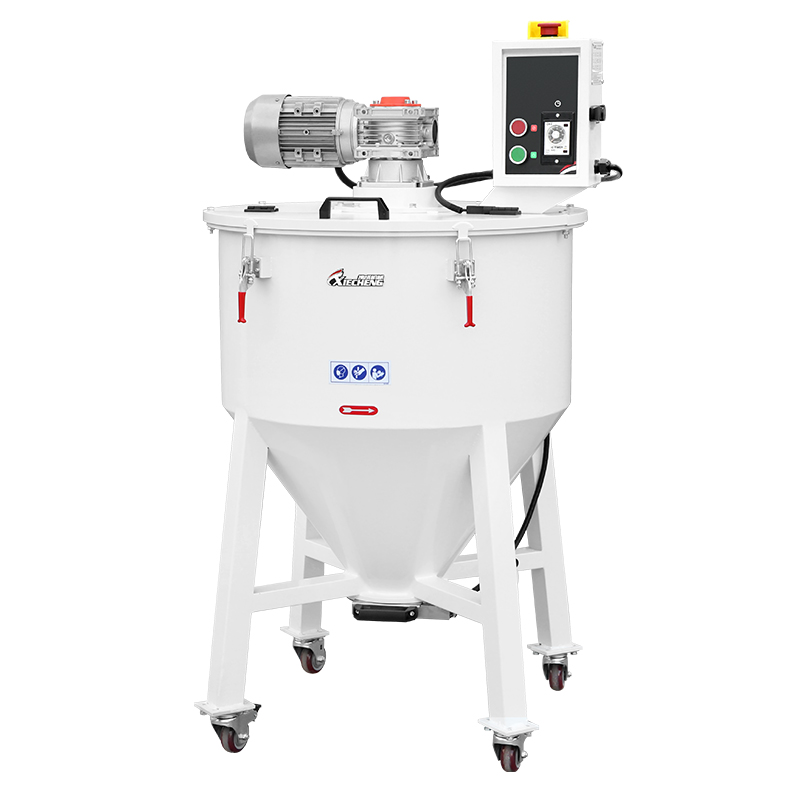

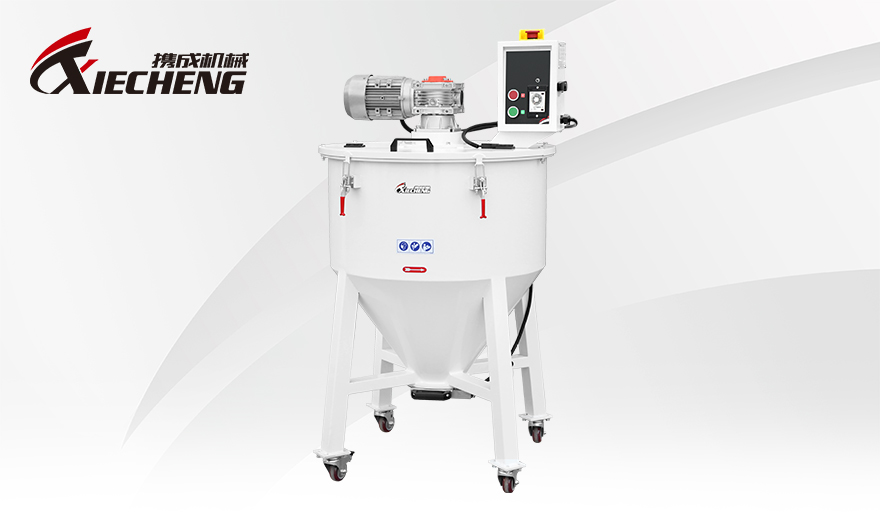

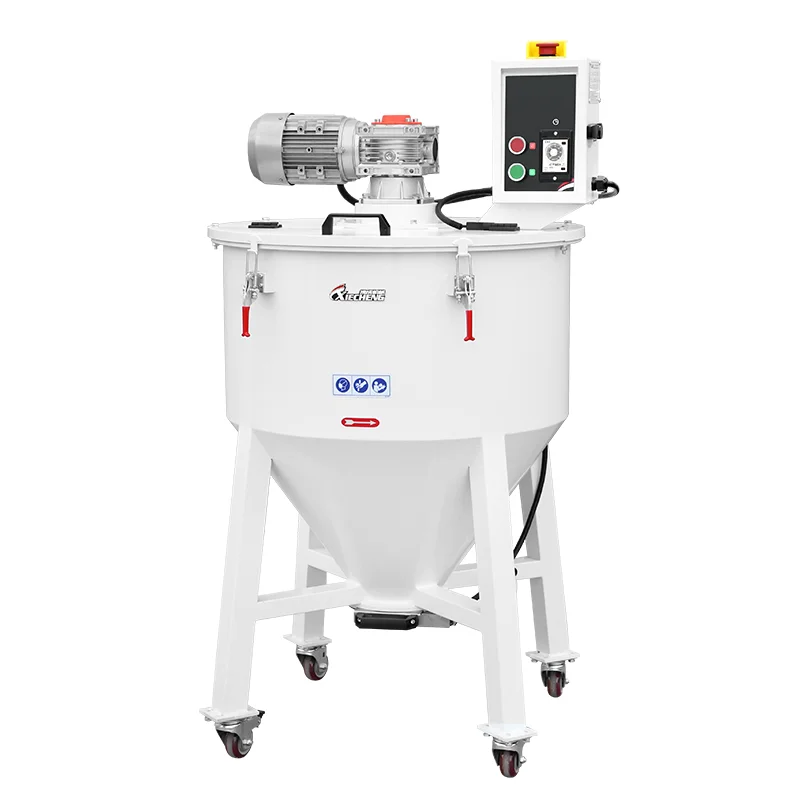

Euro-Mixing Storage Tank
Euro-Mixing Storage Tank is mainly applied in mixture and storage of plastic. Except for mixture and storage of plastic powder raw materials, food, chemicals, inflammable and explosive materials, volatile materials. Bulk specific weight need to be considered when the size of raw materials are uneven or different shapes.
|
Feature
1. Stainless Steel Material: The contact surfaces are made of stainless steel to ensure no contamination.
2. Vertical Helical Shaft: Utilizing vertically assembled helical shaft to achieve even mixing.
3. Detachable Top Components: The top components are detachable for easy cleaning and maintenance.
4. Automatic Stop Device: Equipped with an automatic stop device, allowing for setting of mixing time.
5. Safety Measures: Equipped with a main power switch and safety interlock protection to ensure operator safety and equipment integrity.
6. Height-Adjustable Telescopic Stand and Anti-slip Casters: Facilitating height adjustment and easy mobility of the equipment.
7. Optional Pneumatic Valve for Material Discharge Chute: An optional pneumatic valve for the material discharge chute is available, enabling convenient control of material discharge.
8. Optional Suction Gun: An optional suction gun is available for easy material feeding operation.
|
Working Principle
Euro-Mixing Storage Tank is to use the spiral paddles to generate vortex for mixture purpose. The raw materials will be rotated into the central blending screw by the vortex. Rotation will gather the materials from the bottom to the top along the screw, drop it at the top and complete the mixing function in short period of time. After mixture, open the baffle at the bottom of the tank for material unloading. Optional for suction tubes and suction box match with auto loaders，labor-saving and efficient.
 | ① | Mixingmotor |
| ② | Mixing barrel |
| ③ | Suction inlet |
| ④ | Controller box |
| ⑤ | Mixing paddle |
| ⑥ | Material outlet |
|
Standard Specifications
Model | XC-EMT80U | XC-EMT160U | XC-EMT300U |
Max capacity(kg/hr)
| 200 | 400 | 800 |
Motor Power(KW) | 0.55 | 0.75 | 1.1 |
Rotating Speed(rpm) | 190 | 190 | 190 |
Paddle Diameter(MM) | 150 | 220 | 250 |
Dimensions(MM) | 1210x950x280x900 | 1400x1140x310x1010 | 1480x1220x200x1155 |
|
Product Details

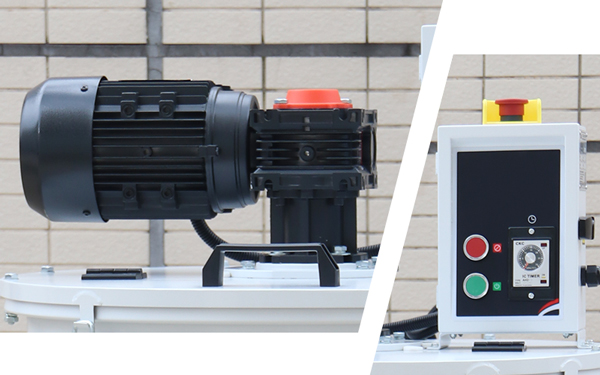

Detachable Components
The top components are designed to be easily detachable, including the barrel lid, reduction motor, screw, and control box, making it convenient for cleaning.
Vertical Screw
Equipped with vertical screw, materials are being evenly stirring; The contact surfaces with the raw materials are all made of stainless steel, ensuring no contamination of the materials.

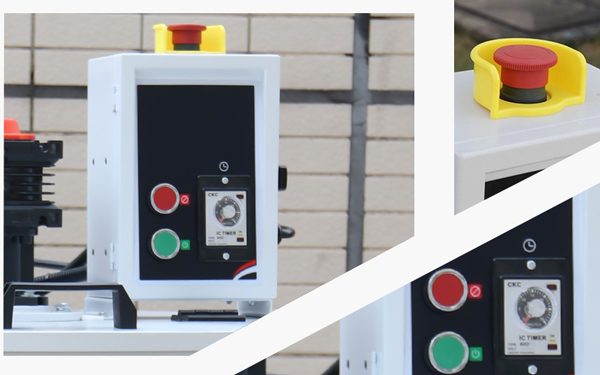

Automatic Stop Device
Equipped with an automatic stop device, allowing for setting the automatic stop time between 0 to 30 minutes.
Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.

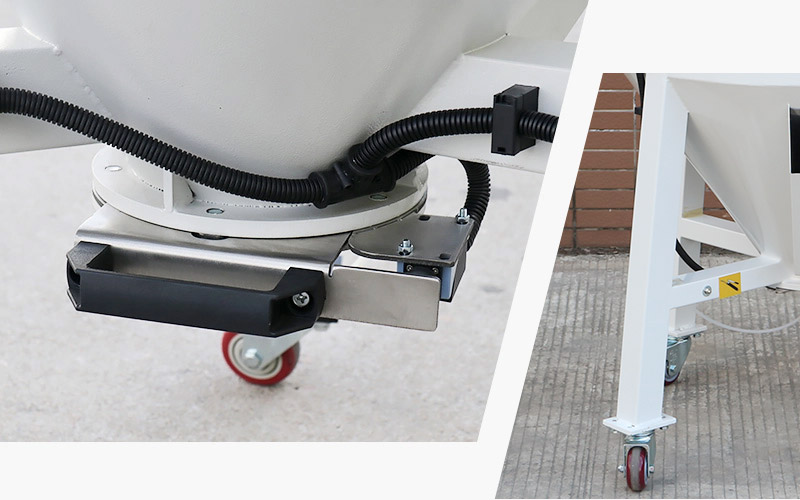

Humanized Design
Adopted with height-adjustable expansion bracket and non-slip caster wheels. Material outlet with pneumatic valve baffle is for optional.
Safety Protection Device
With main power switch and safety chain protection device, to ensure the safety of operator and machine.
