Volumetric Ratio of Two Feed Mixer

model:
Quantity:
Product Description

volumetric ratio of two feed mixer

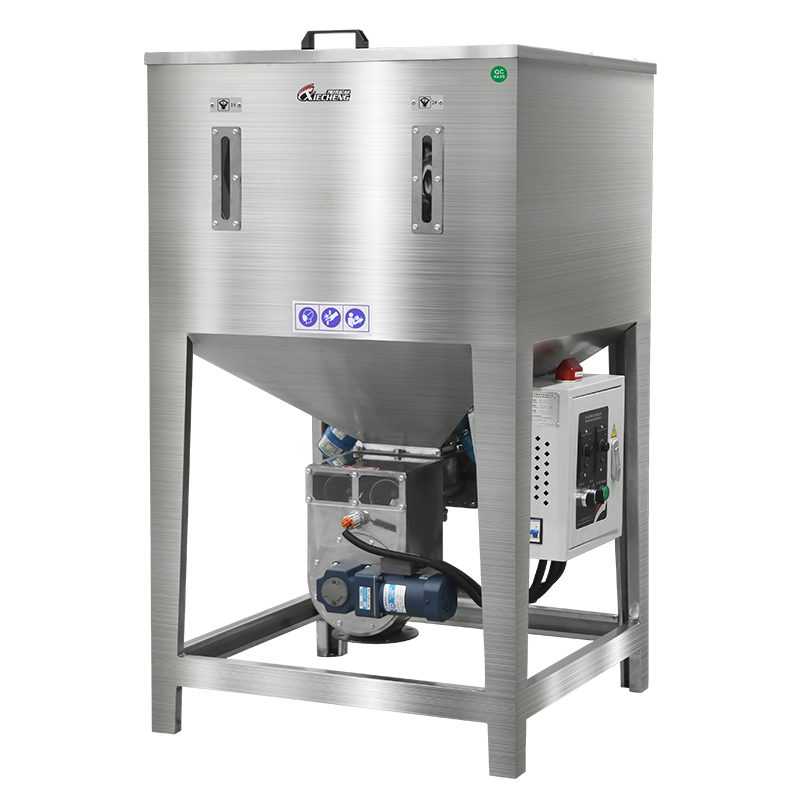

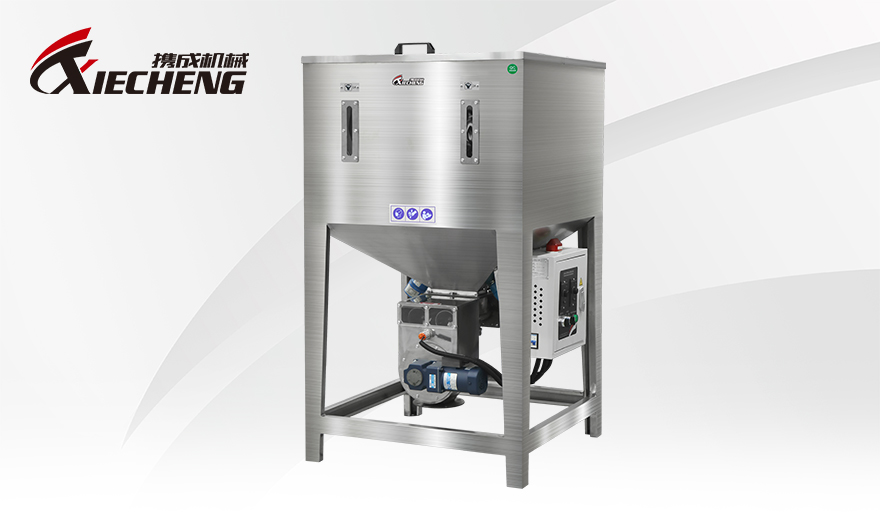

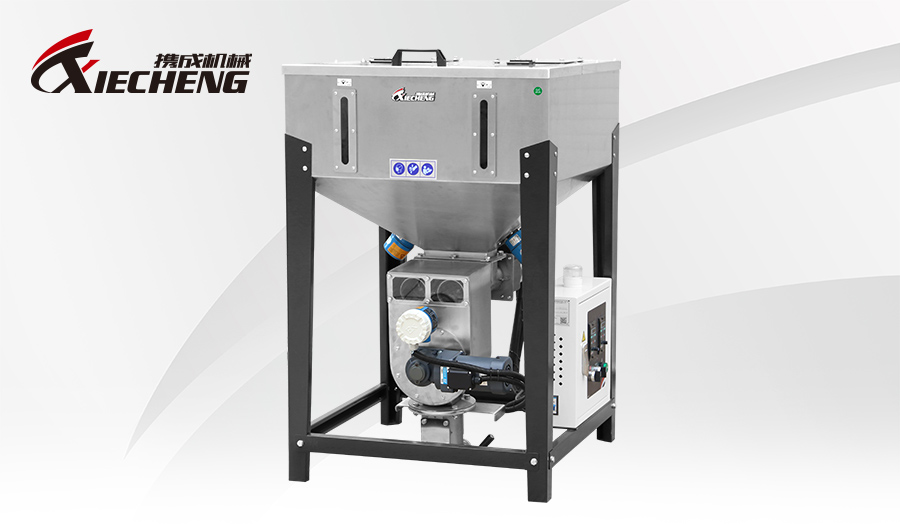

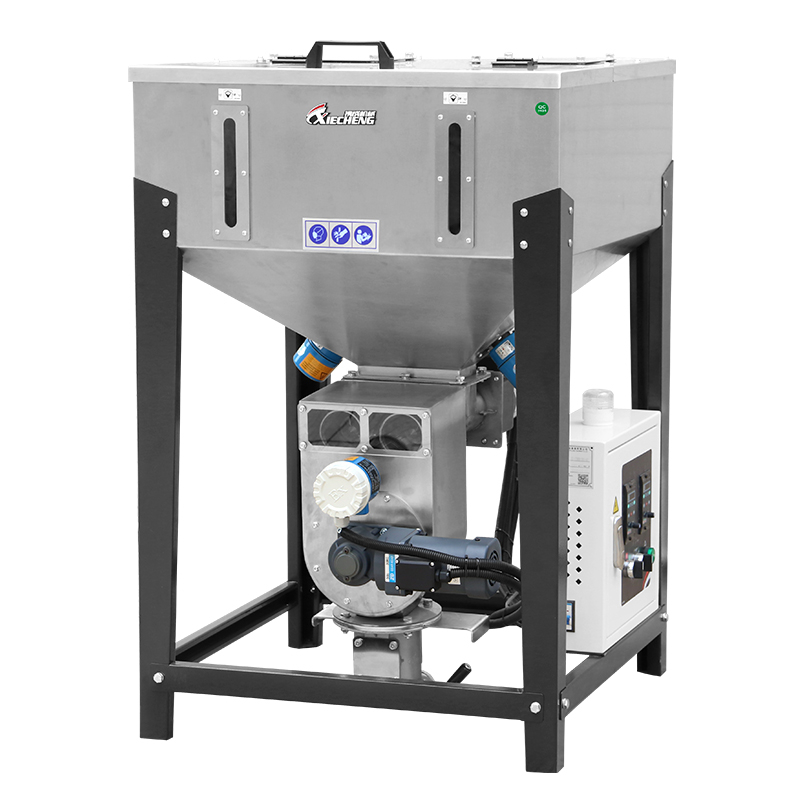

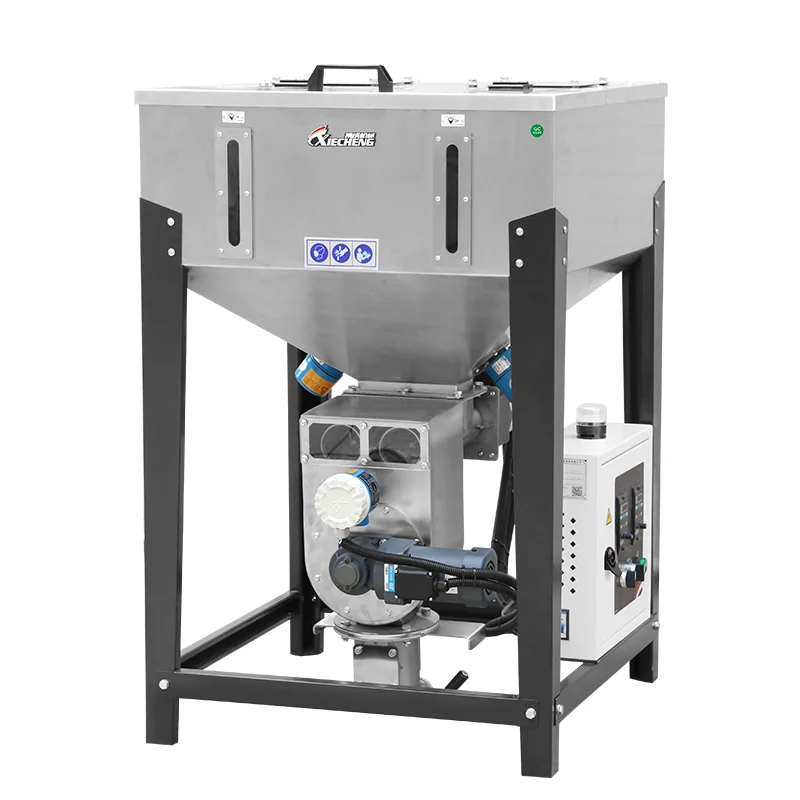

Volumetric Ratio of Two Feed Mixer


Mainly utilized for mixing with certain proportion of raw material and recycled material, or two different types raw materials.


产品细节


volumetric ratio of two feed mixer detail 1




Barrel Part

SUS201 barrel part ensures no contamination on raw materials


volumetric ratio of two feed mixer detail 2




Hopper Design

Storage barrel divided as Hopper 1 and Hopper 2;

Each hopper could be mounted with vacuum receiver or self-contained loaders.

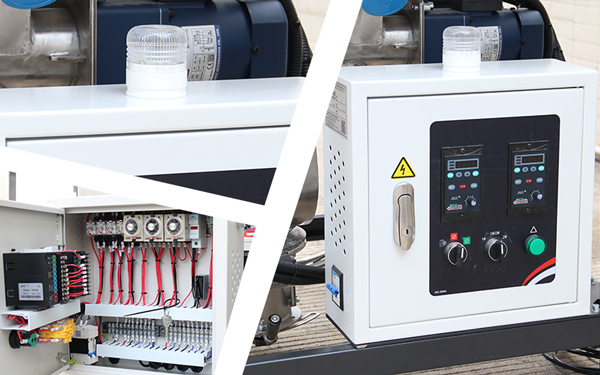

volumetric ratio of two feed mixer detail 3


Volumetric Screw Dosing Devices

Equipped with two sets of volumetric screw dosing devices for accuracy of material providing;

Default with level sensor, buzzer and lamp alarm for material shortage alerting.


volumetric ratio of two feed mixer detail 4





Screw Material

With stainless steel made screws to keep consistency of raw materials

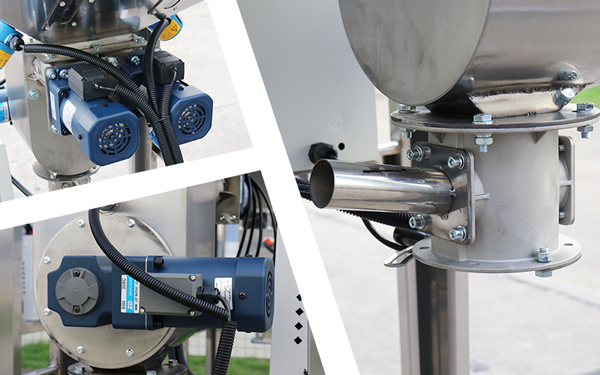

volumetric ratio of two feed mixer detail 5




Suction Box

Default with suction box for connection with auto loader


结构件图



Working Principle

After material loaded in hoppers, set the speed ratio of materials. Switch to 1#/2# and turn on power, the geared motor drives the screw and feeds material into mixing chamber. When level switch at mixing chamber detects full loaded, the screw stops feeding and the mixing motor (optional) delay-stops. When material in short the geared motor automatically runs again and release material


技术参数

Model Max capacity(W) Moto power(W) Rotating Speed(mm)

1#Hopper Capacity(L)

2#Hopper Capacity(L)

Max capacit

y(kg/hr)

Diameter of

suction pipe(inch)

Dimensions(mm)

W*D*H

XC-VTM60-160U 60+60 90 60 80 80 480~850 1.5~2.5 700*700*1350
XC-VTM60-320U 160 160 800*800*1430
XC-VTM70-720U 90+90 70 360 360 800~1450 1000*1000*1500
XC-VTM70-1200U 600 600 1200*1200*1700
