Feeding & Conveying Series
FEATURE:
1. Adopt carbon brush motor, high rotating speed, large air volume, small size, convenient to move and easy to install;

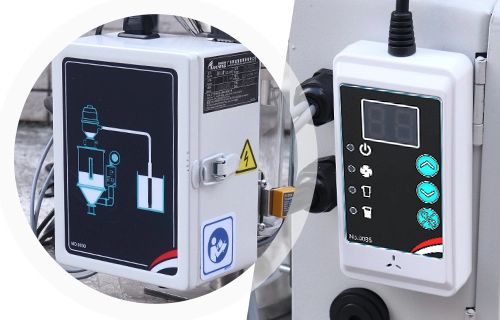

2. Cable remote controller, easy to operate, with auto cleaning function;

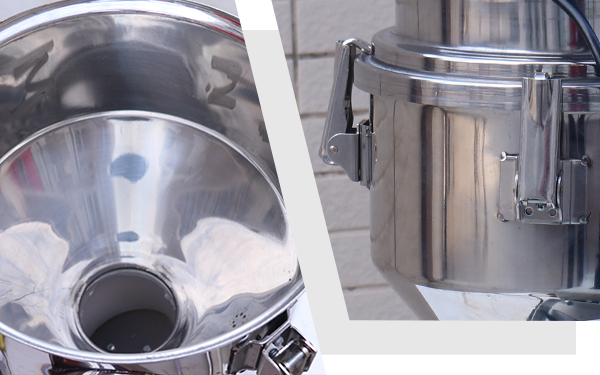

3. All stainless steel contact parts, no pollution in material conveying;
4. With cloth type filter and auto spray cleaning and dust removal device;
5. Material outlet and bottom base can be adjusted by any direction;
6. Adopt magnetic reed switch, sensitive sensor, reliable quality.
| Model | XC-X300G | XC-X400G | |
| Motor | Model | Carbon Brush | Induction |
| Specification | 1.1kw/1.3hp 1φ | 0.75kw/1hp 3φ | |
| Conveying capacity (kg/hr) | 300 | 330 | |
| Loading Distance (m) | 3.5 | 4 | |
| Static Wind Pressure (mm/H2O) | 1300 | 1400 | |
| Storage Tank Capacity (L) | 7.5 | 7.5 | |
| Conveying Tube Inner Diameter (mm) | φ38 | φ38 | |
| The Attached Hoses (mm) | φ38mm×4m 1pc | φ38mm×4mm 1pc | |
| Dimensions L x W x H(cm) | 42x34x57 | 46x39x66 | |
| Approx. Net Weight (kg) | 13.5 | 26 | |
