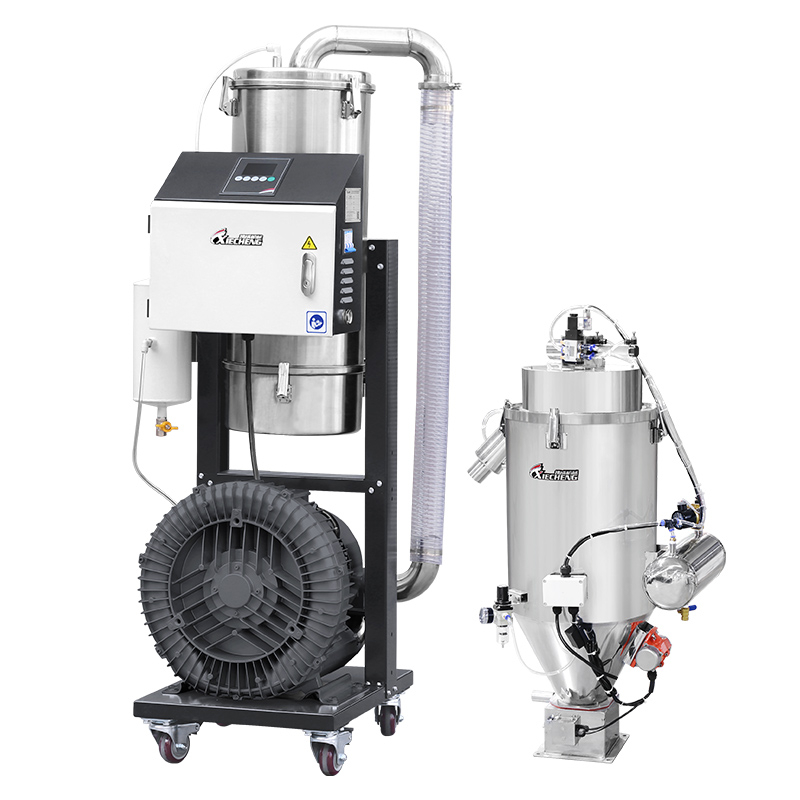

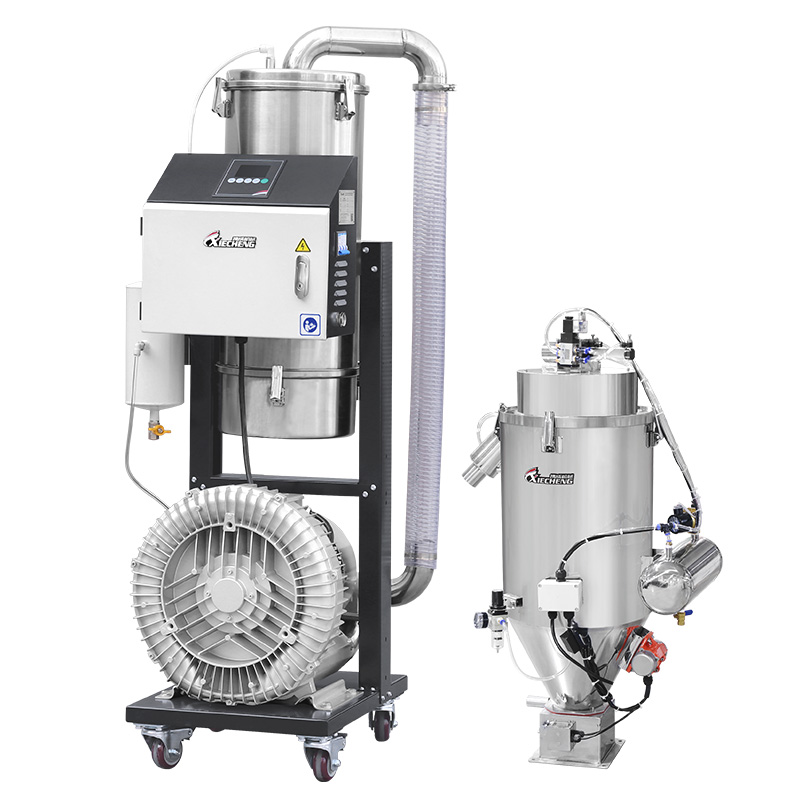

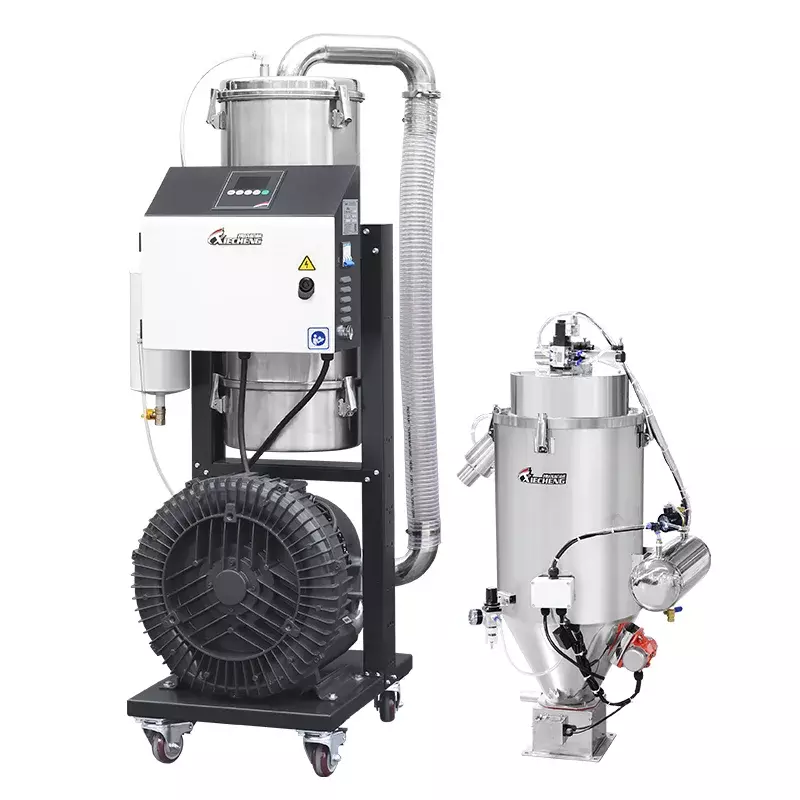

POWER AUTO LOADER
Feeding & Conveying Series
FEATURE:
The powder loaders in this series adopt vacuum suction, capable of transporting general particles and powders (with diameter larger than one micron) from storage into subject equipment. The loaders could be used for moulding or forming machine, mixing system and chemical processing equipment, completely saving labor costs and being ideal environmental choice for powder conveying.
|
Product Details

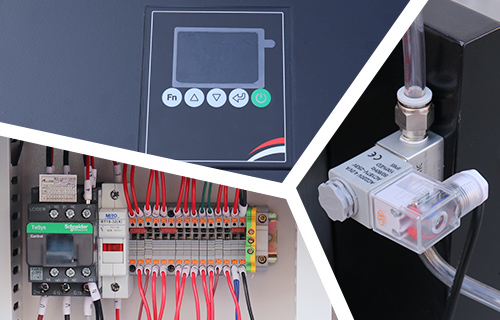

High Quality Components
1. SlEMENS electrical parts ensures stable running and liability of the machine;
2. Alarm for overload and short of material.

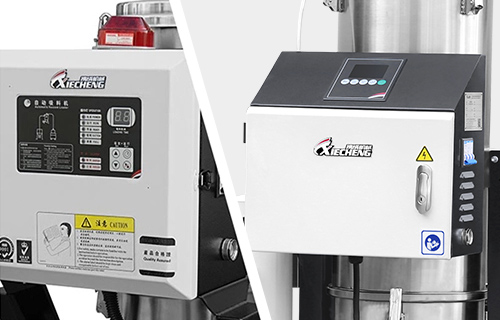

LCD Controller
1. Advanced microcomputer LCD loader con-troller provides novel ergonomic experience;
2. Optional for RS485 communication function to realize automatic running.

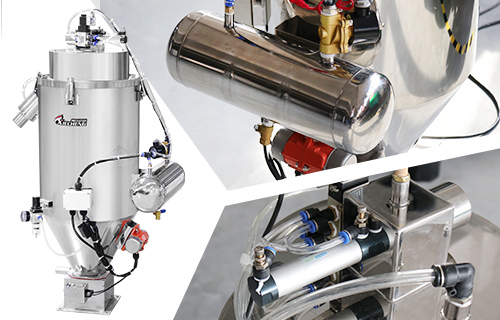

Filter System
1. Adopted import dust cutting filter, with high strength and good effect duct cutting,no pollution;
2. Adopted pulse compressed air reverse cleaning device, air shock in filter surface makes good cleaning result.

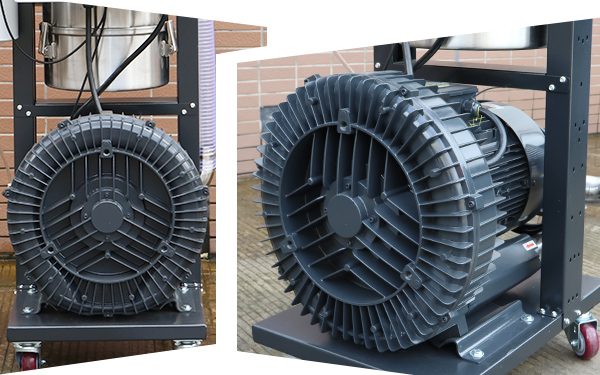

Induction Motor
1. Effectively ensure the cleanliness of the hopper and avoid secondary pollution of the raw materials;
2. Standard European design, model 5HP and above default with vacuum breaking function.
|
Structure Diagram
|
Specifications
| Model | XC-XF5HP | XC-XF7.5HP | XC-XF10HP | XC-XF15HP |
| Conveying Capacity (kg/hr) | 400 | 600 | 800 | 1000 |
| Hopper Practical Capacity (L) | 40 | 40 | 60 | 60 |
| Vortex Pump Power (Hp) | 4 | 5.5 | 7.5 | 11 |
| Vortex Pump Voltage (V) | 220~440V/50~60HZ/3P
|
| SuctionTube Diamete(mm) | 51 | 51 | 63 | 63 |
| Absorb Tube Diameter (mm) | 38/51 | 51/63 | 51/63 | 51/63 |
