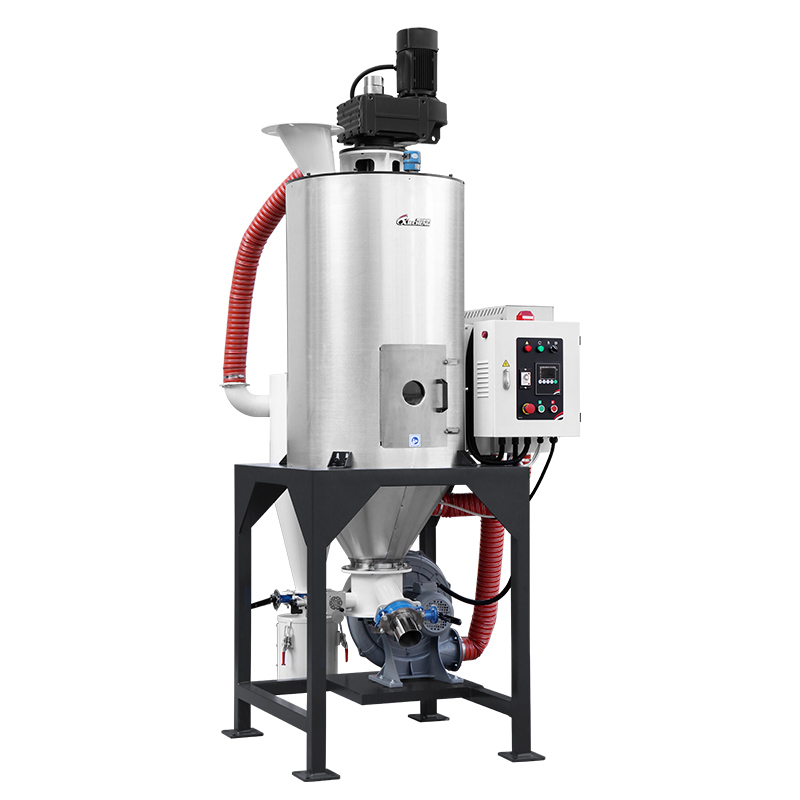

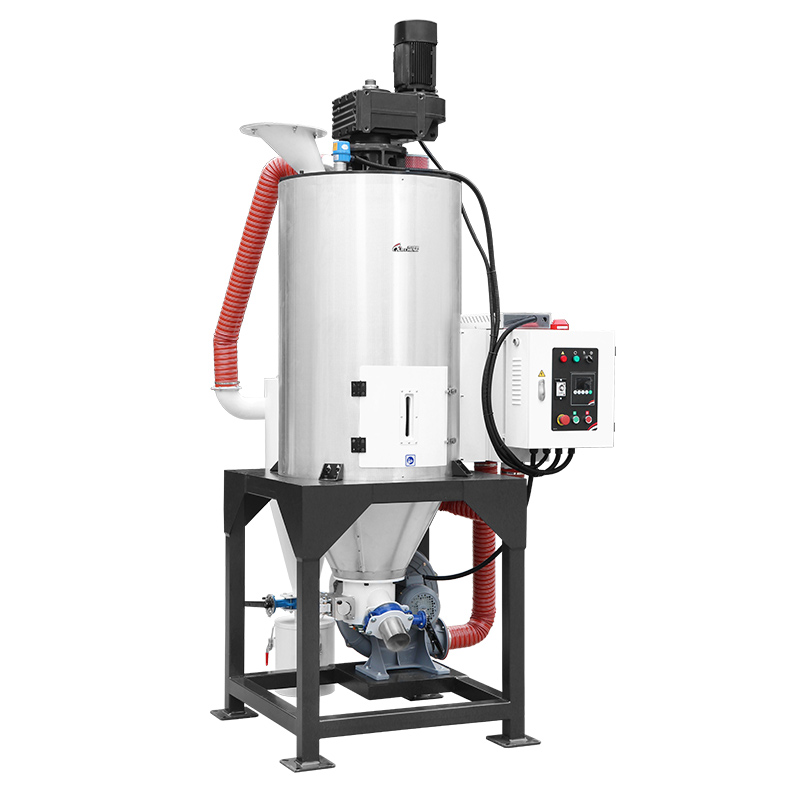

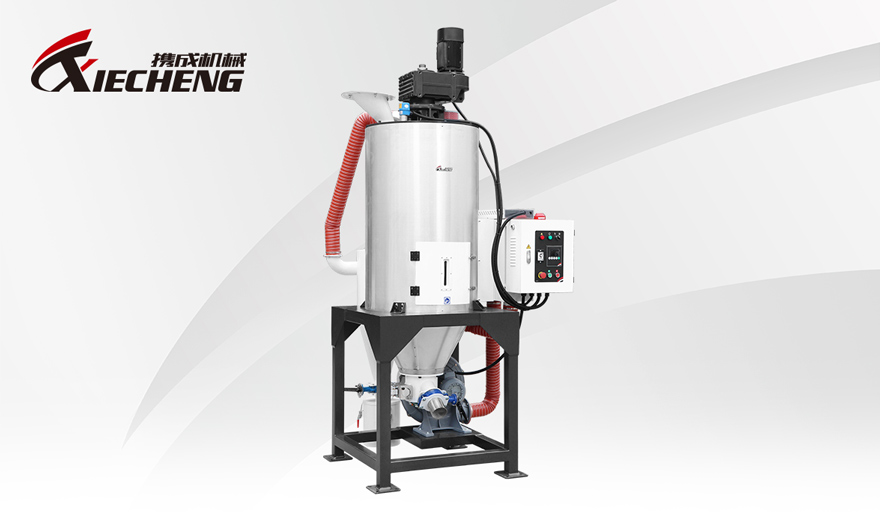

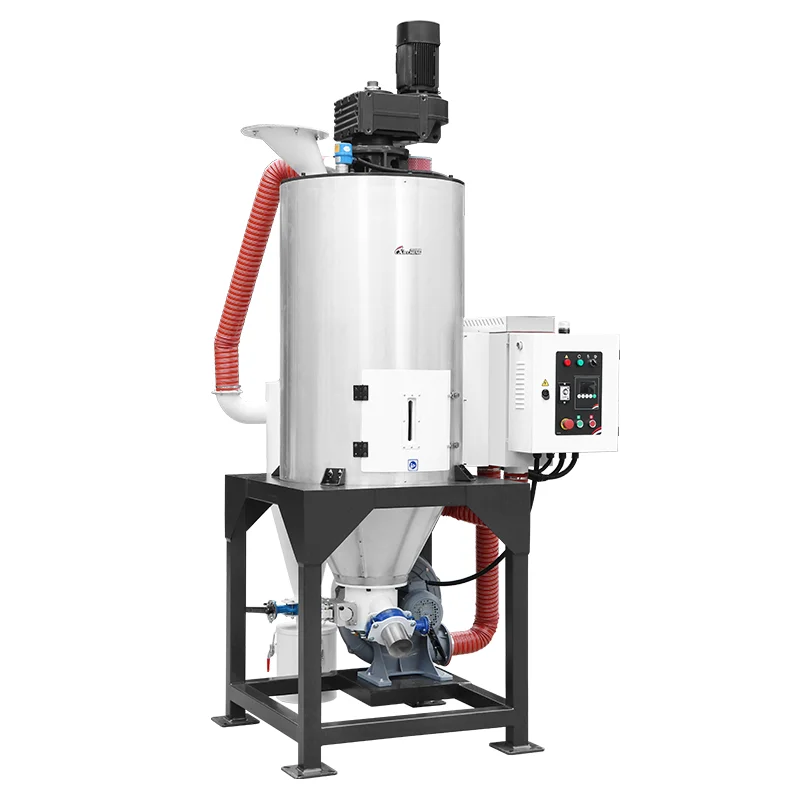

PET Crystallizer


PET Crystallizer


PET crystallizer is suitable for crystallizing crystalline plastics, such as PET, PLA and other crushed and recycled flake materials. It is dried at high temperature to obtain low-moisture raw materials without worrying about agglomeration. After crystallization, the drying temperature and drying efficiency of plastic materials can be improved. It can be used with a dehumidification dryer to form a crystallization dehumidification and drying system to directly carry out crystallization, dehumidification and drying operations.


Feature:

1. Constant-speed mixing design prevents uncrystallized plastic from sticking into blocks during the crystallization process temperature.

2. Crystallization time is 30-40 minutes, high efficiency and energy saving.

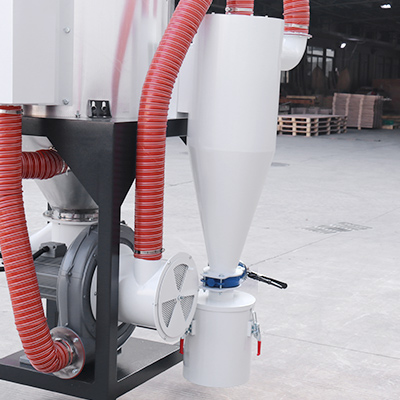

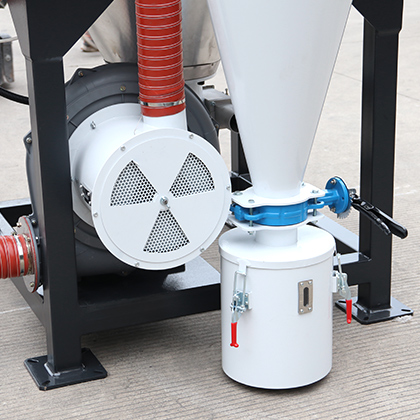

3. Equipped with cyclone dust collector to effectively collect dust and reduce pollution.

4. With over-temperature, overload and other protection devices.

5. The raw material contact surfaces are all made of stainless steel to prevent raw material contamination, and the barrel body is insulated to save energy.

6. Can be equipped with automatic suction machine for continuous operation.

7. Can be used with a dehumidifier to directly perform dehumidification and drying operations simultaneously.

Specifications

Model XC-CR350L XC-CR1000L XC-CR2000L XC-CR2500L XC-CR3000L XC-CR3500L
Drying Power(KW) 18 36 48 60 72 88
Blower(KW) 2.2 3.7 5.5 5.5 7.5 7.5
Mixing motor power(W) 1.1 1.5 2.2 3 4 5.5
Hopper Capacity(L) 350 1000 1600 2300 3000 4500
Air Outlet Pipe Diameter 4" 5" 6" 8"
Crystallizer Dimensions  W*L*H(mm) 1100*1300*2400 1550*1900*3000 1350*1650*3650 1450*1900*3980 1550*2180*4350 1900*2350*5300
 Dehumidifying crystallizer Dimensions W1*L*H(mm) 2100*1500*2400 2650*1900*3000 2850*1650*3650 3100*2050*3980 3900*2180*4350 4300*2350*5300
