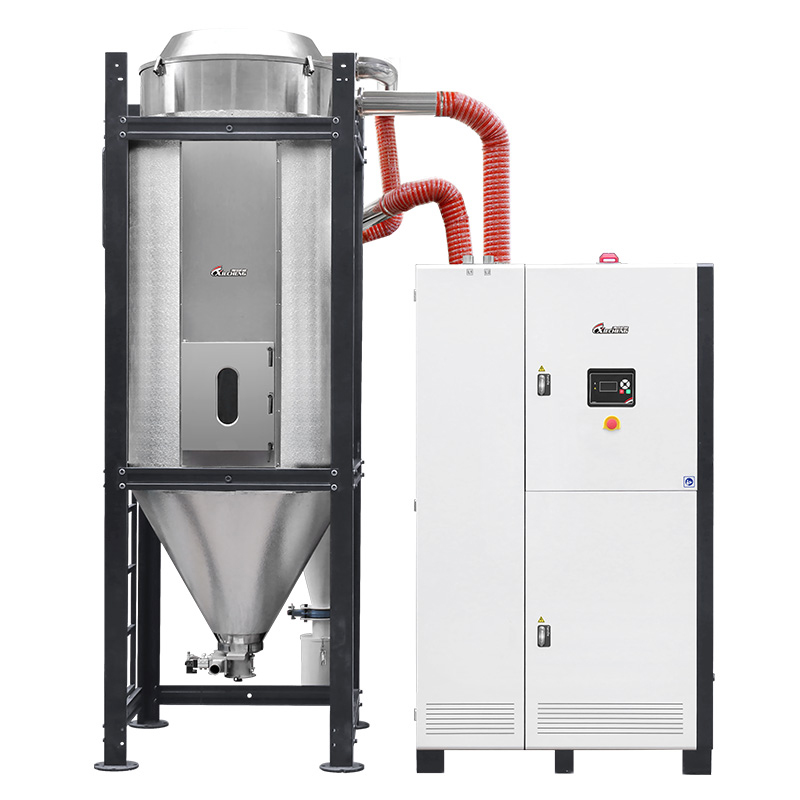

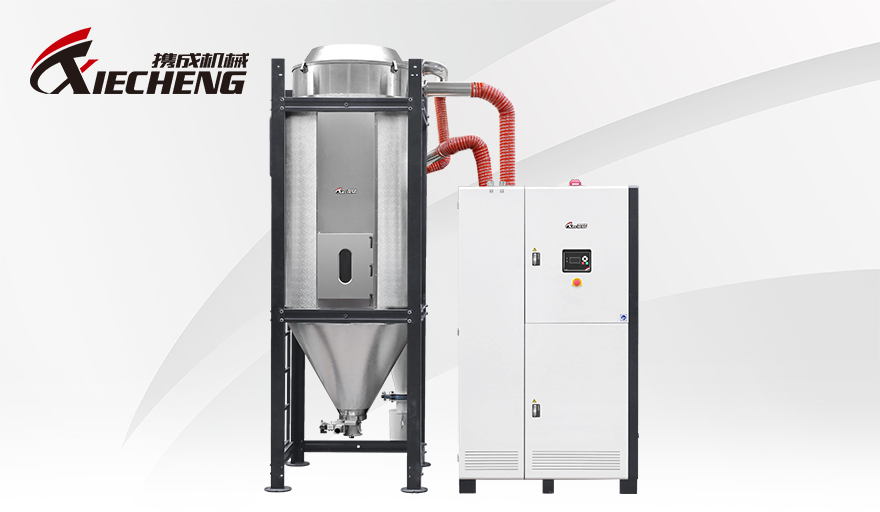

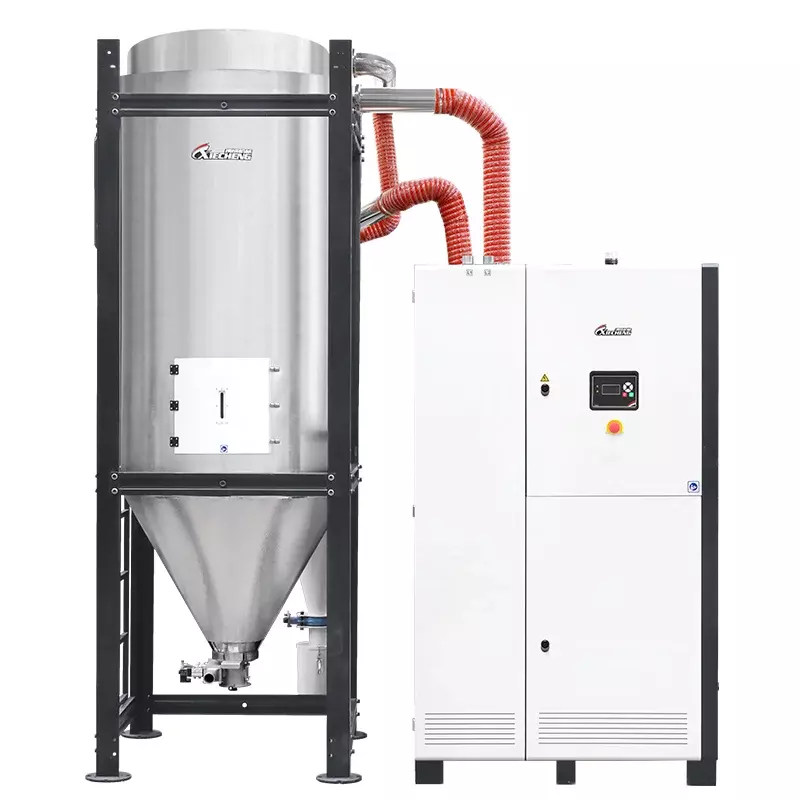

2IN1 HONEYCOMB DEHUMIDIFIER
Drying Dehumidifying Series
FEATURE:
1. The XCD series dehumidifying dryer combine a dehumidifying and drying system in a singleunit. They are suitable for all kinds of plastics, especially for drying hygroscopic engineeringplastics, such as PA, PC, PBT, PET, etc;
2. lt can be reach dew point -40 Celsius under ideal condition. XCD Series are combined withhoneycomb rotor and down blowing fully stainless steel euro hopper dryer.
|
Product Details

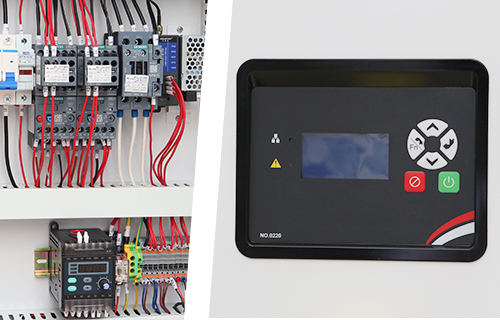

Controller & Electronic
1. Electric parts are adopted with original world-class brand；
2. Material processing is controlled via micro-processor as standard with touch screen LCD Control as an option for centralised and automatic operation.

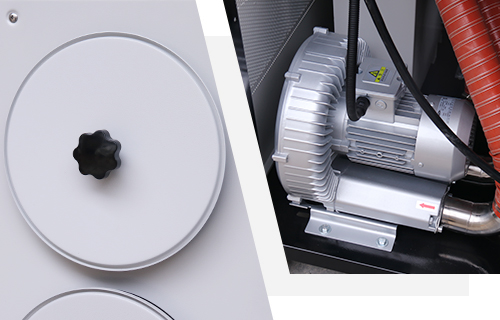

Dehumidifying & Drying
The XCD dehumidifying dryers are including honeycomb dehumidifiers which is semi-inte-gral, have integral elegant outlook, combines dehumidifying & drying functions together, one to many function for optional.

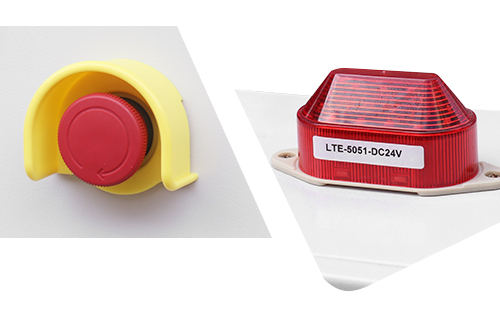

Alert & Protection System
Switch for emergently stopping and alarm lighting for malfunction.

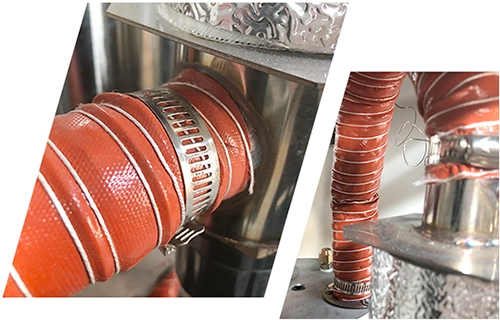

Drying Hopper Design
1. Insulated drying hopper features dry air down blowing and cyclone exhaust design.
2. This improves drying efficiency and reduc-es energy consumption whilst maintaining a steady drying effect.
|
Structure Diagram
|
Specifications
| Model | Heater Power(kw) | Blower (kw) | Drying Blower Power(kw) | Blower Power | Dehumidification Air Flow(m³/h) | Hear Protection Tank Capacity (L) | Dimensions(mm) | Apprx.Net Weight (kg) |
|
| XCD-20U/30H | 3 | 0.18 | 3 | 0.2 | 30 | 20 | 1240*875*755 | 110 |
| 40U/30H | 3 | 0.18 | 3 | 0.2 | 30 | 40 | 1300*930*755 | 190 |
| 40U/50H | 3 | 0.18 | 3.9 | 0.4 | 50 | 40 | 1330*930*755 | 190 |
| 80U/50H | 3 | 0.18 | 3.9 | 0.4 | 50 | 80 | 1410*1430*755 | 210 |
| 120U/80H | 3.5 | 0.18 | 6 | 0.75 | 80 | 120 | 1780*1220*820 | 250 |
| 160U/80H | 3.5 | 0.18 | 6 | 0.75 | 80 | 160 | 1780*1220*820 | 255 |
| 160U/120H | 3.5 | 0.18 | 6 | 0.75 | 120 | 160 | 1780*1220*820 | 265 |
| 230U/120H | 3.5 | 0.18 | 6 | 0.75 | 120 | 230 | 2010*1220*820 | 295 |
| 230U/150H | 4 | 0.4 | 7.2 | 1.5 | 150 | 230 | 2150*1450*1050 | 375 |
| 300U/150H | 4 | 0.4 | 7.2 | 1.5 | 150 | 300 | 2040*1450*1050 | 410 |
| 300U/200H | 5.4 | 0.4 | 12 | 1.5 | 200 | 300 | 2040*1450*1050 | 420 |
| 450U/200H | 5.4 | 0.4 | 12 | 1.5 | 200 | 450 | 2440*1450*1050 | 550 |
| 450U/300H | 7.2 | 0.75 | 15 | 2.4 | 300 | 450 | 2480*1490*1255 | 580 |
| 600U/300H | 7.2 | 0.75 | 15 | 2.4 | 300 | 600 | 2380*1745*1255 | 615 |
| 600U/400H | 7.2 | 0.75 | 18 | 3.75 | 400 | 600 | 2380*1475*1255 | 620 |
| 750U/400H | 7.2 | 0.75 | 18 | 3.75 | 400 | 750 | 2610*1745*1255 | 650 |
| 750U/500H | 10 | 1.5 | 21 | 5.5* | 500 | 750 | 2760*2140*1380 | 760 |
| 900U/500H | 10 | 1.5 | 21 | 5.5* | 500 | 900 | 2640*2140*1380 | 820 |
| 900U/700H | 10 | 1.5 | 24 | 5.5 | 700 | 900 | 2640*2140*1380 | 830 |
| 1200U/700H | 10 | 1.5 | 24 | 5.5 | 700 | 1200 | 3070*2140*1380 | 870 |
