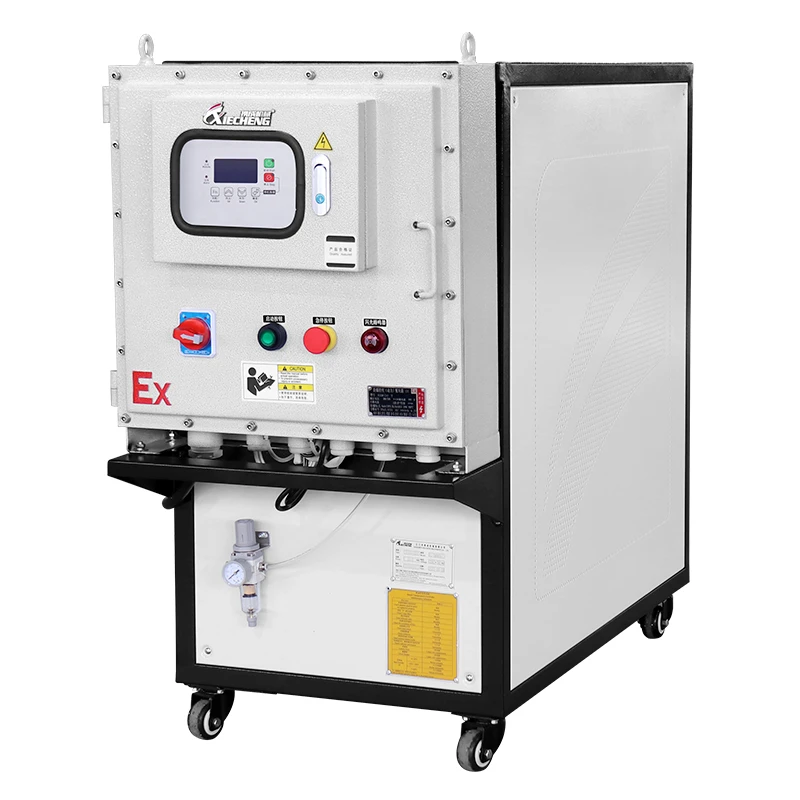

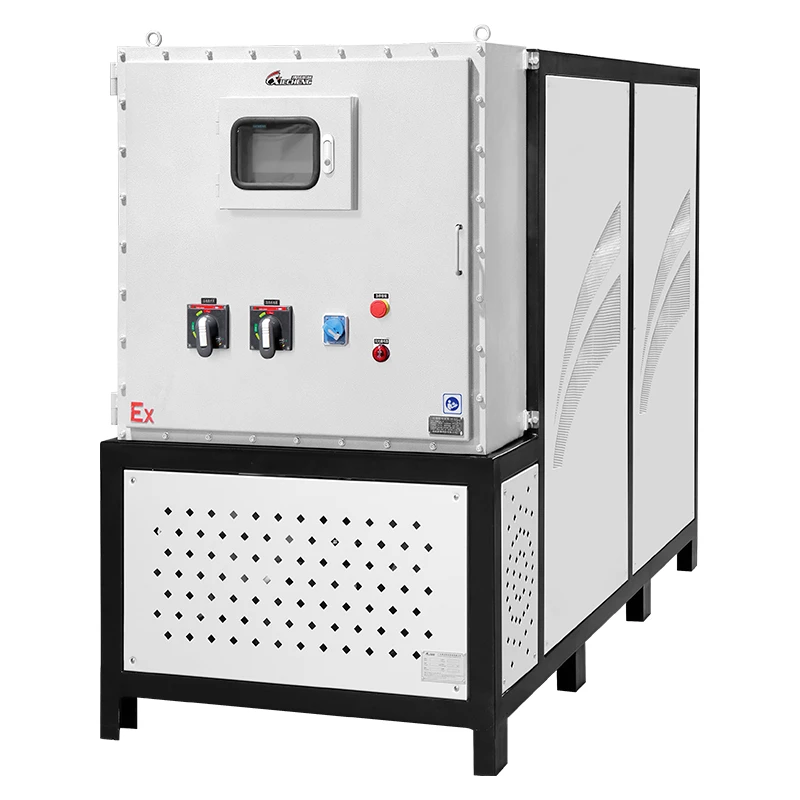

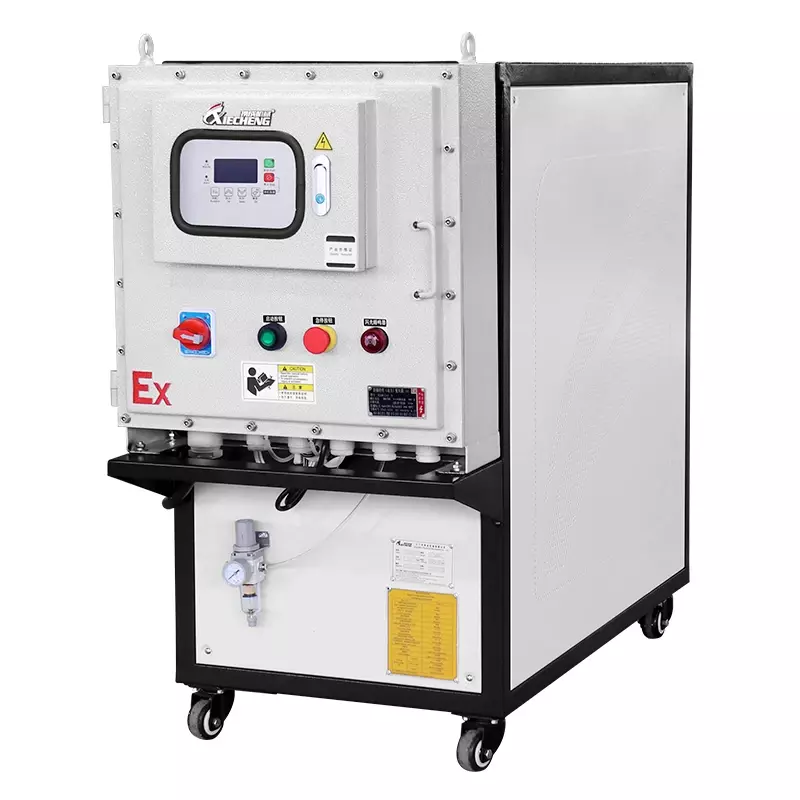

Explosion-proof mold temperature controller is widely used in fields with explosion hazards such as petrochemical, new materials, chemical pharmaceuticals, paints and coatings, and military industry.
1. Special design and manufacturing process are used to prevent sparks, arcs or high temperatures from causing explosions during operation;
2.The manufacturing materials and components of the explosion-proof mold temperature controller are specially selected to ensure its durability and long service life to adapt to various industrial production conditions;
3. The explosion-proof mold temperature controller has high precision and stability in temperature control. It uses advanced temperature control systems and sensors to accurately control the required temperature to meet the requirements of different materials and processes.
|
Model | 单位unit | XC- TM18KW -200 | XC- TM24KW -200 | XC- TM36KW -200 | XC- TM48KW -200 | XC- TM60KW -200 | XC- TM18KW -300 | XC- TM24KW -300 | XC- TM36KW -300 | XC- TM48KW -300 | XC- TM60KW -300 |
Temp.control range | ℃ | +40~200℃ | +40~300℃ | ||||||||
Temp.control accuracy | ℃ | P.I.D土0.1 | |||||||||
Power | 3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | ||||||||||
Heat transfer medium | Transfer oil | ||||||||||
Cooling method | Indirect cooling | ||||||||||
Heating capacity | KW | 18 | 24 | 18*2 | 24*2 | 18*3 | 18 | 24 | 18*2 | 24*2 | 18*3 |
Pump power | KW | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 1.5 | 1.5 | 2.2 | 3 | 5.5 |
Max.pump flow | L/min | 200 | 200 | 300 | 300 | 367 | 133 | 133 | 166 | 210 | 330 |
Max.pump pressure | kg/cm2 | 3 | 3 | 3.6 | 3.6 | 3.8 | 2.2 | 2.2 | 2.5 | 3.2 | 3 |
Alert function | Phase lack/oil shortage/over temperature/overload | ||||||||||
Cooling water pipe | mm | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Inlet Outlet Diameter | inch | 1" | 1.5" | 2" | 1" | 1.5" | 2" | ||||
Dimension(L×W×H) | mm | 1170x570x1145 | 1170x570x1145 | ||||||||
Approx.net weight | kg | 83 | 86 | 130 | 162 | 250 | 85 | 88 | 135 | 167 | 250 |
