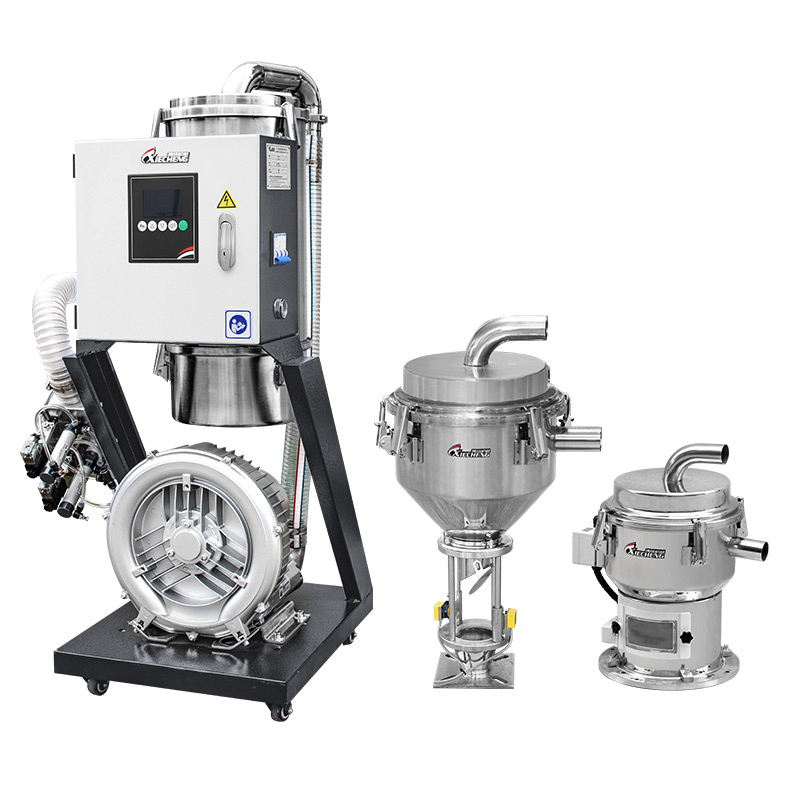

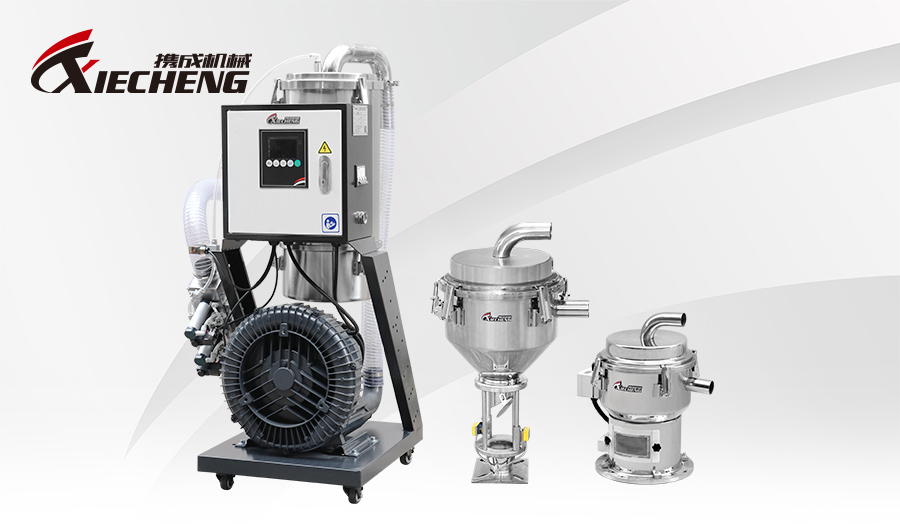

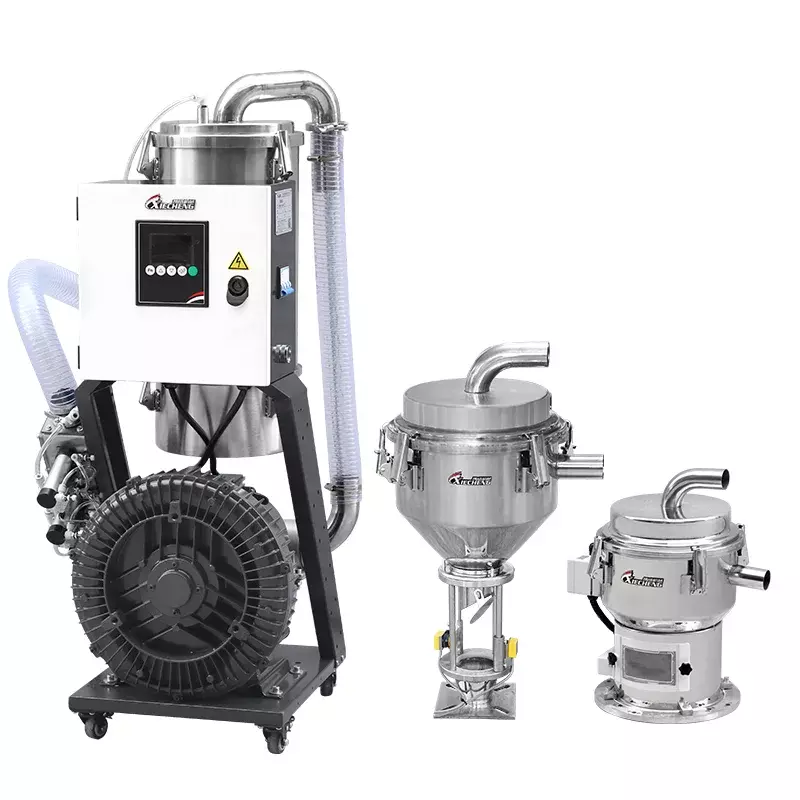

MULTI-STATION HOPPER LOADER
Feeding & Conveying Series
FEATURE:
1. One main machine controlling several hoppers to save cost and space;
2. Vacuum hoppers and sensor hoppers are alternative;
3.Perfect for drying and conveying in one system with simplified systematic structureand high efficiency;
4. Fully automatic microcomputer controlled;
5. Integrated control, easy and safe to operate;
|
Product Details

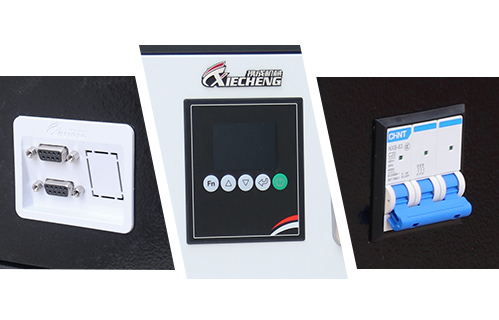

High Quality Components
1. SlEMENS electrical parts ensures stable running and liability of the machine;
2. Alarm for overload and short of material.

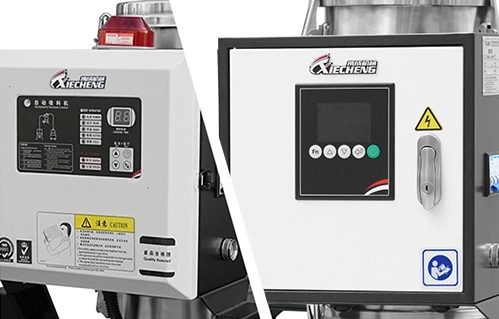

LCD Controller
1. Advanced microcomputer LCD loader con-troller provides novel ergonomic experience;
2. Optional for RS485 communication function to realize automatic running.

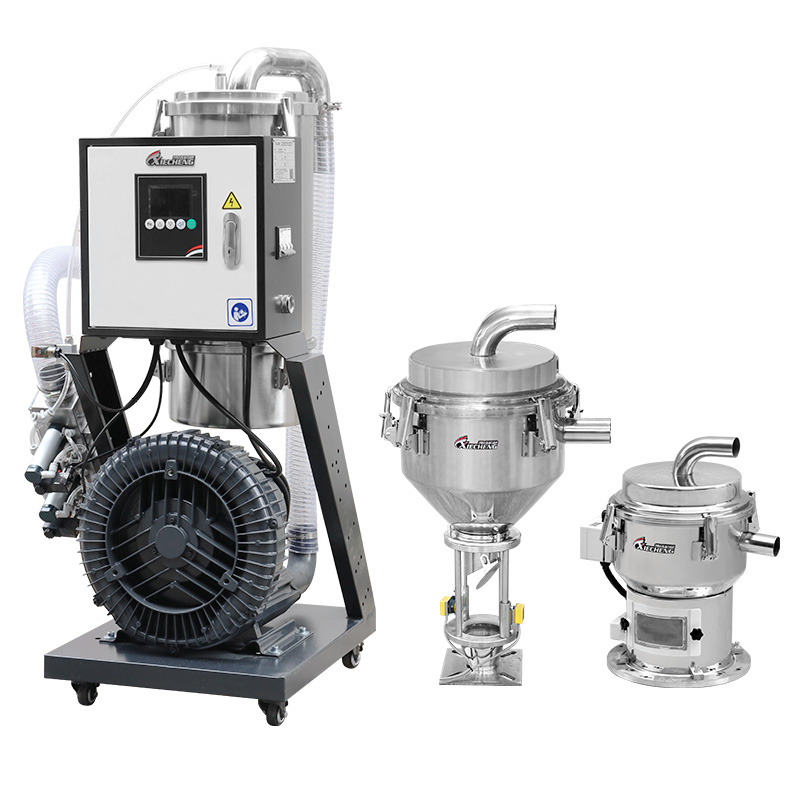

Several Hoppers Working
One main machine controlling several hop.pers to save cost and space.

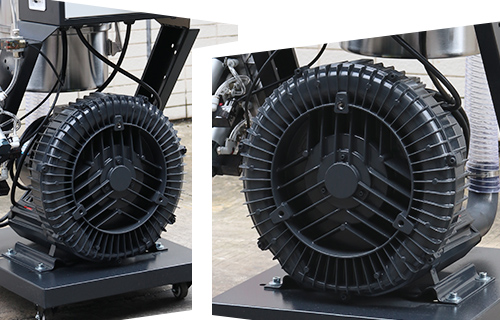

Induction Motor
1. Effectively ensure the cleanliness of the hopper and avoid secondary pollution of the raw materials;
2. Standard European design, model 5HP and above default with vacuum breaking function.

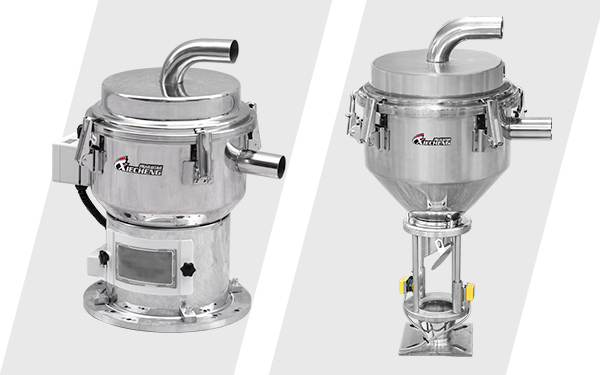

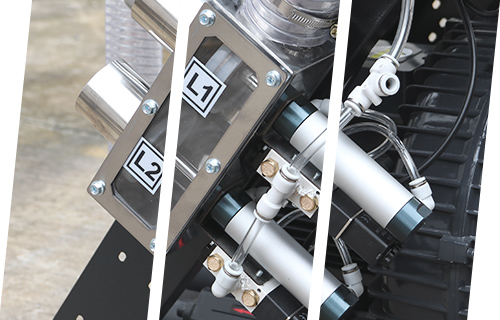

Separated Hopper Design
1. Main machine separated from the hopper, easy and safe to operate
2. Equipped with magnetic reed hopper, sen-sitive sensor, reliable quality;
3. The base can be adjusted according to customer needs, and the hopper has an in-dependent switch, which can be closed inde-pendently.
|
Structure Diagram
|
Specifications
| Model | XC-XY900G2 | XC-XY900G3 | XC-XY900G4 |
| Motor (Hp/Kw) | 1.5/1.1 | 2/1.5 | 3/2.2 |
| Conveying Capacity (kg/hr) | 440 | 500 | 590 |
| Loading Distance (m) | 4 | 4 | 5 |
| Static Wind Pressure (mm/H2O) | 2400 | 2400 | 2400 |
| Storage Tank Capacity (L) | 7.5x2 | 7.5x3 | 12x4 |
| Conveying Tube Inner Diameter (mm) | φ38 | φ38 | φ38 |
| The Attached Hoses (mm) | φ38mm×5m 4pcs | φ38mm×5m 6pcs | φ38mm×5m 4pcs φ51mm×5m 4pcs |
| Dimensions L x W x H(cm) | 50x55x109 |
| Weight (kg) | 68 | 82 | 113 |
