Small Round Material Storage Tank

Availability:
Quantity:
Product Description

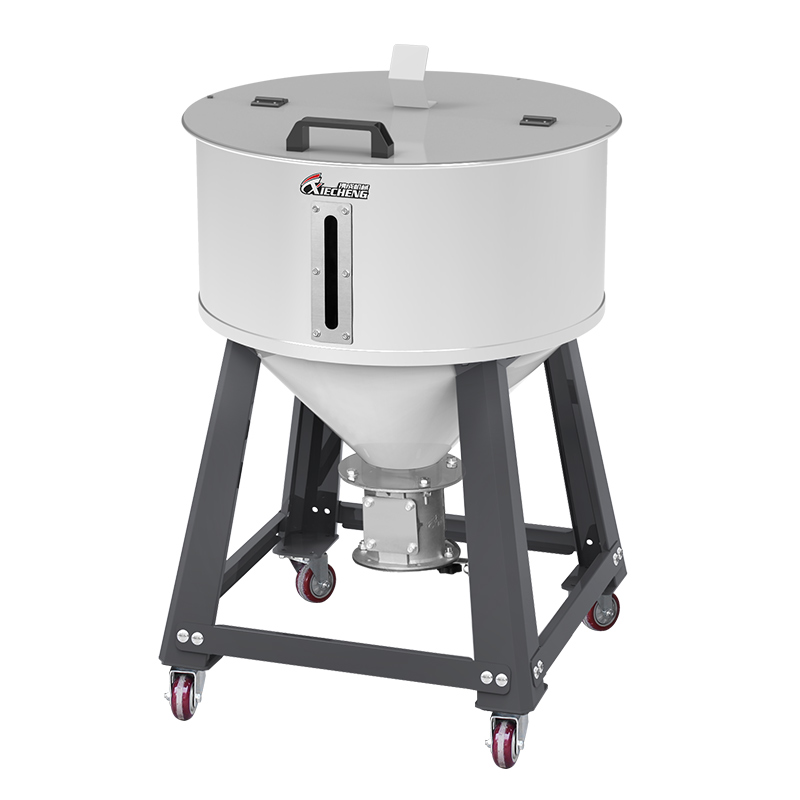

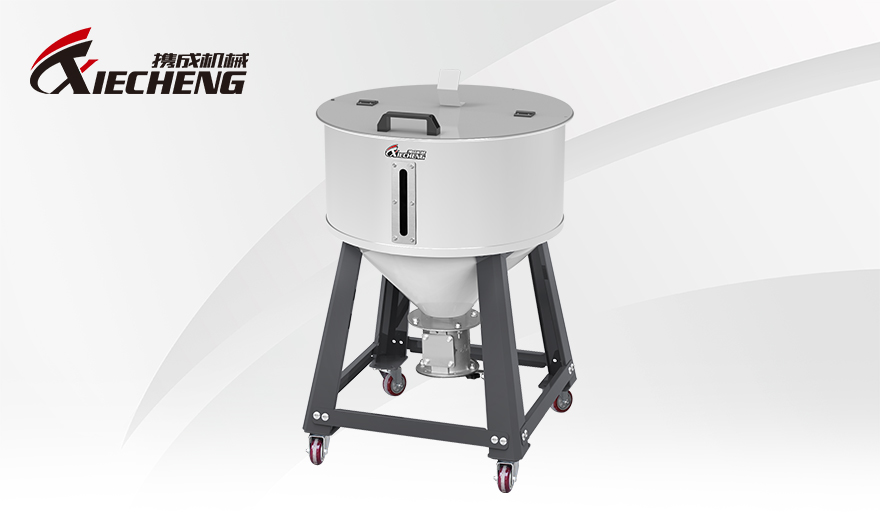

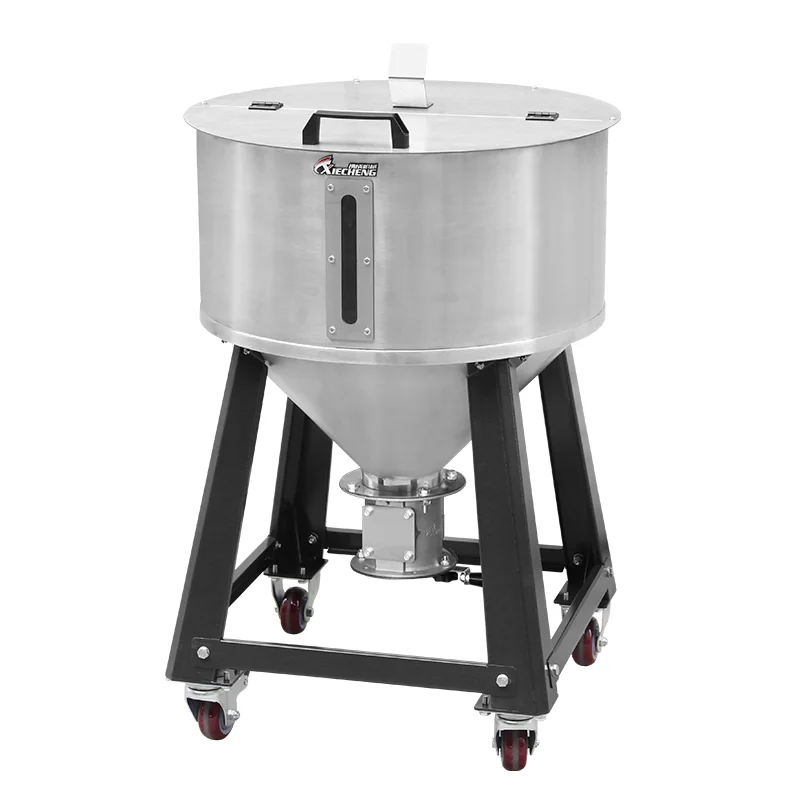

Small Round Material Storage Tank

Small Round Material Storage Tank


It is mainly used for the storage of raw materials. It can be placed in the raw material room or beside the molding machine. It can also be used in combination with a crusher to temporarily store the materials conveyed by the crusher, ensuring continuous and immediate recycling of recycled materials. The storage barrel is standardly equipped with a suction box, and other specifications of suction boxes or cut-off type suction boxes can also be optionally installed. The barrel body of the small circular storage box adopts a cylindrical design. The circular structure ensures uniform distribution of raw material particles and reduces dead-angle accumulation. The parts in contact with raw materials are made of stainless steel to ensure that raw materials are not contaminated. It also has various capacity specifications to meet the needs of different customers.

Specifications:

Model Dimensions(mm)WxDxH Capacity(L) Thickness of box material(mm)
XC-FT50KG 500*500*760 80 1.0
XC-FT100KG 600*600*880 160 1.0
XC-FT200KG 750*750*1090 320 1.2
XC-FT300KG 850*850*1155 450 1.5
XC-FT500KG 1050*1050*1330 750 1.5
