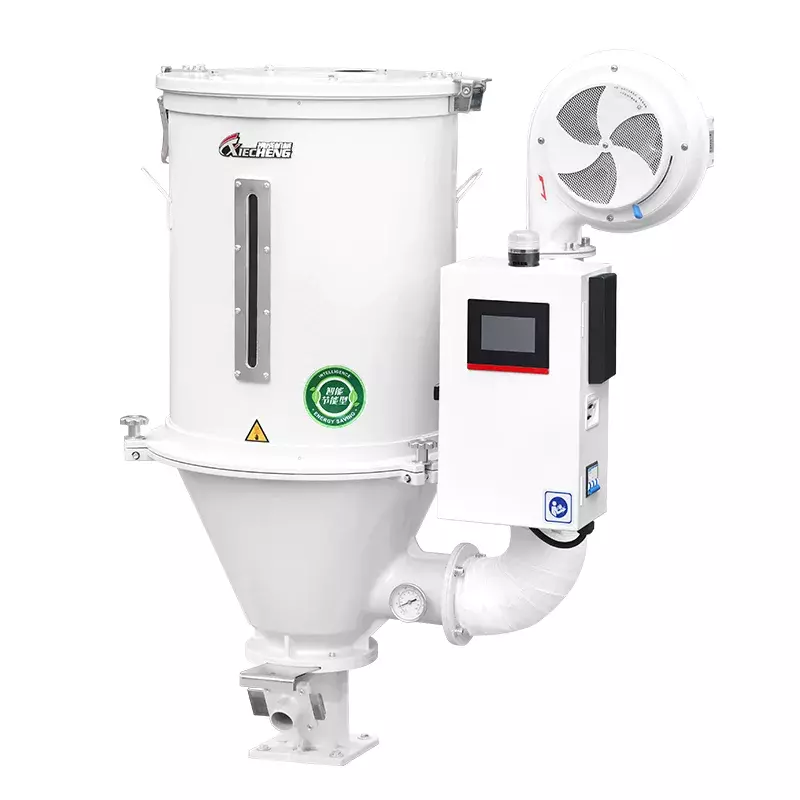

Adaptive Intelligent Energy-saving Hopper Dryer

Availability:
Quantity:
Product Description

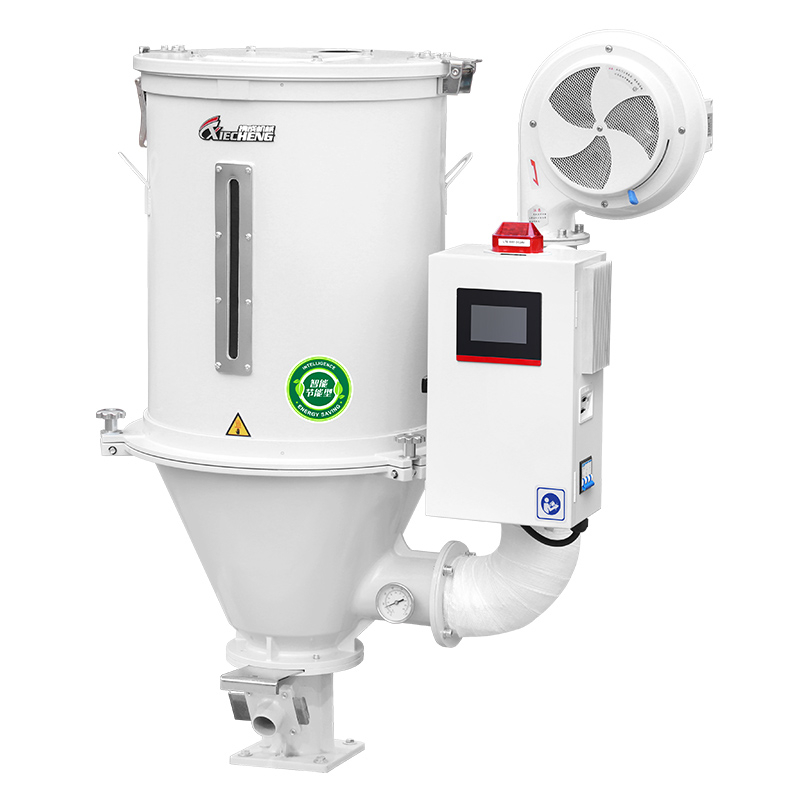

Adaptive Intelligent Energy-saving Hopper Dryer


Adaptive Intelligent Energy-saving Hopper Dryer



|

 FEATURE:

1. Adopting high-performance hot air diffusion device design to ensure uniform temperature and improve drying efficiency;

2. Electric barrel bending design, to avoid combustion caused by raw material powder accumulation at the bottom of the barrel;

3. Adpoted PID controller, the 4.3-inch touch screen displays real-time working status;

4. Highly efficient and energy-saving, compared with ordinary models, it can save 30%-80% of energy under the same working conditions;

5. With a variety of common raw material process formulas, only need to select the type of raw material, and the system automatically sets the drying temperature and air volume;

6. Adaptive function, the system automatically operate to adjust the air volume after setting the temperature;

7. Automatic heat preservation function, when the machine stops feeding, it will automatically enter the heat preservation state, saving energy, preventing over-drying of raw materials and ensuring that dry raw materials can be provided at any time;

8. With over-temperature and low-temperature alarm protection functions;

9. Timing function for 24 hours and weekly setting to realize automatic running;

10. Equipped with communication functions to realize automated remote management.


|

 Product Details

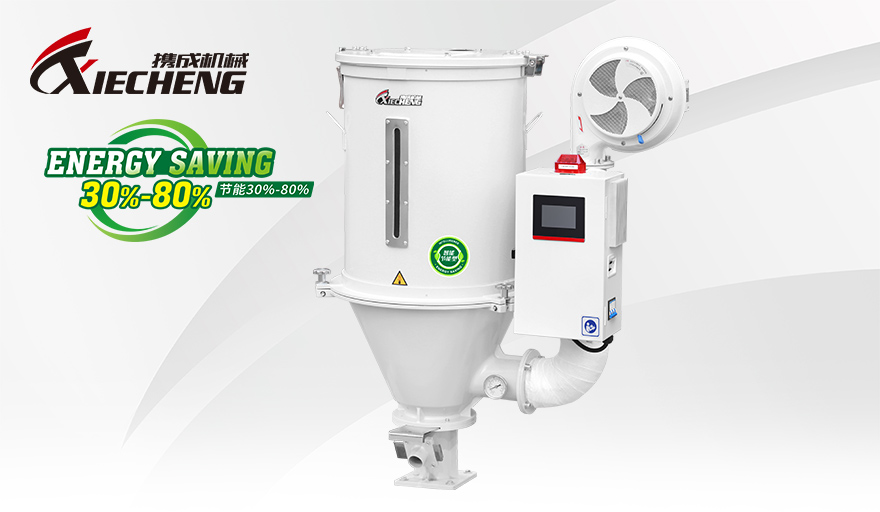

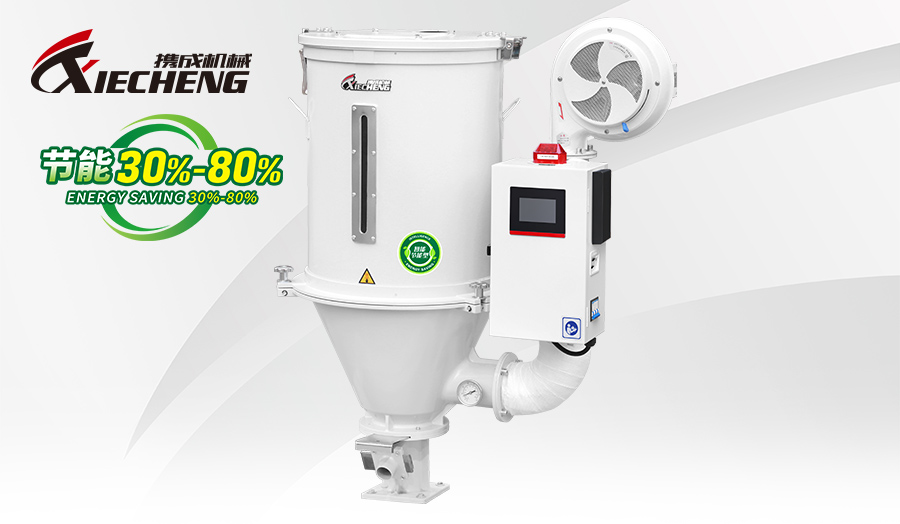

Highly efficient and energy-saving, compared with ordinary models, it can save 30%-80% of energy under the same working conditions;

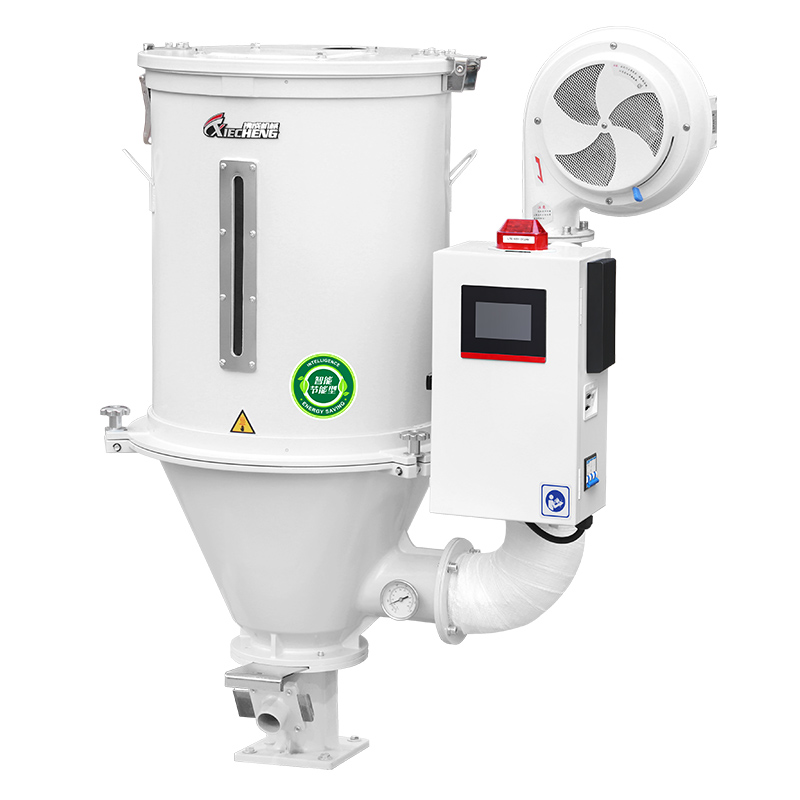

Adaptive function, the system automatically operate to adjust the air volume after setting the temperature;

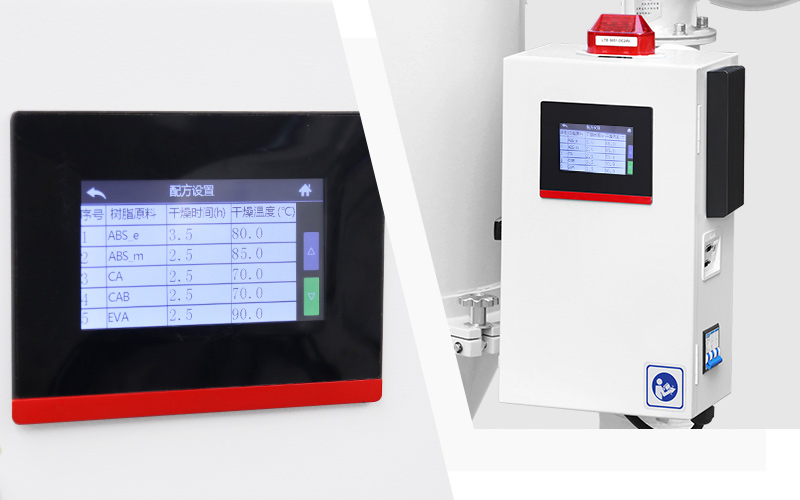

1. Adpoted PID controller, the 4.3-inch touch screen displays real-time working status;


2. Timing function for 24 hours and weekly setting to realize automatic running;

3. Equipped with communication functions to realize automated remote management.

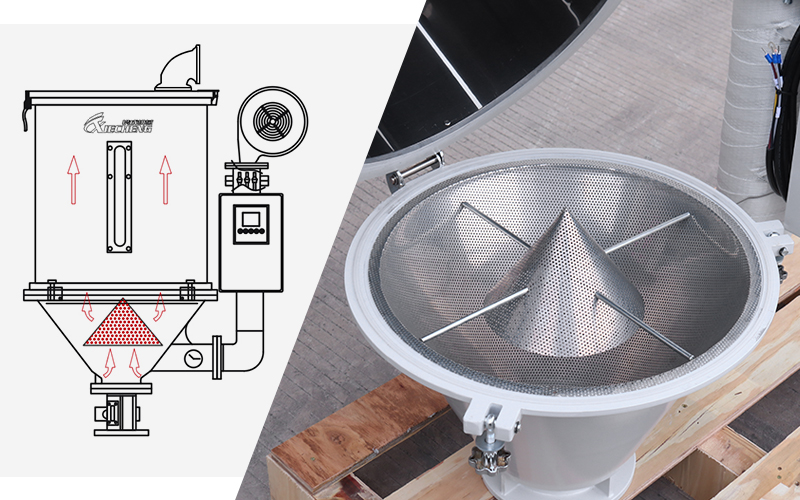

Adopting high-performance hot air diffusion device design to ensure uniform temperature and improve drying efficiency;





Specifications

Model

Capacity

(kg)

Heating Power

(KW)

Blower

(W)

Dimensions(mm)

H*H2*H3*H4*∅A*W

Base Size

W1*∅B*W2*∅E*∅D*∅C(mm)

Approx. Net Weight(kg)

XC-G12KG

-ECH

12

2.3

75

863x322x448

x107x327x677

108x107x42.5x73.5

x130x104x10

22

XC-G25KG

-ECH

25

3.5

135

978x399x443

x159x387x726

150x159x61.5x99

x170x140x12

34

XC-G50KG

-ECH

50

5

135

1153x474x543

x157x462x835

158x157x74x113

x199x160x12

45

XC-G75KG

-ECH

75

6

180

1254x470x648

x157x535x905

158x157x74x113

x199x160x12

56

XC-G100KG

-ECH

100

7

215

1320x536x648

x173x602x1006

177x173x81x134

x230x189.5x12

68

XC-G150KG

-ECH

150

10

320

1537x525x848

x173x640x1077

177x173x81x134

x230x189.5x12

78

XC-G200KG

-ECH

200

12

320

1725x607x933

x192x747x1229

230x192x110x148.5

x250x210x14

110

XC-G300KG

-ECH

300

15

320

1899x656x1058

x194x815x1273

230x194x110x180.3

x295x255x14

150

XC-G400KG

-ECH

400

18

410

1936x713x1038

x205x900x1351

280x205x119x180.3

x310x255x16

170

XC-G600KG

-ECH

600

24

1030

2355x815x1298

x245x1050x1557

280x245x135x198

x320x280x16

200
