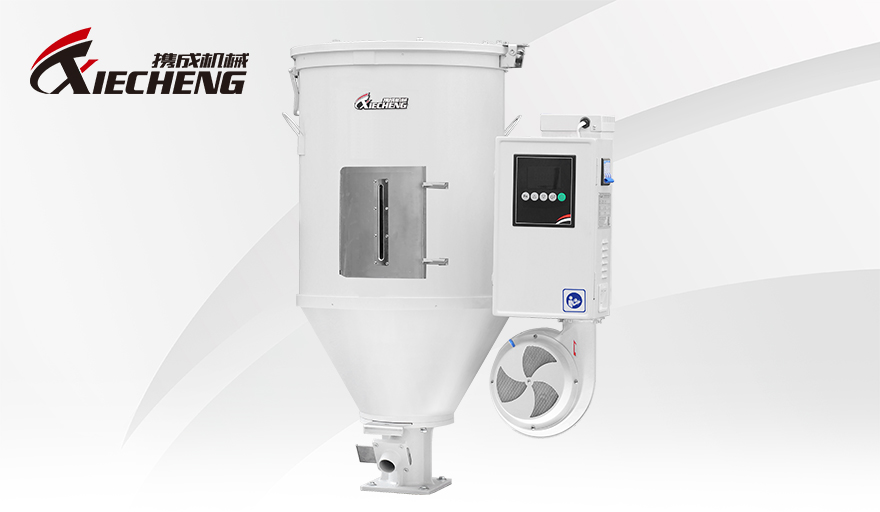

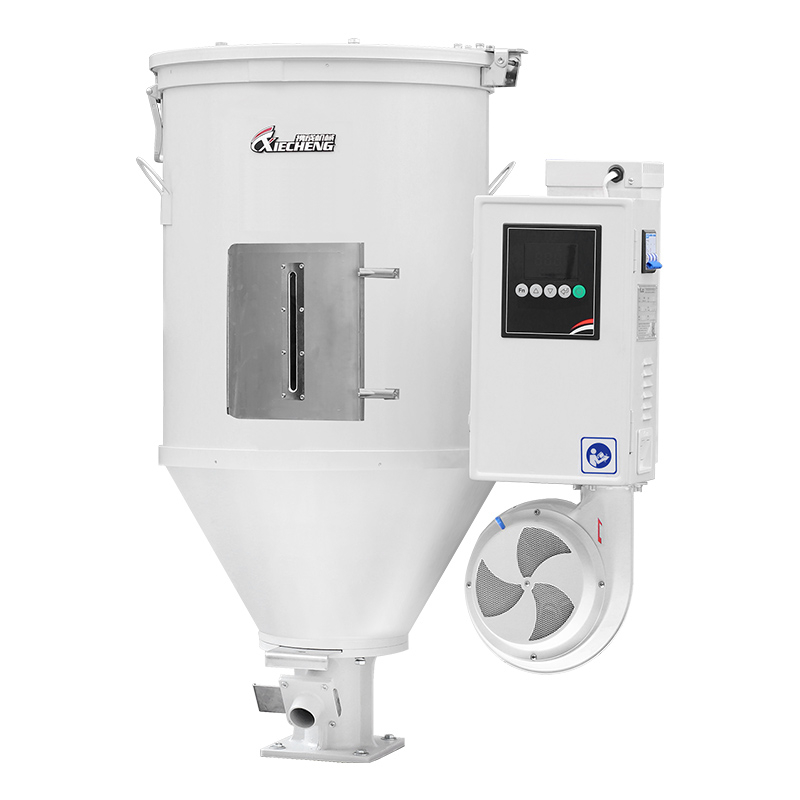

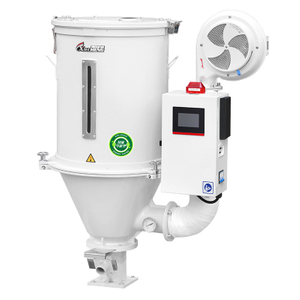

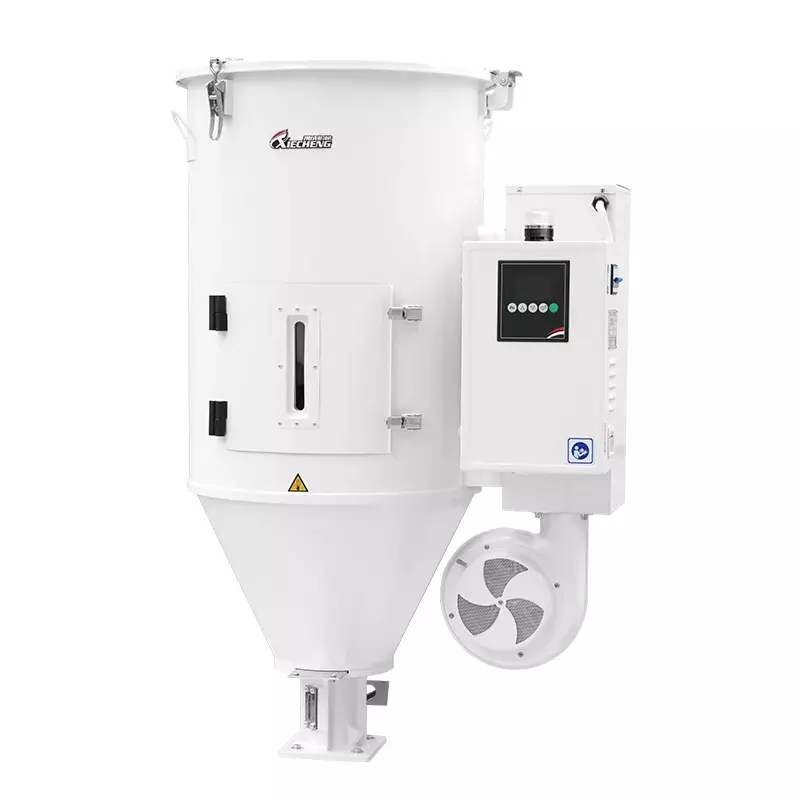

High Efficiency and Energy Saving Hopper Dryer
High Efficiency and Energy Saving Hopper Dryer is designed for drying non-hygroscopic plastic materials such as PP, PS and ABS. With a maximum drying temperature of 160°C, it features an optimized hot-air diffusion structure to promote uniform heating and reduce inefficient heating. Optional double-layer insulation helps reduce heat loss. The dryer also features over-temperature trip protection and supports optional accessories, including a hot-air recovery system, magnetic grid and floor stand for floor-mounted installation.
|
3 New Upgrade Beyond Traditional Drying
| Feature | Conventional Hopper Dryer | Energy-Efficient Hopper Dryer |
| Energy Efficiency | Conventional direct hot-air blowing may result in uneven heat distribution. | A specially designed hot-air diffusion structure improves heat distribution and reduces inefficient heating for more energy-efficient operation. |
| Thermal Insulation | Single-layer construction allows more heat to escape. | Optional double-layer insulation helps reduce heat loss. |
| Safety Protectio | Over-temperature power cutoff may be unavailable or limited, depending on the model. | Over-temperature trip protection automatically cuts off the power supply when the temperature exceeds the preset deviation limit. |
|
Highlights of the Product
01 High Efficiency and Energy Saving

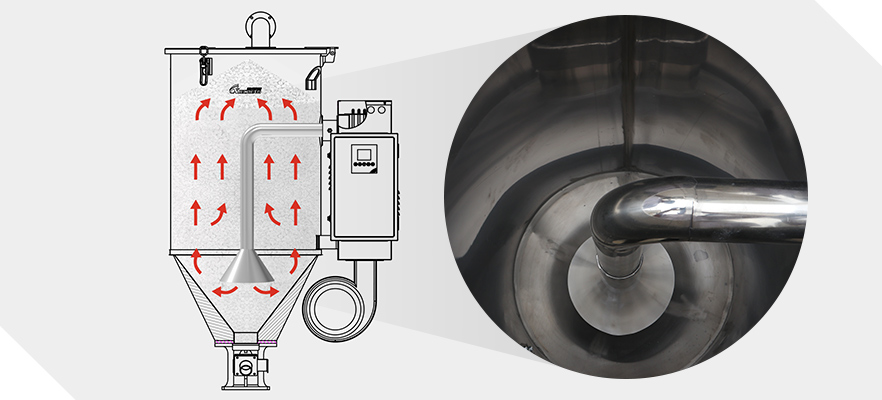

The Energy-Efficient Hopper Dryer operates at drying temperatures of up to 160°C. Its bottom-mounted fan and specially designed hot-air diffusion structure promote uniform heating throughout the material in the hopper. This design helps reduce airflow resistance and uneven heating, improving drying efficiency.
![High Efficiency]( "High Efficiency")
02 Efficient Insulation and Uniform Drying
The heating chamber is available with optional double-layer insulation to help reduce heat loss and prevent overheating. The bottom-mounted fan delivers hot air upward through the material. Compared with conventional top-mounted fan designs, this arrangement provides stronger heat penetration and helps reduce areas where drying may be uneven. The hopper body and internal components are made of stainless steel to help prevent material contamination；
![High Efficiency]( "High Efficiency")

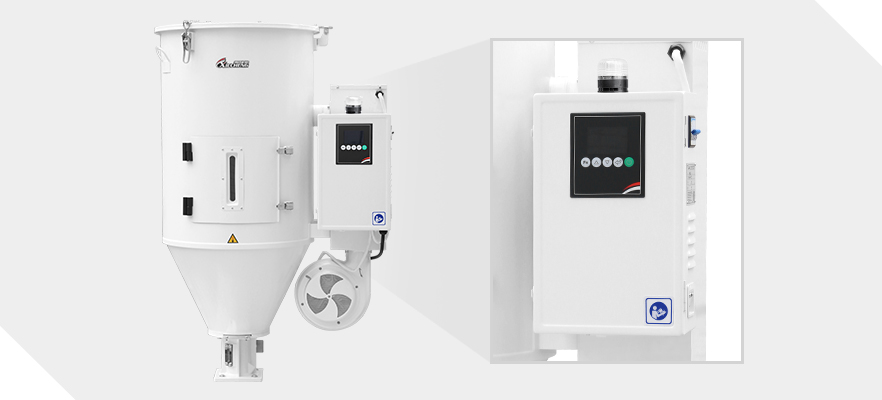

03 Simple, safety and easy to use.

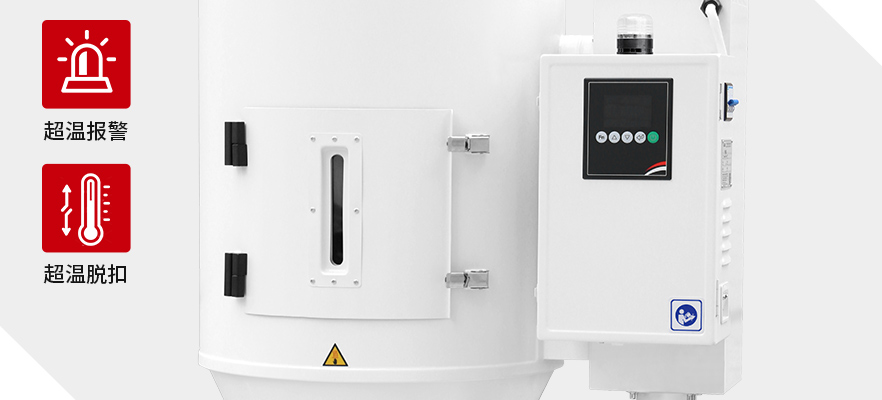

The dryer features a microcomputer controller with an LCD display and temperature control accuracy of up to ±0.1°C. ·24-Hour Weekly Timer: Supports scheduled operation throughout the week. ·Over-Temperature Trip Protection: Automatically cuts off the power supply when the temperature exceeds the preset deviation limit.。
![High Efficiency]( "High Efficiency")

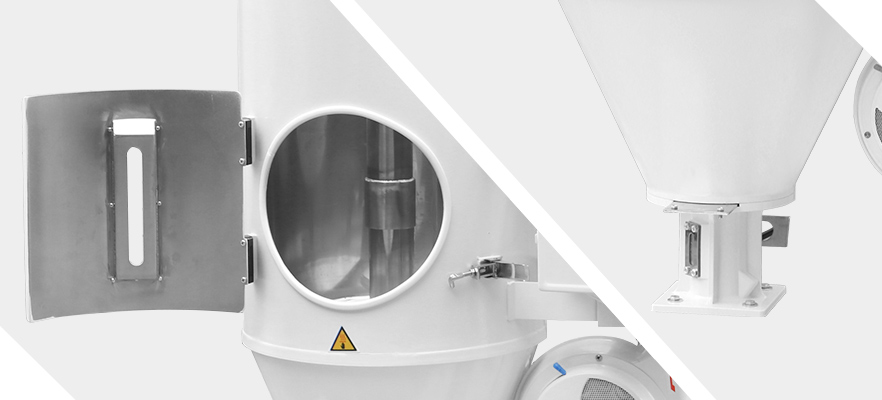

04 Easy access and quick clean down
A dedicated cleaning door and user-friendly sliding discharge door make cleaning and material changeovers more convenient. The viewing window allows operators to check the material level inside the hopper.
![High Efficiency]( "High Efficiency")
05 Industry 4.0 Connectivity

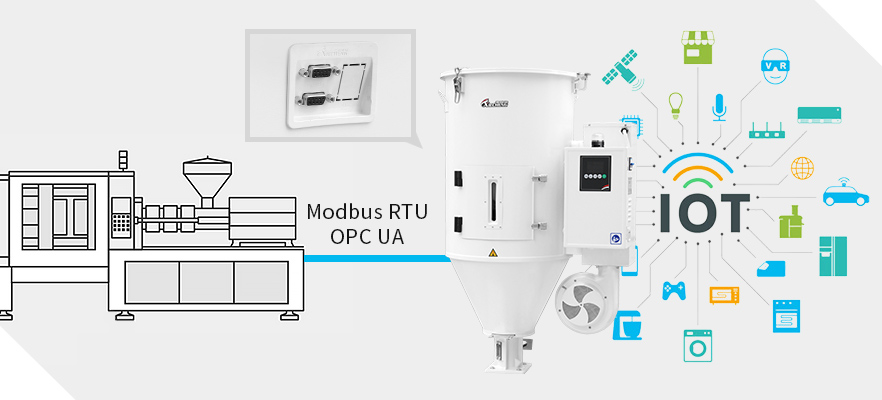

RS-485 (Modbus) communication interface is compatible with various factory visualization and monitoring systems, enabling remote monitoring.
![High Efficiency]( "High Efficiency")
| model | Capacity (kg) | Heating (KW) | Blower(W) | Dimension(mm) | Base size | approx .Netweight (kg) |
| H | H3 | H4 | ∅A | W | W1 | ∅B | ∅E | ∅D | ∅C |
XC-GHE 50KG | 50 | 5 | 170 | 1075 | 640 | 157 | 462 | 710 | 158 | 76 | 199 | 160 | 12 | 45 |
XC-GHE 75KG | 75 | 6 | 185 | 1345 | 910 | 157 | 462 | 710 | 158 | 76 | 199 | 160 | 12 | 56 |
XC-GHE 100KG | 100 | 7 | 200 | 1410 | 750 | 173 | 602 | 870 | 177 | 89 | 230 | 190 | 12 | 68 |
XC-GHE 150KG | 150 | 10 | 350 | 1710 | 1050 | 173 | 602 | 1006 | 200 | 89 | 230 | 190 | 12 | 78 |
XC-GHE 200KG | 200 | 12 | 350 | 1425 | 800 | 192 | 747 | 1047 | 230 | 110 | 250 | 210 | 14 | 110 |
XC-GHE 300KG | 300 | 15 | 350 | 1775 | 1150 | 192 | 747 | 1047 | 230 | 110 | 250 | 210 | 14 | 150 |
XC-GHE 400KG | 400 | 18 | 450 | 1773 | 1050 | 205 | 900 | 1200 | 280 | 119 | 310 | 255 | 16 | 170 |
XC-GHE 600KG | 600 | 24 | 1030 | 2273 | 1590 | 245 | 900 | 1230 | 280 | 135 | 320 | 280 | 16 | 200 |
